Core: broadlink integration error
The problem
I tried to use new integration for my broadlink remote (rm_pro_phicom), it worked with custom components without problems,
with new integration it fails and doesn't create new entity.
Environment
- Home Assistant Core release with the issue: 0.115
- Last working Home Assistant Core release (if known): 0.114
- Operating environment (OS/Container/Supervised/Core): Core
- Integration causing this issue: Broadlink
- Link to integration documentation on our website: https://www.home-assistant.io/integrations/broadlink
Problem-relevant configuration.yaml
Traceback/Error logs
Logger: homeassistant.config_entries
Source: components/broadlink/updater.py:29
First occurred: 20:41:02 (2 occurrences)
Last logged: 20:42:44
Error setting up entry despacho_remote for broadlink
Error setting up entry remote_despacho for broadlink
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/config_entries.py", line 228, in async_setup
result = await component.async_setup_entry(hass, self) # type: ignore
File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 28, in async_setup_entry
return await device.async_setup()
File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 97, in async_setup
update_manager = get_update_manager(self)
File "/usr/src/homeassistant/homeassistant/components/broadlink/updater.py", line 29, in get_update_manager
return update_managers[device.api.type](device)
KeyError: 'Unknown'
Additional information
neotrunks
All 169 comments
Same thing happens with rm_mini3_newblackbean, no entity is created . It`s connect fine to the old rm_mini3 .
dexterddit
on 17 Sep 2020
same issue here rm_mini_3 no entity created this shows in logs.
ERROR (MainThread) [homeassistant.components.broadlink.updater] Error fetching device data: The device storage is full
rumney909
on 17 Sep 2020
same here:
Logger: homeassistant.components.broadlink
Source: components/broadlink/config_flow.py:100
Integration: Broadlink (documentation, issues)
First occurred: 22:59:27 (1 occurrences)
Last logged: 22:59:27
Failed to connect to the device at 10.0.0.x: Invalid host for this configuration flow. The MAC address should be xx:xx:xx:xx:xx:xx, but xx:xx:xx:xx:xx:xx was given
and
Logger: aiohttp.server
Source: components/broadlink/config_flow.py:47
First occurred: 22:57:33 (3 occurrences)
Last logged: 23:07:24
Error handling request
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_protocol.py", line 418, in start
resp = await task
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_app.py", line 458, in _handle
resp = await handler(request)
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_middlewares.py", line 119, in impl
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/request_context.py", line 18, in request_context_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/ban.py", line 72, in ban_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/auth.py", line 127, in auth_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/view.py", line 129, in handle
result = await result
File "/usr/src/homeassistant/homeassistant/components/config/config_entries.py", line 169, in post
return await super().post(request, flow_id)
File "/usr/src/homeassistant/homeassistant/components/http/data_validator.py", line 60, in wrapper
result = await method(view, request, args, *kwargs)
File "/usr/src/homeassistant/homeassistant/helpers/data_entry_flow.py", line 106, in post
result = await self._flow_mgr.async_configure(flow_id, data)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 156, in async_configure
result = await self._async_handle_step(flow, cur_step["step_id"], user_input)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 204, in _async_handle_step
result: Dict = await getattr(flow, method)(user_input)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 82, in async_step_user
await self.async_set_device(device)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 47, in async_set_device
"model": device.model,
AttributeError: 'rm4' object has no attribute 'model'
joten75
on 17 Sep 2020
broadlink documentation
broadlink source
(message by IssueLinks)
![probot-home-assistant[bot] picture](https://avatars2.githubusercontent.com/in/36093?v=4&s=40)
probot-home-assistant[bot]
on 18 Sep 2020
Hey there @danielhiversen, @felipediel, mind taking a look at this issue as its been labeled with an integration (broadlink) you are listed as a codeowner for? Thanks!
(message by CodeOwnersMention)
probot-home-assistant[bot]
on 18 Sep 2020
The new Blackbean will be solved with https://github.com/home-assistant/core/pull/39228.
felipediel
on 18 Sep 2020
@neotrunks Please open a terminal on your computer, install the python-broadlink library (pip install broadlink), open Python 3 and type:
import broadlink as blk
devs = blk.discover(timeout=5)
print([(d.host[0], hex(d.devtype)) for d in devs])
devs = blk.discover(discover_ip_address="192.168.0.17", timeout=5) # Your device IP address
print([(d.host[0], hex(d.devtype)) for d in devs])
What is the output?
felipediel
on 18 Sep 2020
@joten75 Once you choose a device for the configuration flow, you can no longer change it. You need to start a new configuration flow if you want to change it. This is not a bug.
The second error is still obscure to me. Do you have any other clues? What were you doing (step by step) when this error appeared?
felipediel
on 18 Sep 2020
@neotrunks Please consider sending me your device type soon, or we will miss the next release.
felipediel
on 18 Sep 2020
@felipediel
These are the devices I have in my HA.
RM4 Pro -> 0x6026
RM Mini 3 -> 0x5f36
duceduc
on 18 Sep 2020
0x6026 is working, right?
felipediel
on 18 Sep 2020
@felipediel
i have the same problem this is the output python
[('192.168.10.101', '0x649b')]
it's RM4Pro
spiro-c
on 18 Sep 2020
@spiro-c Thank you! We will support this device soon.
felipediel
on 18 Sep 2020
0x6026 is working, right?
Yes, but not all my ir codes are showing up. Will need to look into that further when I get the chance.
duceduc
on 18 Sep 2020
Ok. Please read the docs first, we changed a lot of things.
felipediel
on 18 Sep 2020
Post retracted.
Never mind. Not an accurate list.
duceduc
on 18 Sep 2020
@neotrunks Please open a terminal on your computer, install the python-broadlink library (
pip install broadlink), open Python 3 and type:import broadlink as blk devs = blk.discover(timeout=5) print([(d.host[0], hex(d.devtype)) for d in devs]) devs = blk.discover(discover_ip_address="192.168.0.17", timeout=5) # Your device IP address print([(d.host[0], hex(d.devtype)) for d in devs])What is the output?
[('192.168.0.136', '0x27c3')]
neotrunks
on 18 Sep 2020
@neotrunks Thank you! Your device will be supported soon.
felipediel
on 18 Sep 2020
@felipediel i
I just tried to add a device broadlink in the ui :click on the plus sign, select broadlink, insert the ip of the broadlink then unkwno error show up and in the log the message . could it be because i have more than one broadlink?
Obviously I have deleted all the configuration in the yaml except the switch.
joten75
on 18 Sep 2020
No. Please send me your device types so I can check.
felipediel
on 18 Sep 2020
type: rm_mini3_newblackbean
in the log of the error they show:
Failed to connect to the device at 10.0.0.5: Invalid host for this configuration flow. The MAC address should be 56:fd:5a:77:0f:78, but c1:17:d6:a7:df:24 was given
the second mac was the rigth one but with inverse order they must be 24:df:a7:d6:17:c1
joten75
on 18 Sep 2020
@joten75 RM mini 3 new Blackbean (0x5f36) will be supported after this patch.
felipediel
on 18 Sep 2020
Thanks for all this work @felipediel. I think you already have my device in your PR, but I ran your code to get the info to be sure.
[('192.168.1.99', '0x5f36'), ('192.168.1.96', '0x5f36')]
You commented as I was checking!
Thanks!
pavoni
on 18 Sep 2020
thank @felipediel i very appreciate your help.
so i wait for the mini 3 but even the rm2 pro dont'work? i've this when try to add to config:
Logger: aiohttp.server
Source: components/broadlink/config_flow.py:47
First occurred: 11:54:00 (1 occurrences)
Last logged: 11:54:00
Error handling request
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_protocol.py", line 418, in start
resp = await task
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_app.py", line 458, in _handle
resp = await handler(request)
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_middlewares.py", line 119, in impl
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/request_context.py", line 18, in request_context_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/ban.py", line 72, in ban_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/auth.py", line 127, in auth_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/view.py", line 129, in handle
result = await result
File "/usr/src/homeassistant/homeassistant/components/config/config_entries.py", line 169, in post
return await super().post(request, flow_id)
File "/usr/src/homeassistant/homeassistant/components/http/data_validator.py", line 60, in wrapper
result = await method(view, request, args, *kwargs)
File "/usr/src/homeassistant/homeassistant/helpers/data_entry_flow.py", line 106, in post
result = await self._flow_mgr.async_configure(flow_id, data)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 156, in async_configure
result = await self._async_handle_step(flow, cur_step["step_id"], user_input)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 204, in _async_handle_step
result: Dict = await getattr(flow, method)(user_input)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 82, in async_step_user
await self.async_set_device(device)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 47, in async_set_device
"model": device.model,
AttributeError: 'rm' object has no attribute 'model'
joten75
on 18 Sep 2020
@joten75 I need to see the types (represented in hex). This is how you get them: https://github.com/home-assistant/core/issues/40191#issuecomment-694532131
felipediel
on 18 Sep 2020
@joten75 I need to see the types (represented in hex). This is how you get them: #40191 (comment)
Im using Windows 10, how to do it?
My RM Pro PLUS have error when update to 115
Here, my log
Kayden919
on 18 Sep 2020
We made a recent update to implement a configuration flow for these devices.
From now on they will be configured automatically. But for this to happen, the device needs to be here.
You see those hex keys? These are the device types. You need to send me your type. Here is a how to.

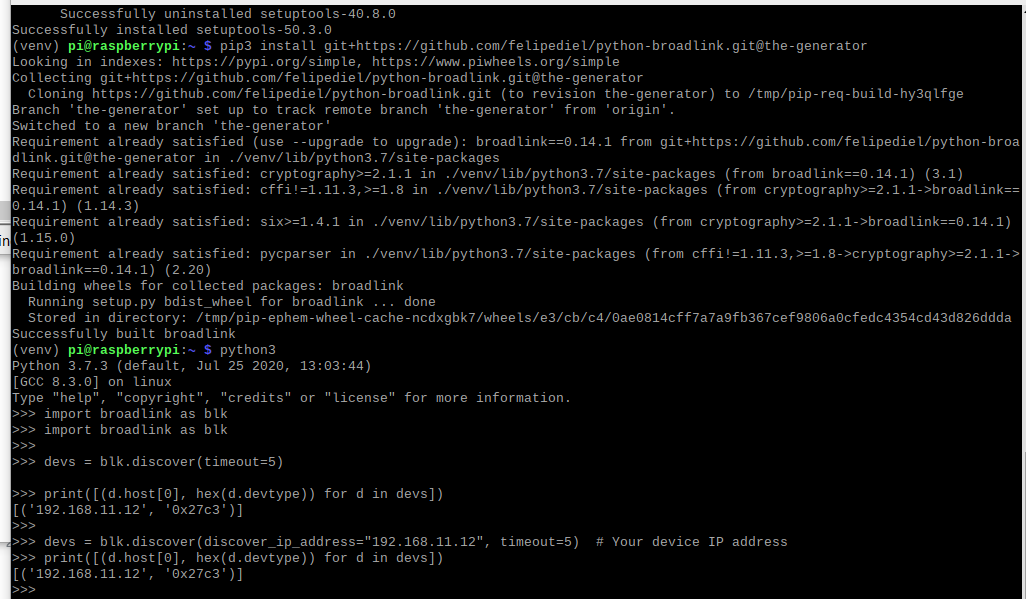

How do I find my device type?
- Install Python 3
- Open a terminal, go to your tests folder, create a venv and install python-broadlink.
If you already have python-broadlink installed, you can skip this step.
python3 -m venv venv
source venv/bin/activate
pip3 install broadlink
Now open Python 3:
python3
Then you can try these things to get your type:
import broadlink as blk
## Discover devices. If your device is locked, it won't be discovered.
devs = blk.discover(timeout=5)
print([(d.host[0], hex(d.devtype)) for d in devs])
## Say hello to the device. It will respond even if it is locked.
devs = blk.discover(discover_ip_address="192.168.0.17", timeout=5) # Your device IP address
print([(d.host[0], hex(d.devtype)) for d in devs])
If you need more detailed instructions, call tech support.
felipediel
on 18 Sep 2020
You are being tortured due to the lack of a decent error message that shows the unsupported type. I will improve this soon. I will also consider adding a manual step to the config flow. But for now, please be proactive, if it is not working, please find your type and send me so I can add it to the library and make it compatible with discover() soon.
Things had to get worse before getting better, hope you guys understand.
felipediel
on 18 Sep 2020
Looks like this has already been added, but here is mine: ('192.168.1.60', '0x279d')
Is there a way to manually add the missing device types till they can be included in a future release?
Haloooch
on 18 Sep 2020
Yes, but it is hackish, you should not do it. I will implement this for normal people soon.
felipediel
on 18 Sep 2020
螚i, I can not connect my RM 3 mini also. Will there be a fix for them?
userMak
on 18 Sep 2020
We made a recent update to implement a configuration flow for these devices.
From now on they will be configured automatically. But for this to happen, the device needs to be here.
You see those hex keys? They are the device types. You need to send me your type. Here is a how to.
How do I find my device type?
- Install Python 3
- Open a terminal, go to your tests folder, create a venv and install python-broadlink.
If you already have python-broadlink installed, you can skip this step.python3 -m venv venv source venv/bin/activate pip3 install broadlinkNow open Python 3:
python3Then you can try these things to get your type:
import broadlink as blk ## Discover devices. If your device is locked, it won't be discovered. devs = blk.discover(timeout=5) print([(d.host[0], hex(d.devtype)) for d in devs]) ## Say hello to the device. It will respond even if it is locked. devs = blk.discover(discover_ip_address="192.168.0.17", timeout=5) # Your device IP address print([(d.host[0], hex(d.devtype)) for d in devs])If you need more detailed instructions, call tech support.
Can help me detail info? Where is
" 2. Open a terminal, go to your tests folder, create a venv and install python-broadlink.
If you already have python-broadlink installed, you can skip this step."
How can i go test folder?
Kayden919
on 18 Sep 2020
Any folder.
felipediel
on 18 Sep 2020
Any folder.
Sorry, but i cant do your guide, can explain me detail? Thank you
Kayden919
on 18 Sep 2020
In the next update your device type will appear in the logs.
felipediel
on 18 Sep 2020
Hi,
I have RM4 Pro -> 0x6026
when i try to install integration, in my logs show me this:
Logger: aiohttp.server
Source: components/broadlink/config_flow.py:47
First occurred: 17:55:21 (1 occurrences)
Last logged: 17:55:21
Error handling request
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_protocol.py", line 418, in start
resp = await task
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_app.py", line 458, in _handle
resp = await handler(request)
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_middlewares.py", line 119, in impl
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/request_context.py", line 18, in request_context_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/ban.py", line 72, in ban_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/auth.py", line 127, in auth_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/view.py", line 129, in handle
result = await result
File "/usr/src/homeassistant/homeassistant/components/config/config_entries.py", line 169, in post
return await super().post(request, flow_id)
File "/usr/src/homeassistant/homeassistant/components/http/data_validator.py", line 60, in wrapper
result = await method(view, request, args, *kwargs)
File "/usr/src/homeassistant/homeassistant/helpers/data_entry_flow.py", line 106, in post
result = await self._flow_mgr.async_configure(flow_id, data)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 156, in async_configure
result = await self._async_handle_step(flow, cur_step["step_id"], user_input)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 204, in _async_handle_step
result: Dict = await getattr(flow, method)(user_input)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 82, in async_step_user
await self.async_set_device(device)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 47, in async_set_device
"model": device.model,
AttributeError: 'rm4' object has no attribute 'model'
Do you have some solution for this??
djhalun
on 18 Sep 2020
@joten75 I need to see the types (represented in hex). This is how you get them: #40191 (comment)
RM2 Pro Plus 0x272a;
joten75
on 18 Sep 2020
RM4 Pro ('192.168.1.228', '0x6026')
djhalun
on 18 Sep 2020
Here are mine :
[('x.x.x.x', '0x5f36')] - rm mini 3 - newbleackbean
[('x.x.x.x', '0x2737')] -rm mini 3
dexterddit
on 18 Sep 2020
@felipediel I have a Broadlink RM4C Mini, on the earlier version it would only work if it's not connected to the broadlink cloud (that method to connect but not add to a room in broadlink app). I've seen this is not anymore on the Home Assistant Broadlink Integration page.. Does it works when connected to the broadlink app now? Thanks!
rcojr
on 18 Sep 2020
@felipediel, Not working for me too. Here my grain of sand:
[('x.x.x.x, '0x279d')] -> RM pro +
MYKSelf
on 18 Sep 2020
@felipediel here is mine
[('192.168.xx.xx', '0x2712')] - RM Pro
[('192.168.xx.xx', '0x2714')] - A1
IamMikl
on 18 Sep 2020
@felipediel Thank you for your work on this upgrade. All my Ankuoo NEO Switches stopped working, please add to the code.
Formerly used SP2 in configuration. Thanks
Ankuoo NEO Pro (shows wattage) 0x2716
Ankuoo NEO (no wattage) 0x2717
tottka
on 18 Sep 2020
I am on 115.1 and cannot connect to a rm mini3 red bean.
Logger: homeassistant.components.broadlink
Source: components/broadlink/config_flow.py:100
Integration: Broadlink (documentation, issues)
First occurred: 2:22:50 PM (1 occurrences)
Last logged: 2:22:50 PM
Failed to connect to the device at 192.168.1.110: Device not found
I have 3 old rm mini's and a pro2 that work fine.
Madseason41
on 18 Sep 2020
hi,
I write just in case it can help someone else with my problem. I have a thermostat fluoreon component based on broadlink, and until I deactivated it too from configuration.yaml the integration via ui failed. So you have to deactivate all components that have a reference to the broadlink, restart, configure via ui and then reactivate the various components.
thank a lot for you help @felipediel
joten75
on 18 Sep 2020
import broadlink as blk
devs = blk.discover(timeout=5)
print([(d.host[0], hex(d.devtype)) for d in devs])
[]
devs = blk.discover(discover_ip_address="192.168.4.166", timeout=5)
print([(d.host[0], hex(d.devtype)) for d in devs])
[]
=======
I have no devices, but for HA 114.4 they are visible, maybe I need to turn on some descocery protocol on router ?
nick2525
on 18 Sep 2020
@joten75 Thanks for informing about this. We have no control over custom components so these things are really difficult to debug. So was that second error message being caused by this? What is the name of the component?
felipediel
on 18 Sep 2020
@tottka Thank you! What is the official app that should be used to control these devices? Can you discover them with Broadlink app?
felipediel
on 18 Sep 2020
I was using the NEO app from the play store until a few weeks ago when they updated the app and they stopped working. Now I am using CHACON again from the play store
tottka
on 18 Sep 2020
Hi. I'm very happy that you are working hard on this integration because I have many problems regarding Rm4 pro and RF learning command. I'm not a developer so, for me python instructions ar not clear. I put wifi on rm4 pro via broadlink app and setup this on home assistant. For IR code work fine. I have integration with smartIr and also try to learn IR signals from TV and Fujitsu climate remote. That's good and I have file "broadlink_remote_24dfa7e476b7_codes" whit codes.
Unfortunatelly, for RF, that's is not possible. I tried to setup a CAME gate remote control via three different remote (two original and one cloned from first) whitout any code learned.
How's wrong?
Could I ask if you explain step by step the python way (I'm activated the pip package....)
Thank you very much.
Daniele
danros3
on 18 Sep 2020
@danros3 Forget about those instructions and update Home Assistant to 0.115.1. Your unsupported device types will appear in the logs. RF learning is not supported yet, you need to wait for this.
Basic flow for solving issues and contributing with device types
Do I have a problem to configure the device via Integrations?
- No: Do not send me your device type, we already have it.
- Yes: Proceed.
Do you see your device here or here?
- Yes: Do not send me your device type, we already have it.
- No: Proceed.
Did you update to 0.105.1 and got an error message "Unsupported type: YOUR_DEVICE_TYPE"
- Yes: Please send me your device type. We need this to implement device discovery and MAC tracking.
- No: Check if this is really the problem. We changed a lot of things recently, so please read to docs to adapt your config. We are also dealing with an addressing issue for VPN users or those who have multiple network interfaces. All of these problems are being addressed. For now, disabling VPN while configuring the device on the Integrations page may help.
Edit: I think the patch with the error message was not released yet. Sorry.
felipediel
on 19 Sep 2020
Hi,
I have RM4 Pro -> 0x6026
when i try to install integration, in my logs show me this:
Logger: aiohttp.server
Source: components/broadlink/config_flow.py:47
First occurred: 17:55:21 (1 occurrences)
Last logged: 17:55:21Error handling request
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_protocol.py", line 418, in start
resp = await task
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_app.py", line 458, in _handle
resp = await handler(request)
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_middlewares.py", line 119, in impl
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/request_context.py", line 18, in request_context_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/ban.py", line 72, in ban_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/auth.py", line 127, in auth_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/view.py", line 129, in handle
result = await result
File "/usr/src/homeassistant/homeassistant/components/config/config_entries.py", line 169, in post
return await super().post(request, flow_id)
File "/usr/src/homeassistant/homeassistant/components/http/data_validator.py", line 60, in wrapper
result = await method(view, request, args, *kwargs)
File "/usr/src/homeassistant/homeassistant/helpers/data_entry_flow.py", line 106, in post
result = await self._flow_mgr.async_configure(flow_id, data)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 156, in async_configure
result = await self._async_handle_step(flow, cur_step["step_id"], user_input)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 204, in _async_handle_step
result: Dict = await getattr(flow, method)(user_input)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 82, in async_step_user
await self.async_set_device(device)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 47, in async_set_device
"model": device.model,
AttributeError: 'rm4' object has no attribute 'model'Do you have some solution for this??
@djhalun Could you please try this and see if it works for you?
felipediel
on 19 Sep 2020
@felipediel I have a Broadlink RM4C Mini, on the earlier version it would only work if it's not connected to the broadlink cloud (that method to connect but not add to a room in broadlink app). I've seen this is not anymore on the Home Assistant Broadlink Integration page.. Does it works when connected to the broadlink app now? Thanks!
@rcojr I did some experiments and I can make them work together, but I won't give any priority to this. My next steps are: solve issues, implement device discovery, MAC tracking and RF learning.
felipediel
on 19 Sep 2020
@felipediel here is mine:
[('192.168.xx.xx', '0x649b')] - RM4 Pro
[('192.168.xx.xx', '0x648d')] - RM4 Mini
Thanks!
FCKotze
on 19 Sep 2020
@felipediel here is mine:
[('192.168.xx.xx', '0x649b')] - RM4 Pro
[('192.168.xx.xx', '0x648d')] - RM4 MiniThanks!
How do you get a Hex? Can you guide me?
Kayden919
on 19 Sep 2020
Hi,
I have RM4 Pro -> 0x6026
when i try to install integration, in my logs show me this:
Logger: aiohttp.server
Source: components/broadlink/config_flow.py:47
First occurred: 17:55:21 (1 occurrences)
Last logged: 17:55:21
Error handling request
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_protocol.py", line 418, in start
resp = await task
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_app.py", line 458, in _handle
resp = await handler(request)
File "/usr/local/lib/python3.8/site-packages/aiohttp/web_middlewares.py", line 119, in impl
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/request_context.py", line 18, in request_context_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/ban.py", line 72, in ban_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/auth.py", line 127, in auth_middleware
return await handler(request)
File "/usr/src/homeassistant/homeassistant/components/http/view.py", line 129, in handle
result = await result
File "/usr/src/homeassistant/homeassistant/components/config/config_entries.py", line 169, in post
return await super().post(request, flow_id)
File "/usr/src/homeassistant/homeassistant/components/http/data_validator.py", line 60, in wrapper
result = await method(view, request, args, *kwargs)
File "/usr/src/homeassistant/homeassistant/helpers/data_entry_flow.py", line 106, in post
result = await self._flow_mgr.async_configure(flow_id, data)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 156, in async_configure
result = await self._async_handle_step(flow, cur_step["step_id"], user_input)
File "/usr/src/homeassistant/homeassistant/data_entry_flow.py", line 204, in _async_handle_step
result: Dict = await getattr(flow, method)(user_input)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 82, in async_step_user
await self.async_set_device(device)
File "/usr/src/homeassistant/homeassistant/components/broadlink/config_flow.py", line 47, in async_set_device
"model": device.model,
AttributeError: 'rm4' object has no attribute 'model'
Do you have some solution for this??@djhalun Could you please try this and see if it works for you?
Yes, this was solution for my problem. Thx very much for your help.
djhalun
on 19 Sep 2020
@joten75 Thanks for informing about this. We have no control over custom components so these things are really difficult to debug. So was that second error message being caused by this? What is the name of the component?
yes, the second error disappear when i deactivate the floureon thermostat component, it's a component based on broadlink. So i think you must warning about this too, every component o configuration in yaml which have a relation whit
broadlink must be deactivate . 馃憤
joten75
on 19 Sep 2020
Here is the cause: https://github.com/algirdasc/hass-floureon/blob/master/custom_components/floureon/manifest.json. They need to update the manifest to broadlink==0.14.1 at least. You can test manually updating the manifest if you want to use both.
felipediel
on 19 Sep 2020
Is it possible the following issue I鈥檝e opened is related to this on?
issue 40287
Amir974
on 19 Sep 2020
@felipediel Here is the cause: https://github.com/algirdasc/hass-floureon/blob/master/custom_components/floureon/manifest.json. They need to update the manifest to broadlink==0.14.1 at least. You can test manually updating the manifest if you want to use both.
Yep, That was my problem. I've manually changed the manifest.json file and, after restarting Home Assistant, it was detected perfectly:
{
"domain": "floureon",
"name": "Floureon Thermostat",
"documentation": "https://github.com/algirdasc/hass-floureon",
"dependencies": [],
"codeowners": ["@algirdasc"],
"issue_tracker": "https://github.com/algirdasc/hass-floureon/issues",
"requirements": ["pythoncrc", "broadlink==0.14.1"]
}
Maybe @algirdasc can take a look at this 馃憤
MYKSelf
on 19 Sep 2020
@felipediel here is mine:
[('192.168.xx.xx', '0x27d0')] - RM mini 3
no entity be created
Thank you very very much for your work hard...
Logger: homeassistant.config_entries
Source: components/broadlink/updater.py:24
First occurred: 涓婂崍6:02:18 (3 occurrences)
Last logged: 涓婂崍7:02:30
Error setting up entry rm3 for broadlink
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/config_entries.py", line 228, in async_setup
result = await component.async_setup_entry(hass, self) # type: ignore
File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 28, in async_setup_entry
return await device.async_setup()
File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 97, in async_setup
update_manager = get_update_manager(self)
File "/usr/src/homeassistant/homeassistant/components/broadlink/updater.py", line 24, in get_update_manager
if device.api.model.startswith("RM mini"):
AttributeError: 'NoneType' object has no attribute 'startswith'
DidibabaQiu
on 19 Sep 2020
To everyone with the floureon component, @algirdasc fixed the codebase. Just updated via HACS and all seems to be working ok :)
Thanks everyone for the help, and @felipediel for the integration! :)
MYKSelf
on 19 Sep 2020
@felipediel here is mine:
[('192.168.xx.xx', '0x27cd')] - RM mini 3
no entity be created
Logger: homeassistant.config_entries
Source: components/broadlink/updater.py:24
First occurred: 5:31:14 PM (1 occurrences)
Last logged: 5:31:14 PM
Error setting up entry rmmini3 for broadlink
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/config_entries.py", line 228, in async_setup
result = await component.async_setup_entry(hass, self) # type: ignore
File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 28, in async_setup_entry
return await device.async_setup()
File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 97, in async_setup
update_manager = get_update_manager(self)
File "/usr/src/homeassistant/homeassistant/components/broadlink/updater.py", line 24, in get_update_manager
if device.api.model.startswith("RM mini"):
AttributeError: 'NoneType' object has no attribute 'startswith'
Rain-ZG
on 19 Sep 2020
@Rain-ZG Thank you! We will support your device soon.
felipediel
on 19 Sep 2020
@spiro-c Thank you! We will support this device soon.
Hi @felipediel I too have the same device. Below is the error I receive after trying the integration. Does work with an rm3 mini i have though.
Logger: homeassistant.config_entries
Source: components/broadlink/updater.py:24
First occurred: 7:44:48 AM (1 occurrences)
Last logged: 7:44:48 AM
Error setting up entry RM4Pro for broadlink
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/config_entries.py", line 228, in async_setup
result = await component.async_setup_entry(hass, self) # type: ignore
File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 28, in async_setup_entry
return await device.async_setup()
File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 97, in async_setup
update_manager = get_update_manager(self)
File "/usr/src/homeassistant/homeassistant/components/broadlink/updater.py", line 24, in get_update_manager
if device.api.model.startswith("RM mini"):
AttributeError: 'NoneType' object has no attribute 'startswith'
burbuja1
on 19 Sep 2020
@spiro-c Thank you! We will support this device soon.
@spiro-c Thank you! We will support this device soon.
Hi @felipediel I have the same device as spiro-c and receive the following error.
Logger: homeassistant.config_entries
Source: components/broadlink/updater.py:24
First occurred: 7:44:48 AM (1 occurrences)
Last logged: 7:44:48 AM
Error setting up entry RM4Pro for broadlink
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/config_entries.py", line 228, in async_setup
result = await component.async_setup_entry(hass, self) # type: ignore
File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 28, in async_setup_entry
return await device.async_setup()
File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 97, in async_setup
update_manager = get_update_manager(self)
File "/usr/src/homeassistant/homeassistant/components/broadlink/updater.py", line 24, in get_update_manager
if device.api.model.startswith("RM mini"):
AttributeError: 'NoneType' object has no attribute 'startswith'
burbuja1
on 19 Sep 2020
@burbuja1 What is your device type? https://github.com/home-assistant/core/issues/40191#issuecomment-694804640
felipediel
on 19 Sep 2020
Hi @felipediel it's a 0x649b RM4 Pro. I checked my rm3 mini and that works.
burbuja1
on 19 Sep 2020
0x649b will be supported when we release this.
felipediel
on 19 Sep 2020
0x649b will be supported when we release this.
Thanks @felipediel! Legend!
burbuja1
on 20 Sep 2020
@felipediel after updating to 0.115.2 I'm still having an issue connecting my RM4 mini, when I add the device it now show's up as an unsupported device but my address(0x648d) is in the list.
Is this device yet to be supported or is there an error?
2020-09-19 23:20:10 ERROR (MainThread) [homeassistant.config_entries] Error setting up entry IR blaster for broadlink
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/config_entries.py", line 228, in async_setup
result = await component.async_setup_entry(hass, self) # type: ignore
File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 28, in async_setup_entry
return await device.async_setup()
File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 97, in async_setup
update_manager = get_update_manager(self)
File "/usr/src/homeassistant/homeassistant/components/broadlink/updater.py", line 24, in get_update_manager
if device.api.model.startswith("RM mini"):
Love your work!!
volzb
on 20 Sep 2020
Thank you! This update has not yet been released. It will be available soon.
felipediel
on 20 Sep 2020
after 0.115.2 i'm getting
AttributeError: 'rm' object has no attribute 'model'`
kuradi
on 20 Sep 2020
Are you using any custom component?
felipediel
on 20 Sep 2020
@neotrunks Please open a terminal on your computer, install the python-broadlink library (
pip install broadlink), open Python 3 and type:import broadlink as blk devs = blk.discover(timeout=5) print([(d.host[0], hex(d.devtype)) for d in devs]) devs = blk.discover(discover_ip_address="192.168.0.17", timeout=5) # Your device IP address print([(d.host[0], hex(d.devtype)) for d in devs])What is the output?
[('192.168.0.xxx', '0x2737')]
and
[('192.168.0.xxx', '0x2737')]
I'm not upgrading to the last firmware... with HA 113 it was working perfect.
When I try to integrate in configuration/integration/broadlink I get no error on GUI, but a "Device not found" on the console
martinezpenya
on 20 Sep 2020
Your device is supported. The error message comes from an outdated config file, probably. Please check the IP address.
felipediel
on 20 Sep 2020
Your device is supported. The error message comes from an outdated config file, probably. Please check the IP address.
- platform: broadlink
host: !secret rm_mini_3_despatx_ip
mac: !secret rm_mini_3_despatx_mac
where i'm getting the ip and mac from my secrets.yaml...
martinezpenya
on 20 Sep 2020
this is the console output:
2020-09-20 15:56:42 ERROR (MainThread) [homeassistant.components.broadlink] Failed to connect to the device at 192.168.0.168: Device not found
The GUI says in red: "Can't connect"
And from the ha docker console I get:
bash-5.0# ping 192.168.0.168
PING 192.168.0.168 (192.168.0.168): 56 data bytes
64 bytes from 192.168.0.168: seq=0 ttl=255 time=410.421 ms
64 bytes from 192.168.0.168: seq=1 ttl=255 time=3.124 ms
64 bytes from 192.168.0.168: seq=2 ttl=255 time=36.012 ms
64 bytes from 192.168.0.168: seq=3 ttl=255 time=8.024 ms
64 bytes from 192.168.0.168: seq=4 ttl=255 time=18.886 ms
64 bytes from 192.168.0.168: seq=5 ttl=255 time=31.208 ms
^C
--- 192.168.0.168 ping statistics ---
7 packets transmitted, 6 packets received, 14% packet loss
round-trip min/avg/max = 3.124/84.612/410.421 ms
bash-5.0#
Strange. I have the same device (0x2737) and it works normally. The message means what is says, your device was not found. So make sure this address really matches your device. If you read the documentation, double-checked all the information and everything is correct, please ping me so we can do some tests.
Does discover() work outside Home Assistant for the same host? I am asking because you redacted the host. You don't need to redact your local addresses, they are not accessible to the outside world unless you expose them through your external IP.
felipediel
on 20 Sep 2020
I ask for the information and you fill it up with xxx. What's the use? 馃ぃ 馃ぃ
Let's get more information this time.
import broadlink as blk
devs = blk.discover(timeout=5)
print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
devs = blk.discover(discover_ip_address="192.168.0.17", timeout=5) # Your device IP address
print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
What is the output?
felipediel
on 20 Sep 2020
This is my output for my ip:
Python 3.8.2 (default, Jul 16 2020, 14:00:26)
[GCC 9.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import broadlink as blk
>>>
>>> devs = blk.discover(timeout=5)
>>> print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
[('192.168.0.169', '0x2737', False), ('192.168.0.168', '0x2737', False)]
>>>
>>> devs = blk.discover(discover_ip_address="192.168.0.168", timeout=5) # My device IP address
>>> print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
[('192.168.0.168', '0x2737', False)]
>>>
I've tried to upgrade this rmmini to latest firmware... same result... can't integrate
martinezpenya
on 20 Sep 2020
This is the same function we are using to discover your device in Home Assistant. It should work.
felipediel
on 20 Sep 2020
I'm in a docker environment... and in last version it was working well (without integration) with yaml configuration.
I've also smartir and codes work well with my climates. What else can I test?
martinezpenya
on 21 Sep 2020
I don't know about your environment conditions. If it is a devcontainer, try adding --net=host to runArgs in devcontainer.json. So it will look like this:
"runArgs": ["-e", "GIT_EDITOR=code --wait", "--net=host"],
This should not be necessary for direct discovery, but it won't hurt if you try. More: https://www.home-assistant.io/docs/installation/docker/
felipediel
on 21 Sep 2020
Hi @felipediel,
Could you please add 0x947a (SPS3-EU) as it's now only a switch and the power sensors are missing?
ZUID1908
on 21 Sep 2020
If you click the entity in lovelace and then click Settings in the upper right you should see the power sensor. I can reproduce this behavior with a mock device (but I don't have the real device to test).
felipediel
on 21 Sep 2020
Felipediel,
I think my device isn't on the recognized device list, however I have upgraded to 115.2 and I'm not seeing a more graceful error when trying to discover through Integrations. Just want to make sure the issue is down to non-recognized device and not some other issue. Current front end error: Failed to connect
import broadlink as blk
devs = blk.discover(timeout=5)
print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
[('192.168.1.60', '0x279d', False)]devs = blk.discover(discover_ip_address="192.168.1.60", timeout=5) # Your device IP address
print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
Thanks in advance.
Haloooch
on 21 Sep 2020
Different issue. Your issue is related to your subnetwork. I am working on the solution. Do you want to help me test it?
felipediel
on 21 Sep 2020
Willing to try :)
Haloooch
on 21 Sep 2020
Ok, I will try something really stupid first, but if it works this will be a universal solution.
felipediel
on 21 Sep 2020
python3 -m venv venv
source venv/bin/activate
pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator
python3
```python3
import broadlink as blk
for d in blk.xdiscover():
print(d)
print(blk.hello("192.168.0.17")) # Device IP address
felipediel
on 21 Sep 2020
Do you see your devices?
felipediel
on 21 Sep 2020
Failing at the first hurdle!
I'm running Win10, Python 3.8 not sure if that makes a difference?
>>> python3 -m venv venv
File "<stdin>", line 1
python3 -m venv venv
^
SyntaxError: invalid syntax
>>> source venv/bin/activate
File "<stdin>", line 1
source venv/bin/activate
^
SyntaxError: invalid syntax
>>> pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator
File "<stdin>", line 1
pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator
^
SyntaxError: invalid syntax
>>> python3
The commands in the first box must be entered at the terminal. They create a virtual environment to not screw with your stuff.
felipediel
on 21 Sep 2020
Suspect you will wish you hand not asked me to test, this could be an issue as my end. Running HA on Synology/Docker.
From terminal:
bash-5.0# python3 -m venv venv
bash-5.0# source venv/bin/activate
(venv) bash-5.0# pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator
Collecting git+https://github.com/felipediel/python-broadlink.git@the-generator
Cloning https://github.com/felipediel/python-broadlink.git (to revision the-generator) to /tmp/pip-req-build-ur8rhjf_
Running command git clone -q https://github.com/felipediel/python-broadlink.git /tmp/pip-req-build-ur8rhjf_
Running command git checkout -b the-generator --track origin/the-generator
Branch 'the-generator' set up to track remote branch 'the-generator' from 'origin'.
Switched to a new branch 'the-generator'
Collecting cryptography>=2.1.1
Using cached cryptography-3.1.tar.gz (534 kB)
Installing build dependencies ... error
ERROR: Command errored out with exit status 1:
command: /config/venv/bin/python3 /config/venv/lib/python3.8/site-packages/pip install --ignore-installed --no-user --
prefix /tmp/pip-build-env-cuzystiv/overlay --no-warn-script-location --no-binary :none: --only-binary :none: -i https://p
ypi.org/simple -- 'setuptools>=40.6.0' wheel 'cffi>=1.8,!=1.11.3; platform_python_implementation != '"'"'PyPy'"'"''
cwd: None
Complete output (68 lines):
Collecting setuptools>=40.6.0
Using cached setuptools-50.3.0-py3-none-any.whl (785 kB)
Collecting wheel
Using cached wheel-0.35.1-py2.py3-none-any.whl (33 kB)
Collecting cffi!=1.11.3,>=1.8
Using cached cffi-1.14.3.tar.gz (470 kB)
Collecting pycparser
Using cached pycparser-2.20-py2.py3-none-any.whl (112 kB)
Using legacy setup.py install for cffi, since package 'wheel' is not installed.
Installing collected packages: setuptools, wheel, pycparser, cffi
Running setup.py install for cffi: started
Running setup.py install for cffi: finished with status 'error'
ERROR: Command errored out with exit status 1:
command: /config/venv/bin/python3 -u -c 'import sys, setuptools, tokenize; sys.argv[0] = '"'"'/tmp/pip-install-4mh
oyzu3/cffi/setup.py'"'"'; __file__='"'"'/tmp/pip-install-4mhoyzu3/cffi/setup.py'"'"';f=getattr(tokenize, '"'"'open'"'"',
open)(__file__);code=f.read().replace('"'"'\r\n'"'"', '"'"'\n'"'"');f.close();exec(compile(code, __file__, '"'"'exec'"'"'
))' install --record /tmp/pip-record-stx5nq9s/install-record.txt --single-version-externally-managed --prefix /tmp/pip-bu
ild-env-cuzystiv/overlay --compile --install-headers /config/venv/include/site/python3.8/cffi
cwd: /tmp/pip-install-4mhoyzu3/cffi/
Complete output (48 lines):
unable to execute 'gcc': No such file or directory
unable to execute 'gcc': No such file or directory
No working compiler found, or bogus compiler options passed to
the compiler from Python's standard "distutils" module. See
the error messages above. Likely, the problem is not related
to CFFI but generic to the setup.py of any Python package that
tries to compile C code. (Hints: on OS/X 10.8, for errors about
-mno-fused-madd see http://stackoverflow.com/questions/22313407/
Otherwise, see https://wiki.python.org/moin/CompLangPython or
the IRC channel #python on irc.freenode.net.)
Trying to continue anyway. If you are trying to install CFFI from
a build done in a different context, you can ignore this warning.
running install
running build
running build_py
creating build
creating build/lib.linux-x86_64-3.8
creating build/lib.linux-x86_64-3.8/cffi
copying cffi/ffiplatform.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/model.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/recompiler.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/verifier.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/vengine_cpy.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/__init__.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/vengine_gen.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/error.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/cparser.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/pkgconfig.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/commontypes.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/backend_ctypes.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/setuptools_ext.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/api.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/cffi_opcode.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/lock.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/_cffi_include.h -> build/lib.linux-x86_64-3.8/cffi
copying cffi/parse_c_type.h -> build/lib.linux-x86_64-3.8/cffi
copying cffi/_embedding.h -> build/lib.linux-x86_64-3.8/cffi
copying cffi/_cffi_errors.h -> build/lib.linux-x86_64-3.8/cffi
running build_ext
building '_cffi_backend' extension
creating build/temp.linux-x86_64-3.8
creating build/temp.linux-x86_64-3.8/c
gcc -Wno-unused-result -Wsign-compare -DNDEBUG -g -fwrapv -O3 -Wall -fno-semantic-interposition -fno-builtin-malloc
-fno-builtin-calloc -fno-builtin-realloc -fno-builtin-free -ljemalloc -DTHREAD_STACK_SIZE=0x100000 -fPIC -I/usr/include/
ffi -I/usr/include/libffi -I/config/venv/include -I/usr/local/include/python3.8 -c c/_cffi_backend.c -o build/temp.linux-
x86_64-3.8/c/_cffi_backend.o
unable to execute 'gcc': No such file or directory
error: command 'gcc' failed with exit status 1
----------------------------------------
ERROR: Command errored out with exit status 1: /config/venv/bin/python3 -u -c 'import sys, setuptools, tokenize; sys.ar
gv[0] = '"'"'/tmp/pip-install-4mhoyzu3/cffi/setup.py'"'"'; __file__='"'"'/tmp/pip-install-4mhoyzu3/cffi/setup.py'"'"';f=g
etattr(tokenize, '"'"'open'"'"', open)(__file__);code=f.read().replace('"'"'\r\n'"'"', '"'"'\n'"'"');f.close();exec(compi
le(code, __file__, '"'"'exec'"'"'))' install --record /tmp/pip-record-stx5nq9s/install-record.txt --single-version-extern
ally-managed --prefix /tmp/pip-build-env-cuzystiv/overlay --compile --install-headers /config/venv/include/site/python3.8
/cffi Check the logs for full command output.
WARNING: You are using pip version 20.1.1; however, version 20.2.3 is available.
You should consider upgrading via the '/config/venv/bin/python3 -m pip install --upgrade pip' command.
----------------------------------------
ERROR: Command errored out with exit status 1: /config/venv/bin/python3 /config/venv/lib/python3.8/site-packages/pip inst
all --ignore-installed --no-user --prefix /tmp/pip-build-env-cuzystiv/overlay --no-warn-script-location --no-binary :none
: --only-binary :none: -i https://pypi.org/simple -- 'setuptools>=40.6.0' wheel 'cffi>=1.8,!=1.11.3; platform_python_impl
ementation != '"'"'PyPy'"'"'' Check the logs for full command output.
WARNING: You are using pip version 20.1.1; however, version 20.2.3 is available.
You should consider upgrading via the '/config/venv/bin/python3 -m pip install --upgrade pip' command.
(venv) bash-5.0# python3
Python 3.8.5 (default, Sep 10 2020, 14:23:57)
output from python which I guess is expected given the above:
>>> import broadlink as blk
>>> for d in blk.xdiscover():
... print(d)
...
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
AttributeError: module 'broadlink' has no attribute 'xdiscover'
>>> print(blk.hello("192.168.1.60")) # Device IP address
If the above is not caused by my enviroment happy to help more. If it's my setup might need someone else to jump in and test.
Haloooch
on 21 Sep 2020
I meant the terminal of your desktop.
felipediel
on 21 Sep 2020
Ok that was a pain, needed to install Ubuntu, then play with multiple errors. But in the end I got this!
Haloooch
on 21 Sep 2020
Thank you! It means xdiscover() is working fine for you, at least in the environment you tested. It is just a matter of time now.
felipediel
on 21 Sep 2020
Are you using any custom component?
if we are talking about custom for broadlink then no.
kuradi
on 21 Sep 2020
If you are using Floureon you need to update the manifest.
felipediel
on 21 Sep 2020
I don't know about your environment conditions. If it is a devcontainer, try adding
--net=hosttorunArgsindevcontainer.json. So it will look like this:"runArgs": ["-e", "GIT_EDITOR=code --wait", "--net=host"],This should not be necessary for direct discovery, but it won't hurt if you try. More: https://www.home-assistant.io/docs/installation/docker/
I'm in a portainer environment, using stacks with docker-compose yaml. I'm using macvlan instead of --net=host
If I put a ping to rmmini its working from the docker... so the communication between my HA (docker) and rm mini is ok.
martinezpenya
on 21 Sep 2020
python3 -m venv venv source venv/bin/activate pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator python3import broadlink as blk for d in blk.xdiscover(): print(d) print(blk.hello("192.168.0.17")) # Device IP address
This is my output:
(venv) ubuntu@pubuntu:~$ python3
Python 3.8.2 (default, Jul 16 2020, 14:00:26)
[GCC 9.3.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import broadlink as blk
>>> for d in blk.xdiscover():
... print(d)
...
<rm: Broadlink RM mini 3 (0x2737) at 192.168.0.169:80 | 78:0f:77:ec:1b:06 | 鏅鸿兘閬ユ帶 | Unlocked>
<rm: Broadlink RM mini 3 (0x2737) at 192.168.0.168:80 | 78:0f:77:d6:3a:fc | 鏅鸿兘閬ユ帶 | Unlocked>
>>> print(blk.hello("192.168.0.168")) # Device IP address
<rm: Broadlink RM mini 3 (0x2737) at 192.168.0.168:80 | 78:0f:77:d6:3a:fc | 鏅鸿兘閬ユ帶 | Unlocked>
>>>
This will fix. Thank you!
felipediel
on 21 Sep 2020
My RM pro PLUS is
[('192.168.11.12', '0x27c3')]
Like above, thank you,
Kayden919
on 21 Sep 2020
If you are using Floureon you need to update the manifest.
yes, found this myself already. got broadlink added now, its even learning and storing codes but its not passing codes to tv. help?
kuradi
on 21 Sep 2020
Will i be out of luck if mine says "Locked"
kevindgoff
on 21 Sep 2020
This will fix. Thank you!
Thank you so much for your time.
I'm willing to try it.
martinezpenya
on 21 Sep 2020
@kevindgoff You will be able to unlock your device using the config flow in Home Assistant.
felipediel
on 23 Sep 2020
@felipediel Hello i still have problem connecting 0x649b to homeassistant
when i use this
python3 -m venv venv source venv/bin/activate pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator python3import broadlink as blk for d in blk.xdiscover(): print(d) print(blk.hello("192.168.0.17")) # Device IP address
i get following error
(venv) spiroc@hasbun:~$ python3
Python 3.6.9 (default, Jul 17 2020, 12:50:27)
[GCC 8.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import broadlink as blk
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
File "/home/spiroc/venv/lib/python3.6/site-packages/broadlink/__init__.py", line 153, in <module>
) -> Generator[device, None, None]:
NameError: name 'Generator' is not defined
but if i just install broadling
python3 -m venv venv
source venv/bin/activate
pip3 install broadlink
```python
(venv) spiroc@hasbun:~$ python3
Python 3.6.9 (default, Jul 17 2020, 12:50:27)
[GCC 8.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
import broadlink as blk
devs = blk.discover(timeout=5)
print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
[('192.168.10.101', '0x649b', False)]
devs = blk.discover(discover_ip_address="192.168.10.101", timeout=5)
print([(d.host[0], hex(d.devtype), d.is_locked) for d in devs])
[('192.168.10.101', '0x649b', False)]
and if i try xdiscover()
```python
(venv) spiroc@hasbun:~$ python3
Python 3.6.9 (default, Jul 17 2020, 12:50:27)
[GCC 8.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import broadlink as blk
>>> for d in blk.xdiscover():
... print(d)
...
Traceback (most recent call last):
File "<stdin>", line 1, in <module>
AttributeError: module 'broadlink' has no attribute 'xdiscover'
>>>
That branch is outdated. It has a bug. Take git+https://github.com/felipediel/python-broadlink.git@code-quality instead.
Edit: I fixed that branch in case you wanna take it.
felipediel
on 24 Sep 2020
The new one is working but still wen i try to add to homeassistant i get error
(venv) spiroc@hasbun:~$ python3
Python 3.6.9 (default, Jul 17 2020, 12:50:27)
[GCC 8.4.0] on linux
Type "help", "copyright", "credits" or "license" for more information.
>>> import broadlink as blk
>>> for d in blk.xdiscover():
... print(d)
...
<rm4: Broadlink RM4 pro (0x649b) at 192.168.10.101:80 | 24:df:a7:f1:16:98 | 鏅鸿兘閬ユ帶 | Unlocked>
^CTraceback (most recent call last):
File "<stdin>", line 1, in <module>
File "/home/spiroc/venv/lib/python3.6/site-packages/broadlink/__init__.py", line 160, in xdiscover
for resp in responses:
File "/home/spiroc/venv/lib/python3.6/site-packages/broadlink/device.py", line 81, in scan
response, host = conn.recvfrom(1024)
KeyboardInterrupt
>>> print(blk.hello("192.168.10.101"))
<rm4: Broadlink RM4 pro (0x649b) at 192.168.10.101:80 | 24:df:a7:f1:16:98 | 鏅鸿兘閬ユ帶 | Unlocked>
Logger: homeassistant.components.broadlink
Source: components/broadlink/config_flow.py:46
Integration: Broadlink (documentation, issues)
First occurred: 13:02:06 (2 occurrences)
Last logged: 14:50:15
Unsupported device: 0x649b. If it worked before, please open an issue at https://github.com/home-assistant/core/issues
This means that you have not updated the library correctly. It may be necessary to use --upgrade, since you want to update over the current version. If you use this option, make sure to pip3 install cryptography==2.9.2 later, as it will also be updated.
felipediel
on 24 Sep 2020
Do i need to update library in home assistant ?
spiro-c
on 24 Sep 2020
Yes. If you don't know how to do it, please don't fry your brains. The release is coming soon.
felipediel
on 24 Sep 2020
Getting "Device not supported" currently with RM4 Mini (w/ Temp and Humidity Sensors). Was working before. Device code is 0x648d. Wasn't sure if this was already fixed, but figured I'd mention it.
EDIT: Updating the library worked, so this device code has already been added. When will it be included in release?
akash329d
on 24 Sep 2020
any plan to integrate Broadlink TC2 light in the integration? they do not appear in HA
lilamad
on 24 Sep 2020
@lilamad You may want to have a look on this.
felipediel
on 25 Sep 2020
Hello @felipediel, version 0.115.3 have added Broadlink RM Pro+ 0x27c3 ? When i using Integration, it's said unsupported device
Kayden919
on 26 Sep 2020
You are waiting for this.
felipediel
on 26 Sep 2020
This will fix. Thank you!
I've upgraded to 115.3 and still "Can't connect" on GUI and in console:
2020-09-26 08:31:48 ERROR (MainThread) [homeassistant.components.broadlink] Failed to connect to the device at 192.168.0.168: Device not found
martinezpenya
on 26 Sep 2020
python3 -m venv venv source venv/bin/activate pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator python3import broadlink as blk for d in blk.xdiscover(): print(d) print(blk.hello("192.168.0.17")) # Device IP address
this is my output now... in case you need it:
bash-5.0# python3 -m venv venv
bash-5.0# source venv/bin/activate
(venv) bash-5.0# pip3 install git+https://github.com/felipediel/python-broadlink.git@the-generator
Collecting git+https://github.com/felipediel/python-broadlink.git@the-generator
Cloning https://github.com/felipediel/python-broadlink.git (to revision the-generator) to /tmp/pip-req-build-98vusvg2
Running command git clone -q https://github.com/felipediel/python-broadlink.git /tmp/pip-req-build-98vusvg2
Running command git checkout -b the-generator --track origin/the-generator
Branch 'the-generator' set up to track remote branch 'the-generator' from 'origin'.
Switched to a new branch 'the-generator'
Collecting cryptography>=2.1.1
Using cached cryptography-3.1.1.tar.gz (534 kB)
Installing build dependencies ... error
ERROR: Command errored out with exit status 1:
command: /config/venv/bin/python3 /config/venv/lib/python3.8/site-packages/pip install --ignore-installed --no-user --prefix /tmp/pip-build-env-miotjjdj/overlay --no-warn-script-location --no-binary :none: --only-binary :none: -i https://pypi.org/simple -- 'setuptools>=40.6.0' wheel 'cffi>=1.8,!=1.11.3; platform_python_implementation != '"'"'PyPy'"'"''
cwd: None
Complete output (68 lines):
Collecting setuptools>=40.6.0
Using cached setuptools-50.3.0-py3-none-any.whl (785 kB)
Collecting wheel
Using cached wheel-0.35.1-py2.py3-none-any.whl (33 kB)
Collecting cffi!=1.11.3,>=1.8
Using cached cffi-1.14.3.tar.gz (470 kB)
Collecting pycparser
Using cached pycparser-2.20-py2.py3-none-any.whl (112 kB)
Using legacy setup.py install for cffi, since package 'wheel' is not installed.
Installing collected packages: setuptools, wheel, pycparser, cffi
Running setup.py install for cffi: started
Running setup.py install for cffi: finished with status 'error'
ERROR: Command errored out with exit status 1:
command: /config/venv/bin/python3 -u -c 'import sys, setuptools, tokenize; sys.argv[0] = '"'"'/tmp/pip-install-0ru3365g/cffi/setup.py'"'"'; __file__='"'"'/tmp/pip-install-0ru3365g/cffi/setup.py'"'"';f=getattr(tokenize, '"'"'open'"'"', open)(__file__);code=f.read().replace('"'"'\r\n'"'"', '"'"'\n'"'"');f.close();exec(compile(code, __file__, '"'"'exec'"'"'))' install --record /tmp/pip-record-f7s_dom_/install-record.txt --single-version-externally-managed --prefix /tmp/pip-build-env-miotjjdj/overlay --compile --install-headers /config/venv/include/site/python3.8/cffi
cwd: /tmp/pip-install-0ru3365g/cffi/
Complete output (48 lines):
unable to execute 'gcc': No such file or directory
unable to execute 'gcc': No such file or directory
No working compiler found, or bogus compiler options passed to
the compiler from Python's standard "distutils" module. See
the error messages above. Likely, the problem is not related
to CFFI but generic to the setup.py of any Python package that
tries to compile C code. (Hints: on OS/X 10.8, for errors about
-mno-fused-madd see http://stackoverflow.com/questions/22313407/
Otherwise, see https://wiki.python.org/moin/CompLangPython or
the IRC channel #python on irc.freenode.net.)
Trying to continue anyway. If you are trying to install CFFI from
a build done in a different context, you can ignore this warning.
running install
running build
running build_py
creating build
creating build/lib.linux-x86_64-3.8
creating build/lib.linux-x86_64-3.8/cffi
copying cffi/cparser.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/setuptools_ext.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/model.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/__init__.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/commontypes.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/lock.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/backend_ctypes.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/cffi_opcode.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/recompiler.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/api.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/vengine_gen.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/ffiplatform.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/vengine_cpy.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/pkgconfig.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/error.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/verifier.py -> build/lib.linux-x86_64-3.8/cffi
copying cffi/_cffi_include.h -> build/lib.linux-x86_64-3.8/cffi
copying cffi/parse_c_type.h -> build/lib.linux-x86_64-3.8/cffi
copying cffi/_embedding.h -> build/lib.linux-x86_64-3.8/cffi
copying cffi/_cffi_errors.h -> build/lib.linux-x86_64-3.8/cffi
running build_ext
building '_cffi_backend' extension
creating build/temp.linux-x86_64-3.8
creating build/temp.linux-x86_64-3.8/c
gcc -Wno-unused-result -Wsign-compare -DNDEBUG -g -fwrapv -O3 -Wall -fno-semantic-interposition -fno-builtin-malloc -fno-builtin-calloc -fno-builtin-realloc -fno-builtin-free -ljemalloc -DTHREAD_STACK_SIZE=0x100000 -fPIC -I/usr/include/ffi -I/usr/include/libffi -I/config/venv/include -I/usr/local/include/python3.8 -c c/_cffi_backend.c -o build/temp.linux-x86_64-3.8/c/_cffi_backend.o
unable to execute 'gcc': No such file or directory
error: command 'gcc' failed with exit status 1
----------------------------------------
ERROR: Command errored out with exit status 1: /config/venv/bin/python3 -u -c 'import sys, setuptools, tokenize; sys.argv[0] = '"'"'/tmp/pip-install-0ru3365g/cffi/setup.py'"'"'; __file__='"'"'/tmp/pip-install-0ru3365g/cffi/setup.py'"'"';f=getattr(tokenize, '"'"'open'"'"', open)(__file__);code=f.read().replace('"'"'\r\n'"'"', '"'"'\n'"'"');f.close();exec(compile(code, __file__, '"'"'exec'"'"'))' install --record /tmp/pip-record-f7s_dom_/install-record.txt --single-version-externally-managed --prefix /tmp/pip-build-env-miotjjdj/overlay --compile --install-headers /config/venv/include/site/python3.8/cffi Check the logs for full command output.
WARNING: You are using pip version 20.1.1; however, version 20.2.3 is available.
You should consider upgrading via the '/config/venv/bin/python3 -m pip install --upgrade pip' command.
----------------------------------------
ERROR: Command errored out with exit status 1: /config/venv/bin/python3 /config/venv/lib/python3.8/site-packages/pip install --ignore-installed --no-user --prefix /tmp/pip-build-env-miotjjdj/overlay --no-warn-script-location --no-binary :none: --only-binary :none: -i https://pypi.org/simple -- 'setuptools>=40.6.0' wheel 'cffi>=1.8,!=1.11.3; platform_python_implementation != '"'"'PyPy'"'"'' Check the logs for full command output.
WARNING: You are using pip version 20.1.1; however, version 20.2.3 is available.
You should consider upgrading via the '/config/venv/bin/python3 -m pip install --upgrade pip' command.
Those lines were for the computer terminal, not Home Assistant. They have already been tested and they work. Now we just have to wait for this.
felipediel
on 26 Sep 2020
Those lines were for the computer terminal, not Home Assistant. They have already been tested and they work. Now we just have to wait for this.
Ok Thank You! I'll wait.
martinezpenya
on 26 Sep 2020
Those lines were for the computer terminal, not Home Assistant. They have already been tested and they work. Now we just have to wait for this.
Hi.
this solved the error with rm3mini?
this will be published in the next update of HA?
thaks
alb147
on 26 Sep 2020
Why is it not part of 0.115.4 @felipediel ?
Do we need to wait to 0.116?
(Setting my expectations 馃榿)
Amir974
on 28 Sep 2020
I have returned to 114. For me it is vital that the rm3mini work. I can't be without air conditioning.
I have high expectations about the update 馃槵馃槵.
Thanks for you work馃憤馃徎
alb147
on 28 Sep 2020
115.4 stil doesnt work for me, as no Broadlink devices are discovered:
2020-09-28 19:28:54 ERROR (MainThread) [homeassistant.components.broadlink] Failed to connect to the device at 192.168.3.92: Device not found
2020-09-28 19:29:11 ERROR (MainThread) [homeassistant.components.broadlink] Failed to connect to the device at 192.168.3.61: Device not found
litinoveweedle
on 28 Sep 2020
Looks like 0.115.4 was full of cherry picked commits. A newer commit on dev made it in, but not the broadlink commits. How does HA do releases? What get's cherry picked vs what doesn't?
Silvenga
on 28 Sep 2020
Hi, I wish there were more information regarding the common issued with the mini 3 and mini 4 integrated with Home Assistant. I have not been able to move forward with the integration since I am NOT sure what I will do if I enable everything I was asked during the integration?
The main issue I have is - would it continue working on broadlink APP as well as with Home Assistant? That refferes to RM Mini3 and RM Mini4 - I have to make sure that it will work on bot APP and HA since removing it from my network will be only if I can put it back with Broadlink App and also with HA.
I have searched the internet so many times and I could not find a confirmation to what it will do after integration - regarding the RM Mini4 and that is needed to be answered so if we will take that rout we should know what to expect?
Also, Regarding the rm mini 3 - I was not sure if it will work or not since I have read several issues with different versions of rm mini 3.
Would be happy if someone, will let us newbies know what will happened after integration? that is not simple to understand.
Thanks for the great work!
aryehassbian
on 29 Sep 2020
@aryehassbian might be best to ask on the forums - https://community.home-assistant.io/
Every message here notifies at least 37 other people. 馃樄
Silvenga
on 29 Sep 2020
If this is open, does it mean it's not in today's 0.116?
schott1984
on 30 Sep 2020
Who knows:
https://github.com/home-assistant/core/pull/39228#issuecomment-700365209
But doesn't seems it will be fixed in 0.115, which is IMHO wrong, as this is clearly regression.
litinoveweedle
on 1 Oct 2020
@alb147 Thank you. RM mini 3 (0x5f36) is already working, if that was your problem you can safely update.
@aryehassbian You can have both. Follow this thread and use Discord for support.
@Amir974 I added your device type the same day and linked the PR so that you could follow the progress. You should stick with the latest stable until you see this in the release notes.
@litinoveweedle Your problem will be solved with the same update.
All problems mentioned here were addressed in record time. They no longer exist in the dev branch. Sometimes it takes a while to get the code into production, especially when we are also dealing with library updates. No one is to blame, this is normal. New code needs treatment. There is a whole process involving tests, reviews and devops.
Home Assistant has more than 1600 integrations. Not an easy task to keep all these things up to date with a small team. So please, don't push these guys. They are doing a great job. You just need to report the issue and wait politely. This is the easiest task and anything different is counterproductive.
Edit: I think I need to add something here. This is an open-source project. Everyone is invited to contribute by sending code, reviews, tests, documentation or whatever they think they can do to improve this integration and Home Assistant. Opening issues is also much appreciated as it helps us to identify problems that we were unable to reproduce before merging the code. What I meant is that sometimes we need to have a little patience after opening the issue.
felipediel
on 2 Oct 2020
All problems mentioned here were addressed in record time. They no longer exist on the dev branch. Sometimes it takes a while to get the code into production, especially when we are also dealing with library updates. No one is to blame, this is normal. New code needs treatment. There is a whole process involving tests, reviews and devops.
Home Assistant has more than 1600 integrations. Not an easy task to keep all these things up to date with a small team. So please, don't push these guys. They are doing a great job. You just need to report the issue and wait politely. This is the easiest task and anything different is counterproductive.
Thank @felipediel for your reply, im still waiting, i know so hard for your dev team, we don't push these guys, Thank for your Broadlink Integration, still waiting ^_^
Kayden919
on 2 Oct 2020
Hi, my rm2 pro plus, 0x279d is now not detected after upgrade. Can I know when will it be supported?
Thanks
EDIT: Nvm, I have to manually add rm2plus device under Integrations. It worked.
kolslorr
on 2 Oct 2020
All problems mentioned here were addressed in record time. They no longer exist on the dev branch. Sometimes it takes a while to get the code into production, especially when we are also dealing with library updates. No one is to blame, this is normal. New code needs treatment. There is a whole process involving tests, reviews and devops.
Home Assistant has more than 1600 integrations. Not an easy task to keep all these things up to date with a small team. So please, don't push these guys. They are doing a great job. You just need to report the issue and wait politely. This is the easiest task and anything different is counterproductive.
Hello, thank you for update. I can imagine dimension of the work you are doing and I would like to thank you for that. :1st_place_medal:
On the other hand if HA would like to get from enthusiast world into consumer one, in my humble opinion such regression issues has to be dealt as patch releases a bit more swiftly. BFU will not understand when his automated home stopped suddenly working, that he should wait a month for new release or install beta. Honestly even I am not brave to install beta HA in my home. :-) I know this is really off-topic discussion, but please understand, that your work has really impact to other people living now. Thank you. ;-)
litinoveweedle
on 2 Oct 2020
I am afraid the production level cannot be achieved on a builder like broadlink. Therefore, you need to be able to roll back. I think it is worth making it possible to roll back to the old version in the HA admin panel. And at home you can have two instances of HA, primary and backup. You can also save configs in git, and put release tags on them
nick2525
on 2 Oct 2020
Totally agree. It would be nice to have a drop-down menu on the UI to switch between versions, or at least a panic button to roll back to the latest stable. Such feature requests have to be made in the community. From time to time developers look for suggestions there. For now, you can use this. You may also find this video useful.
felipediel
on 2 Oct 2020
I am afraid the production level cannot be achieved on a builder like broadlink. Therefore, you need to be able to roll back. I think it is worth making it possible to roll back to the old version in the HA admin panel. And at home you can have two instances of HA, primary and backup. You can also save configs in git, and put release tags on them
This would be so great feature to have. If done together with config held in local git repo and tagged automatically for HA releases even config downgrade could be automated!
For now, you can use this. You may also find this video useful.
Yep, downgrade was solution, but for my installation I used different approach - if someone running supervised (i.e. Docker install), then probably easiest way is to install SSH add-on and then use it to execute:
# ha core update --version=0.114.4
Let's wait for 0.116. Thank you for help.
litinoveweedle
on 3 Oct 2020
Rollback to previos version for "venv" instalation method:
su - homeassistant
cd /opt/homeassistant
source bin/activate
python3 -m pip install --upgrade homeassistant==0.114.4
gd4n1s
on 4 Oct 2020
@felipediel I upgraded HA to 0.116.0b2, now broadlink works with VPN, everything works, but broadlink S2C host doesn't work. It works only on custom components, and never was supposed by HA. But I saw that there is support for it in the broadlink library. And I even post about it bug in HA forum year ago. Maybe you should fix it too? Log-> Unsupported device: 0x2722.
nick2525
on 4 Oct 2020
Just updated HA to 116, now I can integrate my two RMMini, and after changing configuration on Smart_ir everything is working again. Thank you @felipediel and all the people that makes HA a reality.
martinezpenya
on 8 Oct 2020
Can also advise after upgrading HA to .116 my Rm4 脳0649b and sensorsensors work! Thanks again @felipediel and all involved in the update. Amazing work!!! 馃帀馃帀馃帀
burbuja1
on 8 Oct 2020
my seven rm3mini also come back after 116,
Thank @felipediel and all involved in the update very very much.
You are the man.
DidibabaQiu
on 8 Oct 2020
looks also ok to me, thanks a lot !
lolorc
on 9 Oct 2020
I did upgraded to 116.2 just now and it is still failing (please note that my Broadlink devices are in dedicated / secondary network connected to HA, therefore my original issue was with wrong source IP being used for detection/communication with them):
my existing remotes defined in configuration.yaml are not imported (contrary to this description).
my existing configuration defined Broadlink devices each triggers error like this:
2020-10-10 12:24:41 ERROR (MainThread) [homeassistant.config] Platform error: remote Traceback (most recent call last): File "/usr/src/homeassistant/homeassistant/config.py", line 814, in async_process_component_config platform = p_integration.get_platform(domain) File "/usr/src/homeassistant/homeassistant/loader.py", line 401, in get_platform cache[full_name] = importlib.import_module( File "/usr/local/lib/python3.8/importlib/__init__.py", line 127, in import_module return _bootstrap._gcd_import(name[level:], package, level) File "<frozen importlib._bootstrap>", line 1014, in _gcd_import File "<frozen importlib._bootstrap>", line 991, in _find_and_load File "<frozen importlib._bootstrap>", line 961, in _find_and_load_unlocked File "<frozen importlib._bootstrap>", line 219, in _call_with_frames_removed File "<frozen importlib._bootstrap>", line 1014, in _gcd_import File "<frozen importlib._bootstrap>", line 991, in _find_and_load File "<frozen importlib._bootstrap>", line 975, in _find_and_load_unlocked File "<frozen importlib._bootstrap>", line 671, in _load_unlocked File "<frozen importlib._bootstrap_external>", line 783, in exec_module File "<frozen importlib._bootstrap>", line 219, in _call_with_frames_removed File "/usr/src/homeassistant/homeassistant/components/broadlink/__init__.py", line 6, in <module> from .device import BroadlinkDevice File "/usr/src/homeassistant/homeassistant/components/broadlink/device.py", line 7, in <module> from broadlink.exceptions import ( ImportError: cannot import name 'NetworkTimeoutError' from 'broadlink.exceptions' (/usr/local/lib/python3.8/site-packages/broadlink/exceptions.py)when I try to add Broadlink integration nothing will happen (in the past in 115 ad least I get pop-up window do add new device), now when I click to Broadlink integration I got for second window with: "Please wait while the integration is being installed", then this window closes but nothing being add as Broadlink integration.
So for me things are not solved and I need to rollback again to 114.4 :-o
litinoveweedle
on 10 Oct 2020
Are you using custom components? If you have Floureon, you need to update the manifest.
felipediel
on 10 Oct 2020
Hello,
yes I am using Floureon thermostat integration from this repo, but I also have three Broadlink remotes. From 0.115.0 none of these work. I was thinking Floureon issue is related, but I would not believe this could stop Broadlink remotes to work as well. I actually opened this issue regarding Floureon problem.
When you say I need to update manifest, you probably mean to bump broadlink library to current version?
{
"domain": "floureon",
"name": "Floureon Thermostat",
"documentation": "https://github.com/algirdasc/hass-floureon",
"dependencies": [],
"codeowners": ["@algirdasc"],
"issue_tracker": "https://github.com/algirdasc/hass-floureon/issues",
"requirements": ["pythoncrc", "broadlink==0.14.1"]
}
Is it current 0.15.0?
"requirements": ["pythoncrc", "broadlink==0.15.0"]
litinoveweedle
on 10 Oct 2020
I did updated custom component manifest integration and upgraded again to 0.116.2. I can now confirm Broadlink RM on dedicated secondary network being detected automatically (2 from 3) and the one missing I was able to add manually using webUI.
@felipediel Thank you very much for you help! And to all for work on this project. :-)
litinoveweedle
on 11 Oct 2020
Hi,
I have an RM Pro --> [('10.64.16.12', '0x272a')]
My Broadlink hub gets detected, I see two entities created - "Broadlink Temperature" and "Broadlink Remote".
The temperature sensor reports a reasonable figure - 21C.
However I have Broadlink switches defined in my configuration.yaml, and these entities do not appear. I can't find any error reported anywhere.
switch:
- platform: broadlink
mac: '5C:CF:7F:98:41:19'
switches:
- name: Sunroom light
command_on: 6RRGAN8JCRYJFgkWFgkJFhYJFgkWCRYJFgkJFhYJCRYJFhYJFgkJFhYJFgkWCQkWCRYWCQkWFgkJFgkWCRYJFgkWCRYJFgkAAUg=
command_off: 6RRGAN8JCRYJFgkWCRYWCQkWCRYJFhYJCRYWCRYJCRYWCQkWFgkJFgkWFgkWCQkWFgkWCQkWFgkJFgkWFgkJFhYJCRYJFgkAAUg=
- name: Front door light
command_on: 6RRGAN8JFgkWCRYJCRYWCRYJCRYJFhYJCRYJFhYJCRYJFhYJFgkWCRYJFgkJFgkWCRYJFgkWFgkWCRYJCRYJFgkWCRYJFgkAAUg=
command_off: 6RRGAN8JCRYJFgkWCRYJFgkWFgkJFhYJCRYJFhYJCRYJFgkWCRYWCQkWCRYJFgkWCRYWCQkWCRYWCQkWFgkJFgkWCRYWCQkAAUg=
- (etc)
elbow
on 18 Oct 2020
@elbow Check the MAC address.
felipediel
on 18 Oct 2020
Hi,
I have an RM Pro --> [('10.64.16.12', '0x272a')]
My Broadlink hub gets detected, I see two entities created - "Broadlink Temperature" and "Broadlink Remote".
The temperature sensor reports a reasonable figure - 21C.
However I have Broadlink switches defined in my configuration.yaml, and these entities do not appear. I can't find any error reported anywhere.
switch: - platform: broadlink mac: '5C:CF:7F:98:41:19' switches: - name: Sunroom light command_on: 6RRGAN8JCRYJFgkWFgkJFhYJFgkWCRYJFgkJFhYJCRYJFhYJFgkJFhYJFgkWCQkWCRYWCQkWFgkJFgkWCRYJFgkWCRYJFgkAAUg= command_off: 6RRGAN8JCRYJFgkWCRYWCQkWCRYJFhYJCRYWCRYJCRYWCQkWFgkJFgkWFgkWCQkWFgkWCQkWFgkJFgkWFgkJFhYJCRYJFgkAAUg= - name: Front door light command_on: 6RRGAN8JFgkWCRYJCRYWCRYJCRYJFhYJCRYJFhYJCRYJFhYJFgkWCRYJFgkJFgkWCRYJFgkWFgkWCRYJCRYJFgkWCRYJFgkAAUg= command_off: 6RRGAN8JCRYJFgkWCRYJFgkWFgkJFhYJCRYJFhYJCRYJFgkWCRYWCQkWCRYJFgkWCRYWCQkWCRYWCQkWFgkJFgkWCRYWCQkAAUg= - (etc)
I have the same problem after update !
Logger: homeassistant.helpers.service
Source: helpers/service.py:435
First occurred: 21:34:48 (2 occurrences)
Last logged: 21:45:46
Unable to find referenced entities switch.tv_sony
double1968
on 22 Oct 2020
RM4 Pro ('192.168.1.69', '0x653c')
ivanlee1007
on 18 Nov 2020
Thank you! This device will be supported after https://github.com/mjg59/python-broadlink/pull/472.
felipediel
on 18 Nov 2020
Please support device: 0x2722 ; broadlink S2C kit
nick2525
on 18 Nov 2020
Please support: RM4C mini [('192.168.0.80', '0x6539')]
rgolab
on 21 Nov 2020
Thank you! It is open: https://github.com/mjg59/python-broadlink/pull/476.
felipediel
on 22 Nov 2020
I'm sorry but I don't understand the update process on github and how that works into Home Assistant, or how the changes by mjg feed in. I just updated to HA 0.118 and I can report the RM4 mini devices I was concerned about now install.
gregf888
on 23 Nov 2020
We added your type to the library, launched a new version and updated the manifest in Home Assistant to install it.
felipediel
on 23 Nov 2020
Thank you! It is open: mjg59/python-broadlink#476.
@felipediel who should approve it?
rgolab
on 23 Nov 2020
Garrett is going to approve it soon. The updates come in batches, so we have to wait a bit for a release. Waiting won't be necessary after https://github.com/home-assistant/core/pull/41744, but its not ready yet.
felipediel
on 24 Nov 2020
Hi, @nick2525, just to give you a feedback. The Broadlink integration does not yet support the alarm kit. These devices communicate via RF and have a slightly different implementation. They are already supported in the library, but the class needs some improvements before we can bring it to Home Assistant.
For now you can use this custom component. It is no longer maintained and I don't have the devices to test, but I think it works. We cannot just copy and paste it into hass due to protocol-level information like this, which should be part of the library.
I hope we can offer support for this kit in the future, but I can't promise for this year.
felipediel
on 24 Nov 2020
@felipediel Yes, I use broadlink_s1c custom component, but it often disconnected. So I have to fork it and write some crutches, although I'm a Kotlin developer, not a Python, while it seems to work. I am afraid that the HA will be updated and this library will be laggy agin
nick2525
on 24 Nov 2020
@felipediel Can you please add 0x271d. It is an sp2
paynenz
on 25 Nov 2020
@paynenz Thank you! I created a PR. Is the brand correct? (Broadlink)
felipediel
on 25 Nov 2020
@paynenz Thank you! I created a PR. Is the brand correct? (Broadlink)
It's an Efergy Ego smart plug. I have been using the older broadlink switch configuration with type sp2 on 0.114.4. Sorry I don't know more about the smart plug internals.
Thanks heaps!
paynenz
on 25 Nov 2020
This?
felipediel
on 25 Nov 2020
This?
That's the one, I have the New Zealand outlet model but I doubt that it would matter
paynenz
on 25 Nov 2020
Thank you!
felipediel
on 25 Nov 2020
Related issues
moskovskiy82
路
3Comments
missedtheapex
路
3Comments
i-am-shodan
路
3Comments
Elmardus
路
3Comments
sogeniusio
路
3Comments
Most helpful comment
looks also ok to me, thanks a lot !
