Core: [0.111.0] ozw: lock state incorrect and inconsistent

Created on 11 Jun 2020  路  12Comments  路  Source: home-assistant/core

The problem

I have two Schlage BE469 z-wave locks. The state of my locks using OpenZWave (beta) integration is incorrectly reported.

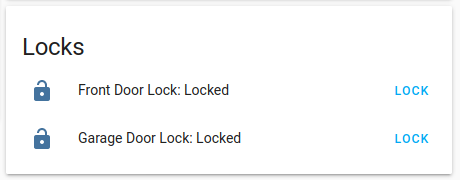

The locks are physically locked, and I see this in an entity card:

Screenshot from 2020-06-10 21-57-45

This is in the devices page:

Screenshot from 2020-06-10 22-00-34

And the state from the developer tools page:
Screenshot from 2020-06-10 22-01-33

  • The state is falsely reported as "unlocked", even though MQTT is reporting that the lock is locked (see below)
  • The friendly name is reported as "Front Door Lock: Locked", which is true, but opposite of the state.
  • The action button presents itself as "lock", probably because the state is "unlocked".

If I physically unlock the front door, I see:
Screenshot from 2020-06-10 22-32-32

  • The friendly name stays the same ("Locked")
  • The state changes to "locked", which is consistent, but it should be "unlocked".

Environment

  • Home Assistant Core release with the issue: 0.111.0
  • Last working Home Assistant Core release (if known): N/A since this is the first release with OZW locks
  • Operating environment (Home Assistant/Supervised/Docker/venv): supervised
  • Integration causing this issue: ozw
  • Link to integration documentation on our website: https://www.home-assistant.io/integrations/ozw/

Problem-relevant configuration.yaml

N/A

Traceback/Error logs

MQTT values:

OpenZWave/1/node/11/instance/1/commandclass/98/value/190349328/:

{
    "Label": "Locked",
    "Value": true,
    "Units": "",
    "ValueSet": false,
    "ValuePolled": false,
    "ChangeVerified": false,
    "Min": 0,
    "Max": 0,
    "Type": "Bool",
    "Instance": 1,
    "CommandClass": "COMMAND_CLASS_DOOR_LOCK",
    "Index": 0,
    "Node": 11,
    "Genre": "User",
    "Help": "State of the Lock",
    "ValueIDKey": 190349328,
    "ReadOnly": false,
    "WriteOnly": false,
    "Event": "valueChanged",
    "TimeStamp": 1591844539
}

HA debug logs:

2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.BATTERY, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.DOOR_LOCK, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BOOL, Genre=ValueGenre.USER as lock
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.BATTERY, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.DOOR_LOCK, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BOOL, Genre=ValueGenre.USER as lock
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.BATTERY, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.DOOR_LOCK, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BOOL, Genre=ValueGenre.USER as lock
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.STRING, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.INT, Genre=ValueGenre.UNKNOWN as sensor
USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.STRING, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.INT, Genre=ValueGenre.UNKNOWN as sensor
USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.STRING, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.INT, Genre=ValueGenre.UNKNOWN as sensor

2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.BATTERY, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.DOOR_LOCK, Index=ValueIndex.ALARM_TYPE, Value type=ValueType.BOOL, Genre=ValueGenre.USER as lock
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_VELOCITY, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_DIRECTION, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.SENSOR_MULTILEVEL_ATMOSPHERIC_PRESSURE, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as binary_sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.ALARM_ACCESS_CONTROL, Value type=ValueType.LIST, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.BYTE, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.STRING, Genre=ValueGenre.USER as sensor
2020-06-10 15:51:15 DEBUG (MainThread) [homeassistant.components.ozw.entity] Adding Node_id=11 Generic_command_class=64, Specific_command_class=3, Command_class=CommandClass.ALARM, Index=ValueIndex.UNKNOWN, Value type=ValueType.INT, Genre=ValueGenre.UNKNOWN as sensor



md5-02fafa19aad1b8499c83c738f6f2bc4a



2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [NODE ADDED] node_id: 11
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Battery Level - value: 89 - value_id: 190840849 - CC: CommandClass.BATTERY
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Locked - value: False - value_id: 190349328 - CC: CommandClass.DOOR_LOCK
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Locked (Advanced) - value: {'List': [{'Value': 0, 'Label': 'Unsecure'}, {'Value': 1, 'Label': 'Unsecured with Timeout'}, {'Value': 2, 'Label': 'Inside Handle Unsecured'}, {'Value': 3, 'Label': 'Inside Handle Unsecured with Timeout'}, {'Value': 4, 'Label': 'Outside Handle Unsecured'}, {'Value': 5, 'Label': 'Outside Handle Unsecured with Timeout'}, {'Value': 6, 'Label': 'Secured'}, {'Value': 255, 'Label': 'Invalid'}], 'Selected': 'Unsecure', 'Selected_id': 0} - value_id: 281475167059988 - CC: CommandClass.DOOR_LOCK
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Timeout Mode - value: {'List': [{'Value': 1, 'Label': 'No Timeout'}, {'Value': 2, 'Label': 'Secure Lock after Timeout'}], 'Selected': 'No Timeout', 'Selected_id': 1} - value_id: 562950152159252 - CC: CommandClass.DOOR_LOCK
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Outside Handle Control - value: 0 - value_id: 1407375082291217 - CC: CommandClass.DOOR_LOCK
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Inside Handle Control - value: 0 - value_id: 1688850059001873 - CC: CommandClass.DOOR_LOCK
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Enrollment Code - value:  - value_id: 190365719 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 1: - value: ********** - value_id: 281475167076375 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 2: - value: ********** - value_id: 562950143787031 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 3: - value:  - value_id: 844425120497687 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 4: - value:  - value_id: 1125900097208343 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 5: - value:  - value_id: 1407375073918999 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 6: - value:  - value_id: 1688850050629655 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 7: - value:  - value_id: 1970325027340311 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 8: - value:  - value_id: 2251800004050967 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 9: - value:  - value_id: 2533274980761623 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 10: - value:  - value_id: 2814749957472279 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 11: - value:  - value_id: 3096224934182935 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 12: - value:  - value_id: 3377699910893591 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 13: - value:  - value_id: 3659174887604247 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 14: - value:  - value_id: 3940649864314903 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 15: - value:  - value_id: 4222124841025559 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 16: - value:  - value_id: 4503599817736215 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 17: - value:  - value_id: 4785074794446871 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 18: - value:  - value_id: 5066549771157527 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 19: - value:  - value_id: 5348024747868183 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 20: - value:  - value_id: 5629499724578839 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 21: - value:  - value_id: 5910974701289495 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 22: - value:  - value_id: 6192449678000151 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 23: - value:  - value_id: 6473924654710807 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 24: - value:  - value_id: 6755399631421463 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 25: - value:  - value_id: 7036874608132119 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 26: - value:  - value_id: 7318349584842775 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 27: - value:  - value_id: 7599824561553431 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 28: - value:  - value_id: 7881299538264087 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 29: - value:  - value_id: 8162774514974743 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code 30: - value:  - value_id: 8444249491685399 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Refresh All UserCodes - value: False - value_id: 71776119259971608 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Remove User Code - value: 0 - value_id: 72057594236682262 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Code Count - value: 30 - value_id: 72339069213392918 - CC: CommandClass.USER_CODE
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Access Control - value: {'List': [{'Value': 0, 'Label': 'Clear'}, {'Value': 1, 'Label': 'Manual Lock Operation'}, {'Value': 2, 'Label': 'Manual Unlock Operation'}, {'Value': 5, 'Label': 'Keypad Lock Operation'}, {'Value': 6, 'Label': 'Keypad Unlock Operation'}, {'Value': 9, 'Label': 'Auto Lock'}, {'Value': 11, 'Label': 'Lock Jammed'}, {'Value': 16, 'Label': 'Keypad Disabled'}, {'Value': 18, 'Label': 'New Program Code Entered'}], 'Selected': 'Clear', 'Selected_id': 0} - value_id: 1688850050859028 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Home Security - value: {'List': [{'Value': 0, 'Label': 'Clear'}, {'Value': 2, 'Label': 'Intrusion at Unknown Location'}], 'Selected': 'Clear', 'Selected_id': 0} - value_id: 1970325027569684 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Power Management - value: {'List': [{'Value': 0, 'Label': 'Clear'}, {'Value': 10, 'Label': 'Replace Battery Soon'}, {'Value': 11, 'Label': 'Replace Battery Now'}], 'Selected': 'Clear', 'Selected_id': 0} - value_id: 2251800004280340 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: System - value: {'List': [{'Value': 0, 'Label': 'Clear'}, {'Value': 1, 'Label': 'Hardware Failure'}, {'Value': 5, 'Label': 'Heartbeat'}], 'Selected': 'Clear', 'Selected_id': 0} - value_id: 2533274980990996 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Previous Event Cleared - value: 0 - value_id: 72057594228523025 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: User Code - value: 0 - value_id: 73183494135365649 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: User Code - value:  - value_id: 73464969112076311 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Automatically Clear Events - value: 5000 - value_id: 144678138224066579 - CC: CommandClass.ALARM
2020-06-10 15:32:02 DEBUG (MainThread) [homeassistant.components.ozw] [VALUE ADDED] node_id: 11 - label: Secured - value: True - value_id: 199622672 - CC: CommandClass.SECURITY

Additional information

ozw
Source
picture uSpike
👍1

Most helpful comment

Do we need workarounds from the old zwave integration?

    # Schlage BE469 and BE469ZP
    (0x003B, 0x5044): WORKAROUND_DEVICE_STATE | WORKAROUND_TRACK_MESSAGE,
    (0x003B, 0x0469): WORKAROUND_DEVICE_STATE | WORKAROUND_TRACK_MESSAGE,
picture uSpike on 11 Jun 2020
👍2

All 12 comments

I am also experiencing this issue with the same lock. Additionally, the binary_sensor.be469_touchscreen_deadbolt_access_control_manual_lock_operation and binary_sensor.be469_touchscreen_deadbolt_access_control_manual_unlock_operation entities created along with the lock entity seem to flip momentarily on then off (correctly for lock or unlock manually). However, the actual lock entity is inconsistent and never updates for manual lock changes.

awgneo picture awgneo on 11 Jun 2020

ozw documentation
ozw source
(message by IssueLinks)

probot-home-assistant[bot] picture probot-home-assistant[bot] on 11 Jun 2020
  • Seems like the lock state is inverted for this lock.
  • The friendly name is not related to the state of the entity. We're using the label from OpenZWave which in this case is Locked. Confusing I agree.
MartinHjelmare picture MartinHjelmare on 11 Jun 2020

Please record an mqtt dump for OpenZWave/1/node/11/instance/1/commandclass/98/# when locking and unlocking the lock device and post it here.

https://www.home-assistant.io/docs/mqtt/service/#service-mqttdump

MartinHjelmare picture MartinHjelmare on 11 Jun 2020

Here's a dump while I did these things:

  • unlocked via inside handle
  • locked via inside handle
  • locked via keypad
  • unlocked via keypad

mqtt_dump.txt

It doesn't seem like there's enough data to me in the dump, though I may be wrong.

Here's some debug from qt-openzwave:

[20200611 8:20:30.325 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x08, 0x00, 0x04, 0x00, 0x0b, 0x02, 0x98, 0x40, 0x22
[20200611 8:20:30.326 CDT] [ozw.library] [info]: Info - Node: 11 Received SecurityCmd_NonceGet from node 11
[20200611 8:20:30.326 CDT] [ozw.library] [info]: Info - Node: 11 Sending (Send) message (Callback ID=0x01, Expected Reply=0x00) - Nonce_Report - 0x01, 0x11, 0x00, 0x13, 0x0b, 0x0a, 0x98, 0x80, 0xf2, 0x0e, 0xec, 0x78, 0x41, 0x96, 0x2b, 0x95, 0x05, 0x01, 0xe1:
[20200611 8:20:30.413 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x23, 0x00, 0x04, 0x00, 0x0b, 0x1d, 0x98, 0x81, 0x43, 0x3a, 0x5f, 0xf1, 0xcc, 0x80, 0xb2, 0xf0, 0xfe, 0x36, 0x51, 0xa0, 0xaa, 0xe0, 0xfb, 0x26, 0xc6, 0x14, 0xf2, 0x53, 0xc3, 0x95, 0x69, 0xf4, 0x02, 0x7c, 0xb1, 0xd7
[20200611 8:20:30.413 CDT] [ozw.library] [debug]: Detail - Node: 11 Decrypted Packet: 0x00, 0x71, 0x05, 0x16, 0x01, 0x00, 0xff, 0x06, 0x02, 0x00
[20200611 8:20:30.413 CDT] [ozw.library] [info]: Info - Node: 11 Got a AlarmCmd_Report Message....
[20200611 8:20:30.413 CDT] [ozw.library] [info]: Info - Node: 11 Received Notification report (>v1): Type: Access Control (6) Event: Manual Unlock Operation (2) Status: true, Param Length: 0
[20200611 8:20:30.413 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=2, type=list
[20200611 8:20:30.413 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:30.413 CDT] [ozw.library] [info]: Info - Node: 11 Automatically Clearing Alarm in 5000ms
[20200611 8:20:30.413 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:33.843 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x08, 0x00, 0x04, 0x00, 0x0b, 0x02, 0x98, 0x40, 0x22
[20200611 8:20:33.843 CDT] [ozw.library] [info]: Info - Node: 11 Received SecurityCmd_NonceGet from node 11
[20200611 8:20:33.843 CDT] [ozw.library] [info]: Info - Node: 11 Sending (Send) message (Callback ID=0x01, Expected Reply=0x00) - Nonce_Report - 0x01, 0x11, 0x00, 0x13, 0x0b, 0x0a, 0x98, 0x80, 0x7a, 0xd0, 0xed, 0x86, 0x95, 0xba, 0x39, 0x43, 0x05, 0x01, 0x74:
[20200611 8:20:33.929 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x23, 0x00, 0x04, 0x00, 0x0b, 0x1d, 0x98, 0x81, 0x86, 0x4c, 0x3a, 0x10, 0xbd, 0xef, 0x88, 0xd4, 0x05, 0xc4, 0xea, 0x41, 0x2f, 0x9d, 0xd2, 0x76, 0xc9, 0xf9, 0x7a, 0x6b, 0x26, 0xef, 0x99, 0x95, 0xa4, 0xb4, 0xaa, 0x1b
[20200611 8:20:33.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Decrypted Packet: 0x00, 0x71, 0x05, 0x15, 0x01, 0x00, 0xff, 0x06, 0x01, 0x00
[20200611 8:20:33.929 CDT] [ozw.library] [info]: Info - Node: 11 Got a AlarmCmd_Report Message....
[20200611 8:20:33.929 CDT] [ozw.library] [info]: Info - Node: 11 Received Notification report (>v1): Type: Access Control (6) Event: Manual Lock Operation (1) Status: true, Param Length: 0
[20200611 8:20:33.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=2, new value=1, type=list
[20200611 8:20:33.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:33.929 CDT] [ozw.library] [info]: Info - Node: 11 Automatically Clearing Alarm in 5000ms
[20200611 8:20:33.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:35.413 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=1, new value=0, type=list
[20200611 8:20:35.413 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:35.414 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:36.645 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x08, 0x00, 0x04, 0x00, 0x0b, 0x02, 0x98, 0x40, 0x22
[20200611 8:20:36.645 CDT] [ozw.library] [info]: Info - Node: 11 Received SecurityCmd_NonceGet from node 11
[20200611 8:20:36.645 CDT] [ozw.library] [info]: Info - Node: 11 Sending (Send) message (Callback ID=0x01, Expected Reply=0x00) - Nonce_Report - 0x01, 0x11, 0x00, 0x13, 0x0b, 0x0a, 0x98, 0x80, 0xa2, 0x89, 0x04, 0xee, 0x58, 0x34, 0x85, 0x66, 0x05, 0x01, 0xae:
[20200611 8:20:36.730 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x23, 0x00, 0x04, 0x00, 0x0b, 0x1d, 0x98, 0x81, 0x4d, 0x6b, 0xfa, 0x68, 0xf9, 0x69, 0xc7, 0x81, 0x7d, 0x86, 0xbf, 0xc8, 0xe0, 0x3a, 0x51, 0x2c, 0x0d, 0xb8, 0xa2, 0xe9, 0x68, 0xaa, 0x83, 0x87, 0x7b, 0x57, 0xb9, 0x33
[20200611 8:20:36.730 CDT] [ozw.library] [debug]: Detail - Node: 11 Decrypted Packet: 0x00, 0x71, 0x05, 0x16, 0x01, 0x00, 0xff, 0x06, 0x02, 0x00
[20200611 8:20:36.730 CDT] [ozw.library] [info]: Info - Node: 11 Got a AlarmCmd_Report Message....
[20200611 8:20:36.730 CDT] [ozw.library] [info]: Info - Node: 11 Received Notification report (>v1): Type: Access Control (6) Event: Manual Unlock Operation (2) Status: true, Param Length: 0
[20200611 8:20:36.730 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=2, type=list
[20200611 8:20:36.730 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:36.730 CDT] [ozw.library] [info]: Info - Node: 11 Automatically Clearing Alarm in 5000ms
[20200611 8:20:36.730 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:38.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=2, new value=0, type=list
[20200611 8:20:38.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:38.929 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:40.738 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x08, 0x00, 0x04, 0x00, 0x0b, 0x02, 0x98, 0x40, 0x22
[20200611 8:20:40.738 CDT] [ozw.library] [info]: Info - Node: 11 Received SecurityCmd_NonceGet from node 11
[20200611 8:20:40.738 CDT] [ozw.library] [info]: Info - Node: 11 Sending (Send) message (Callback ID=0x01, Expected Reply=0x00) - Nonce_Report - 0x01, 0x11, 0x00, 0x13, 0x0b, 0x0a, 0x98, 0x80, 0x4f, 0xae, 0xa5, 0x71, 0x44, 0xb4, 0x55, 0x36, 0x05, 0x01, 0x46:
[20200611 8:20:40.825 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x23, 0x00, 0x04, 0x00, 0x0b, 0x1d, 0x98, 0x81, 0x34, 0xed, 0xdc, 0xc1, 0x82, 0x70, 0x90, 0x4a, 0x6f, 0x75, 0xca, 0x64, 0x7f, 0xe3, 0x60, 0x98, 0x32, 0x33, 0x4f, 0x45, 0xcb, 0x9f, 0xb0, 0x2f, 0x8d, 0xd2, 0x23, 0x57
[20200611 8:20:40.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Decrypted Packet: 0x00, 0x71, 0x05, 0x12, 0x00, 0x00, 0xff, 0x06, 0x05, 0x00
[20200611 8:20:40.825 CDT] [ozw.library] [info]: Info - Node: 11 Got a AlarmCmd_Report Message....
[20200611 8:20:40.825 CDT] [ozw.library] [info]: Info - Node: 11 Received Notification report (>v1): Type: Access Control (6) Event: Keypad Lock Operation (5) Status: true, Param Length: 0
[20200611 8:20:40.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=3, type=list
[20200611 8:20:40.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:40.825 CDT] [ozw.library] [info]: Info - Node: 11 Automatically Clearing Alarm in 5000ms
[20200611 8:20:40.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:41.731 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=3, new value=0, type=list
[20200611 8:20:41.731 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:41.731 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:45.697 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x08, 0x00, 0x04, 0x00, 0x0b, 0x02, 0x98, 0x40, 0x22
[20200611 8:20:45.697 CDT] [ozw.library] [info]: Info - Node: 11 Received SecurityCmd_NonceGet from node 11
[20200611 8:20:45.698 CDT] [ozw.library] [info]: Info - Node: 11 Sending (Send) message (Callback ID=0x01, Expected Reply=0x00) - Nonce_Report - 0x01, 0x11, 0x00, 0x13, 0x0b, 0x0a, 0x98, 0x80, 0xc2, 0x42, 0xae, 0x04, 0xd8, 0xda, 0x99, 0x52, 0x05, 0x01, 0x03:
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x24, 0x00, 0x04, 0x00, 0x0b, 0x1e, 0x98, 0x81, 0x0f, 0xd3, 0xff, 0xf7, 0xef, 0x1d, 0x8e, 0xb9, 0x58, 0x33, 0x7a, 0x10, 0x06, 0xb0, 0xe5, 0x0f, 0x80, 0x3f, 0xea, 0xc2, 0xf1, 0x7d, 0x8d, 0x8b, 0x86, 0x65, 0x07, 0xa6, 0xc0
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Decrypted Packet: 0x00, 0x71, 0x05, 0x13, 0x02, 0x00, 0xff, 0x06, 0x06, 0x01, 0x02
[20200611 8:20:45.787 CDT] [ozw.library] [info]: Info - Node: 11 Got a AlarmCmd_Report Message....
[20200611 8:20:45.787 CDT] [ozw.library] [info]: Info - Node: 11 Received Notification report (>v1): Type: Access Control (6) Event: Keypad Unlock Operation (6) Status: true, Param Length: 1
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=2, type=byte
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=4, type=list
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:45.787 CDT] [ozw.library] [info]: Info - Node: 11 Automatically Clearing Alarm in 5000ms
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 260
[20200611 8:20:45.787 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:45.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=2, new value=0, type=byte
[20200611 8:20:45.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:45.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=4, new value=0, type=list
[20200611 8:20:45.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:45.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 260
[20200611 8:20:45.825 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:50.787 CDT] [ozw.library] [warning]: Warning - Node: 11 Cant Find Notification Type 6 in m_TimersToInstances
[20200611 8:20:51.121 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x08, 0x00, 0x04, 0x00, 0x0b, 0x02, 0x98, 0x40, 0x22
[20200611 8:20:51.121 CDT] [ozw.library] [info]: Info - Node: 11 Received SecurityCmd_NonceGet from node 11
[20200611 8:20:51.121 CDT] [ozw.library] [info]: Info - Node: 11 Sending (Send) message (Callback ID=0x01, Expected Reply=0x00) - Nonce_Report - 0x01, 0x11, 0x00, 0x13, 0x0b, 0x0a, 0x98, 0x80, 0xab, 0x86, 0xd9, 0x40, 0x41, 0x12, 0x83, 0xe3, 0x05, 0x01, 0x67:
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11   Received: 0x01, 0x23, 0x00, 0x04, 0x00, 0x0b, 0x1d, 0x98, 0x81, 0xc7, 0x4b, 0x19, 0x9d, 0x9d, 0xef, 0x85, 0x0c, 0xca, 0x46, 0x71, 0xa3, 0x5c, 0x1c, 0x8b, 0x9f, 0x99, 0x97, 0xab, 0x99, 0x3e, 0xf7, 0xfb, 0x0d, 0x02, 0x72, 0xde, 0x83
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Decrypted Packet: 0x00, 0x71, 0x05, 0x15, 0x01, 0x00, 0xff, 0x06, 0x01, 0x00
[20200611 8:20:51.209 CDT] [ozw.library] [info]: Info - Node: 11 Got a AlarmCmd_Report Message....
[20200611 8:20:51.209 CDT] [ozw.library] [info]: Info - Node: 11 Received Notification report (>v1): Type: Access Control (6) Event: Manual Lock Operation (1) Status: true, Param Length: 0
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=0, type=byte
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=0, new value=1, type=list
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:51.209 CDT] [ozw.library] [info]: Info - Node: 11 Automatically Clearing Alarm in 5000ms
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 260
[20200611 8:20:51.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
[20200611 8:20:56.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Refreshed Value: old value=1, new value=0, type=list
[20200611 8:20:56.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Changes to this value are not verified
[20200611 8:20:56.209 CDT] [ozw.library] [debug]: Detail - Node: 11 Notification: ValueChanged CC: COMMAND_CLASS_NOTIFICATION Instance: 1 Index: 6
uSpike picture uSpike on 11 Jun 2020

Do we need workarounds from the old zwave integration?

    # Schlage BE469 and BE469ZP
    (0x003B, 0x5044): WORKAROUND_DEVICE_STATE | WORKAROUND_TRACK_MESSAGE,
    (0x003B, 0x0469): WORKAROUND_DEVICE_STATE | WORKAROUND_TRACK_MESSAGE,
uSpike picture uSpike on 11 Jun 2020
👍2

@Fishwaldo any chance you can chime in here?
It feels really bad to simply but these device specific workarounds back into the client implementation. Any chance this can be fixed upstream so all client implementations benefit ?
Or is this already possible by creating a device config xml file ?

marcelveldt picture marcelveldt on 11 Jun 2020

What is the actual workaround doing?

Fishwaldo picture Fishwaldo on 11 Jun 2020

What is the actual workaround doing?

It seems to be inverting the value for the lock state...

marcelveldt picture marcelveldt on 11 Jun 2020

What is the actual workaround doing?

It seems to be inverting the value for the lock state...

There's more to this, see https://github.com/home-assistant/core/pull/18737

Namely, that we can always trust self.values to have
fresh data, and that the Schlage BE469 sends alarm reports after every
lock event. We can't trust self.values, and the Schlage is very
broken. But popular, so we should fix it! :)

uSpike picture uSpike on 11 Jun 2020
👍1

OK, this device specific quirk is definitely not something we like to hardcode in the hass implementation. @uSpike would you like to report this issue upstream to OpenZwave issue tracker please ? This should be solved with a device override file or something.

@Fishwaldo this is just a ping to let you know I pass this your way ;-) Let me know if I can help out figuring a solution in the upstream implementation, in my understanding this can be fixed in the xml files with device specific info ?

marcelveldt picture marcelveldt on 11 Jun 2020

I found this issue: https://github.com/OpenZWave/Zwave2Mqtt/issues/292#issuecomment-595003263

I tried changing the config as @Fishwaldo mentioned, deleted my ozwcache, and it works!

I opened https://github.com/OpenZWave/open-zwave/issues/2246 to track the change in open-zwave.

uSpike picture uSpike on 11 Jun 2020
🎉1
Was this page helpful?
0 / 5 - 0 ratings

Related issues

arangates picture arangates  路  3Comments
kirichkov picture kirichkov  路  3Comments
aweb-01 picture aweb-01  路  3Comments
TheZoker picture TheZoker  路  3Comments
sh0rez picture sh0rez  路  3Comments
