Core: Evohome sets different temperature than the one requested in set_zone_override

[scstraus]

The problem

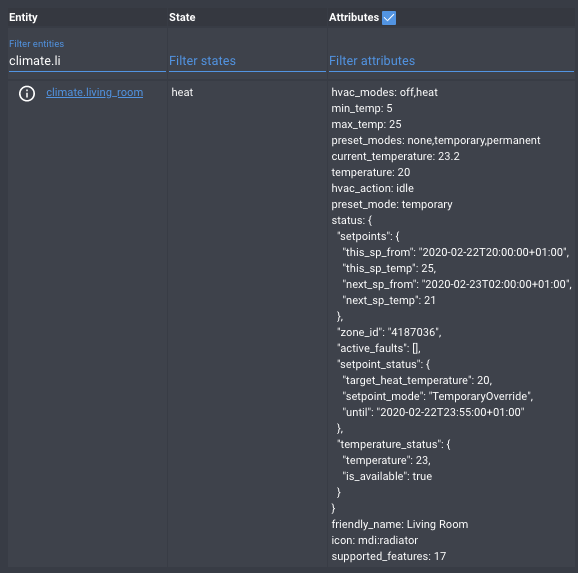

I make a service call to set the temperature to 24 degrees, but it actually sets the temperature to 20 degrees. I've done this about 10 times now, always the same result

Environment

• Home Assistant release with the issue:
  .105.5

• Last working Home Assistant release (if known):
  Didn't notice in previous releases, but maybe was there?

• Operating environment (Hass.io/Docker/Windows/etc.):
  hass.io running on ubuntu server on mac mini

• Integration causing this issue:
  evohome

• Link to integration documentation on our website:
  https://www.home-assistant.io/integrations/evohome/

Problem-relevant configuration.yaml

    service: evohome.set_zone_override
    data:
      entity_id: climate.living_room
      setpoint: 24
      duration: {"minutes":5}

Traceback/Error logs

2020-02-22 22:50:20 DEBUG (MainThread) [homeassistant.core] Bus:Handling <Event call_service[L]: domain=e
vohome, service=set_zone_override, service_data=entity_id=climate.living_room, setpoint=24, duration=minu
tes=5>
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.components.evohome] Status = {'systemId': '4187037'
, 'zones': [{'zoneId': '4187036', 'temperatureStatus': {'temperature': 23.0, 'isAvailable': True}, 'activ
eFaults': [], 'setpointStatus': {'targetHeatTemperature': 20.0, 'setpointMode': 'TemporaryOverride', 'unt
il': '2020-02-22T22:55:20Z'}, 'name': 'Living Room'}, {'zoneId': '4217766', 'temperatureStatus': {'temper
ature': 21.0, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'targetHeatTemperature': 18.0,
 'setpointMode': 'FollowSchedule'}, 'name': 'Dining Room'}, {'zoneId': '4217767', 'temperatureStatus': {'
temperature': 20.5, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'targetHeatTemperature':
 19.0, 'setpointMode': 'FollowSchedule'}, 'name': 'Entrance'}, {'zoneId': '4217768', 'temperatureStatus':
 {'temperature': 22.0, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'targetHeatTemperatur
e': 22.0, 'setpointMode': 'FollowSchedule'}, 'name': 'Laundry room'}, {'zoneId': '4217769', 'temperatureS
tatus': {'temperature': 23.0, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'targetHeatTem
perature': 23.0, 'setpointMode': 'FollowSchedule'}, 'name': "Sebastian's Room"}, {'zoneId': '4217770', 't
emperatureStatus': {'temperature': 21.5, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'ta
rgetHeatTemperature': 21.5, 'setpointMode': 'FollowSchedule'}, 'name': "Sophie's Room"}, {'zoneId': '4217
771', 'temperatureStatus': {'temperature': 21.5, 'isAvailable': True}, 'activeFaults': [{'faultType': 'Te
mpZoneActuatorLowBattery', 'since': '2020-02-14T01:47:11'}, {'faultType': 'TempZoneActuatorCommunicationL
ost', 'since': '2020-02-14T04:57:13'}], 'setpointStatus': {'targetHeatTemperature': 18.0, 'setpointMode':
 'FollowSchedule'}, 'name': 'Guest Bedroom'}, {'zoneId': '4217772', 'temperatureStatus': {'temperature':
23.0, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'targetHeatTemperature': 20.0, 'setpoi
ntMode': 'FollowSchedule'}, 'name': 'Master Closet'}, {'zoneId': '4217773', 'temperatureStatus': {'temper
ature': 22.0, 'isAvailable': True}, 'activeFaults': [], 'setpointStatus': {'targetHeatTemperature': 22.0,
 'setpointMode': 'FollowSchedule'}, 'name': 'Master Bedroom'}, {'zoneId': '4217774', 'temperatureStatus':
 {'temperature': 18.5, 'isAvailable': True}, 'activeFaults': [{'faultType': 'TempZoneActuatorLowBattery',
 'since': '2020-01-26T10:56:58'}, {'faultType': 'TempZoneActuatorCommunicationLost', 'since': '2020-02-15
T17:00:08'}], 'setpointStatus': {'targetHeatTemperature': 18.0, 'setpointMode': 'FollowSchedule'}, 'name'
: 'Garage'}, {'zoneId': '4217775', 'temperatureStatus': {'temperature': 22.5, 'isAvailable': True}, 'acti
veFaults': [], 'setpointStatus': {'targetHeatTemperature': 18.0, 'setpointMode': 'FollowSchedule'}, 'name
': 'Office & Library'}, {'zoneId': '4217776', 'temperatureStatus': {'temperature': 24.0, 'isAvailable': T
rue}, 'activeFaults': [], 'setpointStatus': {'targetHeatTemperature': 23.5, 'setpointMode': 'FollowSchedu
le'}, 'name': 'Master Bath'}], 'activeFaults': [], 'systemModeStatus': {'mode': 'Auto', 'isPermanent': Tr
ue}}
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.core] Bus:Handling <Event state_changed[L]: entity_
id=climate.living_room, old_state=<state climate.living_room=heat; hvac_modes=['off', 'heat'], min_temp=5
.0, max_temp=25.0, preset_modes=['none', 'temporary', 'permanent'], current_temperature=23.3, temperature
=25.0, hvac_action=heating, preset_mode=none, status=setpoints=this_sp_from=2020-02-22T20:00:00+01:00, th
is_sp_temp=25.0, next_sp_from=2020-02-23T02:00:00+01:00, next_sp_temp=21.0, zone_id=4187036, active_fault
s=[], setpoint_status=target_heat_temperature=25.0, setpoint_mode=FollowSchedule, temperature_status=temp
erature=23.5, is_available=True, friendly_name=Living Room, icon=mdi:radiator, supported_features=17 @ 20
20-02-22T22:24:04.773419+01:00>, new_state=<state climate.living_room=heat; hvac_modes=['off', 'heat'], m
in_temp=5.0, max_temp=25.0, preset_modes=['none', 'temporary', 'permanent'], current_temperature=23.3, te
mperature=20.0, hvac_action=idle, preset_mode=temporary, status=setpoints=this_sp_from=2020-02-22T20:00:0
0+01:00, this_sp_temp=25.0, next_sp_from=2020-02-23T02:00:00+01:00, next_sp_temp=21.0, zone_id=4187036, a
ctive_faults=[], setpoint_status=target_heat_temperature=20.0, setpoint_mode=TemporaryOverride, until=202
0-02-22T23:55:20+01:00, temperature_status=temperature=23.0, is_available=True, friendly_name=Living Room
, icon=mdi:radiator, supported_features=17 @ 2020-02-22T22:24:04.773419+01:00>>
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.components.evohome] Temperatures = {'4217766': 21.3
2, '4217767': 20.6, '4217774': 18.53, '4217771': 21.61, '4217768': 22.36, '4187036': 23.22, '4217776': 24
.07, '4217773': 22.24, '4217772': 23.26, '4217775': 22.54, '4217769': 23.0, '4217770': 21.37}
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.core] Bus:Handling <Event state_changed[L]: entity_
id=climate.sophie_s_room, old_state=<state climate.sophie_s_room=heat; hvac_modes=['off', 'heat'], min_te
mp=5.0, max_temp=25.0, preset_modes=['none', 'temporary', 'permanent'], current_temperature=21.6, tempera
ture=21.5, hvac_action=idle, preset_mode=none, status=setpoints=this_sp_from=2020-02-22T22:30:00+01:00, t
his_sp_temp=21.5, next_sp_from=2020-02-23T06:30:00+01:00, next_sp_temp=23.0, zone_id=4217770, active_faul
ts=[], setpoint_status=target_heat_temperature=21.5, setpoint_mode=FollowSchedule, temperature_status=tem
perature=21.5, is_available=True, friendly_name=Sophie's Room, icon=mdi:radiator, supported_features=17 @
 2020-02-22T22:24:04.761637+01:00>, new_state=<state climate.sophie_s_room=heat; hvac_modes=['off', 'heat
'], min_temp=5.0, max_temp=25.0, preset_modes=['none', 'temporary', 'permanent'], current_temperature=21.
4, temperature=21.5, hvac_action=heating, preset_mode=none, status=setpoints=this_sp_from=2020-02-22T22:3
0:00+01:00, this_sp_temp=21.5, next_sp_from=2020-02-23T06:30:00+01:00, next_sp_temp=23.0, zone_id=4217770
, active_faults=[], setpoint_status=target_heat_temperature=21.5, setpoint_mode=FollowSchedule, temperatu
re_status=temperature=21.5, is_available=True, friendly_name=Sophie's Room, icon=mdi:radiator, supported_
features=17 @ 2020-02-22T22:24:04.761637+01:00>>
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.core] Bus:Handling <Event state_changed[L]: entity_
id=climate.living_room, old_state=<state climate.living_room=heat; hvac_modes=['off', 'heat'], min_temp=5
.0, max_temp=25.0, preset_modes=['none', 'temporary', 'permanent'], current_temperature=23.3, temperature
=20.0, hvac_action=idle, preset_mode=temporary, status=setpoints=this_sp_from=2020-02-22T20:00:00+01:00,
this_sp_temp=25.0, next_sp_from=2020-02-23T02:00:00+01:00, next_sp_temp=21.0, zone_id=4187036, active_fau
lts=[], setpoint_status=target_heat_temperature=20.0, setpoint_mode=TemporaryOverride, until=2020-02-22T2
3:55:20+01:00, temperature_status=temperature=23.0, is_available=True, friendly_name=Living Room, icon=md
i:radiator, supported_features=17 @ 2020-02-22T22:24:04.773419+01:00>, new_state=<state climate.living_ro
om=heat; hvac_modes=['off', 'heat'], min_temp=5.0, max_temp=25.0, preset_modes=['none', 'temporary', 'per
manent'], current_temperature=23.2, temperature=20.0, hvac_action=idle, preset_mode=temporary, status=set
points=this_sp_from=2020-02-22T20:00:00+01:00, this_sp_temp=25.0, next_sp_from=2020-02-23T02:00:00+01:00,
 next_sp_temp=21.0, zone_id=4187036, active_faults=[], setpoint_status=target_heat_temperature=20.0, setp
oint_mode=TemporaryOverride, until=2020-02-22T23:55:20+01:00, temperature_status=temperature=23.0, is_ava
ilable=True, friendly_name=Living Room, icon=mdi:radiator, supported_features=17 @ 2020-02-22T22:24:04.77
3419+01:00>>
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.core] Bus:Handling <Event state_changed[L]: entity_
id=sensor.sophie_s_room_temperature, old_state=<state sensor.sophie_s_room_temperature=21.6; unit_of_meas
urement=C, friendly_name=Temperature-Sophie's Room, device_class=temperature @ 2020-02-22T22:41:24.652118
+01:00>, new_state=<state sensor.sophie_s_room_temperature=21.4; unit_of_measurement=C, friendly_name=Tem
perature-Sophie's Room, device_class=temperature @ 2020-02-22T22:50:23.752688+01:00>>
2020-02-22 22:50:23 DEBUG (MainThread) [homeassistant.core] Bus:Handling <Event state_changed[L]: entity_
id=sensor.living_room_temperature, old_state=<state sensor.living_room_temperature=23.3; unit_of_measurem
ent=C, friendly_name=Temperature-Living Room, device_class=temperature @ 2020-02-22T22:48:09.335733+01:00
>, new_state=<state sensor.living_room_temperature=23.2; unit_of_measurement=C, friendly_name=Temperature
-Living Room, device_class=temperature @ 2020-02-22T22:50:23.768759+01:00>>
2020-02-22 22:50:23 INFO (MainThread) [evohome.logger] 2020-02-22T22:50:23.851130 MSG: || 045 |  I |
| TRV:000730 |            | >broadcast | temperature      | 003 | 000990   || {'04:000730': {'temperature
': 24.48}}
2020-02-22 22:50:28 INFO (MainThread) [evohome.logger] 2020-02-22T22:50:28.390779 MSG: || 045 |  I |
| CTL:158182 |            | >broadcast | zone_mode        | 013 | 0007D... || [{'00': {'setpoint': 20.0,
'mode': 'TemporaryOverride', 'until': '2020-02-22 23:55:00'}}]
2020-02-22 22:50:28 INFO (MainThread) [evohome.logger] 2020-02-22T22:50:28.453548 MSG: || 045 |  I |
| CTL:158182 |            | >broadcast | setpoint         | 003 | 0007D0   || [{'00': {'setpoint': 20.0}}
]
2020-02-22 22:50:29 INFO (MainThread) [evohome.logger] 2020-02-22T22:50:29.851996 MSG: || 051 |  I |
| TRV:136497 |            | CTL:158182 | window_state     | 003 | 070000   || {'04:136497': {'window_open
': False}}

Additional information

[eavanvalkenburg]

I've noticed this as well, both for setting a room to 13 degrees going to 10 degress, and for over 20 to 20. Seems to have to do with the precision logic.

[zxdavb]

I wonder if there is an issue with this code:

        # otherwise it is SVC_SET_ZONE_OVERRIDE
        temperature = round(data[ATTR_ZONE_TEMP] * self.precision) / self.precision
        temperature = max(min(temperature, self.max_temp), self.min_temp)

[eavanvalkenburg]

I wonder if there is an issue with this code:

        # otherwise it is SVC_SET_ZONE_OVERRIDE
        temperature = round(data[ATTR_ZONE_TEMP] * self.precision) / self.precision
        temperature = max(min(temperature, self.max_temp), self.min_temp)

That's what I thought as well, but I wasn't sure what the values for self.precision can be...

[zxdavb]

Its either 0.1 or 0.5:

        if evo_broker.client_v1:
            self._precision = PRECISION_TENTHS
        else:
            self._precision = self._evo_device.setpointCapabilities["valueResolution"]

see:

2020-02-23 15:57:03 DEBUG (MainThread) [homeassistant.components.evohome] Config = {'systemId': '3432522', 'modelType': 'EvoTouch', 'zones': [{'zoneId': '3432521', 'modelType': 'HeatingZone', 'setpointCapabilities': {'maxHeatSetpoint': 35.0, 'minHeatSetpoint': 5.0, 'valueResolution': 0.5, 'can ...

There is a 'best-efforts' attempt to get higher-precision temps using the older API, but now I think about it, _current_ temperatures can be in 0.1, but _target_ temperatures (setpoints) have to be in 0.5 regardless.

[zxdavb]

So we can fix _two_ bugs here:

        precision = self._evo_device.setpointCapabilities["valueResolution"]
        temperature = round(data[ATTR_ZONE_TEMP] / precision) * precision
        temperature = max(min(temperature, self.max_temp), self.min_temp)

[eavanvalkenburg]

Yeah that looks better, with / then * instead of the other way around, because that causes the rounding down to 10 or 20, not sure what the other bug is...

[zxdavb]

It's using precision instead of self.precision.

[zxdavb]

Are you interested in making that change at your end and testing it - I am working on the TZ problem...

In climate.py, add a line, and change the last two lines:

    async def async_zone_svc_request(self, service: dict, data: dict) -> None:
        """Process a service request (setpoint override) for a zone."""
        if service == SVC_RESET_ZONE_OVERRIDE:
            await self._evo_broker.call_client_api(
                self._evo_device.cancel_temp_override()
            )
            return

        # otherwise it is SVC_SET_ZONE_OVERRIDE  # TODO: bug here?
        precision = self._evo_device.setpointCapabilities["valueResolution"]
        temperature = round(data[ATTR_ZONE_TEMP] / precision) * precision
        temperature = max(min(temperature, self.max_temp), self.min_temp)

... and then (I changed from temp to temperature):

        if ATTR_DURATION_UNTIL in data:
            duration = data[ATTR_DURATION_UNTIL]
            if duration.total_seconds() == 0:
                await self._update_schedule()
                until = parse_datetime(str(self.setpoints.get("next_sp_from")))
            else:
                until = dt.now() + data[ATTR_DURATION_UNTIL]
        else:
            until = None  # indefinitely

        # TODO: until dt from aware to evo naive/local
        await self._evo_broker.call_client_api(
            self._evo_device.set_temperature(temperature, until=until)
        )

[zxdavb]

BTW, it seems you can set a zone target temp to (say) 13.7 C (i.e. a multiple of 0.1, not 0.5).

[eavanvalkenburg]

I can do a test later this week, currently traveling.
