core 🚀 - HS300 reporting wrong number of plugs

Hey there @rytilahti, mind taking a look at this issue as its been labeled with a integration (tplink) you are listed as a codeowner for? Thanks!

probot-home-assistant[bot] on 7 Nov 2019

Just curious if only comes back with 5 or does it get discovered with an "unnamed_device"? Mine seems to always discover all 6 but it doesn't always discover the names correctly and sometimes comes back with switch.unnamed_device and maybe a switch_unnamed_device2. I was wondering if this also related to the tplink discovery not always discovering all devices if you have a large number of devices. I have 23 tplink devices and it is almost impossible to get all of them discovered without many restarts of HA.

I am currently running the PIP install on a PI 3B+ running 0.101.3 and the discovery issue has existed on every version HA for me.

TheGardenMonkey on 10 Nov 2019

mine also does the weird naming thing but it is inconsistent on the plugs. I don't believe it is a timing issue as I only have one tplink device.

rlsmntr on 10 Nov 2019

Can you enable logging for both the integration as well as for pyHS100? Is it working fine with the console tool pyhs100?

rytilahti on 10 Nov 2019

tp.log

I added the following to my configuration.yaml:

logger:
  logs:
    homeassistant.components.tplink: debug
    pyHS100: debug

After a few minutes I did the following:
egrep "tplink|HS100" home-assistant.log >/tmp/tp.log

On this start at least all of my devices appeared to be discovered (22, I miscounted before when I wrote 23). But for the power strip, 2 of the ports came back as unnamed_devices (they are Monitor 2 and 3 in the log). I will try the pyhs100 console, but I do remember playing with it before the code was merged and I didn't notice any issue, but I didn't do too much with it.

TheGardenMonkey on 10 Nov 2019

@TheGardenMonkey If my gut feeling is right, I think your problem will be fixed when I manage to do a new pyhs100 release. I have experienced with some bulbs that they stop responding after receiving too many requests in a short period of time. In the case of HS300, homeassistant (to my understanding) requests an update for each socket separately, meaning that there will be at minimum 6 requests made to a single device (but considering emeter etc., it'll be in practice much more). The new release will fix this issue by transparently caching the results for a short amount of time.

rytilahti on 11 Nov 2019

Thank you and that makes sense. I do remember seeing something similar before regarding too many connection attempts.

TheGardenMonkey on 12 Nov 2019

Based on your comments @rytilahti , I decided to try increasing the "interval" value from 60 to 120 in the common.py in the tplink directory and so far all of my 22 devices come back now and the HS300 is showing all the ports / devices.

Changing interval to 120 on line 136 in /srv/homeassistant/lib/python3.7/site-packages/homeassistant/components/tplink/common.py:

async def async_add_entities_retry(
    hass: HomeAssistantType,
    async_add_entities: Callable[[List[Any], bool], None],
    objects: List[Any],
    callback: Callable[[Any, Callable], None],
    interval: timedelta = timedelta(seconds=120),
):

That at least allows all of the devices to show up, but I still see an error updating the state for the HS300 so it doesn't always show the correct state of each port (192.168.86.166 is my HS300):

2019-11-16 18:08:38 WARNING (SyncWorker_8) [homeassistant.components.tplink.switch] Could not read state for 192.168.86.166: Communication error

TheGardenMonkey on 17 Nov 2019

One additional change I just tried which at least fixes the state becoming unavailable was to wrap the "update" in a for loop with a sleep to retry after 1 second up to 10 times (i also tried 2 seconds up to 5 times). So not at least the state doesn't flop, it now only delayed in updating (which I think is already the case anyway):

MAX_ATTEMPS = 5
SLEEP_TIME = 2

    def update(self):
        """Update the TP-Link switch's state."""
        for update_attempt in range(MAX_ATTEMPS):
            try:
                if not self._sysinfo:
                    self._sysinfo = self.smartplug.sys_info
                    self._mac = self.smartplug.mac
                    self._model = self.smartplug.model
                    if self.smartplug.context is None:
                        self._alias = self.smartplug.alias
                        self._device_id = self._mac
                    else:
                        self._alias = [
                            child
                            for child in self.smartplug.sys_info["children"]
                            if child["id"] == self.smartplug.context
                        ][0]["alias"]
                        self._device_id = self.smartplug.context

                if self.smartplug.context is None:
                    self._state = self.smartplug.state == self.smartplug.SWITCH_STATE_ON
                else:
                    self._state = [
                        child
                        for child in self.smartplug.sys_info["children"]
                        if child["id"] == self.smartplug.context
                    ][0]["state"] == 1

                if self.smartplug.has_emeter:
                    emeter_readings = self.smartplug.get_emeter_realtime()

                    self._emeter_params[ATTR_CURRENT_POWER_W] = "{:.2f}".format(
                        emeter_readings["power"]
                    )
                    self._emeter_params[ATTR_TOTAL_ENERGY_KWH] = "{:.3f}".format(
                        emeter_readings["total"]
                    )
                    self._emeter_params[ATTR_VOLTAGE] = "{:.1f}".format(
                        emeter_readings["voltage"]
                    )
                    self._emeter_params[ATTR_CURRENT_A] = "{:.2f}".format(
                        emeter_readings["current"]
                    )

                    emeter_statics = self.smartplug.get_emeter_daily()
                    try:
                        self._emeter_params[ATTR_TODAY_ENERGY_KWH] = "{:.3f}".format(
                            emeter_statics[int(time.strftime("%e"))]
                        )
                    except KeyError:
                        # Device returned no daily history
                        pass

                self._available = True

            except (SmartDeviceException, OSError) as ex:
                _LOGGER.warning(
                    f"Retrying in {SLEEP_TIME} seconds for {self.smartplug.host}|{self._alias} due to: {ex}"
                )
                time.sleep(SLEEP_TIME)
            else:
                break
        else:
            if self._available:
                _LOGGER.warning(
                    f"Could not read state for {self.smartplug.host}|{self._alias}"
                )
            self._available = False

TheGardenMonkey on 17 Nov 2019

@TheGardenMonkey - Trying to test your modifications for the TP-Link switch to see if it stops the random "unavailable" status on them. The TP-Link lights do the same thing randomly.

Probably something minor I missed on the cut and paste, but got this error after trying your changes:

2019-12-12 13:44:24 ERROR (MainThread) [homeassistant.config_entries] Error setting up entry TP-Link Smart Home for switch
Traceback (most recent call last):
File "d:homeassistantlibsite-packageshomeassistantconfig_entries.py", line 192, in async_setup
hass, self
File "d:homeassistantlibsite-packageshomeassistantcomponentsswitch__init__.py", line 79, in async_setup_entry
return await hass.data[DOMAIN].async_setup_entry(entry)
File "d:homeassistantlibsite-packageshomeassistanthelpersentity_component.py", line 142, in async_setup_entry
platform_type,
File "d:homeassistantlibsite-packageshomeassistantsetup.py", line 245, in async_prepare_setup_platform
platform = integration.get_platform(domain)
File "d:homeassistantlibsite-packageshomeassistantloader.py", line 232, in get_platform
f"{self.pkg_path}.{platform_name}"
File "D:PythonPython37libimportlib__init__.py", line 127, in import_module
return _bootstrap._gcd_import(name[level:], package, level)
File "", line 1006, in _gcd_import
File "", line 983, in _find_and_load
File "", line 967, in _find_and_load_unlocked
File "", line 677, in _load_unlocked
File "", line 724, in exec_module
File "", line 860, in get_code
File "", line 791, in source_to_code
File "", line 219, in _call_with_frames_removed
File "d:homeassistantlibsite-packageshomeassistantcomponentstplinkswitch.py", line 127
def update(self):
^
IndentationError: unexpected indent

MarkHofmann11 on 12 Dec 2019

Attaching the full file instead...i should have done that in the first place

switch.py.txt

TheGardenMonkey on 12 Dec 2019

👍1

Awesome, thanks!!! Just updated mine over here and it loaded fine this time. Will report back tomorrow after I give it time to run for awhile. I have a good number of TP-Link switches, and a bulb, so should be a good test.

MarkHofmann11 on 13 Dec 2019

👍1

I updated the log outputs just in case so you can see each retry attempt for each device...

2019-12-12 19:06:41 WARNING (SyncWorker_4) [homeassistant.components.tplink.switch] Retrying in 2 for 192.168.86.166|Office Monitor 2 due to: Communication error

As long as all the devices show up after you restart HA, mine seem to stay. There are sometimes where I need to restart HA an extra time for it to poll all of the devices (which has always been an issue for me), but it seems to just be once as opposed to the 4 or 5 times I would try before.

TheGardenMonkey on 13 Dec 2019

@TheGardenMonkey - Working great so far (been around 12 hours). Not a single "unavailable" or "status unknown" flap of any TP-Link switch. I never had issues with the tplink switches at startup, but they would randomly for "unknown" in the log, but always recovered instantly. It was cluttering up the log and chart - as it seems the tplink devices can't handle lots of polling and will occasionally drop a reply. Your routine seems to have fixed that! Will update later, but if all continues well we should have this entered as a pull request! I know there is work being done on the back-end library, but this looks to fix it, too. Can't hurt to have both in there.
Would it be possible for you to modify and post the same routine for the tplink "light"? I have the same issues with that one occasionally.

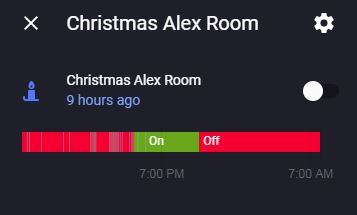

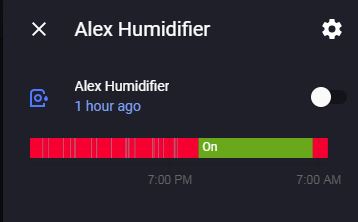

Below you can see the history of all the random "unknowns" and the clean past 12 hours after using your update. :)
Capture
Capture-2

MarkHofmann11 on 13 Dec 2019

I'm happy to report that your updates have completely fixed my random "unavailable" or "unknowns" that I was getting in the log and on the history. The routine appears to be solid and should be added as a pull request. I would like to see it in the light component as well, since TP-link is notorious for this issue and I have seen it on my lights, too.

I am seeing the communication errors in the log (which we could probably just ignore or delete) since this is just the way the tplink devices work. They are not always quick to respond to lots of requests.

Update of switch.christmas_alex_room is taking over 10 seconds
8:08 PM D:PythonPython37libasyncioevents.py (WARNING) - message first occurred at 7:58 PM and shows up 2 times
Update of switch.alex_humidifier is taking over 10 seconds
8:08 PM D:PythonPython37libasyncioevents.py (WARNING) - message first occurred at 12:55 PM and shows up 5 times
Could not read state for 192.168.0.187|Alex Humidifier
2:42 PM d:homeassistantlibsite-packageshomeassistantcomponentstplinkswitch.py (WARNING)
Updating tplink switch took longer than the scheduled update interval 0:00:30
2:42 PM d:homeassistantlibsite-packageshomeassistanthelpersentity_platform.py (WARNING)

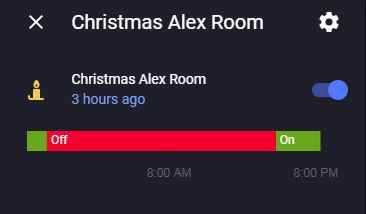

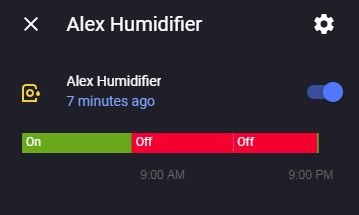

But, the log and history looks clean. Just one unavailable at 2:42pm where there was apparently too many drops in a row. Would increasing the MAX_ATTEMPTS from 5 to 10 help?

Capture

Capture-2

MarkHofmann11 on 14 Dec 2019

Awesome and yes I was thinking of increasing it to 10 attempts (I originally tried 1 second and 10 attempts but that still resulted in drops, but 2 seconds and 10 attempts seems reasonable to me). I will take a look at the light component in the morning.

TheGardenMonkey on 14 Dec 2019

light.py.txt

Attached is an updated for the light component that matches the switch one. I don't have a bulb to validate but no startup errors at least. For the hs300 I still do see one of the switches not respond sometimes so not sure if 10 attempts in enough...might need to be at least 12 (2 seconds x 6 switches). Going to test increasing it to 20 to be safe (just wasn't sure if I missing something).

TheGardenMonkey on 14 Dec 2019

Awesome, just updated my light.py over here and restarted. All working perfect. So happy to finally get to the bottom of the status unknown or unavailable in the history and log. Your update handles the random response behavior of the tplinks and keeps it working clean. I guess it isn't a big deal to see all the communication errors in the log since that doesn't impact anything. Having clean history and status are the main things. I have a ton of these switches and just ordered another 8.. :) Most are HS105, but have HS200s (wall switches), a few of their light bulbs, and a KP400 (outdoor 2-outlet strip - using for xmas lights this year). All working great now!!!

MarkHofmann11 on 14 Dec 2019

Trying to test out the tplink switch .py but can not figure out where it is stored on hassio. Any luck pointing me to where its at?

rlsmntr on 14 Dec 2019

Trying to test out the tplink switch .py but can not figure out where it is stored on hassio. Any luck pointing me to where its at?

On my Windows install, I have it in: D:homeassistantLibsite-packageshomeassistantcomponentstplink

Should be a similar directory structure on hassio.

MarkHofmann11 on 14 Dec 2019

On my Windows install, I have it in: D:homeassistantLibsite-packageshomeassistantcomponentstplink

Should be a similar directory structure on hassio.

Doesn't seem to exist cant find it using smb or configurator

rlsmntr on 15 Dec 2019

ok so I was able to get it running by adding it as a custom component. It appears to be working with my HS300 as the strip. It does however under integrations still pick a random name. Shouldn't it be picking the switch.tp_link_power_strip_797d as the name?

rlsmntr on 15 Dec 2019

You might have to delete the device by going to the entity registry page...I am pretty sure I had to do that and then on restart it discovered the names correctly. Under integrations it shows up under one device and it is the name of my 6th port as defined in the kasa app.

TheGardenMonkey on 15 Dec 2019

So I removed the entity today thinking everything was good to go. But now I am still getting the random devices not showing in the list. Its never the same one its always different. Been through 4 restarts of ha and can't get a perfect match yet.

rlsmntr on 15 Dec 2019

Can you try changing the MAX_ATTEMPTS to 20? I forgot the version I uploaded was only at 5 and that is not enough for the HS300.

TheGardenMonkey on 15 Dec 2019

Can you try changing the MAX_ATTEMPTS to 20? I forgot the version I uploaded was only at 5 and that is not enough for the HS300.

Set it to 10 - had a missing device. Set it to 20 - seemed to pop up and survive two restarts. Third one popped up with a device missing.

(device still takes whatever name it wants)

rlsmntr on 15 Dec 2019

What version of HA are you on? I am on latest 0.103.0.

TheGardenMonkey on 15 Dec 2019

@rlsmntr Can you try this version instead?

https://raw.githubusercontent.com/TheGardenMonkey/home-assistant/d2d81861b979066c62dcecb54c3f166cb204dd36/homeassistant/components/tplink/switch.py

I updated it based on some feedback on the pull request and after going through a bunch more test, I no longer see the issue where the devices do not show up with the proper name (even with my last version I saw it a few times, but I believe the last change prevents that). The only issue I still see is a 1 second delay on updating the status which I am still working on.

switch.py.txt

TheGardenMonkey on 18 Dec 2019

@rlsmntr Can you try this version instead?

https://raw.githubusercontent.com/TheGardenMonkey/home-assistant/d2d81861b979066c62dcecb54c3f166cb204dd36/homeassistant/components/tplink/switch.py

I updated it based on some feedback on the pull request and after going through a bunch more test, I no longer see the issue where the devices do not show up with the proper name (even with my last version I saw it a few times, but I believe the last change prevents that). The only issue I still see is a 1 second delay on updating the status which I am still working on.

switch.py.txt

I wanted to test this for a while and got wrapped up in the holidays. This seems to have resolved the issue with HA not finding all the plugs on reboot. My HA has seen every plug on reboot for that strip since I updated to this. The device does show as randomly any of the plugs. That doesn't really bother me as long as the plugs work - which they do.

rlsmntr on 29 Dec 2019

@rlsmntr Can you try this version instead?

https://raw.githubusercontent.com/TheGardenMonkey/home-assistant/d2d81861b979066c62dcecb54c3f166cb204dd36/homeassistant/components/tplink/switch.py

I was having the same problem, things are much better with this patch. All six plugs seem to show up every time. Sometimes their status is incorrect (switch incorrectly displayed as "off" when it's actually "on," and all the power usage information being unavailable), but that clears up after a second or two. Previously, the entities would appear as "unavailable" and the only thing one could do was restart HomeAssistant and hope to get lucky (seemed to take about 10-20 restarts to have all six).

I haven't looked at the code, but based on the error messages in the logs, it seems the underlying error is still there. Previously, I would get errors like these (HS300 is the strip's DNS hostname):

2020-01-19 20:42:20 WARNING (SyncWorker_24) [homeassistant.components.tplink.switch] Could not read state for HS300: Communication error

Now the error is similar but different:

2020-01-20 11:37:08 WARNING (SyncWorker_3) [homeassistant.components.tplink.switch] Retrying in 1 for HS300| due to: Communication error

(Note there seems to be a stray | character in this version)

Retrying on this error is certainly better than just making the entity permanently unavailable. However, it leaves the question of why it's happening in the first place? A couple of data points:

I'm also using a couple of HS105 and HS110 "smart plugs" from the same manufacturer with HomeAssistant, for a couple of months, and those never have this kind of error or any other problem that I've noticed. They're all on the same network.
I also have this command line script to query the device directly. When I use the info command on the HS300, it always returns a successful and complete response with the correct state of all six plugs. So it would seem the issue must be a bug somewhere in the HomeAssistant integration for this specific device?

morninglite on 20 Jan 2020

@morninglite the root of the problem is known and has been discussed previously, but to summarize: my understanding is that the devices stop responding to commands if it thinks it is being flooded by too many requests at once. This is also the reason why that retry PR has not been merged, it does not really solve the underlying problem whatsoever (but I agree that homeassistant should allow/do retries in case of communication failures, but that's a topic for another day..).

At the moment HS105 (w/o emeter) will receive a single request where HS110 will get three requests per update cycle. For HS300 this number jumps to 21 requests (one for current state, current consumption, daily consumption) per device, as each of the socket is also queried separately (so 3*6=18). I have personally experienced some bulbs having issues with far fewer number of requests. Assuming it's only a single device that is being unnamed, maybe the device allows only up to 20 request in X seconds? That would not explain the problem with some other devices having fewer sockets though.

Anyway, the problem is being slowly solved in the new backend library (by avoiding unnecessary I/O), but as none of the developers have a test device (and are otherwise busy), it will take some time to get this properly fixed. One potential temporary solution could be to distribute the updates for the child devices more uniformly over the update period.

Someone with access to HS300 could do some experiments using the library directly to see what are the limits when the problems appear, that could also be helpful so we could add throttling to the backend lib.

rytilahti on 21 Jan 2020

@rytilahti sorry, I wasn't around for the previous discussions but thank you for that excellent explanation! I'll do as you suggested and experiment using the library (you mean pyHS100, right?) directly.

One thing I notice is that when using the aforementioned command-line tool, I get the statuses of all the plugs with just one request: the get_sysinfo response contains a children json array with six elements, each one containing a plug's ID and state (on/off state, plus on_time). Unfortunately, this doesn't include the power usage info, but even if that has to be queried separately it seems we could at least reduce the total number of requests from 21 to 15, unless I'm missing something.

I imagine there must be constraints in the current code that make that difficult, but is it at least a reasonable goal to work towards?

morninglite on 21 Jan 2020

@morninglite that is indeed the approach I have in my mind, alas, I have not had time to dug into that part yet. We have been lately cleaning up the pyhs100 library under its new name here: https://github.com/python-kasa/python-kasa . The preliminary PR to convert homeassistant to use it is already linked above, but it is not yet ready for the prime time until the multisocket accesses are optimized.

Considering the json payload calls it child_ids containing an array, maybe it can be a list of all the sockets? This way the number of requests would be three instead of the current 21. Unfortunately, I have no test device as there is no EU variant for this, so doing development work requires going through some hoops.

rytilahti on 22 Jan 2020

I'd be happy to help with testing.

I have 3 of the HS300's (I'm in the USA) and am having issues getting them connected to Hass. 3 x 6 sockets means I have 18 sockets to come online after a Hass/Hass.io reboot, and I've never seen it successfully bring all 18 online.

I'm running .107.5 with Hass.io Supervisor 209 on Ubuntu 18.04.4. I am having no issues with either my Alexa integration nor my Sense integration.

darthgooch on 24 Mar 2020

👍1

Brilliant! Added this as a custom component and things have been much more reliable. Not quite perfect, but darn close.

I'm on dev channel of Hassio and have 3x HS300s also.

thatsatechnique on 1 Apr 2020

Agreed! I really wish the modified light.py and switch.py would be added to the release builds. Each time I upgrade, I keep re-copying the modified light.py and switch.py to keep things working properly with no random unavailables.

MarkHofmann11 on 1 Apr 2020

@TheGardenMonkey - Created a pull request with your MAX_RETRIES and SLEEP_TIME using the latest dev build. I have been using your code ever since you posted it and it works perfect. Did this so I don't have to keep re-copying over the component to get rid of the "unknown" status errors on the TPLink devices. https://github.com/home-assistant/core/pull/35460

MarkHofmann11 on 10 May 2020

I have an open one but it hasn't been approved. There are some changes coming to the kasa library to attempt to prevent the main issue.

https://github.com/home-assistant/core/pull/29941

TheGardenMonkey on 10 May 2020

As a side note, I just use my code as a custom component so that way I don't have to keep copying it everytime I do an upgrade. So i just have the files in ~/.homeassistant/custom_components/tplink (I am using the pip install method,)

TheGardenMonkey on 10 May 2020

When I pulled the latest switch.py and light.py from dev, there have been several changes since I added your mod almost 6 months ago. I applied your changes to the very latest versions and used that for the pull request. Also running that updated version over here now - working flawlessly as always. I know there is work being done to the kasa library, but see no harm in putting this fix in for the time being. It works great!

MarkHofmann11 on 12 May 2020

I think I merged those changes in a few weeks ago as well...they are part of my pull request.

TheGardenMonkey on 12 May 2020

👍1

I found this thread because I just got 7 HS300's and 3 HS110's and I'm getting some instability in the discovered entities. Every restart of the server seems to make some active and others become orphaned.
I'm guessing the fix hasn't been released yet and I should expect this for a bit more until it is.

spencerknapp on 16 Jun 2020

In order to fix this in the meantime, you can run @TheGardenMonkey 's updated switch.py and light.py as a custom component. We both had submitted pull requests that technically work, but were not approved. Probably because it is a work-around, but I have been running the modified code for the past 6 months with no issues. Eventually the new backend will be added, but you can fix it today by doing the above.

MarkHofmann11 on 16 Jun 2020

So I moved my Home Assistant installation from a fast PC to the classic Raspberry Pi Model B. Anyway, in the process I forgot to put the modified switch.py on the Pi, and didn't even notice for a couple of weeks!

The error still occurs, but very rarely compared to the fast machine. On the pi, the web interface almost always looks correct, and the "Could not read state" error only appears a handful of times a day. On the fast machine it was the opposite: web interface was almost always missing at least one plug, if not several, and the logs were flooded with this message.

I guess it's ok to send as many requests as you want, as long as you do it slowly? :P

morninglite on 2 Jul 2020

Yes, the devices I have tested/gotten tested by others allow something between 4-20 requests per second. IIRC, current implementation for HS300 will cause the total of 18 requests per update cycle, which likely hits the limit when going fast enough, for HS110 I have gotten stable 20 requests per second without problems, the bulbs seem also be much stricter than that.

So what happens there during the start process with the current implementation is the following:

The device gets initialized, so the first request is made.
Based on that response, if there are child devices (like is the case for HS300), a switch entity is created separately for each socket.
These devices are then updated (again, separately) to obtain their state, emeter information etc.

Those tests were run with python-kasa using code like this:

import asyncio
import logging
logging.basicConfig(level=logging.DEBUG)
from kasa import SmartPlug

async def loopy():
    b = SmartPlug("192.168.250.188")
    while True:
        await b.update()
        print(b.emeter_realtime)
        await asyncio.sleep(0.1)


asyncio.run(loopy())

while adjusting the sleep interval.

The reason for all of these issues is a large amount of consecutive requests, that's why python-kasa (and the linked PR) takes a different approach.

edit: added a clarification what happens during the initialization to make it clearer why the current implementation is problematic.

rytilahti on 2 Jul 2020

Hello, could someone provide some assistance on how to use @TheGardenMonkey switch.py ? I am running Hass.io on a RP4, I see that @rlsmntr was able to add it as a custom component however I am a little lost, from what I understand I need to go to add-on store then add repositories however not sure which repository to add?

jaysalazar on 11 Jul 2020

tplink.zip

Although I have been using my code since December now, I am still a little hesitant to recommend it. For one thing I haven't updated it to use the new SwitchDevice, but regardless, in case it does help, I am attaching a simple zip of what you need. This just needs to be unzipped into your custom_components folder.

:~/.homeassistant/custom_components/tplink $ ll
total 52
-rw-r--r-- 1 homeassistant homeassistant 5735 Jan 11 09:19 common.py
-rw-r--r-- 1 homeassistant homeassistant  364 Jan 11 09:19 config_flow.py
-rw-r--r-- 1 homeassistant homeassistant   44 Jan 11 09:19 const.py
-rw-r--r-- 1 homeassistant homeassistant 3764 Jan 11 09:19 __init__.py
-rw-r--r-- 1 homeassistant homeassistant 8651 Jan 11 09:19 light.py
-rw-r--r-- 1 homeassistant homeassistant  248 Jan 11 09:19 manifest.json
drwxr-xr-x 2 homeassistant homeassistant 4096 Jan 11 09:23 __pycache__
-rw-r--r-- 1 homeassistant homeassistant  381 Jan 11 09:19 strings.json
-rw-r--r-- 1 homeassistant homeassistant 6422 Jan 11 09:19 switch.py

I have been watching the WIP pull request and hoping that gets released soon. The last time I tested it though it wasn't working but I haven't tried the last version.

TheGardenMonkey on 11 Jul 2020

Thank you so much @TheGardenMonkey ! This has helped and my HS300 is working much better, all of the outlets show up now and the on/off functionality is working consistent enough to be used for my intended purposes. Thanks again.

jaysalazar on 11 Jul 2020

👍3

While I understand there is a new setup being worked on, it is a shame the
several pull requests were not merged with these fixes. I have been
running the modified tplink integration over here flawlessly ever
since @TheGardenMonkey made the updates - somewhere around 7 months ago.

On Sat, Jul 11, 2020 at 11:27 AM jaysalazar notifications@github.com
wrote:

Thank you so much @TheGardenMonkey https://github.com/TheGardenMonkey !
This has helped and my HS300 is working much better, all of the outlets
show up now and the on/off functionality is working consistent enough to be
used for my intended purposes. Thanks again.

—
You are receiving this because you commented.
Reply to this email directly, view it on GitHub
https://github.com/home-assistant/core/issues/28590#issuecomment-657080890,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/ADEX7OKPXFAX2YZBHUTHQZTR3CAGBANCNFSM4JJWUR6Q
.

MarkHofmann11 on 14 Jul 2020

@TheGardenMonkey Thank you for sharing your tplink update! It definitely works better than the native integration! But I do see an issue that you may or may not be interested in addressing. When trying to control multiple switches on the HS300 simultaneously (in a group) or one after another fairly quickly, I am getting the below error.

Log Details (ERROR)
Logger: homeassistant.components.websocket_api.http.connection.139934390209504
Source: custom_components/tplink/switch.py:131
Integration: Home Assistant WebSocket API (documentation, issues)
First occurred: 8:43:46 PM (2 occurrences)
Last logged: 8:44:14 PM

Communication error
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 115, in _query_helper
response = self.protocol.query(
File "/usr/local/lib/python3.8/site-packages/pyHS100/protocol.py", line 47, in query
sock = socket.create_connection((host, port), timeout)
File "/usr/local/lib/python3.8/socket.py", line 808, in create_connection
raise err
File "/usr/local/lib/python3.8/socket.py", line 796, in create_connection
sock.connect(sa)
socket.timeout: timed out

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/components/websocket_api/commands.py", line 125, in handle_call_service
await hass.services.async_call(
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/components/homeassistant/__init__.py", line 87, in async_handle_turn_service
await asyncio.gather(tasks)
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/helpers/entity_component.py", line 208, in handle_service
await self.hass.helpers.service.entity_service_call(
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 454, in entity_service_call
future.result() # pop exception if have
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 583, in async_request_call
await coro
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 485, in _handle_entity_call
await result
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 618, in async_turn_off
await self.hass.async_add_executor_job(ft.partial(self.turn_off, *kwargs))
File "/usr/local/lib/python3.8/concurrent/futures/thread.py", line 57, in run
result = self.fn(self.args, *self.kwargs)
File "/config/custom_components/tplink/switch.py", line 121, in turn_off
self.update_state()
File "/config/custom_components/tplink/switch.py", line 139, in update_state
self._state = self._plug_from_context["state"] == 1
File "/config/custom_components/tplink/switch.py", line 131, in _plug_from_context
children = self.smartplug.sys_info["children"]
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 186, in sys_info
return defaultdict(lambda: None, self.get_sysinfo())
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 196, in get_sysinfo
return self._query_helper("system", "get_sysinfo")
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 120, in _query_helper
raise SmartDeviceException('Communication error') from ex
pyHS100.smartdevice.SmartDeviceException: Communication error

mikesalz on 4 Sep 2020

@TheGardenMonkey Thank you for sharing your tplink update! It definitely works better than the native integration! But I do see an issue that you may or may not be interested in addressing. When trying to control multiple switches on the HS300 simultaneously (in a group) or one after another fairly quickly, I am getting the below error.

Log Details (ERROR)
Logger: homeassistant.components.websocket_api.http.connection.139934390209504
Source: custom_components/tplink/switch.py:131
Integration: Home Assistant WebSocket API (documentation, issues)
First occurred: 8:43:46 PM (2 occurrences)
Last logged: 8:44:14 PM
Communication error
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 115, in _query_helper
response = self.protocol.query(
File "/usr/local/lib/python3.8/site-packages/pyHS100/protocol.py", line 47, in query
sock = socket.create_connection((host, port), timeout)
File "/usr/local/lib/python3.8/socket.py", line 808, in create_connection
raise err
File "/usr/local/lib/python3.8/socket.py", line 796, in create_connection
sock.connect(sa)
socket.timeout: timed out
The above exception was the direct cause of the following exception:
Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/components/websocket_api/commands.py", line 125, in handle_call_service
await hass.services.async_call(
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/components/homeassistant/init.py", line 87, in async_handle_turn_service
await asyncio.gather(tasks)
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/helpers/entity_component.py", line 208, in handle_service
await self.hass.helpers.service.entity_service_call(
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 454, in entity_service_call
future.result() # pop exception if have
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 583, in async_request_call
await coro
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 485, in _handle_entity_call
await result
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 618, in async_turn_off
await self.hass.async_add_executor_job(ft.partial(self.turn_off, *kwargs))
File "/usr/local/lib/python3.8/concurrent/futures/thread.py", line 57, in run
result = self.fn(self.args, *self.kwargs)
File "/config/custom_components/tplink/switch.py", line 121, in turn_off
self.update_state()
File "/config/custom_components/tplink/switch.py", line 139, in update_state
self._state = self._plug_from_context["state"] == 1
File "/config/custom_components/tplink/switch.py", line 131, in _plug_from_context
children = self.smartplug.sys_info["children"]
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 186, in sys_info
return defaultdict(lambda: None, self.get_sysinfo())
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 196, in get_sysinfo
return self._query_helper("system", "get_sysinfo")
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 120, in _query_helper
raise SmartDeviceException('Communication error') from ex
pyHS100.smartdevice.SmartDeviceException: Communication error

I will see if I can reproduce that. I currently have a group like this though and I turn the group on and off daily (weekdays anyway) and I haven't noticed that.

office_desk:
  name: Office Desk
  all: true
  entities:
    - switch.office_monitor_1
    - switch.office_monitor_2
    - switch.office_monitor_3
    - switch.office_laptop_dock
    - switch.office_desk_light

TheGardenMonkey on 4 Sep 2020

I currently have a group like this though and I turn the group on and off daily

Hmmm... To be honest, I didn't have them in a "real" group. I have a Lovelace screen that I let HA manage so that I have all of my devices dumped into one place for testing. These fell into a Switch group by default. When I try turning that group on an off, I receive the error. I also receive it when I quickly turn the switches on and off individually.

Interestingly though, after reading your post I created an actual group for them. It does seem to work a little more consistently, but still not 100%. Not sure why there would be a difference between a group created by Lovelace and one created in YAML? I did notice that even though the switches all work at the group level, they are very slow to turn on and off when you toggle the group. And even in the new group, they still fail when I try to toggle individual switches quickly.

Not sure if any of this was helpful, but just wanted to give you as many details as possible! Thanks!

mikesalz on 4 Sep 2020

I take that back. After more testing, I am seeing that they really aren't any better in the new group. Please let me know if there is any other info I can give you to help debug!

mikesalz on 4 Sep 2020

I take that back. After more testing, I am seeing that they really aren't any better in the new group. Please let me know if there is any other info I can give you to help debug!

I'll play around with it this weekend. It makes sense to me that this could happen though. I want to compare with some of the other changes proposed as well...I think there is a collection of changes that will make this integration more robust.

TheGardenMonkey on 4 Sep 2020

👍2

Sounds great! Thanks!

mikesalz on 4 Sep 2020

Seeing similar issues reported here with my HS300. HA sees only 5 of six outlets, and outlets frequently go into an Unavailable state. It sounds like this could be an issue hitting the API limit. Perhaps this could be a user-configurable option to set this to be less frequent?

aLTeReGo-SWI on 6 Sep 2020

@MarkHofmann11 (and anyone else) if you have a chance, would you mind testing out my latest pull request, specifically I want to confirm that the latest one still works correctly for the "lights". I have a ton of switches but no light bulbs currently. I basically re-implemented my original retry attempt but on top of the latest set of changes from the past few months. The light component has changed a fair amount so I wanted to confirm that my the "retry" is in fact still needed there and of course that my latest attempt does work.

TheGardenMonkey on 8 Sep 2020

@TheGardenMonkey - Would you happen to have the updated files available that I can download and copy into my current install? I used your original updates from back in December and had re-updated the latest tplink switch.py and light.py about 2 or so months ago. Looks like more has changed since then. If you can archive the files somewhere, I can download and copy them over my current modified version for testing. I have loads of tplink switches, outlets, wall switches, lights, strips, etc. All work perfect with what I am using at the moment.

MarkHofmann11 on 9 Sep 2020

tplink.zip

These are what I have as of now

TheGardenMonkey on 9 Sep 2020

tplink.zip

These are what I have as of now

Finally got a chance to test this today. For some reason, getting "Unable to prepare setup for platform tplink.switch: Platform not found (cannot input name 'async_add_entities_retry' from 'homeassistant.components.tplink.common'. None of my tplink switches are showing online - so will revert back to my modified version and see if I can figure out what is going on.

MarkHofmann11 on 13 Sep 2020

tplink.zip
These are what I have as of now

Finally got a chance to test this today. For some reason, getting "Unable to prepare setup for platform tplink.switch: Platform not found (cannot input name 'async_add_entities_retry' from 'homeassistant.components.tplink.common'. None of my tplink switches are showing online - so will revert back to my modified version and see if I can figure out what is going on.

My bad, I added the wrong version of the switch.py. I am making a few updates based on the pull request review so I will upload something shortly. If you are comfortable pulling from the repo directly that is best anyway. Not sure how I zipped that version up now :(.

TheGardenMonkey on 13 Sep 2020

Made some updates, the correct files should be in my repo...
https://github.com/TheGardenMonkey/core/tree/dev/homeassistant/components/tplink

TheGardenMonkey on 13 Sep 2020

Ok, just cloned your repo and copied over your modded tplink component. Everything is working perfect here so far. Will watch it for the next two days and make sure none go unavailable.

MarkHofmann11 on 14 Sep 2020

Thank you @MarkHofmann11 !

@mikesalz and @aLTeReGo-SWI was curious if either or both of you wouldn't also mind validating. I am not seeing issues with controlling multiple switches at once and the hs300 seems to respond a little better than with my previous change.

TheGardenMonkey on 14 Sep 2020

👍1

@TheGardenMonkey I installed it tonight and ran some tests. It seems to be working pretty well. Here are my findings:

All switches are showing up in HA and are available.
I turned individual switches on and off multiple times, and it worked reliably every time.
Turning the group on and off works, but HA seems to have about a 5 second delay registering the new state of the switches. I don't know that I would consider that a bug because it DOES work. It's just slow for some reason.
When turning a switch on/off via the Kasa app, it sometimes takes up to 25 seconds for HA to register the state change.
So far I do not have any instances of switch.unnamed_device showing up, but that sometimes takes a day or two to show up. So I'll keep an eye out for that one.

Thank you SO much for your hard work on this! I'm excited to be able to use this powerstrip. I was about 2 days away from returning it!

mikesalz on 15 Sep 2020

@TheGardenMonkey Also, just wondering what your thoughts are here. In this thread, (which you're already on) there are some other devs who are working on the integration. Just wondering if you're working with them to get your changes added back into HA? Or is this just kind of a side project?

mikesalz on 15 Sep 2020

@TheGardenMonkey I installed it tonight and ran some tests. It seems to be working pretty well. Here are my findings:

All switches are showing up in HA and are available.

I turned individual switches on and off multiple times, and it worked reliably every time.

Turning the group on and off works, but HA seems to have about a 5 second delay registering the new state of the switches. I don't know that I would consider that a bug because it DOES work. It's just slow for some reason.

When turning a switch on/off via the Kasa app, it sometimes takes up to 25 seconds for HA to register the state change.

So far I do not have any instances of switch.unnamed_device showing up, but that sometimes takes a day or two to show up. So I'll keep an eye out for that one.

Thank you SO much for your hard work on this! I'm excited to be able to use this powerstrip. I was about 2 days away from returning it!

Thanks for the feedback. The delay sort of makes sense when using the kasa app because I think the act of using the app means that a connection (possibly multiple) are being made to the device which blocks HA from getting a status update. I am not sure if there is away around that. I will give it some more thought though.

TheGardenMonkey on 15 Sep 2020

@TheGardenMonkey Also, just wondering what your thoughts are here. In this thread, (which you're already on) there are some other devs who are working on the integration. Just wondering if you're working with them to get your changes added back into HA? Or is this just kind of a side project?

We have agreed to go for the quick hack for now while work continues on updating the new backend library. I am hoping once we get this out that I can spend some time assisting with the future / long term approach.

TheGardenMonkey on 15 Sep 2020

@TheGardenMonkey Bad news. I tried to turn on the group this morning and received this error. It did resume working after I unplugged the powerstrip and plugged it back in.

Log Details (ERROR)
Logger: homeassistant.components.websocket_api.http.connection.139809973655968
Source: custom_components/tplink/switch.py:94
Integration: Home Assistant WebSocket API (documentation, issues)
First occurred: 6:39:24 AM (1 occurrences)
Last logged: 6:39:24 AM

Communication error
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 115, in _query_helper
response = self.protocol.query(
File "/usr/local/lib/python3.8/site-packages/pyHS100/protocol.py", line 47, in query
sock = socket.create_connection((host, port), timeout)
File "/usr/local/lib/python3.8/socket.py", line 808, in create_connection
raise err
File "/usr/local/lib/python3.8/socket.py", line 796, in create_connection
sock.connect(sa)
socket.timeout: timed out

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/components/websocket_api/commands.py", line 125, in handle_call_service
await hass.services.async_call(
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/components/homeassistant/__init__.py", line 87, in async_handle_turn_service
await asyncio.gather(tasks)
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/helpers/entity_component.py", line 208, in handle_service
await self.hass.helpers.service.entity_service_call(
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 454, in entity_service_call
future.result() # pop exception if have
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 583, in async_request_call
await coro
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 485, in _handle_entity_call
await result
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 609, in async_turn_on
await self.hass.async_add_executor_job(ft.partial(self.turn_on, *kwargs))
File "/usr/local/lib/python3.8/concurrent/futures/thread.py", line 57, in run
result = self.fn(self.args, *self.kwargs)
File "/config/custom_components/tplink/switch.py", line 94, in turn_on
self.smartplug.turn_on()
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartplug.py", line 158, in turn_on
self._query_helper("system", "set_relay_state", {"state": 1})
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 120, in _query_helper
raise SmartDeviceException('Communication error') from ex
pyHS100.smartdevice.SmartDeviceException: Communication error

mikesalz on 15 Sep 2020

Does the group only contain the power strip? I am going to take a look shortly.

TheGardenMonkey on 15 Sep 2020

One thing that might be worth trying is adjusting the SLEEP_TIME = 2 in the switch.py which is what I had been using originally. I don't have a HS300, but I have a KP400 which has two outlets. I was using that setting this past Christmas to control the outside outlets on it with @TheGardenMonkey updates using that SLEEP_TIME setting with no issues.

MarkHofmann11 on 15 Sep 2020

Yeah I was also using 2 seconds but I was trying to see if the 1 second was really that bad. I haven't noticed an issue but I agree that 2 seconds might be the safer approach.

TheGardenMonkey on 15 Sep 2020

Yes, the group is only the power strip.

mikesalz on 15 Sep 2020

More info - I restarted HA (unrelated to configuring the HS300) and ended up with a switch.unnamed_device showing up.

mikesalz on 15 Sep 2020

@MarkHofmann11 Just curious if you tried SLEEP_TIME =1 and MAX_ATTEMPTS = 40 instead? This is the first time I am trying with a second sleep. @mikesalz can you try setting the SLEEP_TIME to 2 for now (this would only help to prevent the initial unnamed device and it would prevent them from becoming unvailable...not the turn_on issue).

For the turn_on, the backend library is throwing the exception so adding a try on that should work, but I am trying to see if there is a better way. Since this is really a band-aid until we can use the new library, that may be the safest option for now. I will try to confirm today.

TheGardenMonkey on 15 Sep 2020

Thanks @TheGardenMonkey. I changed SLEEP_TIME to 2 and restarted HA. Seems good for now.

mikesalz on 15 Sep 2020

Thanks @TheGardenMonkey. I changed SLEEP_TIME to 2 and restarted HA. Seems good for now.

Cool, I guess I was being too aggressive :). I did also get the same error you did btw on turning on my strip this morning (mine only has 5 of the ports, 1 port I always have on). I think the 1 second is hammering it too much and is likely the cause of the other issue since I haven't seen it before when doing 2 seconds. I am going to keep it at 2 for now.

TheGardenMonkey on 15 Sep 2020

👍1

My original mod was using the SLEEP_TIME = 2 which worked perfect for even the multiple outlet tplink. I am still using latest with the SLEEP_TIME = 1 - but I'm also not using the multiple tplink power outlet at the moment. Lots of single wall switches, plugs, lights, etc. I don't break out the strips until Christmas time - but I know they worked with SLEEP_TIME = 2. :)

MarkHofmann11 on 16 Sep 2020

@MarkHofmann11 I also have several HS105 single outlets and KP400 double outlets. All have worked pretty much perfectly for months. It's just this 6-outlet HS300 that has issues. Glad to know that SLEEP_TIME = 2 worked for you pretty consistently!

mikesalz on 16 Sep 2020

@mikesalz You can also try SLEEP_TIME = 3 if you still have issues with the HS300. I don't have any of those, just the KP400. I would think that it is just a matter of finding the best "SLEEP_TIME" setting for it.

MarkHofmann11 on 16 Sep 2020

@TheGardenMonkey - All my tplink devices have been working flawlessly over here with your fork of the tplink component. It sounds like adjusting the SLEEP_TIME = 2 works better with the strips, so that is the only change I would recommend. That is also the original setting I was using over here. Would be great to have this merged so I don't have to keep re-copying it after each upgrade. I know the long term plan is to go with the new back-end library, but we really need this merged prior - as this has been an issue for almost a year.

MarkHofmann11 on 17 Sep 2020

👍1

@TheGardenMonkey - All my tplink devices have been working flawlessly over here with your fork of the tplink component. It sounds like adjusting the SLEEP_TIME = 2 works better with the strips, so that is the only change I would recommend. That is also the original setting I was using over here. Would be great to have this merged so I don't have to keep re-copying it after each upgrade. I know the long term plan is to go with the new back-end library, but we really need this merged prior - as this has been an issue for almost a year.

I switched it back to 2 for now. I think we are almost there :)

TheGardenMonkey on 17 Sep 2020

This version is WAYYYY better than the HA version, but I wouldn't say it is flawless. I still encounter occasional errors with the HS300.

mikesalz on 17 Sep 2020

This version is WAYYYY better than the HA version, but I wouldn't say it is flawless. I still encounter occasional errors with the HS300.

Yeah definitely not flawless. Other than the "retry" attempts, what issue do you see still? The only thing I am seeing with the hs300 is there are potential for delays when turning on multiple at the same time (with the 1 second I didn't have delays but it is definitely too aggressive).

TheGardenMonkey on 17 Sep 2020

It works the majority of the time. But even with SLEEP_TIME = 2, I still occasionally get a switch.unnamed_device. I also occasionally get an error.

mikesalz on 17 Sep 2020

It works the majority of the time. But even with SLEEP_TIME = 2, I still occasionally get a switch.unnamed_device. I also occasionally get an error.

Just in case, can you try the very latest from my branch? I made a few more changes that in theory should speed up the startup which may make the unnamed_device less likely to happen. If that still doesn't work, can you try setting it to 3 seconds? Also, what are the errors you are seeing?

TheGardenMonkey on 17 Sep 2020

Yes sir, I will download the latest version today. Next time (if ever) an error pops up, I will share it. Thanks!

mikesalz on 17 Sep 2020

I just downloaded the latest and restarted HA. I got another switch.unnamed_device. But the switch was different than the previous one.

mikesalz on 17 Sep 2020

I just downloaded the latest and restarted HA. I got another switch.unnamed_device. But the switch was different than the previous one.

You happen to be on discord (i'm the same name there)? I would like to dive in to what you are seeing some more. Can you try with the 3 seconds?

TheGardenMonkey on 17 Sep 2020

I created a discord account once a while back, but never used it. I'll see if I can get in. In the meantime, I did change to 3. And I just got this error:

Logger: homeassistant
Source: custom_components/tplink/switch.py:103
First occurred: 11:57:25 AM (1 occurrences)
Last logged: 11:57:25 AM

Error doing job: Task exception was never retrieved
Traceback (most recent call last):
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 115, in _query_helper
response = self.protocol.query(
File "/usr/local/lib/python3.8/site-packages/pyHS100/protocol.py", line 47, in query
sock = socket.create_connection((host, port), timeout)
File "/usr/local/lib/python3.8/socket.py", line 808, in create_connection
raise err
File "/usr/local/lib/python3.8/socket.py", line 796, in create_connection
sock.connect(sa)
socket.timeout: timed out

The above exception was the direct cause of the following exception:

Traceback (most recent call last):
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 802, in async_run
await asyncio.shield(run.async_run())
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 183, in async_run
await self._async_step(log_exceptions=False)
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 191, in _async_step
await getattr(
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 478, in _async_repeat_step
await async_run_sequence(iteration, extra_msg)
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 460, in async_run_sequence
await self._async_run_script(script)
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 526, in _async_run_script
await self._async_run_long_action(
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 342, in _async_run_long_action
long_task.result()
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 802, in async_run
await asyncio.shield(run.async_run())
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 183, in async_run
await self._async_step(log_exceptions=False)
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 191, in _async_step
await getattr(
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 380, in _async_call_service_step
await service_task
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/helpers/entity_component.py", line 208, in handle_service
await self.hass.helpers.service.entity_service_call(
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 454, in entity_service_call
future.result() # pop exception if have
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 583, in async_request_call
await coro
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 485, in _handle_entity_call
await result
File "/usr/src/homeassistant/homeassistant/components/template/switch.py", line 220, in async_turn_off
await self._off_script.async_run(context=self._context)
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 802, in async_run
await asyncio.shield(run.async_run())
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 183, in async_run
await self._async_step(log_exceptions=False)
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 191, in _async_step
await getattr(
File "/usr/src/homeassistant/homeassistant/helpers/script.py", line 380, in _async_call_service_step
await service_task
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/components/homeassistant/__init__.py", line 87, in async_handle_turn_service
await asyncio.gather(tasks)
File "/usr/src/homeassistant/homeassistant/core.py", line 1308, in async_call
task.result()
File "/usr/src/homeassistant/homeassistant/core.py", line 1343, in _execute_service
await handler.func(service_call)
File "/usr/src/homeassistant/homeassistant/helpers/entity_component.py", line 208, in handle_service
await self.hass.helpers.service.entity_service_call(
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 454, in entity_service_call
future.result() # pop exception if have
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 583, in async_request_call
await coro
File "/usr/src/homeassistant/homeassistant/helpers/service.py", line 485, in _handle_entity_call
await result
File "/usr/src/homeassistant/homeassistant/helpers/entity.py", line 618, in async_turn_off
await self.hass.async_add_executor_job(ft.partial(self.turn_off, *kwargs))
File "/usr/local/lib/python3.8/concurrent/futures/thread.py", line 57, in run
result = self.fn(self.args, *self.kwargs)
File "/config/custom_components/tplink/switch.py", line 103, in turn_off
self.smartplug.turn_off()
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartplug.py", line 166, in turn_off
self._query_helper("system", "set_relay_state", {"state": 0})
File "/usr/local/lib/python3.8/site-packages/pyHS100/smartdevice.py", line 120, in _query_helper
raise SmartDeviceException('Communication error') from ex
pyHS100.smartdevice.SmartDeviceException: Communication error

mikesalz on 17 Sep 2020

I have 2 H300's experiencing issues with plugs going unavailable.
Just tried your latest changes. First time I have ever seen all my plugs online. All seem to be reporting properly and updating.
Amazing work!

sublime93 on 17 Sep 2020

👍2

Hey everyone, I'm getting up the courage to enable this because I've gotten tired of waiting for the real fix. I'm pretty new to all this so I don't wanna mess things up. I'm running Hassio on a rpi3. from what I understand, I can do the following to install this:

using the hassio sidebar file editor, create a folder named custom_components in /config
using the hassio sidebar file editor, create a new file and call it switch.py
from TheGardenMonkey's GitHub page copy the contents of switch.py and paste it into /config/custom_components/switch.py
restart hassio

is that it? Do I need to disable my current tpLink integration before restarting? Do I need to delete all my existing devices and entities?

Thanks for the help

spencerknapp on 25 Sep 2020

Hey everyone, I'm getting up the courage to enable this because I've gotten tired of waiting for the real fix. I'm pretty new to all this so I don't wanna mess things up. I'm running Hassio on a rpi3. from what I understand, I can do the following to install this:

using the hassio sidebar file editor, create a folder named custom_components in /config

using the hassio sidebar file editor, create a new file and call it switch.py

from TheGardenMonkey's GitHub page copy the contents of switch.py and paste it into /config/custom_components/switch.py

restart hassio

is that it? Do I need to disable my current tpLink integration before restarting? Do I need to delete all my existing devices and entities?

Thanks for the help

under custom_components you would add a directory named tplink. You should download all of the files from the repo so that the contents look like:

homeassistant@rpimain1:~/.homeassistant/custom_components/tplink $ ll
-rw-rw-r-- 1 homeassistant homeassistant  5785 Sep 24 20:50 common.py
-rw-rw-r-- 1 homeassistant homeassistant   364 Sep 13 13:37 config_flow.py
-rw-rw-r-- 1 homeassistant homeassistant   117 Sep 13 13:37 const.py
-rw-rw-r-- 1 homeassistant homeassistant  3764 Sep 13 13:37 __init__.py
-rw-rw-r-- 1 homeassistant homeassistant 16646 Sep 24 20:49 light.py
-rw-rw-r-- 1 homeassistant homeassistant   263 Sep 13 13:37 manifest.json
-rw-rw-r-- 1 homeassistant homeassistant   306 Sep 13 13:38 strings.json
-rw-rw-r-- 1 homeassistant homeassistant  5244 Sep 24 20:49 switch.py

You do not have to delete your existing devices or disable anything else. HA will just ignore the out of the box one.

For my existing PR, all of the checks are passing so I am hopeful that means it will be merged soon.

TheGardenMonkey on 25 Sep 2020

👍1

Just added an HS210 wall switch this weekend. Maybe never noticed this, but when you turn it on in HA, it appears to do nothing and the switch goes back to off, then in a few seconds it toggles itself back to on again and the icon color is highlighted as it should. Seems to be timing and could be something with the new switch I just installed. Just figured I would mention it - will do more investigation tomorrow.
