Home Assistant release with the issue:
0.99.3
Operating environment (Hass.io/Docker/Windows/etc.):
Hass.io
Integration:
https://www.home-assistant.io/integrations/vacuum.xiaomi_miio/
Description of problem:
I've tried to add my Xiaomi Mijia STYJ02YM lauched in the middle of august. But it seems that the integration can't reach the robot.
I've retreived the token using MiToolKit. I've checked the ip directely on the router.
There are 3 messages in the log (provided in the traceback).
Problem-relevant configuration.yaml entries and (fill out even if it seems unimportant):
vacuum:
- platform: xiaomi_miio
host: 192.168.1.208
token: xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Traceback (if applicable):
Update of vacuum.xiaomi_vacuum_cleaner is taking over 10 seconds
Got exception while fetching the state: No response from the device
Got error when receiving: timed out
Additional information:
HydrelioxGitHub
All 75 comments
Hey there @rytilahti, @syssi, mind taking a look at this issue as its been labeled with a integration (xiaomi_miio) you are listed as a codeowner for? Thanks!
![probot-home-assistant[bot] picture](https://avatars2.githubusercontent.com/in/36093?v=4&s=40)
probot-home-assistant[bot]
on 6 Oct 2019
i have same issue
oneweekstudio
on 8 Oct 2019
First step would be to ensure if it is working with miiocli or mirobo command-lne tool. Timeouts happen when there is no response from the acuum, so there is not much we can do there until that is solved.
Is homeassistant in the same network as the vacuum? Do mirobo discover and mirobo discover --handshake 1 show the vacuum?
rytilahti
on 8 Oct 2019
There is an issue open on the python-miio repository.
https://github.com/rytilahti/python-miio/issues/550
HydrelioxGitHub
on 8 Oct 2019
Same issue.
Token was retrieved by an extract of miio2.db and verified by using app 5.4.49 logs.
Here is a part of the result for miiocli -d device --ip 192.168.0.Y --token XXX info
INFO:miio.cli:Debug mode active
DEBUG:miio.protocol:Unable to decrypt, returning raw bytes: b''
DEBUG:miio.device:Got a response: Container:
data = Container:
data = b'' (total 0)
value = b'' (total 0)
offset1 = 32
offset2 = 32
length = 0
header = Container:
data = b'!1\x00 \x00\x00\x00\x00\x10\x91\xf1\xbc]\x9d"N' (total 16)
value = Container:
length = 32
unknown = 0
device_id = b'\x10\x91\xf1\xbc' (total 4)
ts = 2019-10-08 23:57:02
offset1 = 0
offset2 = 16
length = 16
checksum = b'\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff' (total 16)
DEBUG:miio.device:Discovered 1091f1bc with ts: 2019-10-08 23:57:02, token: b'ffffffffffffffffffffffffffffffff'
DEBUG:miio.device:192.168.0.14:54321 >>: {'id': 1, 'method': 'miIO.info', 'params': []}
DEBUG:miio.device:Retrying with incremented id, retries left: 3
Any retry leads to the same issue.
Hope it helps...
variousDom
on 9 Oct 2019
reset the vacuum to factory state (wifi ap mode), connect to ap and try to discover or get token by sending hello packet to the vacuum
https://github.com/jghaanstra/com.xiaomi-miio/blob/master/docs/obtain_token.md (bottom)
and try to inspect. technically vacuum can drop local miio api AFTER provisioning, but it should work in factory state, because mi home is using generic method miIO.config_router to setup cloud connection.
rezmus
on 11 Oct 2019
I can't get correctly token like the way you show. It's show me another token if I reset the vacuum again and again.
Hope anyone can help me!!!!plz!
reset the vacuum to factory state (wifi ap mode), connect to ap and try to discover or get token by sending hello packet to the vacuum
https://github.com/jghaanstra/com.xiaomi-miio/blob/master/docs/obtain_token.md (bottom)
and try to inspect. technically vacuum can drop local miio api AFTER provisioning, but it should work in factory state, because mi home is using generic method miIO.config_router to setup cloud connection.
nguyenmnam
on 23 Oct 2019
token changes on each wifi reset, but your goal is to reset wifi (disconnect vacuum from cloud), get the token and check if you can talk to vacuum when it's not connected to cloud. it looks like it close local miio api after you connect it to wifi/cloud.
rezmus
on 23 Oct 2019
I try like this:
- Reset Vacuum ( Xiaomi Mijia)
- Connect Computer to wifi (from vacuum), send package to vacuum's IP and take 32 digits at the end of the string.
- Connect Vacuum to Mihome like normal.
- Write the token to config.yaml, check config "OK", restart but hassio logs still like this:
Update of vacuum.xiaomi_vacuum_cleaner is taking over 10 seconds
14:31 __main__.py (WARNING) - message first occured at 22:52, 22 tháng 10, 2019 and shows up 2656 times
Got exception while fetching the state: No response from the device
14:31 components/xiaomi_miio/vacuum.py (WARNING) - message first occured at 22:51, 22 tháng 10, 2019 and shows up 2656 times
Got error when receiving: timed out
14:31 components/xiaomi_miio/vacuum.py (ERROR) - message first occured at 22:51, 22 tháng 10, 2019 and shows up 2656 times
nguyenmnam
on 23 Oct 2019
don't do point 3, don't connect it to cloud (it will change token and probably disable local api).
when you get token in point 2 use python miio or mirobo send raw command for example
miiocli device --ip 192.168.8.1 --token 00112233445566778899aabbccddeeff info
or
mirobo --ip 192.168.8.1 --token 00112233445566778899aabbccddeeff raw-command miIO.info
rezmus
on 23 Oct 2019
If dont do point 3, how can robo connect to my wifi? and when to connect robo to Mihome?
nguyenmnam
on 23 Oct 2019
just confirm local api is working and let us know. i will check how and where they disable it after cloud connection is done.
rezmus
on 23 Oct 2019
hi everybody! I have a problem with Xiaomi STYJ02YM. Before an update I had 2 modes on this robot: vacuum and mop. After an update which I received recently I have 3 modes: Vacuum, Vacuum+Mop and Mop. If I choose only Mop mode I have an error: "water reservoir(tank) is not installed, please install water tank", but I already installed 2 in 1 water tank. And right now I can't use only Mop function on this vacuum, but previously everything was fine.
I tried to factory reset it, but a new firmware is still on this robot.
So my question is: can anybody have this kind of problem and can I reset this robot to a previous firmware?
Thank you very much!
leotreble
on 28 Oct 2019
Hi leotreble, mine 'mops only' well without the tank filter.
fran6g
on 1 Nov 2019
@leotreble, regarding to your issue I've seen video on YT with same problem and one comment states that after update for "mopping only" mode you need separate tank which is not included to the vacuum. I expect this tank is only for the water (not dust) and can carry more water. If you want to use your normal tank which is for dust+water you may need to use "vacuum + mop" mode after this update.
maats
on 5 Nov 2019
Hi all
have you manage to integrate the STYJ02YM in hassio?
Was ready to buy it, but want to be sure it will work
Thanks
Kitem19
on 25 Nov 2019
Hello @Kitem19 some people are working on it but nothing is sure at this time. There are some questions about the API being accessible without the Xiaomi cloud (local API).
HydrelioxGitHub
on 25 Nov 2019
Hello @Kitem19 some people are working on it but nothing is sure at this time. There are some questions about the API being accessible without the Xiaomi cloud (local API).
Thanks.
Do you maybe suggest to buy the S6, instead?
Is it better integrated?
Kitem19
on 25 Nov 2019
I don't know about the S6. The S5 still a very good solution for now.
HydrelioxGitHub
on 25 Nov 2019
Any updates on this?
irononreverse
on 22 Dec 2019
Basic support is available in the most recent python-miio release, some more features were added with https://github.com/rytilahti/python-miio/pull/590 . The homeassistant integration needs to be updated to allow defining the model to use (as this uses a different protocol, and we cannot reliably detect this for non-cloud connected gen1 vacuums).
rytilahti
on 23 Dec 2019
Hi @rytilahti
Thanks for the update.
If I well understood the project made some steps forward, but the hassio/homeassistant integration is still not working. Am I right?
Kitem19
on 23 Dec 2019
Home assistant integration use the python library made by @rytilahti . This library has been updated after the last release of HA. So we have to wait the next release of HA in order to use the last version of the python library.
HydrelioxGitHub
on 23 Dec 2019
Thanks
Since it's my first time with this vacuum, I hope you will share the "how to..." guide to help me using it in HA :-)
Wish you great time
Kitem19
on 23 Dec 2019
@Kitem19 yes, you got it right! The backend library has now support for that device, and using that requires changes in the homeassistant integration.
@HydrelioxGitHub, bumping the version is not enough as this is a different implementation and will require modifications to the vacuum platform (i.e., adding ability to choose which implementation to use, much like with some other xiaomi_miio platforms).
rytilahti
on 27 Dec 2019
Hello all! I am also looking forward for update regarding update on this topic.
greengo1
on 6 Jan 2020
Hello Guys,
Have anyone added live paths to home assistant on non rooted vacuums?
I used the custom component created by nqkdev based on @rytilahti to integrate my vacuum in home assistant (vacuum STYJ02YM, non rooted). I made some small changes to include live path of the vacuum. The live path is based on sending a raw command (get_curpos). Get_curpos returns a list containing [x_pos, y_pos, rotation, mode,...].
The length of the list is varying.
Position units are given in meters.
It works quite well except the update request for the position is to low in my current setup so I'm missing some positions to get the complete path.

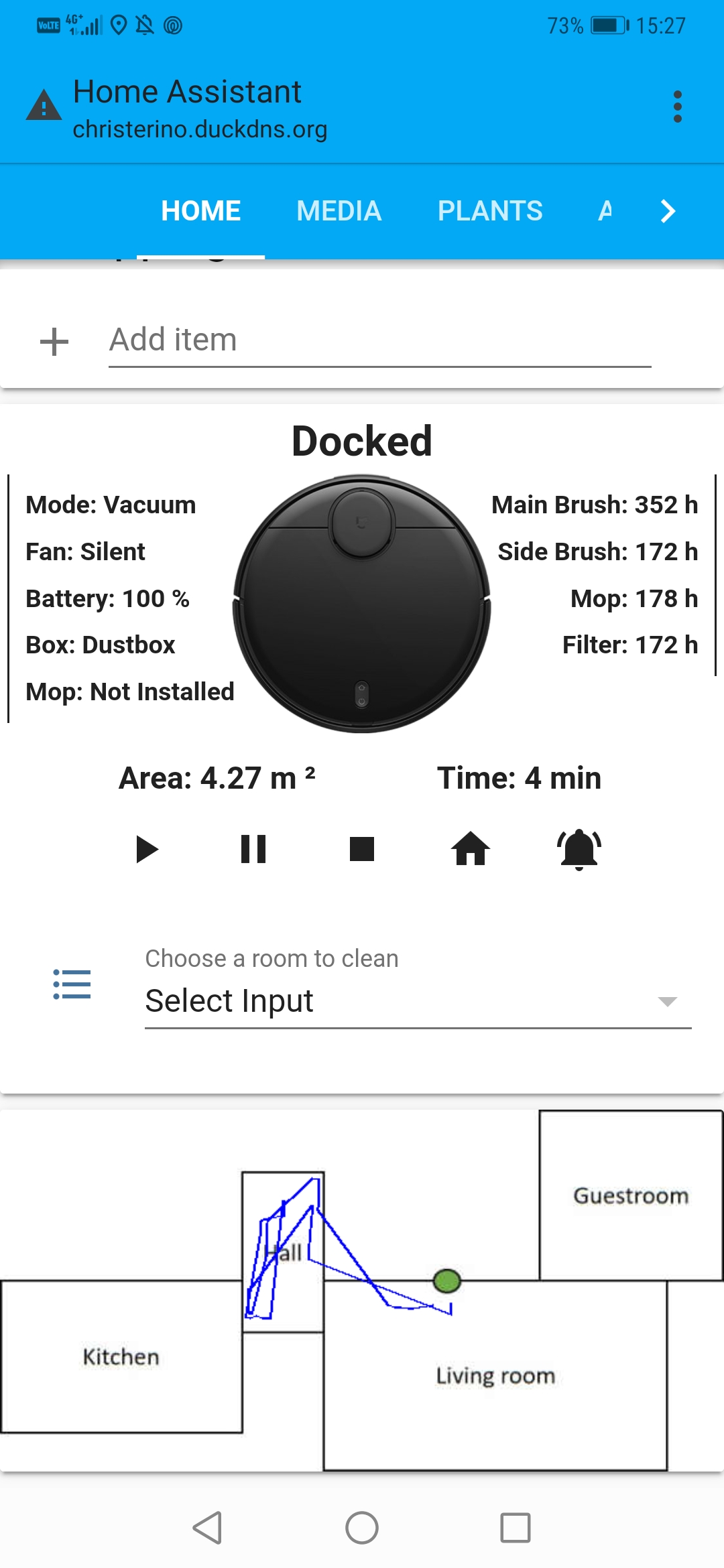

This is how it looks on my home assistant cleaning my hall:

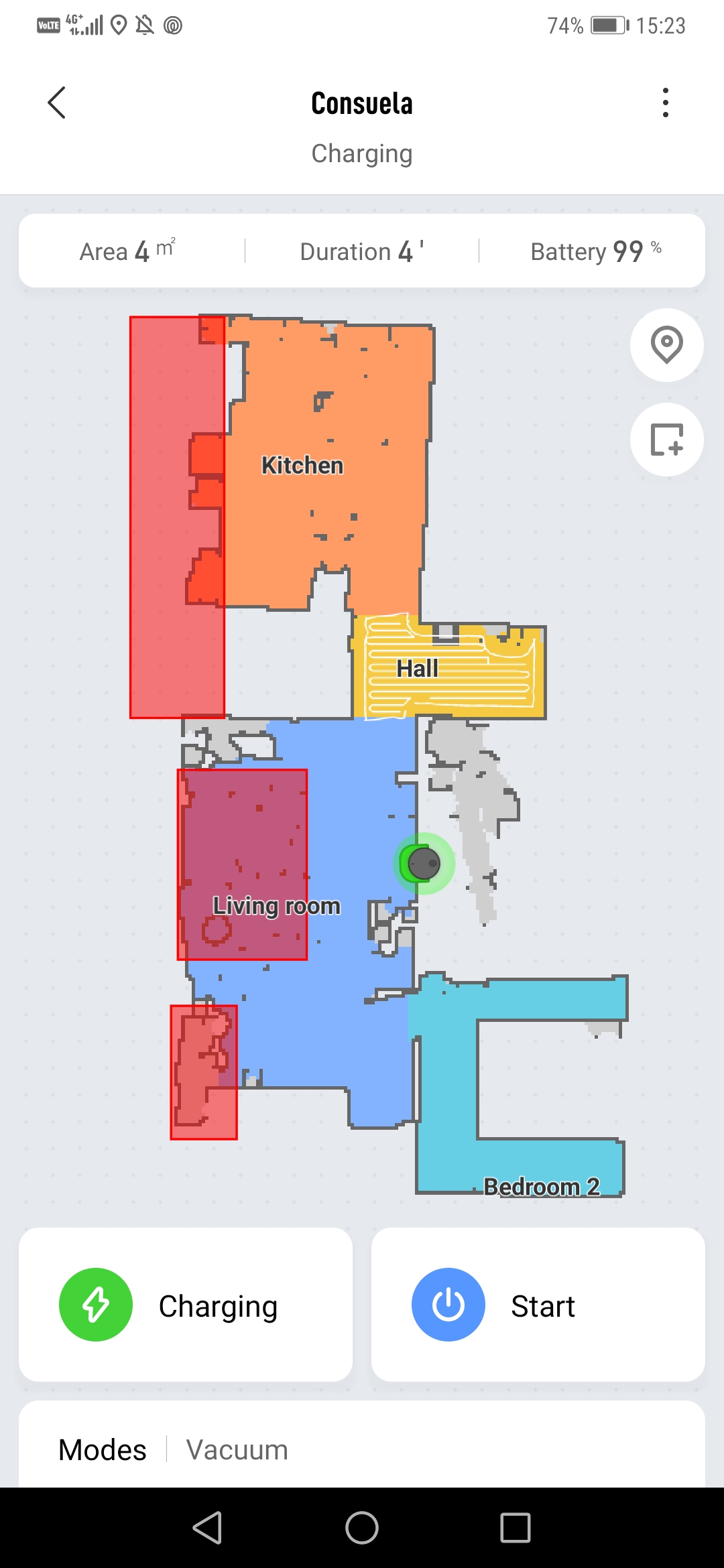

And in mi home:
Chrolden
on 17 Jan 2020
@Chrolden where can I find this custom component?
B1G1
on 17 Jan 2020
@Chrolden where can I find this custom component?
This is the orginal custom integration.
The one I made with live map is currently not available. It needs more work to have a better resolution for the live path
https://github.com/nqkdev/home-assistant-vacuum-styj02ym
Chrolden
on 17 Jan 2020
this is some great news. Will test it this weekend. Thanks fot sharing!
greengo1
on 17 Jan 2020
How you send the vacum to the room? I have problem with that:
`test_vacuum:
alias: Test Vacuum
sequence:
- service: vacuum.send_command
data:
entity_id: vacuum.Bambo
command: app_segment_clean
params: [1,2,3,4]`
Unable to send command to the vacuum: No response from the device
10:03 PM custom_components/miio2/vacuum.py (ERROR) - message first occurred at 9:44 PM and shows up 7 times
Ciubas
on 17 Jan 2020
@ciubas use vacuum.send_command
command: set_mode_withroom
params: [a, b, c, d]
Correct me if I am wrong : where a = 0 or 1( 1= clean only along edges, 0 normal clean,
B= clean mode, c = numbers of rooms 0 or the number of room you want to clean.
For example cleaning my kitchen =
command: set_mode_withroom
params: [0, 1, 1, 11]
11 = room id
Cleaning both kitchen and hall =
command: set_mode_withroom
params: [0, 1, 2, 11, 12]
11,12= room id (kitchen and hall)
Remember to have comma and space like the example above.
Hope this is clear
Chrolden
on 17 Jan 2020
If you @ciubas don't know your room I'd try room 10, 11,...
If you use wrong room id it will just say: zone clean started.
Than move a bit and return.
To have English language.
Send:
command: set_language
params: 2
Chrolden
on 17 Jan 2020
Work perfect! Now I need find the room numbers :)
`test_vacuum:
alias: Test Vacuum
sequence:
- service: vacuum.send_command
data:
entity_id: vacuum.Bambo
command: set_language
params: 2 - service: vacuum.send_command
data:
entity_id: vacuum.Bambo
command: set_mode_withroom
params: [0,1,1,1]`
Ciubas
on 18 Jan 2020
Mop ora 2in1 is 2?
params: [0,2,1,1] ?
Ciubas
on 18 Jan 2020
params: [0, 2, 1, 1]
2 means pause.
Chrolden
on 18 Jan 2020
Hmm - where can i find all information about this parameters? Mayby how MOP? :) Or how do this zone cleanup like on the s50:
vacuum_mop:
alias: Vacuum Water
sequence:
- service: vacuum.send_command
data:
entity_id: vacuum.Benji
command: app_zoned_clean
params:
- - 23885
- 24203
- 25185
- 28403
- 1
- - 24075
- 28400
- 25175
- 30850
- 1
- - 23911
- 30878
- 25811
- 34178
- 1 - service: vacuum.set_fan_speed
data:
entity_id: vacuum.Benji
fan_speed: 105
Ciubas
on 18 Jan 2020
Most parameters are not documented yet.
Supported commands can be found: https://github.com/rytilahti/python-miio/issues/550#issuecomment-552780952
Some of the parameters is documented here
https://github.com/rytilahti/python-miio/commit/57c10097b7b86094bea19dff73c17cefdd1103a5
Chrolden
on 18 Jan 2020
Most parameters are not documented yet.
Supported commands can be found: rytilahti/python-miio#550 (comment)
Some of the parameters is documented here
rytilahti/python-miio@57c1009
Thank you!
Ciubas
on 18 Jan 2020
I cant find the solution for:
app_zoned_clean - to use cordinates not room number
fan_speed - or somethning like that to change vacuum to 2in1 (vacuum and mop) option
app_goto_target - to send him to the bathroom for cleaning
Ciubas
on 18 Jan 2020
I cant find the solution for:
app_zoned_clean - to use cordinates not room number
fan_speed - or somethning like that to change vacuum to 2in1 (vacuum and mop) option
app_goto_target - to send him to the bathroom for cleaning
App_goto_target is not supported as far as I know.
fan_speed is fully built into the custom component.
Zoned cleaning is defined in the custom component with the service: vacuum.xiaomi_clean_zone
And spot cleaning is defined with the service: vacuum.xiaomi_clean_point

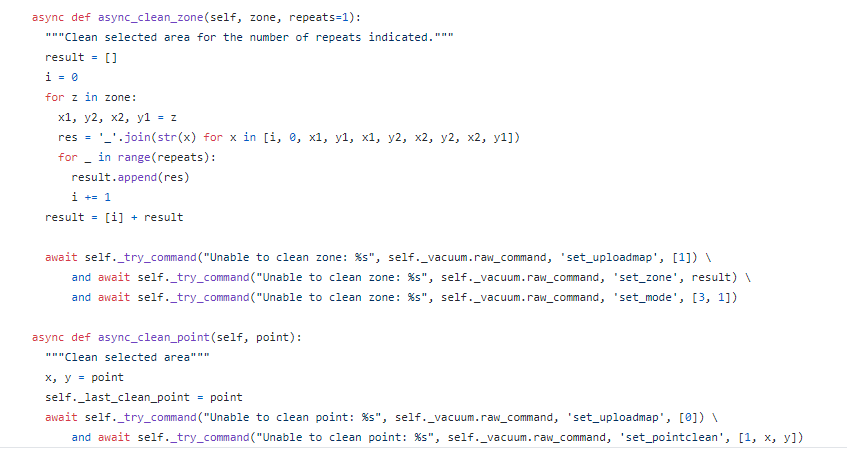

Reading the source code of the component explains some:
https://github.com/nqkdev/home-assistant-vacuum-styj02ym/blob/master/vacuum.py
Chrolden
on 19 Jan 2020
Thanks!
My robot just rotate the map... and room has been change too... :/
Its work for me too:
test_vacuum:
alias: Test Vacuum
sequence:
service: vacuum.send_command
data:
entity_id: vacuum.Bambo
command: set_language
params: 2
service: vacuum.xiaomi_clean_zone
data:
entity_id: vacuum.Bambo
zone: [[-2,0,3,-3]]
repeats: 1
Ciubas
on 19 Jan 2020
Hello Guys,
Have anyone added live paths to home assistant on non rooted vacuums?
I used the custom component created by nqkdev based on @rytilahti to integrate my vacuum in home assistant (vacuum STYJ02YM, non rooted). I made some small changes to include live path of the vacuum. The live path is based on sending a raw command (get_curpos). Get_curpos returns a list containing [x_pos, y_pos, rotation, mode,...].
The length of the list is varying.
Position units are given in meters.
It works quite well except the update request for the position is to low in my current setup so I'm missing some positions to get the complete path.
This is how it looks on my home assistant cleaning my hall:
And in mi home:

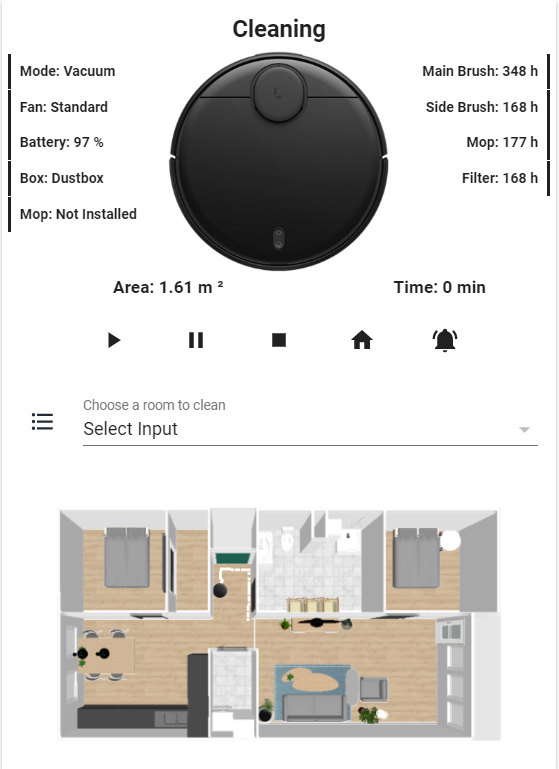

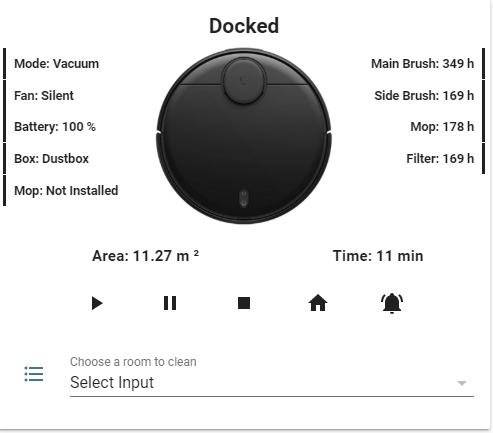

Any chance you could share your lovelace config for the robot?
greengo1
on 21 Jan 2020
Of course @greengo1 !
My code is a bit messy and need some clean up:
Picture of card in UI:
Love Lace Code:
cards:
- elements:
- icon: 'mdi:bell-ring'
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
left: 80%
top: 95%
tap_action:
action: call-service
service: vacuum.locate
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- icon: 'mdi:pause'
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
left: 35%
top: 95%
tap_action:
action: call-service
service: vacuum.pause
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- icon: 'mdi:home'
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
left: 65%
top: 95%
tap_action:
action: call-service
service: vacuum.return_to_base
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- icon: 'mdi:stop'
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
left: 50%
top: 95%
tap_action:
action: call-service
service: vacuum.stop
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- icon: 'mdi:play'
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
left: 20%
top: 95%
tap_action:
action: call-service
service: vacuum.start
service_data:
entity_id: vacuum.xiaomi_vacuum_cleaner
type: icon
- entity: sensor.vacuum_cleanmode
prefix: 'Mode: '
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-left-style: solid
font-size: 90%
font-weight: bold
left: 1%
pointer-events: none
top: 15%
transform: none
type: state-label
- entity: sensor.vacuum_battery
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-left-style: solid
font-size: 90%
font-weight: bold
left: 1%
pointer-events: none
top: 35%
transform: none
type: state-label
- entity: sensor.vacuum_fan_speed
prefix: 'Fan: '
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-left-style: solid
font-size: 90%
font-weight: bold
left: 1%
pointer-events: none
top: 25%
transform: none
type: state-label
- entity: sensor.vacuum_dustbox
prefix: 'Box: '
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-left-style: solid
font-size: 90%
font-weight: bold
left: 1%
pointer-events: none
top: 45%
transform: none
type: state-label
- entity: sensor.vacuum_mop
prefix: 'Mop: '
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-left-style: solid
font-size: 90%
font-weight: bold
left: 1%
pointer-events: none
top: 55%
transform: none
type: state-label
- entity: sensor.vacuum_cleaned_area
prefix: 'Area: '
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
font-size: 110%
font-weight: bold
left: 30%
pointer-events: none
top: 80%
type: state-label
- entity: sensor.vacuum_cleaning_time
prefix: 'Time: '
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
font-size: 110%
font-weight: bold
pointer-events: none
right: 1%
top: 80%
suffix: ' min'
type: state-label
- entity: sensor.vacuum_cleanmainbrush
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-right-style: solid
font-size: 90%
font-weight: bold
pointer-events: none
right: 1%
top: 15%
transform: none
type: state-label
- entity: sensor.vacuum_cleansidebrush
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-right-style: solid
font-size: 90%
font-weight: bold
pointer-events: none
right: 1%
top: 25%
transform: none
type: state-label
- entity: sensor.vacuum_sensordirtyleft
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-right-style: solid
font-size: 90%
font-weight: bold
pointer-events: none
right: 1%
top: 35%
transform: none
type: state-label
- entity: sensor.vacuum_cleanfilter
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
border-right-style: solid
font-size: 90%
font-weight: bold
pointer-events: none
right: 1%
top: 45%
transform: none
type: state-label
- entity: vacuum.xiaomi_vacuum_cleaner
style:
'--paper-item-icon-color': 'rgb(115, 122, 130)'
font-size: 150%
font-weight: bold
left: 50%
top: 8%
tap_action:
action: more-info
type: state-label
image: /local/vacuum.png
type: picture-elements
- entities:
- entity: input_select.vacuum_room
type: entities
type: 'custom:vertical-stack-in-card'
Config.yaml (Room selector):
input_select:
vacuum_room:
name: Choose a room to clean
options:
- Select Input
- bedroom
- guest room
- hall
- kitchen
- living room
- platform: template
sensors:
vacuum_status:
friendly_name: Status
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: 'Status: {{ states.vacuum.xiaomi_vacuum_cleaner.attributes.status }}'
icon_template: >
{% set val = states.vacuum.xiaomi_vacuum_cleaner.attributes.status %}
{% if val == 'Charging' %}
mdi:battery-charging
{% elif val == 'Cleaning' %}
mdi:move-resize
{% elif val == 'Returning home' %}
mdi:keyboard-return
{% elif val == 'Idle' %}
mdi:dots-horizontal
{% elif val == 'Paused' %}
mdi:pause-circle
{% else %}
mdi:help-circle
{% endif %}
vacuum_fan_speed:
friendly_name: Fan Speed
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: '{{ states.vacuum.xiaomi_vacuum_cleaner.attributes.fan_speed }}'
icon_template: 'mdi:speedometer'
vacuum_battery:
friendly_name: Vacuum Battery
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: 'Battery: {{ states.vacuum.xiaomi_vacuum_cleaner.attributes.battery_level }}'
unit_of_measurement: '%'
icon_template: '{{ states.vacuum.xiaomi_vacuum_cleaner.attributes.battery_icon }}'
vacuum_cleaning_time:
friendly_name: Time of Last Cycle
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: '{{ states.vacuum.xiaomi_vacuum_cleaner.attributes.s_time }}'
icon_template: 'mdi:timer'
vacuum_cleaned_area:
friendly_name: Area of Last Cycle
unit_of_measurement: 'm ²'
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: '{{ states.vacuum.xiaomi_vacuum_cleaner.attributes.s_area }}'
icon_template: 'mdi:ruler'
vacuum_cleanmainbrush:
friendly_name: Replace main brush
unit_of_measurement: 'h'
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: 'Main Brush: {{ states.vacuum.xiaomi_vacuum_cleaner.attributes.main_brush_hours }}'
icon_template: 'mdi:screwdriver'
vacuum_cleansidebrush:
friendly_name: Replace side brush
unit_of_measurement: 'h'
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: 'Side Brush: {{ states.vacuum.xiaomi_vacuum_cleaner.attributes.side_brush_hours }}'
icon_template: 'mdi:screwdriver'
vacuum_cleanfilter:
friendly_name: Replace filter
unit_of_measurement: 'h'
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: 'Filter: {{ states.vacuum.xiaomi_vacuum_cleaner.attributes.hypa_hours }}'
icon_template: 'mdi:screwdriver'
vacuum_sensordirtyleft:
friendly_name: Replace mop
unit_of_measurement: 'h'
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: 'Mop: {{ states.vacuum.xiaomi_vacuum_cleaner.attributes.mop_hours }}'
icon_template: 'mdi:screwdriver'
vacuum_mop:
friendly_name: Is mop installed
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: >-
{% if states.vacuum.xiaomi_vacuum_cleaner.attributes.mop_type == 1 %}
Installed
{% else %}
Not Installed
{% endif %}
icon_template: 'mdi:screwdriver'
vacuum_dustbox:
friendly_name: dustbox type
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: >-
{% if states.vacuum.xiaomi_vacuum_cleaner.attributes.box_type == 1 %}
Dustbox
{% elif states.vacuum.xiaomi_vacuum_cleaner.attributes.box_type == 3 %}
2 in 1 Watertank
{% else %}
Not Installed
{% endif %}
icon_template: 'mdi:screwdriver'
vacuum_cleanmode:
friendly_name: Cleaning Mode
entity_id:
- vacuum.xiaomi_vacuum_cleaner
value_template: >-
{% if states.vacuum.xiaomi_vacuum_cleaner.attributes.box_type == 3 and states.vacuum.xiaomi_vacuum_cleaner.attributes.mop_type == 1 %}
Vacuum & Mop
{% elif states.vacuum.xiaomi_vacuum_cleaner.attributes.box_type == 1 %}
Vacuum
{% else %}
Not Ready
{% endif %}
icon_template: 'mdi:screwdriver'
script.yaml :
vacuum_livingroom:
alias: Clean Living Room
sequence:
- data:
command: set_mode_withroom
params:
- 0
- 1
- 1
- 12
entity_id: vacuum.xiaomi_vacuum_cleaner
service: vacuum.send_command
vacuum_guestroom:
alias: Clean Guest Room
sequence:
- data:
command: set_mode_withroom
params:
- 0
- 1
- 1
- 13
entity_id: vacuum.xiaomi_vacuum_cleaner
service: vacuum.send_command
vacuum_kitchen:
alias: Clean Kitchen
sequence:
- data:
command: set_mode_withroom
entity_id: vacuum.xiaomi_vacuum_cleaner
params:
- 0
- 1
- 1
- 10
entity_id: vacuum.xiaomi_vacuum_cleaner
service: vacuum.send_command
vacuum_hall:
alias: Clean Hall
sequence:
- data:
command: set_mode_withroom
params:
- 0
- 1
- 1
- 11
entity_id: vacuum.xiaomi_vacuum_cleaner
service: vacuum.send_command
Automations:
- id: Cleaning_rooms
alias: Start Cleaning Room
hide_entity: true
trigger:
- platform: state
entity_id: input_select.vacuum_room
from: Select Input
action:
- service: script.turn_on
data_template:
entity_id: "{% if is_state(\"input_select.vacuum_room\", \"bedroom\") %}\n \
\ script.vacuum_bedroom\n{% elif is_state(\"input_select.vacuum_room\", \"\
guest room\") %}\n script.vacuum_guestroom\n{% elif is_state(\"input_select.vacuum_room\"\
, \"hall\") %}\n script.vacuum_hall\n{% elif is_state(\"input_select.vacuum_room\"\
, \"kitchen\") %}\n script.vacuum_kitchen\n{% elif is_state(\"input_select.vacuum_room\"\
, \"living room\") %}\n script.vacuum_livingroom\n{% else %} {% endif %}\n"
- service: input_select.select_option
entity_id: input_select.vacuum_room
data_template:
option: Select

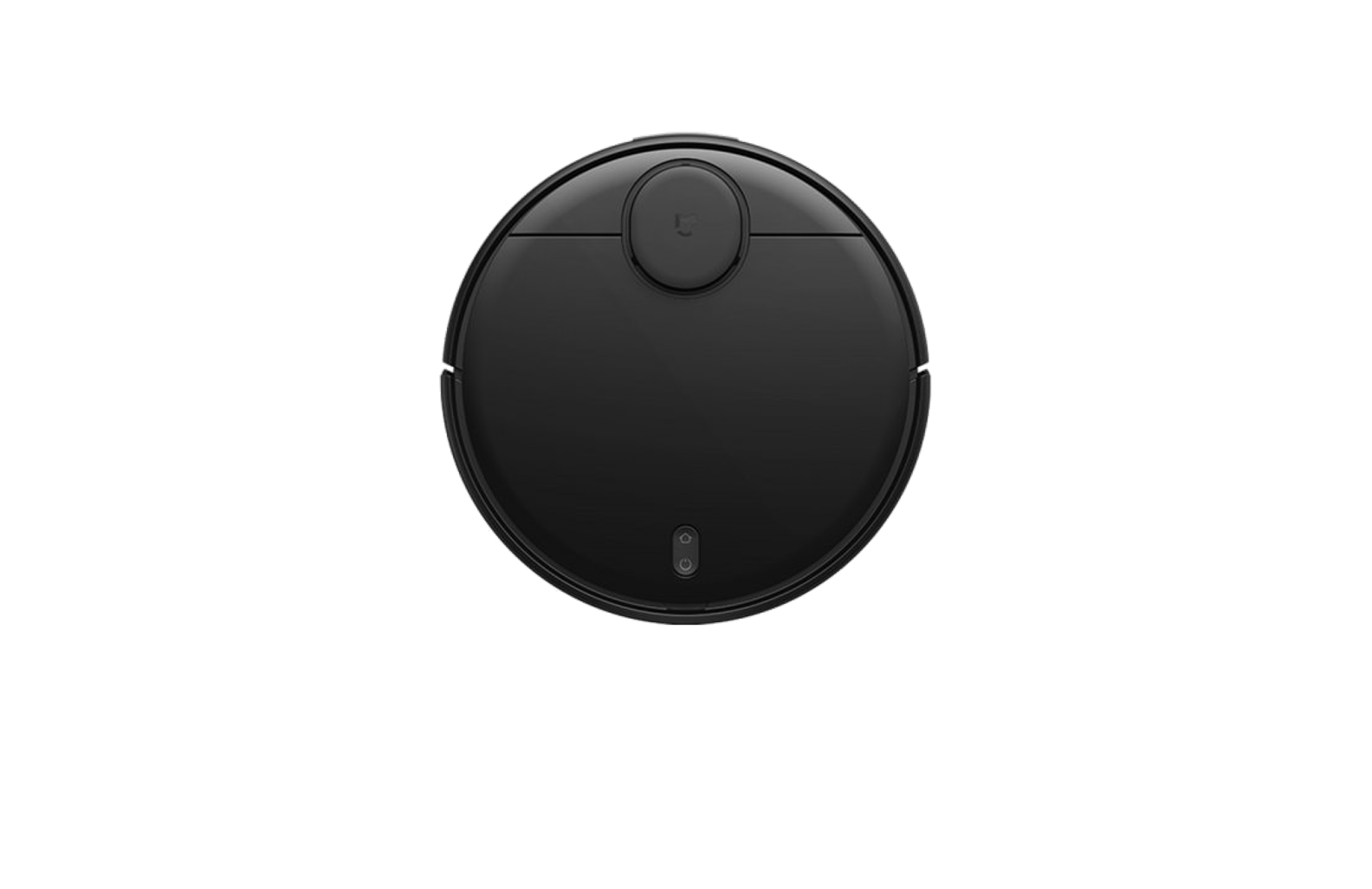

Vacuum picture:
Chrolden
on 21 Jan 2020
Many thanks @Chrolden ! You saved me and probably other current and future owners a lot of time and hassle.
greengo1
on 21 Jan 2020
Of course @greengo1 !
My code is a bit messy and need some clean up:
Picture of card in UI:
Love Lace Code:
Config.yaml (Room selector):
script.yaml :
Vacuum picture:
thank you!! Now my mop is working in home assistant
please may you share next configurations? or may you explain please how to clean exact room? I see a list of rooms but it is not working, mop clean all house anyway
ruslanruslanruslan
on 4 Feb 2020
Of course @greengo1 !
My code is a bit messy and need some clean up:
Picture of card in UI:
Love Lace Code:
Config.yaml (Room selector):
script.yaml :
Vacuum picture:thank you!! Now my mop is working in home assistant
please may you share next configurations? or may you explain please how to clean exact room? I see a list of rooms but it is not working, mop clean all house anyway
Sorry I have forgotten to include my automation in the comment above.
I have updated the comment with automations no: https://github.com/home-assistant/home-assistant/issues/27268#issuecomment-576890353
Remember you need to find out what is correct room number your self.
You can find that with using command set_mode_withroom.. as I have explained earlier.
Chrolden
on 5 Feb 2020
Of course @greengo1 !
My code is a bit messy and need some clean up:
Picture of card in UI:
Love Lace Code:
Config.yaml (Room selector):
script.yaml :
Automations:
Vacuum picture:

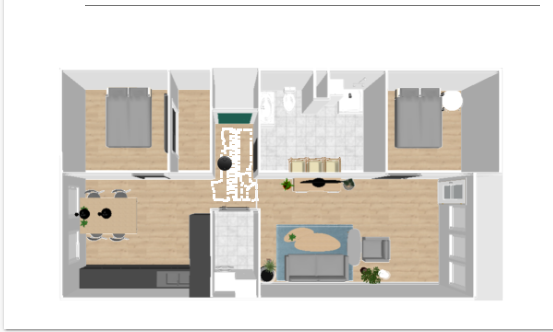

Thank you Chrolden for your configuration - great work. I did exactly what you have in your configuration with few changes and I don't have any information data back in right side of the card (main, side brush,mop, filter). What firmware do you use in your STYJ02YM?
szaman-89
on 9 Feb 2020
Of course @greengo1 !
My code is a bit messy and need some clean up:
Picture of card in UI:
Love Lace Code:
Config.yaml (Room selector):
script.yaml :
Automations:
Vacuum picture:Thank you Chrolden for your configuration - great work. I did exactly what you have in your configuration with few changes and I don't have any information data back in right side of the card (main, side brush,mop, filter). What firmware do you use in your STYJ02YM?
You need to modify the vacuum.py file located in \config\custom_components\miio2 folder.
On line 122:
#Change this:
ALL_PROPS = ["run_state", "mode", "err_state", "battary_life", "box_type", "mop_type", "s_time",
"s_area", "suction_grade", "water_grade", "remember_map", "has_map", "is_mop", "has_newmap"]
#to:
ALL_PROPS = ["run_state", "mode", "err_state", "battary_life", "box_type", "mop_type", "s_time",
"s_area", "suction_grade", "water_grade", "remember_map", "has_map", "is_mop", "has_newmap", "side_brush_hours", "main_brush_hours", "hypa_hours", "mop_hours"]
Than you should get information about remaining hours on brush, mop...
My live map feature is working quite well now (Non rooted vacuum). However the code need some clean up.
The live map feature I have built now is including clean path and also a current posistion of the vacuum.
If I have time I might add a custom component if anyone are interested.
This is how my live map looks now:
Vacuum just started cleaning the hall.
Vacuum almost finish cleaning.
Vacuum finished cleaning( You can see the Vacuum right under the TV stand)
Chrolden
on 9 Feb 2020
My live map feature is working quite well now (Non rooted vacuum). However the code need some clean up.
The live map feature I have built now is including clean path and also a current posistion of the vacuum.
If I have time I might add a custom component if anyone are interested.
This is how my live map looks now:Vacuum just started cleaning the hall.
This map looks fantastic. I keep my fingers crossed for this custom pomponent. Thank you for your help and your work.
szaman-89
on 9 Feb 2020
This issue is about missing integration in the homeassistant core, so could you please move the discussion about custom components to the discussion forum.. Thanks!
rytilahti
on 10 Feb 2020
This issue is about missing integration in the homeassistant core, so could you please move the discussion about custom components to the discussion forum.. Thanks!
Ofc. My mistake.
Sorry, I'm new to github.
Chrolden
on 10 Feb 2020
Hi everyone, it is nice to see that there is interest on getting this device integrated, but I pleaded you already to keep the discussion not related to the issue at hand out from the issue tracker. I just purged the new unrelated comments written after that point – this issue is only for tracking the integration to HA core.
Feel free to use the community forums (https://community.home-assistant.io) or the issues repository of the custom component (https://github.com/nqkdev/home-assistant-vacuum-styj02ym) for further discussion about the custom component.
If there are some functionality missing from the backend library that is hindering the integration, feel free to open an issue or a PR at https://github.com/rytilahti/python-miio/. Thanks!
rytilahti
on 12 Feb 2020
Hi everyone, it is nice to see that there is interest on getting this device integrated, but I pleaded you already to keep the discussion not related to the issue at hand out from the issue tracker. I just purged the new unrelated comments written after that point – this issue is only for tracking the integration to HA core.
Feel free to use the community forums (https://community.home-assistant.io) or the issues repository of the custom component (https://github.com/nqkdev/home-assistant-vacuum-styj02ym) for further discussion about the custom component.
If there are some functionality missing from the backend library that is hindering the integration, feel free to open an issue or a PR at https://github.com/rytilahti/python-miio/. Thanks!
whats wrong with you buddy? i registered here looking for an answer and you deleted all questions and comments. hope you are satisfied with yourself
bullgod-mort
on 13 Feb 2020
I'm fine, thanks for asking. I already tried friendly to point out that github issues is not the place for support requests nor is it a discussion forum, and I even gave you direct links where the discussion should be continued. I also did not remove any prior offtopic comments as a courtesy as I don't mind small amounts of helpful discussion, but there are limits to that.
Btw, going around insulting people with that tone is a great way to motivate them. Feel free to work on the integration yourself and/or escalate your issues about my moderation. I'm done here and won't interfere with this issue anymore, I also hope you are satisfied with your contributions to this community.
rytilahti
on 13 Feb 2020
@bullgod-mort In fact github works kinda different than usual forum groups and it's right that our discussion was offtopic. There is other places here to talk about components problems. Teemu R. is contributor here and he has right to decide how this topic should look like.
@rytilahti Please dont be mad, that situation was just missunderstanding what github really is. We're all here trully gratefull for your contribution of this integration. Thanks for your work and sorry for being part of that offtopic case.
szaman-89
on 13 Feb 2020
planetai87
on 14 Mar 2020
It solved!
https://github.com/nqkdev/home-assistant-vacuum-styj02ym?files=1
What exactly has been fixed?
Ciubas
on 14 Mar 2020
This is still valid, the recently merged PR was only a roadblocker for this issue (to allow differing fan speed mappings). Fixing this will require still changes to the integration, namely either 1) adding auto-detection of the device type or 2) adding a configuration to use ViomiVacuum class when suitable.
rytilahti
on 3 Apr 2020
Can you update the current information of this PR?
nhok3296
on 22 Apr 2020
What information are you missing then? The current state (including needed actions) is in my last comment already, so far I haven't seen any volunteers to implement it.
34225 is likely the PR which will hopefully make way to model detection, but it will likely require larger refactoring before that can happen. Some details on that are available in comments of this another PR: https://github.com/home-assistant/core/pull/33736#discussion_r404262442 .
rytilahti
on 22 Apr 2020
Hello, I just recently got this vacuum, viomi.vacuum.v8. I have tried with miiocli, and it shows some info:
Model: viomi.vacuum.v8
Hardware version: Linux
Firmware version: 3.5.3_0017
Network: {'localIp': '192.168.1.23', 'mask': '255.255.255.0', 'gw': '192.168.1.1'}
AP: {'ssid': 'XXX', 'bssid': 'XXX'}
So I guess I have the correct token, but adding to HA did nothing, I only got an error. I see that there were some PR regarding this, shouldn't I have at least see the state of the device in HA or something besides unavailable?
I see that there is an unofficial "hacky" integration here :)
https://github.com/nqkdev/home-assistant-vacuum-styj02ym
Can't it be made into something official?
raresserban
on 16 Jun 2020
It is not worth to maintain two separate integrations in the core, so no, there's no way to make it official. If there are some features that are missing in python-miio (looks like that custom integration uses raw_command for some use cases), those should be upstreamed as necessary.
miiocli viomivacuum is the command you can also use to command the vacuum from console, the steps I stated in the previous comment will still be done before we can add support for non-rockrobo vacuums (viomis & dreames) into the core integration.
rytilahti
on 16 Jun 2020
How can I help? I have Viomi V3 and STYJ02YM (v7 CN version) in my house.
Ciubas
on 29 Jul 2020
I cant to get any info from my device. STYTJ02YM (viomi-v8) Is the process for v8 different ?
I extracted the token as per below but when I try and use that token to talk to the vacuum I get no response.
Any suggestions?
Below is the process I followed.
1 install latest version of python-miio using pip3 install python-miio ( Successfully installed python-miio-0.5.3 )
- Reset the device (I did not use the MI app at all after this point)
- Connect to the device's WIFI AP (this gives me my local ip 192.168.5.2 and the AP 192.168.5.1)
- Use packetsender and sent packet with the following settings and payload:
HEX: 21310020ffffffffffffffffffffffffffffffffffffffffffffffffffffffff
IP: 192.168.5.1
Port: 54321
Protocol dropdown: UDP - Note the response XX XX XX XX XX XX XX XX and only use the last 32 characters by removing the spaces
- use both mirobo and miiocli with the following result.
mirobo --ip 192.168.5.1 --token XXXXXX326B7A35654D32646F6FXXXXXX raw-command miIO.info
Sending cmd miIO.info with params []
Error: Unable to request miIO.info from the device
miiocli device --ip 192.168.5.1 --token XXXXXX326B7A35654D32646F6FXXXXXX info
Error: Unable to request miIO.info from the device
v0d0r
on 8 Aug 2020
Try to add the debug flag to your invocations, it will show you what is being received and maybe give a hint what could be the problem. That error message indicates that the device responded with something (unexpected, non-json response) instead of simply timing out what usually happens when the token is incorrect.
rytilahti
on 9 Aug 2020
Try to add the debug flag to your invocations, it will show you what is being received and maybe give a hint what could be the problem. That error message indicates that the device responded with something (unexpected, non-json response) instead of simply timing out what usually happens when the token is incorrect.
@rytilahti
I have added the debug flag and in addition I have also done a packet capture on the interface and grabbed the response back from the vacuum. I am not sure what to expect in the response but it looks like is its sending me back another token the same one I sent in as the magic packet as well as the tocken I sent it from the PC in the mirobo command. Maybe this means something to somebody here?
packet capture response UDP Stream from 192.168.5.1 (vacuum) back to 192.168.5.2 (pc)
21310020ffffffffffffffffffffffffffffffffffffffffffffffffffffffff
21310020ffffffffffffffffffffffffffffffffffffffffffffffffffffffff
21310020ffffffffffffffffffffffffffffffffffffffffffffffffffffffff
2131002000000000126ebbd70000adab6771723256655964726277486f777a4e
2131002000000000126ebbd70000adab6771723256655964726277486f777a4e
2131002000000000126ebbd70000adab6771723256655964726277486f777a4e
Output of command and debug below
mirobo -d --ip 192.168.5.1 --token 6771723256655964726277486F777A4E raw-command miIO.info
INFO:miio.vacuum_cli:Debug mode active
DEBUG:miio.vacuum_cli:Connecting to 192.168.5.1 with token 6771723256655964726277486F777A4E
Sending cmd miIO.info with params []
DEBUG:miio.protocol:Unable to decrypt, returning raw bytes: b''
DEBUG:miio.miioprotocol:Got a response: Container:
data = Container:
data = b'' (total 0)
value = b'' (total 0)
offset1 = 32
offset2 = 32
length = 0
header = Container:
data = b'!1\x00 \x00\x00\x00\x00\x12n\xbb\xd7\x00\x00\xad\xa6' (total 16)
value = Container:
length = 32
unknown = 0
device_id = unhexlify('126ebbd7')
ts = 1970-01-01 12:20:54
offset1 = 0
offset2 = 16
length = 16
checksum = b'gqr2VeYdrbwHowzN' (total 16)
DEBUG:miio.miioprotocol:Discovered 126ebbd7 with ts: 1970-01-01 12:20:54, token: b'6771723256655964726277486f777a4e'
DEBUG:miio.miioprotocol:192.168.5.1:54321 >>: {'id': 1, 'method': 'miIO.info', 'params': []}
DEBUG:miio.miioprotocol:Retrying with incremented id, retries left: 3
DEBUG:miio.protocol:Unable to decrypt, returning raw bytes: b''
DEBUG:miio.miioprotocol:Got a response: Container:
data = Container:
data = b'' (total 0)
value = b'' (total 0)
offset1 = 32
offset2 = 32
length = 0
header = Container:
data = b'!1\x00 \x00\x00\x00\x00\x12n\xbb\xd7\x00\x00\xad\xab' (total 16)
value = Container:
length = 32
unknown = 0
device_id = unhexlify('126ebbd7')
ts = 1970-01-01 12:20:59
offset1 = 0
offset2 = 16
length = 16
checksum = b'gqr2VeYdrbwHowzN' (total 16)
DEBUG:miio.miioprotocol:Discovered 126ebbd7 with ts: 1970-01-01 12:20:59, token: b'6771723256655964726277486f777a4e'
DEBUG:miio.miioprotocol:192.168.5.1:54321 >>: {'id': 102, 'method': 'miIO.info', 'params': []}
DEBUG:miio.miioprotocol:Retrying with incremented id, retries left: 2
DEBUG:miio.protocol:Unable to decrypt, returning raw bytes: b''
DEBUG:miio.miioprotocol:Got a response: Container:
data = Container:
data = b'' (total 0)
value = b'' (total 0)
offset1 = 32
offset2 = 32
length = 0
header = Container:
data = b'!1\x00 \x00\x00\x00\x00\x12n\xbb\xd7\x00\x00\xad\xb0' (total 16)
value = Container:
length = 32
unknown = 0
device_id = unhexlify('126ebbd7')
ts = 1970-01-01 12:21:04
offset1 = 0
offset2 = 16
length = 16
checksum = b'gqr2VeYdrbwHowzN' (total 16)
DEBUG:miio.miioprotocol:Discovered 126ebbd7 with ts: 1970-01-01 12:21:04, token: b'6771723256655964726277486f777a4e'
DEBUG:miio.miioprotocol:192.168.5.1:54321 >>: {'id': 203, 'method': 'miIO.info', 'params': []}
DEBUG:miio.protocol:Unable to parse json '': Expecting value: line 1 column 1 (char 0)
DEBUG:miio.click_common:Exception: Unable to parse message payload
Traceback (most recent call last):
File "/home/vodor/.local/lib/python3.7/site-packages/miio/protocol.py", line 193, in _decode
return json.loads(decoded)
File "/usr/lib/python3.7/json/__init__.py", line 348, in loads
return _default_decoder.decode(s)
File "/usr/lib/python3.7/json/decoder.py", line 337, in decode
obj, end = self.raw_decode(s, idx=_w(s, 0).end())
File "/usr/lib/python3.7/json/decoder.py", line 355, in raw_decode
raise JSONDecodeError("Expecting value", s, err.value) from None
json.decoder.JSONDecodeError: Expecting value: line 1 column 1 (char 0)
The above exception was the direct cause of the following exception:
Traceback (most recent call last):
File "/home/vodor/.local/lib/python3.7/site-packages/miio/click_common.py", line 59, in __call__
return self.main(args, *kwargs)
File "/home/vodor/.local/lib/python3.7/site-packages/click/core.py", line 782, in main
rv = self.invoke(ctx)
File "/home/vodor/.local/lib/python3.7/site-packages/click/core.py", line 1259, in invoke
return _process_result(sub_ctx.command.invoke(sub_ctx))
File "/home/vodor/.local/lib/python3.7/site-packages/click/core.py", line 1066, in invoke
return ctx.invoke(self.callback, *ctx.params)
File "/home/vodor/.local/lib/python3.7/site-packages/click/core.py", line 610, in invoke
return callback(args, *kwargs)
File "/home/vodor/.local/lib/python3.7/site-packages/click/decorators.py", line 73, in new_func
return ctx.invoke(f, obj, *args, *kwargs)
File "/home/vodor/.local/lib/python3.7/site-packages/click/core.py", line 610, in invoke
return callback(args, *kwargs)
File "/home/vodor/.local/lib/python3.7/site-packages/miio/vacuum_cli.py", line 644, in raw_command
click.echo(vac.raw_command(cmd, params))
File "/home/vodor/.local/lib/python3.7/site-packages/miio/device.py", line 165, in raw_command
return self.send(command, parameters)
File "/home/vodor/.local/lib/python3.7/site-packages/miio/device.py", line 147, in send
command, parameters, retry_count, extra_parameters=extra_parameters
File "/home/vodor/.local/lib/python3.7/site-packages/miio/miioprotocol.py", line 236, in send
extra_parameters=extra_parameters,
File "/home/vodor/.local/lib/python3.7/site-packages/miio/miioprotocol.py", line 236, in send
extra_parameters=extra_parameters,
File "/home/vodor/.local/lib/python3.7/site-packages/miio/miioprotocol.py", line 193, in send
m = Message.parse(data, token=self.token)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 288, in parse
return self.parse_stream(io.BytesIO(data), **contextkw)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 300, in parse_stream
return self._parsereport(stream, context, "(parsing)")
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 312, in _parsereport
obj = self._parse(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 1981, in _parse
subobj = sc._parsereport(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 312, in _parsereport
obj = self._parse(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 2439, in _parse
return self.subcon._parsereport(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 312, in _parsereport
obj = self._parse(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 3987, in _parse
obj = self.subcon._parsereport(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 312, in _parsereport
obj = self._parse(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 4265, in _parse
obj = self.subcon._parsereport(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 312, in _parsereport
obj = self._parse(stream, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/construct/core.py", line 698, in _parse
return self._decode(obj, context, path)
File "/home/vodor/.local/lib/python3.7/site-packages/miio/protocol.py", line 201, in _decode
) from ex
miio.exceptions.PayloadDecodeException: Unable to parse message payload
Error: Unable to parse message payload
v0d0r
on 9 Aug 2020
Maybe the info command is not working on that device? Something similar happens on rockrobo gen1 vacuums if they are not cloud connected, even when the other commands work. Do all other viomivacuum commands also cause the same error?
rytilahti
on 9 Aug 2020
Maybe the info command is not working on that device? Something similar happens on rockrobo gen1 vacuums if they are not cloud connected, even when the other commands work. Do all other viomivacuum commands also cause the same error?
Tried other commands but I get "no response from device"
I then tried the miiocli command specifically with the viomivacuum switch and I can get a status response this way at least.
I don't know how to connect it to the wifi after this step though (other than using the app) and after that I cant get any info out of it again.
miiocli viomivacuum --ip 192.168.5.1 --token 323776595A70656876594D3xxxxCxxxx status
State: ViomiVacuumState.Idle
Mode: ViomiMode.Vacuum
Error: Unknown error 0
Battery: 95
Fan speed: ViomiVacuumSpeed.Silent
Box type: ViomiBinType.Vacuum
Mop type: 0
Clean time: 0:01:14
Clean area: 58.36
Water grade: ViomiWaterGrade.Low
Remember map: True
Has map: True
Has new map: False
Mop mode: ViomiMode.Vacuum
v0d0r
on 10 Aug 2020
I am getting the same issue with my vacuum. It is working through the android app, and using npm miio, it is only from Home Assistant that I am finding it not working
Configuration.yaml
`vacuum:
- platform: xiaomi_miio
host: 192.168.1.224
name: xiaomi_vacuum
token: 326a516d4a6856535a754875446d5363`
Error
2020-08-10 21:47:15 DEBUG (SyncWorker_2) [miio.miioprotocol] Discovered 126edfca with ts: 2020-08-10 20:47:15, token: b'ffffffffffffffffffffffffffffffff'
2020-08-10 21:47:15 DEBUG (SyncWorker_2) [miio.miioprotocol] 192.168.1.224:54321 >>: {'id': 2028, 'method': 'get_status', 'params': []}
2020-08-10 21:47:20 DEBUG (SyncWorker_2) [miio.miioprotocol] Retrying with incremented id, retries left: 1
2020-08-10 21:47:20 DEBUG (SyncWorker_2) [miio.miioprotocol] Got a response: Container:
data = Container:
data = b'' (total 0)
value = b'' (total 0)
offset1 = 32
offset2 = 32
length = 0
header = Container:
data = b'!1\x00 \x00\x00\x00\x00\x12n\xdf\xca_1\xb2Y' (total 16)
value = Container:
length = 32
unknown = 0
device_id = b'\x12n\xdf\xca' (total 4)
ts = 2020-08-10 20:47:21
offset1 = 0
offset2 = 16
length = 16
checksum = b'\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff\xff' (total 16)
Any idea what is going on, or is there any more information that I can gather?
aelking
on 10 Aug 2020
The integration supports only rockrobo vacuums at the moment, there is a custom component linked previously in this issue that allows using viomi vacuums with homeassistant. The steps to properly integrate support for these is also contained in some of the previous comments.
rytilahti
on 11 Aug 2020
The integration supports only rockrobo vacuums at the moment, there is a custom component linked previously in this issue that allows using viomi vacuums with homeassistant. The steps to properly integrate support for these is also contained in some of the previous comments.
Thanks this explains a bit. I will read the comments and see what bits are relevant to viomi.
v0d0r
on 11 Aug 2020
Việc tích hợp chỉ hỗ trợ máy hút bụi rockrobo tại thời điểm hiện tại, có một thành phần tùy chỉnh được liên kết trước đó trong số này cho phép sử dụng máy hút bụi viomi với chất gia cố. Các bước để tích hợp đúng cách hỗ trợ cho những điều này cũng có trong một số nhận xét trước đây.
Cảm ơn điều này giải thích một chút. Tôi sẽ đọc các bình luận và xem những bit nào có liên quan đến viomi.
https://github.com/nqkdev/home-assistant-vacuum-styj02ym
Custom compoments viomi gen 2
nhok3296
on 11 Aug 2020
Could the python-mioo be updated for HA > 0.113? Simply editing the manifest.json to reflect 5.0.3 did not work for me... I'm not sure what else to change.
Currently this is breaking the Xiaomi Miio Gateway Alarm integration built into Home Assistant. Downgrading HA to <0.113 will fix the issue.
[edit
Fixed it myself, by changing the manifast.json to "python-miio==0.5.3" (instead of '0.5.0.3') :-)
MartijnC1984
on 17 Aug 2020
The integration supports only rockrobo vacuums at the moment, there is a custom component linked previously in this issue that allows using viomi vacuums with homeassistant. The steps to properly integrate support for these is also contained in some of the previous comments.
thanks. managed to get it working. it was surprisingly easy. I ended up not resetting my vacuum at all and left it on the wifi as is. Then installed the older version of the mi home app version v5.4.45 in bluestacks. Got the token and it worked first time.
v0d0r
on 21 Aug 2020
Related issues
sogeniusio
·
3Comments
arangates
·
3Comments
ofuangka
·
3Comments
YellowMonster76
·
3Comments
aweb-01
·
3Comments
Most helpful comment
I'm fine, thanks for asking. I already tried friendly to point out that github issues is not the place for support requests nor is it a discussion forum, and I even gave you direct links where the discussion should be continued. I also did not remove any prior offtopic comments as a courtesy as I don't mind small amounts of helpful discussion, but there are limits to that.
Btw, going around insulting people with that tone is a great way to motivate them. Feel free to work on the integration yourself and/or escalate your issues about my moderation. I'm done here and won't interfere with this issue anymore, I also hope you are satisfied with your contributions to this community.
