Core: HA looses link with Kodi after restart of Kodi

Created on 8 Oct 2018 · 26Comments · Source: home-assistant/core

Home Assistant release with the issue: 0.79.3

Last working Home Assistant release (if known): Unknown

Operating environment (Hass.io/Docker/Windows/etc.): Docker

Component/platform: https://www.home-assistant.io/components/media_player.kodi/

Description of problem:

When Kodi is restarted, the connection from HA to Kodi doesn't re-establish. The only way to get HA to receive status changes is by restarting HA.

Problem-relevant configuration.yaml entries and (fill out even if it seems unimportant):

media_player:
  - platform: kodi
    name: Main Kodi
    host: 192.168.7.61
    port: 80
    username: kodi
    password: ********

Traceback (if applicable):

Additional information:

in progress kodi stale waiting-for-reply

Source

Xaldimo

Most helpful comment

still a bug...

tadly on 11 Mar 2019

👍5

All 26 comments

Do other network based Kodi remotes and Kodi's web interface still work as usual? I have seen occurrences where Kodi did not properly release the network port when exiting, so it could not rebind the port on startup.

mvn23 on 9 Oct 2018

Yes. I can still connect to the normal web-page of Kodi, use Maraschino and using Yatse (Android). It is only HA that doesn't get updated any more, until I restart HA.

Xaldimo on 9 Oct 2018

Thank you for rising this issue @Xaldimo. I also have the same problem, and can confirm that all other applications that connect to Kodi resume function when the system is restored/unsuspended. Yaste on my Android device is an example.

So what's likely happening to Home Assistant (HA) is the following:

Kodi is started
HA is started and connects over sockets
Kodi system is suspended/sleep/shutdown.
HA socket connection is closed.
Kodi system is resumed/restarted.
HA doesn't re-establish a socket connection to Kodi.
Restart HA.
HA reconnects to Kodi.

Possible solution: have HA check to see if the Kodi system is up and re-connect every X seconds (conf option)?

StarScream159 on 9 Oct 2018

Doesn't hass detect that the websocket gets disconnected? Normally it should not poll.

Isn't this the same as reconnecting to a hue bridge or a Chromecast that rebooted?

michaelarnauts on 14 Oct 2018

Haha there it is again. This gosh darn issue that has existed since... forever.

I actually tried fixing it a few times but I just cant figure out where the issue is.
The component itself looks like (to me at least) would properly handle the connection.

Also, it's not like HA can't connect with kodi again.
If your kodi system is back online while HA shows it as being offline, hit the power on button and you'll most likely see the component updating.

The most recent idea I had revolves around the should_poll property.
Does the property itself get polled or is it check once (on startup)?
If only once, this would explain a lot.

If your kodi instances was already online while HA starts, HA would never ever again trigger a update -> not reconnecting the socket.
If kodi was offline however, HA would eventually update the component, forcing the socket to reestablish.

I'm just super not familiar with HAs internals and don't really have the time to do lots of debugging etc.

Sorry for the wall of text :)

tadly on 15 Oct 2018

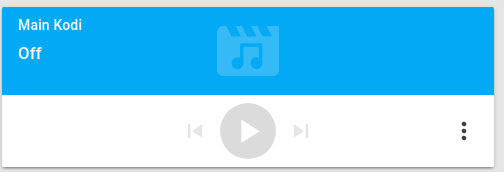

The problem is that there is no power button. I have just rebooted Kodi, while HA is still up and running. HA now shows:

It doesn't show any power button. The only way I can find to get HA to sync again is to restart HA.

Xaldimo on 15 Oct 2018

@Xaldimo because you did not configure a kodi turn on/off action

tadly on 15 Oct 2018

@tadly you are right :) I have now enable the turn on mechanism, and it does create a new socket to Kodi. But I feel this is more of a work around then a proper fix. My Kodi is running 24/7 and only if I upgrade routers/switches or if Kodi gets upgraded it will go down. But that means if that happens (my routers/switches get upgraded automatic) I will need to go into HA to trigger a turn-on for Kodi. Then my automation in regards to lights triggered by Kodi will work again.

I would have expected that HA would keep trying to establish a connection to Kodi until it is successful.

Xaldimo on 15 Oct 2018

I never said it's not a workaround.
I even said I tried fixing it a few times already but failed.

Anyways, for you rebooting kodi while HA is running reliably recreates the issue?
If so, would you be comfortable enough to change a small piece of code with your HA installation and test again?

tadly on 15 Oct 2018

@tadly sorry if it came across in the wrong way. Didn't mean it that way :)

I would be gladly to test a piece of code. I tried going through it but haven't done any coding myself for few decades so am very rusty with it.

Xaldimo on 15 Oct 2018

@Xaldimo Awesome! All I'd need you to do is:

locate the kodi component source file. This is the file you're looking for
Change line 502 so it reads return True

That's it. Restart HA and test again.
If you need help in regards to editing said file within your docker container let me know.

tadly on 15 Oct 2018

I have done the following:

Edit "/usr/src/app/homeassistant/components/media_player/kodi.py"
Change line 502 to return True
Restart HA
Confirm HA shows Kodi as "Idle"
Reboot Kodi
Confirm (during reboot of Kodi) that HA shows Kodi as "Off"
Waited for Kodi to return
Confirm HA shows Kodi again as "Idle"
Start movie on Kodi
Confirm HA shows Kodi as "Playing"

This seems to work :)

Xaldimo on 15 Oct 2018

I don't really like the fix but it certainly is better than what we have now (a 50/50 chance).
I'll make a PR for it.

tadly on 15 Oct 2018

@Xaldimo would you be so kind and do another test? I did a few tweaks...

This time you're better of just downloading the file:
https://raw.githubusercontent.com/tadly/home-assistant/dev/homeassistant/components/media_player/kodi.py

There aren't to many changes as you can see here but downloading it should be way easier.

tadly on 15 Oct 2018

I have used the new version of kodi.py, and it seems to still behave as expected:

Download kodi.py and move existing one to backup
reboot HA
Confirm Kodi is connected
Reboot Kodi
Kodi gets disconnected, but after approx 10 sec it shows as "Idle" again
Start movie, confirm that Kodi status gets updated in HA

I have repeated steps 4-6 again to make sure it does as expected, and both times HA seems to re-establish the link to Kodi :smiley:

Xaldimo on 15 Oct 2018

Perfect. Thanks again for testing.
Doesn't look like it's getting merged as of now but I'll see if we can come up with a proper solution.

tadly on 15 Oct 2018

Thanks for the work you put into this tadly! I'm excited to test this when I get home from work.

So it does indeed seem like HA only attempts to connect to Kodi once (upon boot) and if it does, great, but if it doesn't it never tries again? So my order/flow makes sense then on my first post above?

StarScream159 on 15 Oct 2018

With the current version of HA you should make sure to always start/restart HA when kodi is offline.
Then (from what I can tell) it should work properly even without tinkering with the source.

Follow the PR #17474 if you're curious about more detailed stuff.

tadly on 15 Oct 2018

You are correct in that if you start HA with Kodi offline, the socket will reconnect as required. That's good to know until I see an update from your PR. Thanks!

StarScream159 on 16 Oct 2018

The setup I have is that my Kodi is on 24/7 since I also use it to automatically import new files when they are available. So the scenario of having Kodi offline wouldn't really work then.

Xaldimo on 16 Oct 2018

Second PR was just closed and I don't feel like jumping through any more hoops.
If anyone else wants to try and get this fixed, be my guest.

Edit: I outlined the actual issue in both PRs that originated from this issue.

tadly on 18 Oct 2018

Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment :+1:

balloobbot on 7 Mar 2019

still a bug...

tadly on 11 Mar 2019

👍5

casperklein on 28 May 2019

@casperklein nope, not related.

The actual problem is well known at this point but neither of my two fixes was accepted.
Creating a fix which would fit their requirements would take a day or two with proper testing.

tadly on 28 May 2019

There hasn't been any activity on this issue recently. Due to the high number of incoming GitHub notifications, we have to clean some of the old issues, as many of them have already been resolved with the latest updates.
Please make sure to update to the latest Home Assistant version and check if that solves the issue. Let us know if that works for you by adding a comment 👍
This issue now has been marked as stale and will be closed if no further activity occurs. Thank you for your contributions.
