Cocoapods: Archiving produces info.plist without ApplicationProperties for the Swift project without use_frameworks!

[numen31337]

Report

What did you do?

Archiving a project.

What did you expect to happen?

Correct and ready to upload archive is expected.

What happened instead?

"Generic Xcode Archive" is created, further investigation showed that ApplicationProperties are missed from the info.plist
Presumably, this is related to the pods which contain resource files.

CocoaPods Environment

Stack

   CocoaPods : 1.5.0
        Ruby : ruby 2.3.3p222 (2016-11-21 revision 56859) [universal.x86_64-darwin17]
    RubyGems : 2.5.2
        Host : Mac OS X 10.13.4 (17E199)
       Xcode : 9.3 (9E145)
         Git : git version 2.15.1 (Apple Git-101)
Ruby lib dir : /System/Library/Frameworks/Ruby.framework/Versions/2.3/usr/lib
Repositories : master - https://github.com/CocoaPods/Specs.git @ fc43809d0fcb810b3f8fcf8de13f169bf69e7046

Installation Source

Executable Path: /usr/local/bin/pod

Plugins

cocoapods-deintegrate : 1.0.2
cocoapods-plugins     : 1.0.0
cocoapods-search      : 1.0.0
cocoapods-stats       : 1.0.0
cocoapods-trunk       : 1.3.0
cocoapods-try         : 1.1.0

Podfile

platform :ios, '10.0'

target 'test' do
    pod 'FAQView', '~> 0.5.0'
end

Project that demonstrates the issue

https://www.dropbox.com/s/uh6vhtujaox0pkl/CocoaPodsIssueTestProject.zip?dl=0

[mohamedadly]

Yes, This happens to me as well.

I had to revert to v1.4.0.

[dnkoutso]

1.5.0 per se is not the problem here. It works with 1.5.0 but use_frameworks!.

Investigating further, although I do give it a chance this is an Xcode issue? Not yet ready to fully claim this though.

[dnkoutso]

I cant figure this out, something is causing Xcode to think the archive is an apple one when frameworks are used compared to when static libs are used.

[dnkoutso]

I can definitely repro but do not have a good idea on what is wrong here.

[MaximeLM]

I may have found the cause.

The archive contains an additional file when removing use_frameworks!: Products/Applications/assetcatalog_generated_info.plist.

In the archive logs, I see that both build phases Compile asset catalogs and [CP] Copy Pods Resources generate this file, but not in the same path:
Xcode:
ArchiveIntermediates/test/IntermediateBuildFilesPath/test.build/Release-iphoneos/test.build/assetcatalog_generated_info.plist
CocoaPods:
ArchiveIntermediates/test/InstallationBuildProductsLocation/Applications/assetcatalog_generated_info.plist

The path is also different for debug builds:
Xcode:
Build/Intermediates.noindex/test.build/Debug-iphoneos/test.build/assetcatalog_generated_info.plist
CocoaPods:
Build/Products/Debug-iphoneos/assetcatalog_generated_info.plist

In Pods-test-resources.sh, line 122, I tried replacing --output-partial-info-plist "${TARGET_BUILD_DIR}/assetcatalog_generated_info.plist" with --output-partial-info-plist "${TARGET_TEMP_DIR}/assetcatalog_generated_info.plist". The paths in the build logs matched and the archive generated was valid 🙂.

[dnkoutso]

@MaximeLM very nice! We would need to verify if this change breaks https://github.com/CocoaPods/CocoaPods/issues/7003 which was the initial fix for

[bigyelow]

I also got this problem when declaring use_frameworks! in the Podfile and the main project depend on a static_framework repo that mix swift and Objective-C (I specified spec.static_framework = true for that repo), cocoapods 1.5.0.

And I check the generic Xcode archive, find ApplicationProperties is missing for the Info.plist and assetcatalog_generated_info.plist is added to Products/Applications/.

After adding ApplicationProperties to Info.plist manually, it comes back to work.
But i'm not sure this fixing way is correct enough for uploading the IPA to AppStore, it just work for in-house CI build.

so @MaximeLM may catch the cause.

[mixable]

Maybe #7301 is caused by the same issue?

[sghiassy]

Just confirming @MaximeLM's suggestion worked in a test branch to build a recognizable xcarchive, although I haven't been able to confirm submitting the subsequent .ipa build to iTunes.

For a __temp__ fix until 1.5.1, you can run the following sed script:

find ./ -type f -name "*resources.sh" -exec sed -i '' -e 's/\${TARGET_BUILD_DIR}\/assetcatalog_generated_info.plist/\${TARGET_TEMP_DIR}\/assetcatalog_generated_info.plist/' {} \;

[jeffreyjackson]

I can confirm this was an issue until I switched to frameworks. thanks guys!

[mixable]

@sghiassy after running the script inside the app directory, archiving worked as expected: '*.xcarchive' is of type 'iOS App Archive' now. I was also able to upload it to the App Store and it processed without problems. Thanks a lot!!!

@jeffreyjackson for me, it was the other way round. I switched to static libraries and it stopped working...

[freezy7]

@dnkoutso 1.5.1 plan release at?

[JDongKhan]

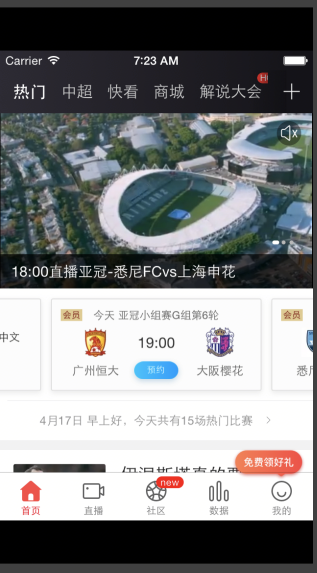

${TARGET_TEMP_DIR} will caused app be black at top and bottom.

It be similar without LaunchImage。

But ${BUILD_DIR} have no problem。

[JDongKhan]

@dnkoutso

[dnkoutso]

@wangjindong this is not live support place. If you have an issue please investigate and provide a solution for others. I have no idea why this is happening.
