Ckeditor5: Headings with IDs and links

[rshipp]

I'm not sure if this is a docs issue or a bug. Either way, I'd love some help figuring it out.

End goal

I have headings with IDs <hN id="someID">Text</hN> and I want them to have a link automatically added inside, surrounding the text, like <hN id="someID"><a href="#someID">Text</a></hN>.

What we've tried

For all the following, the same schema was used:

        schema.register( 'questionTitle', {
            isLimit: true,
            allowIn: 'question',
            allowAttributes: [ 'id', 'toc-link-href' ],
            allowContentOf: '$block'
        } );

There are also converters for the questionTitle element itself, which I'm including just in case that conflicts with the rest of this for some reason:

questionTitle converters

        // <questionTitle> converters
        conversion.for( 'upcast' ).elementToElement( {
            view: {
                name: 'h5'
            },
            model: ( viewElement, modelWriter ) => {
                const id = viewElement.getAttribute('id') || this._nextId();
                let element = modelWriter.createElement( 'questionTitle', {
                    'id': id,
                } );
                modelWriter.setAttribute('toc-link-href', '#' + id, element);
                return element;
            },
            // Use high priority to overwrite heading converters defined in
            // customelementattributepreservation.js.
            converterPriority: 'high',
        } );
        conversion.for( 'dataDowncast' ).elementToElement( {
            model: 'questionTitle',
            view: ( modelElement, viewWriter ) => {
                //debugger;
                return viewWriter.createEditableElement( 'h5', {
                    'id': modelElement.getAttribute( 'id' ) || this._nextId(),
                } );
            },
            // Use high priority to overwrite heading converters defined in
            // customelementattributepreservation.js.
            converterPriority: 'high'
        } );
        conversion.for( 'editingDowncast' ).elementToElement( {
            model: 'questionTitle',
            view: ( modelElement, viewWriter ) => {
                const h5 = viewWriter.createEditableElement( 'h5', {
                    'id': modelElement.getAttribute( 'id' ) || this._nextId(),
                } );

                enablePlaceholder( {
                    view: editing.view,
                    element: h5,
                    text: 'Question Title'
                } );

                return toWidgetEditable( h5, viewWriter );
            },
            // Use high priority to overwrite heading converters defined in
            // customelementattributepreservation.js.
            converterPriority: 'high'
        } );

attributeToElement

Seems like the easiest way to go, so we've tried a few things here. For example:

        conversion.for( 'dataDowncast' ).attributeToElement( {
            model: {
                key: 'toc-link-href',
                name: 'questionTitle'
            },
            view: ( attributeValue, viewWriter ) => {
                if ( !attributeValue ) {
                    return;
                }
                const a = viewWriter.createAttributeElement( 'a', { href: attributeValue, toc: true },{ priority: 5} );
                return a;
            }, converterPriority: 'highest'
        } );

Or variations:

        conversion.for( 'dataDowncast' ).attributeToElement( {
            model: 'toc-link-href',
            view: ( attributeValue, viewWriter ) => {
                if ( !attributeValue ) {
                    return;
                }
                const a = viewWriter.createAttributeElement( 'a', { href: attributeValue, toc: true },{ priority: 5} );
                return a;
            }, converterPriority: 'highest'
        } );

Even if we forget about the href for a second and just try to get any element at all:

        conversion.for( 'dataDowncast' ).attributeToElement( {
            model: 'toc-link-href',
            view: 'a',
            converterPriority: 'highest'
        } );

The view function runs, as expected, but the AttributeElement is never inserted into the document. It seems to just disappear. Why? I saw https://github.com/ckeditor/ckeditor5/issues/4321, but it's closed and there's a PR addressing it. Can attributeToElement still not be used on non-$text elements?

Results

Model:

<questionTitle id="4" toc-link-href="#4">Text</questionTitle>

Data View:

<h5 id="4">Text</h5>

dispatcher

After trying a bunch of different model/view config definitions and createAttributeElement priorities (which I still don't understand), we switched to the lower-level dispatcher to see if that made a difference. There doesn't seem to be any documentation on how to do this, but pulling from the ImageLink plugin mentioned in https://github.com/ckeditor/ckeditor5/issues/702#issuecomment-391730463, I came up with this:

        conversion.for( 'dataDowncast' ).add( dispatcher => {
            dispatcher.on( 'attribute:toc-link-href', ( evt, data, conversionApi ) => {
              const href = data.attributeNewValue;
              // The heading will be already converted - so it will be present in the view.
              const viewHeading = conversionApi.mapper.toViewElement( data.item );

              // Below will wrap newly created link element by already converted heading.

              // 1. Create empty link element.
              const linkElement = conversionApi.writer.createContainerElement( 'a', { href, toc: true } );

              // 2. Insert link after associated heading.
              const positionAfterHeading = conversionApi.writer.createPositionAfter( viewHeading );
              conversionApi.writer.insert( positionAfterHeading, linkElement );

              // 3. Move whole link to a converted heading.
              const rangeOnLink = conversionApi.writer.createRangeOn( linkElement );
              const positionAtHeading = conversionApi.writer.createPositionAt( viewHeading, 0 );
              conversionApi.writer.move( rangeOnLink, positionAtHeading );
            }, { priority: 'normal' } );
        } );

This one at least puts an element in the data view, but it doesn't wrap the text, and I have no idea how to accomplish that. I still don't understand what the position or mapping code is doing at all. Is there a way to get this to wrap the text inside the heading with the a?

Results

Model:

<questionTitle id="4" toc-link-href="#4">Text</questionTitle>

Data View:

<h5 id="4">Text<a href="#4" toc="true">&nbsp;</a></h5>

---

Are either of these solutions close to what we should be doing? Is there a better way? This feels like it should be possible, but I can't figure out how to get it working.

[Mgsy]

Hi! How about using UpcastDispatcher and adding simple linkHref attribute to the text?

conversion.for( 'upcast' ).add( dispatcher => {
    dispatcher.on( 'element:h5', ( evt, data, conversionApi ) => {
        const { schema, writer } = conversionApi;

        for ( const item of data.modelRange.getItems( { shallow: true } ) ) {
            const href = item.getAttribute( 'toc-link-href' );

            for ( const child of item.getChildren() ) {
                if ( child.is( 'text' ) ) {
                    writer.setAttribute( 'linkHref', href, text );
                }
            }
        }
    } );
}, { priority: 'low' } );

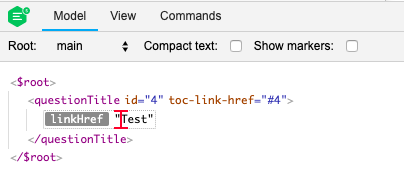

This is the example model/view representation for the following HTML - <h5 id="4">Test</h5>:

Model:

View:

[rshipp]

😮 I didn't know you could modify children like that, looks perfect. We'll try it out, thanks!

[Mgsy]

:open_mouth: I didn't know you could modify children like that, looks perfect. We'll try it out, thanks!

Great to hear that :) If you don't mind, I'll close this issue, as my answer seems to solve your case. If you'll have any additional questions, feel free to post it.

[rshipp]

This worked beautifully! Thanks again.
