Carbon: UI Shell - AIW violation for non-semantic list items

[pdnellius]

Environment

Operating system
macOS 10.15.7

Browser
Chrome 87

Automated testing tool and ruleset
Accessibility Insights for Web

Assistive technology used to verify
N/A

Detailed description

What version of the Carbon Design System are you using?
10.9.0

What did you expect to happen?
Expected HeaderMenu.js to have an optional role attribute

What happened instead?
No role attribute on HeaderMenu.js. This component will fails accessibility checks

What WCAG 2.1 checkpoint does the issue violate?
WCAG 1.3.1 - listitem

Steps to reproduce the issue

1. Create valid nav menu markup using the following:

<HeaderNavigation>
  <HeaderMenu aria-label="Label Name" menuLinkName="Link Name">
    <HeaderMenuItem />
    <HeaderMenuItem />
    <HeaderMenuItem />
     ...
  </HeaderMenu>
</HeaderNavigation>

1. Run Accessibility Inisghts for Web

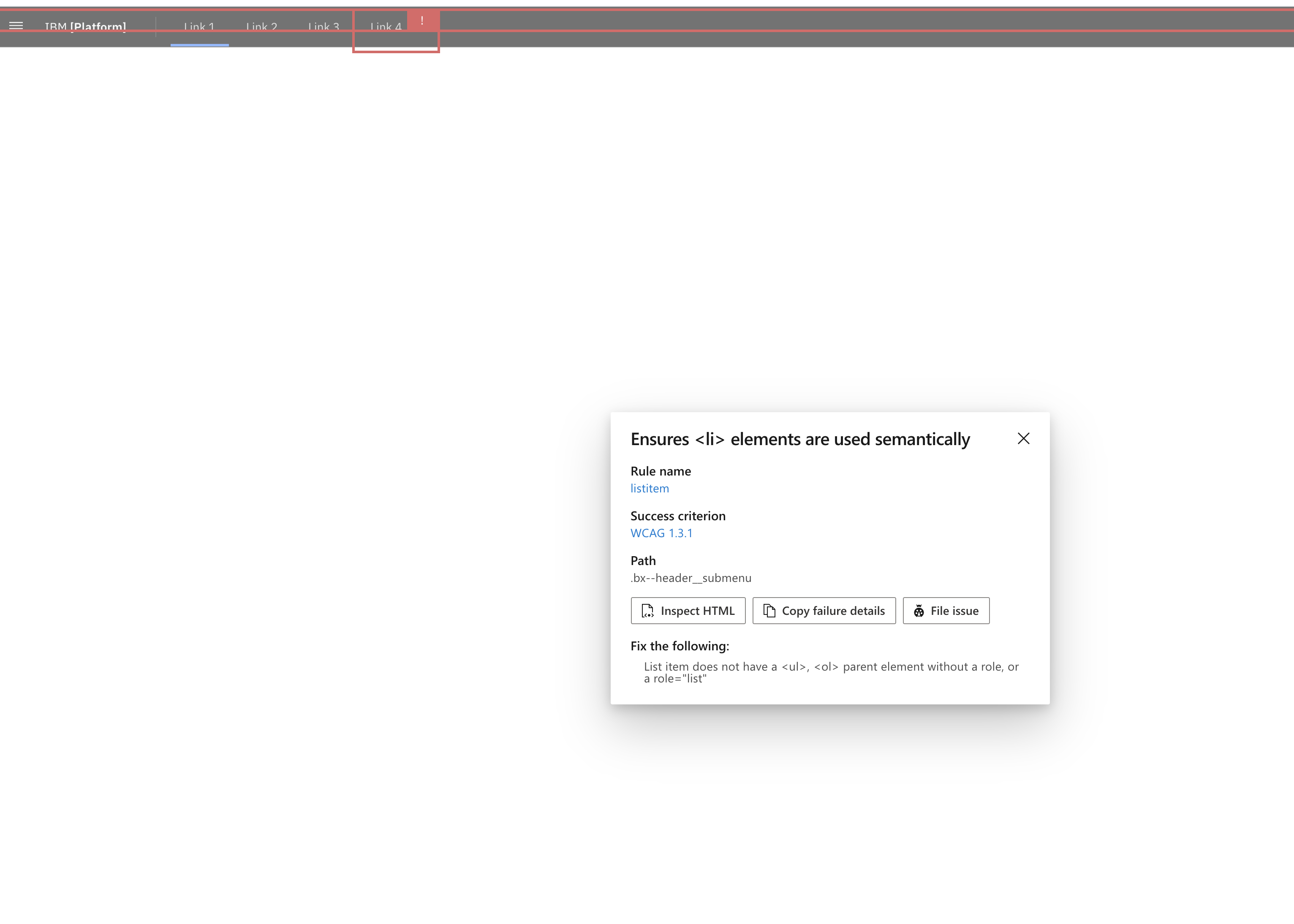

2. Observe fail of WCAG 1.3.1 on <HeadMenu />

CodeSandbox
https://codesandbox.io/s/fast-leftpad-vhvef?file=/src/index.js

[pdnellius]

@emyarod potential PR for you. I couldn't assign it to myself

[emyarod]

gotcha @pdnellius, in the future you can leave a comment in the issue to let us know that you have a fix incoming!

[dakahn]

What error are you seeing? Can you post a screen shot? I'm unable to recreate. @pdnellius

[pdnellius]

Can be seen here @dakahn:
https://codesandbox.io/s/fast-leftpad-vhvef?file=/src/index.js

Using Accessibility Insights for Web

[pdnellius]

@dakahn I updated the example adding the proper aria attributes on the other elements. You'll notice everything passes except for the HeaderMenu component. I believe that item needs a role assigned to it, which I implemented in my PR, but maybe there's a better way to solve.

[dakahn]

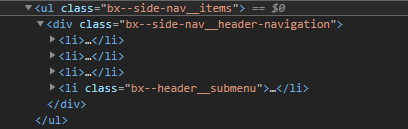

Seems like this error is caused by the <li> not having a <ul> parent element. Inspecting the code we can see that in fact, these list items are children of a div.

Removing this div is the preferred solution and will clear the error.

[dakahn]

Renamed the issue so it more clearly describes the problem 👍

[dakahn]

ideally whatever styling or layout we're getting from that div can just be raised up to the <ul>. 😟

[pdnellius]

@dakahn shall I modify the PR to reflect your suggested solution?

[pdnellius]

@dakahn I'm not seeing a div within the ul in the codesandbox example I provided here:
https://codesandbox.io/s/fast-leftpad-vhvef?file=/src/index.js

[dakahn]

can you diff your implementation with the ours in the React Storybook

[pdnellius]

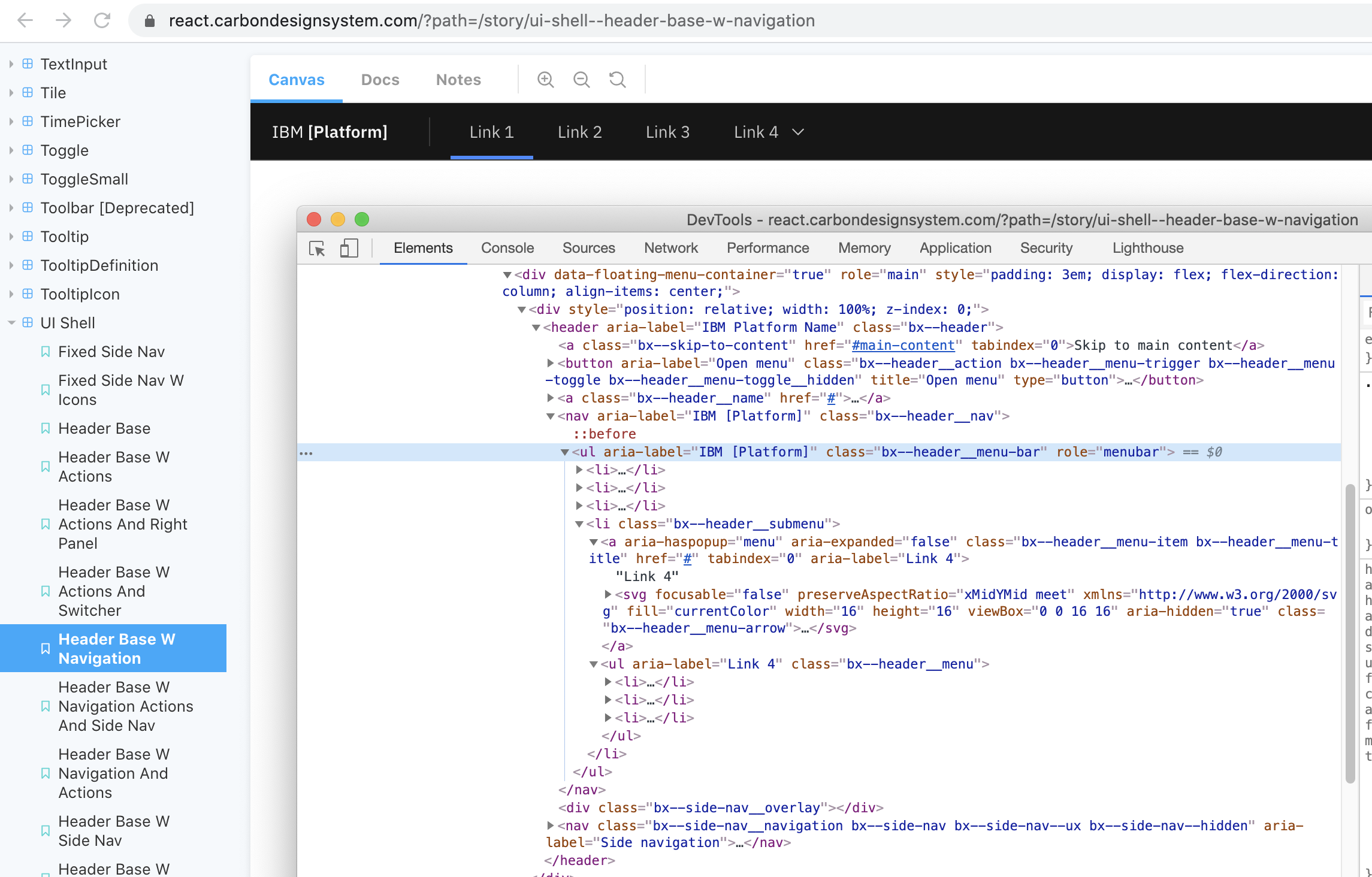

@dakahn The below screenshot is from the React Storybook. Are you perhaps looking at a different component view? I see the class bx--side-nav__items in your screenshot. That class does not appear on the component in question, which is "Header Base W Navigation"

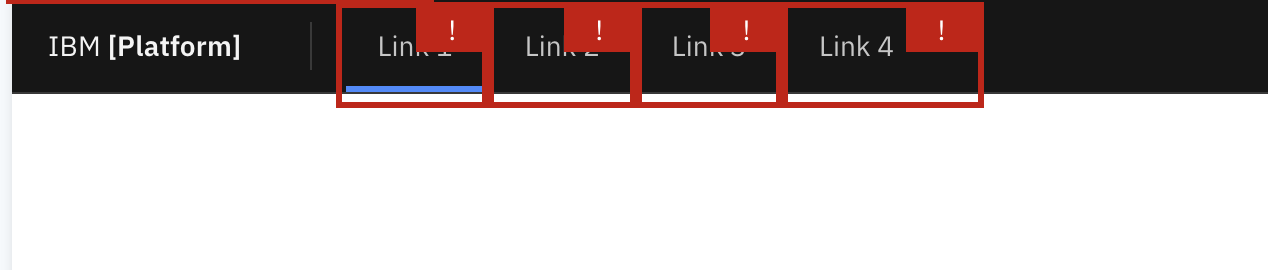

In the Storybook implementation with no modifications, all of the sample nav items fail AIW:

[dakahn]

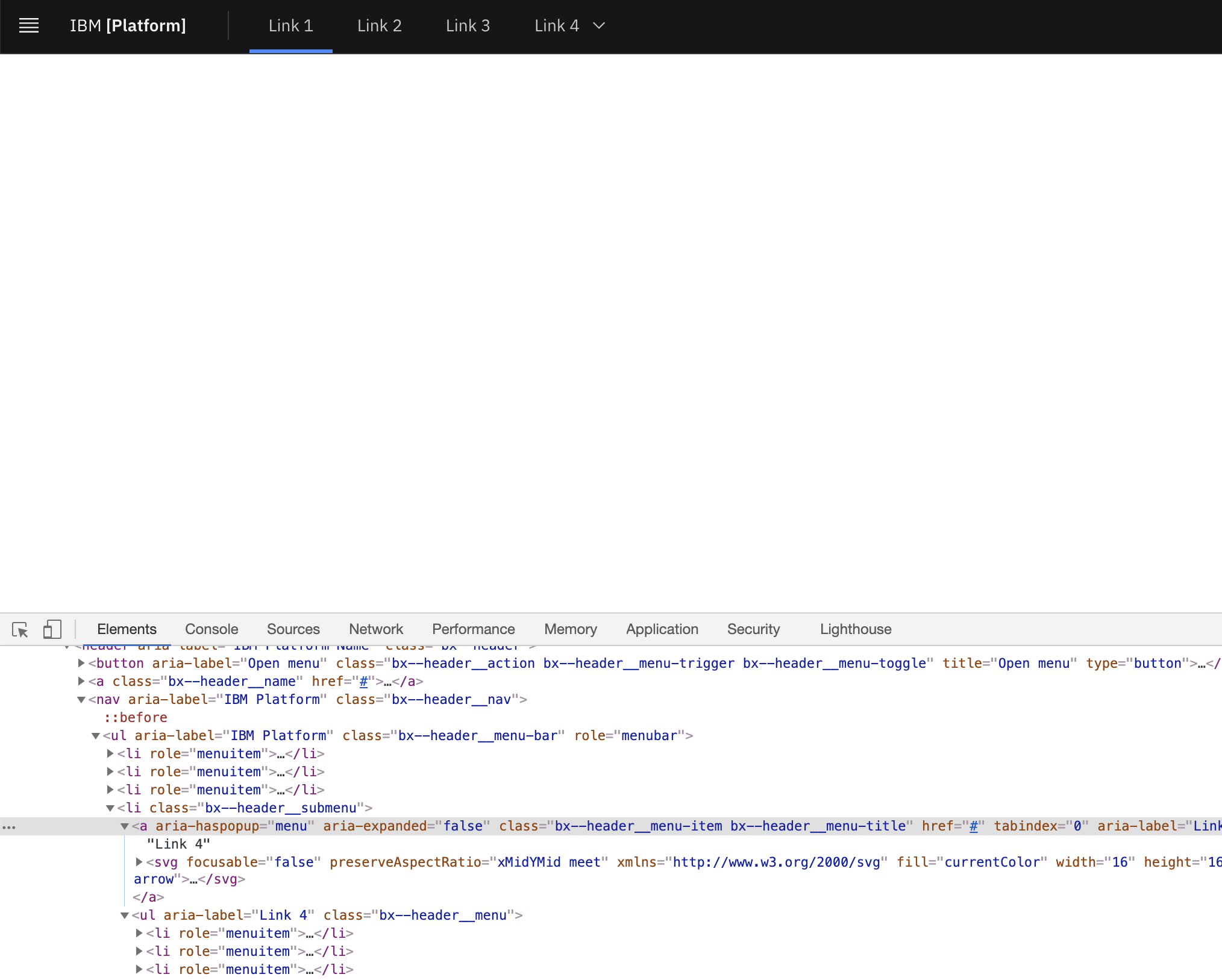

Ah! I figured it out. We've got roe="menubar" on the <ul> itself in horizontal mode (not mobile, in a dialog). In AIW's eyes this negates any semantics we get from that <ul> -- thus the warning.

We should remove that role altogether. We're not replicating a desktop UI interaction here. In testing that fixes the violation and doesn't negatively impact the accessibility tree.

[pdnellius]

@dakahn I'm rolling off this project so you may want to assign someone to handle this issues.

Thanks!
-Pete
