Calcite-components: Accessibility: calcite-dropdown-item uses unsupported ARIA attribute

Created on 19 Jun 2020  路  9Comments  路  Source: Esri/calcite-components

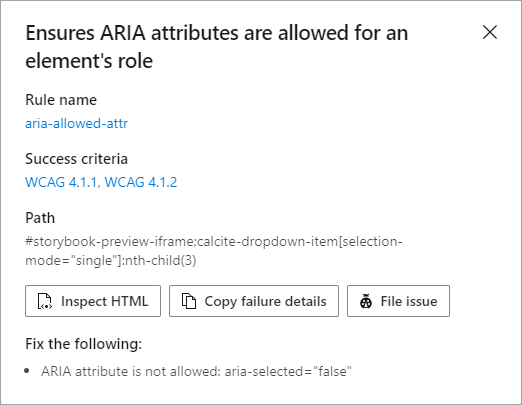

The Accessibility Insights for Web tool reports that the aria-selected attribute is not allowed for calcite-dropdown-items: Elements must only use allowed ARIA attributes. Maybe this is why NVDA does not report which item is selected?

E.g., using page https://esri.github.io/calcite-components/?path=/story/components-dropdown--groups-and-selection-modes:

If we change the calcite-dropdown-items' role from "menuitem" to "menuitemradio" (for selection-mode="single"; for "multi", "menuitemcheckbox") and aria-selected to aria-checked, we pass the accessibility test and get information about which item is selected.

Source: How Not To Misuse ARIA States, Properties and Roles

a11y help wanted
Source
picture MikeTschudi

All 9 comments

That article is a little confusing in that is lists menuitemradio in the applicable uses for both aria-checked and aria-selected - but it seems like it also suggests to use aria-checked for both?

Can you confirm the following @MikeTschudi :

  • selection-mode:single should have role="menuitemradio" and use aria-checked, and
  • selection-mode:multi should have role="menuitemcheckbox" and use aria-checked
  • selection-mode:none shouldn't have a role or any aria-select/checked status.
macandcheese picture macandcheese on 7 Jul 2020

@macandcheese, I agree that it was confusing to list menuitemradio in both places, but decided that the "but this is not a correct use of the property" was telling me to use aria-checked instead for the radio buttons.

In the W3C Recommendation Accessible Rich Internet Applications (WAI-ARIA) 1.1 section 5.4 Definition of Roles, it lists

An option in a set of choices contained by a menu or menubar.
menuitemcheckbox
A menuitem with a checkable state whose possible values are true, false, or mixed.
menuitemradio
A checkable menuitem in a set of elements with the same role, only one of which can be checked at a time.

Under the inherited sttes and properties for each, aria-selected does not appear for any of them, and aria-checked is listed as a required property for menuitemcheckbox and menuitemradio.

I think that you summed up the situation perfectly.

MikeTschudi picture MikeTschudi on 7 Jul 2020
🚀1

Thanks for clarifying! It seems like perhaps:

  • selection-mode:none should actually role=menuitem but without checked / select?

I'm also moving the "menu" role to the group-level from the containing dropdown (which I think was causing the issue here #674)

macandcheese picture macandcheese on 7 Jul 2020
👍1

This issue has been automatically marked as stale because it has not had recent activity. It will be closed if no further activity occurs. Thank you for your contributions.

github-actions[bot] picture github-actions[bot] on 26 Nov 2020

This issue has been automatically closed due to inactivity.

github-actions[bot] picture github-actions[bot] on 3 Dec 2020

At calcite-components version 1.0.0-beta.46, the latest on unpkg.com,

  • The change from aria-selected to aria-checked successfully solved the attribute flag
  • Still need to change role from "menuitem" to "menuitemradio" (for selection-mode="single"; for "multi", "menuitemcheckbox"; for "none", no role) to complete the connection
<!doctype html>
<html lang="en" dir="ltr">
<head>
  <link rel="stylesheet" type="text/css" href="https://unpkg.com/@esri/calcite-components/dist/calcite/calcite.css" />
  <script type="module" src="https://unpkg.com/@esri/calcite-components/dist/calcite/calcite.esm.js"></script>
  <script nomodule="" src="https://unpkg.com/@esri/calcite-components/dist/calcite/calcite.js"></script>
</head>
<body>
  <!-- https://esri.github.io/calcite-components/?path=/story/components-dropdown--groups-and-selection-modes -->
  <calcite-dropdown>
    <calcite-button slot="dropdown-trigger">Open Dropdown</calcite-button>
    <calcite-dropdown-group>
      <calcite-dropdown-item>Relevance</calcite-dropdown-item>
      <calcite-dropdown-item active>Date modified</calcite-dropdown-item>
      <calcite-dropdown-item>Title</calcite-dropdown-item>
    </calcite-dropdown-group>
  </calcite-dropdown>
</body>
</html>
MikeTschudi picture MikeTschudi on 8 Dec 2020

Using the test code in 77ae6f2ab1d56c95c8393125db966ce0f4bc7e6d,

<!doctype html>
<html lang="en" dir="ltr">
<head>
  <link rel="stylesheet" type="text/css" href="https://unpkg.com/@esri/calcite-components/dist/calcite/calcite.css" />
  <script type="module" src="https://unpkg.com/@esri/calcite-components/dist/calcite/calcite.esm.js"></script>
  <script nomodule="" src="https://unpkg.com/@esri/calcite-components/dist/calcite/calcite.js"></script>
</head>
<body>
  <calcite-dropdown>
    <calcite-button slot="dropdown-trigger" id="trigger">Open dropdown</calcite-button>
    <calcite-dropdown-group id="group-1" selection-mode="multi">
      <calcite-dropdown-item id="item-1">Dropdown Item Content</calcite-dropdown-item>
      <calcite-dropdown-item id="item-2" active>Dropdown Item Content</calcite-dropdown-item>
      <calcite-dropdown-item id="item-3" active>Dropdown Item Content</calcite-dropdown-item>
    </calcite-dropdown-group>
    <calcite-dropdown-group id="group-2" selection-mode="single">
      <calcite-dropdown-item id="item-4">Dropdown Item Content</calcite-dropdown-item>
      <calcite-dropdown-item id="item-5" active>Dropdown Item Content</calcite-dropdown-item>
    </calcite-dropdown-group>
    <calcite-dropdown-group id="group-3" selection-mode="none">
      <calcite-dropdown-item id="item-6">Dropdown Item Content</calcite-dropdown-item>
      <calcite-dropdown-item id="item-7" href="google.com">Dropdown Item Content</calcite-dropdown-item>
    </calcite-dropdown-group>
  </calcite-dropdown>
</body>
</html>

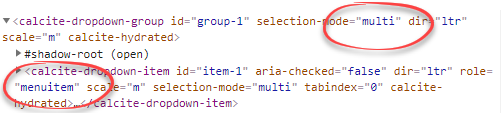

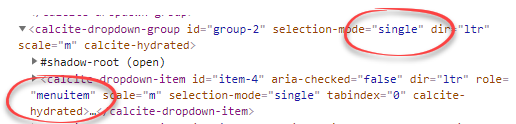

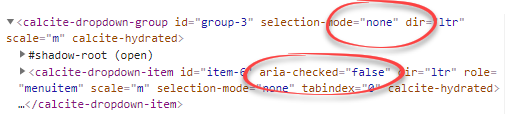

shows the following in the Chrome debugger:

If I manually change these in the debugger and re-run the a11y checker, the warnings go away.

MikeTschudi picture MikeTschudi on 8 Dec 2020

Ok - is role of menu still applicable for each containing group? Or the whole drop down? I know even between safari and chrome in voiceover those are interpreted differently, to say nothing of windows

macandcheese picture macandcheese on 8 Dec 2020

It percolates the role of the menu into the menu items, and works in Chrome, Firefox, Edge, Safari

MikeTschudi picture MikeTschudi on 9 Dec 2020
👍1
