Cacti: The aggregation graph only displays a single 95th percentile (聚合图形只显示一条95线)

[teesa-git]

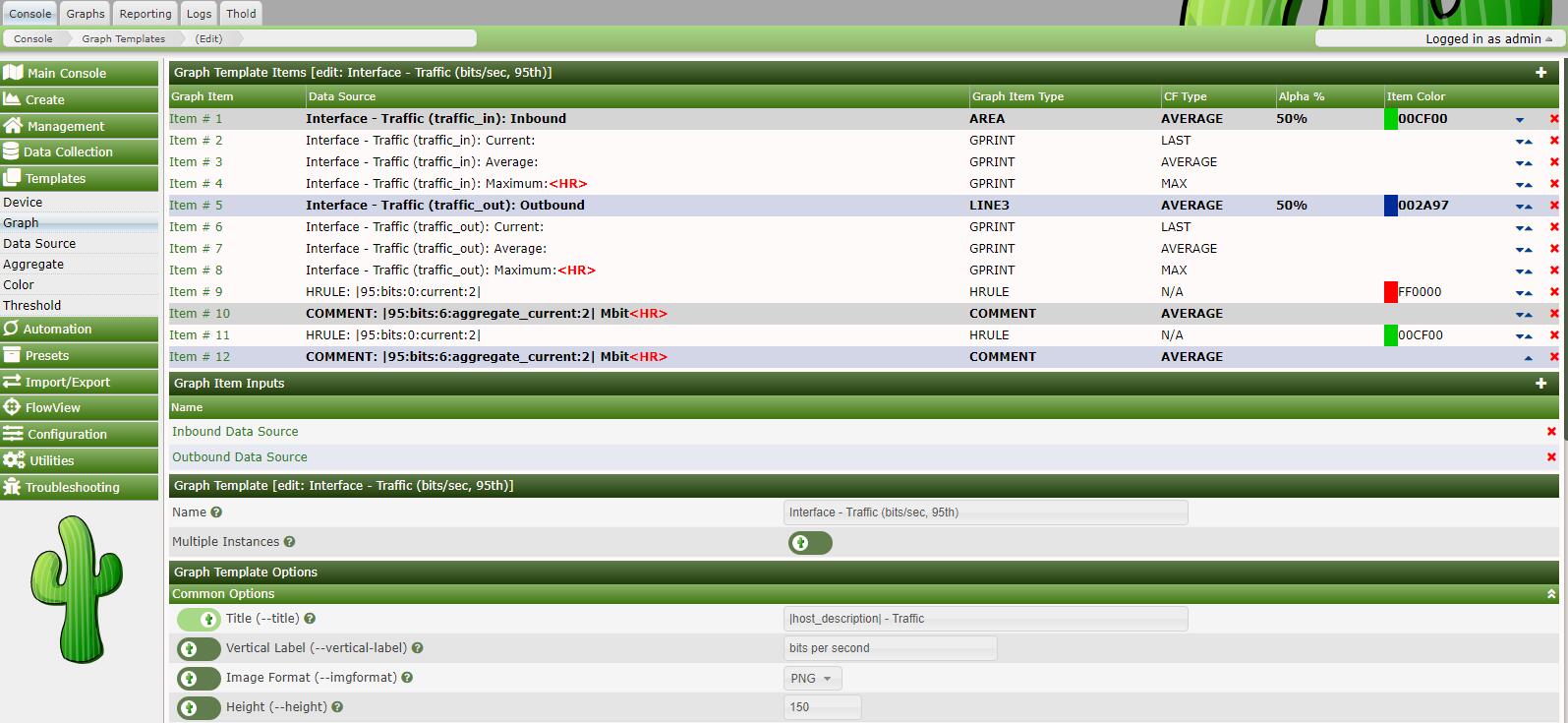

I modified the original 95 graphic template to display two 95 lines on a single graphic, one in the incoming direction and the other in the out direction.

(我修改了原始的95图形模版，在单个图形上面能正常显示两条95线，一个是进方向的，另一个是出方向的)

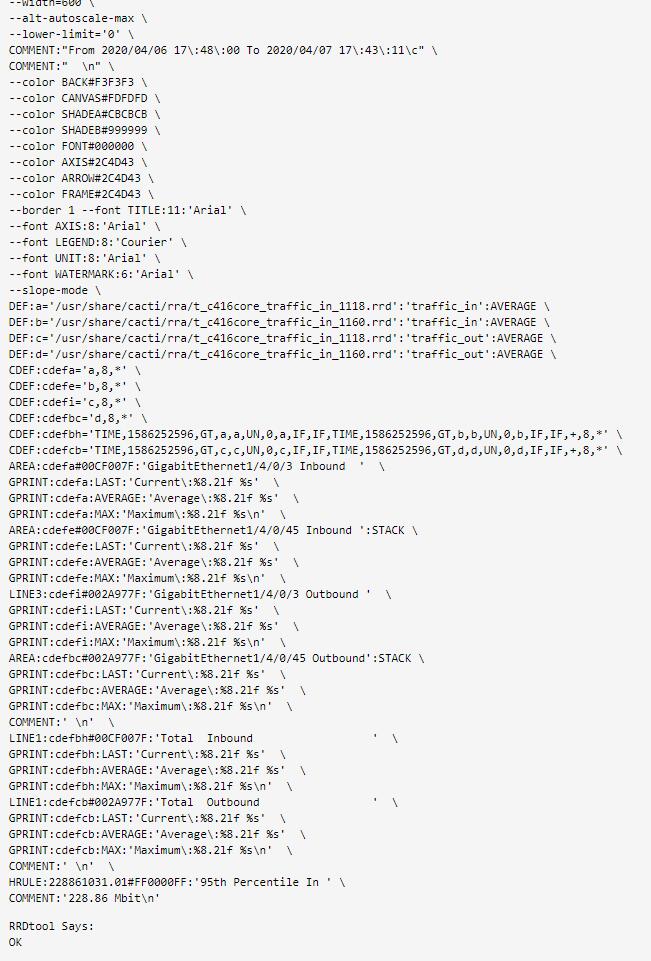

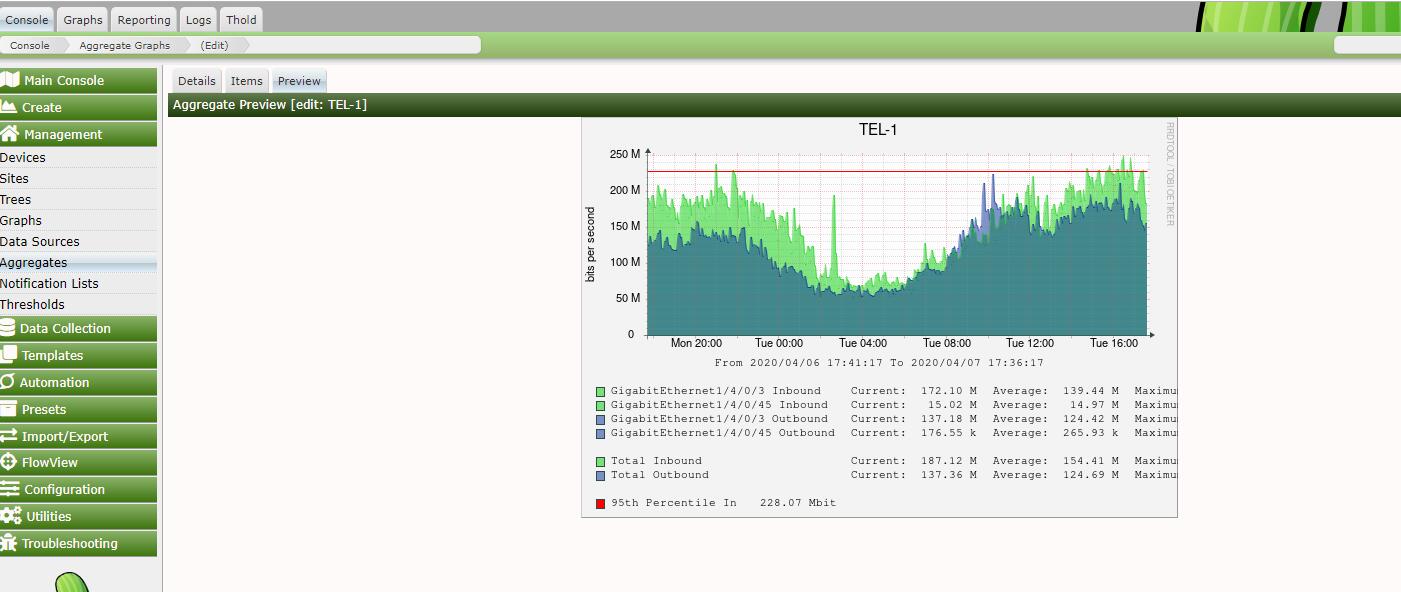

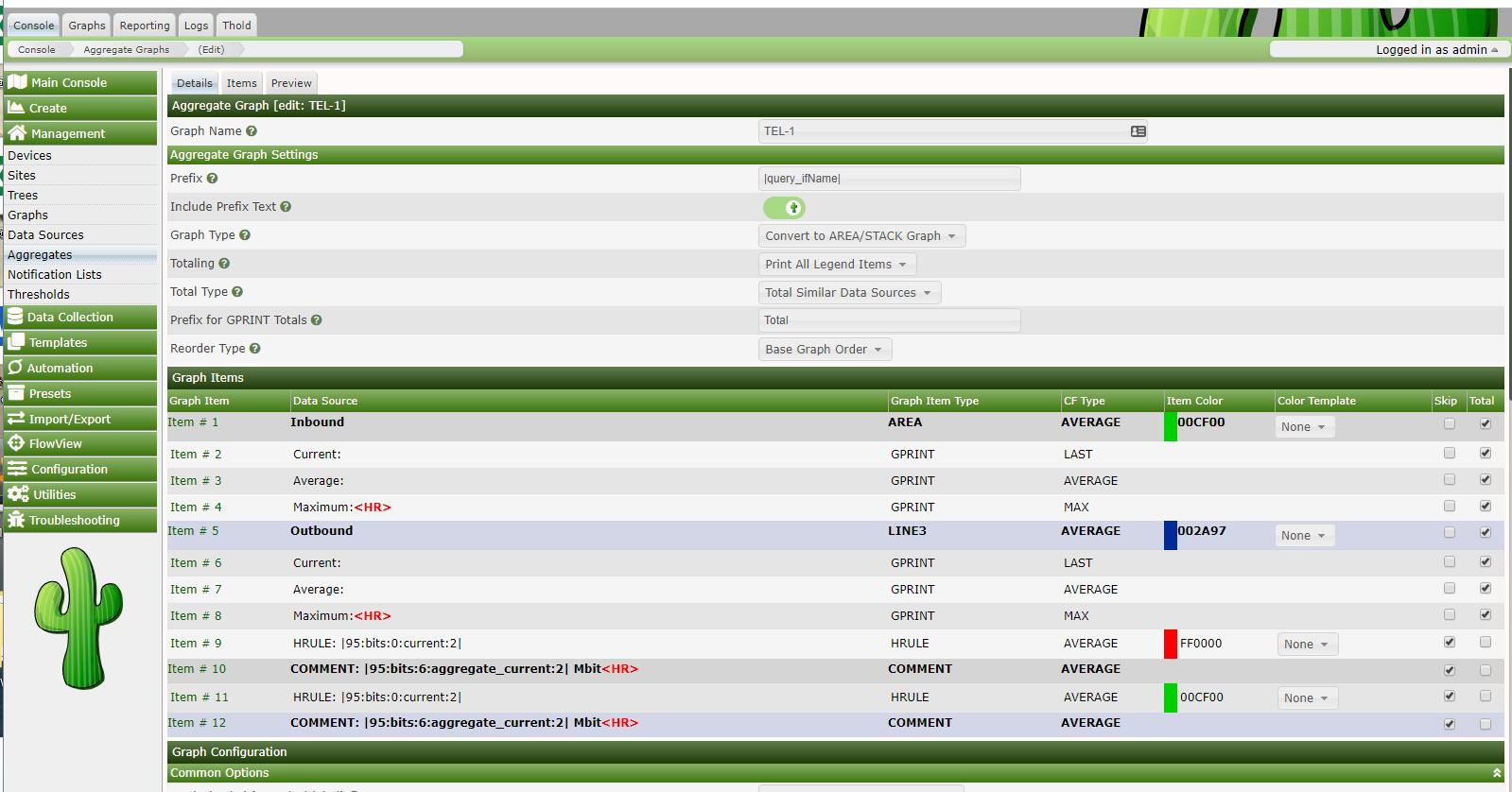

But when I added the aggregated graph, the result only showed a single 95th percentile. There is only one 95th percentile data when the graphic is debugged.
(但是在我添加聚合图形的时候，结果只显示一条95线。图形debug 时也只有一个95线的数据)

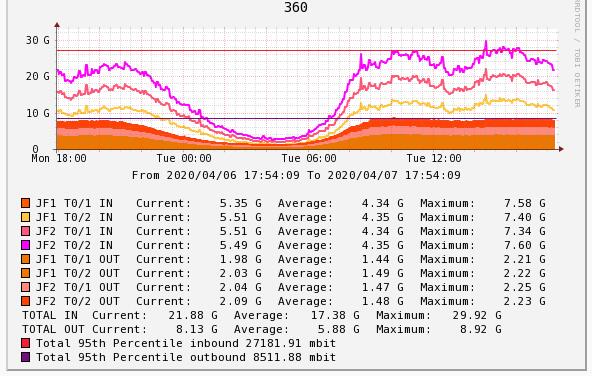

This works normally on 0.8.8a
(我在0.8.8a上面是能正常显示的。)

What should I do?
(请问该怎么解决？)

---

Edited by netniV, translated by Google and interpreted by netniV

[netniV]

I'd love to help, unfortunately English is the primary language here on GitHub. I'll see if Google can help me out 👍

[netniV]

OK, so I've made some translations and interpretations which I hope are correct. Unfortunately, I now know that I will have little to offer on this as I don't fully have a grasp on how the 95th percentile stuff actually works yet. I think this is one for either @cigamit or @TheWitness

[teesa-git]

@netniV thanks, my problem is why the aggregate graph only show one 95th line ?

[TheWitness]

What version of Aggregate were you using in Cacti 0.8.x? Thanks!

[TheWitness]

Also, not that starting in Cacti 1.2.9, pretty sure thats the release, you can convert an Aggregate Graph to a standard graph, where you can add as many 95th ptile COMMENTS as you like. But note, that this is a one time switch.

[teesa-git]

What version of Aggregate were you using in Cacti 0.8.x? Thanks!

0.8.8b

[teesa-git]

Also, not that starting in Cacti 1.2.9, pretty sure thats the release, you can convert an Aggregate Graph to a standard graph, where you can add as many 95th ptile COMMENTS as you like. But note, that this is a one time switch.

I don’t know enough about the one time switch. And the release of 1.2.9 can do that?or include that feature?

[TheWitness]

I asked for your aggregate release not cacti release.

[teesa-git]

I asked for your aggregate release not cacti release.

the version of aggregate is 0.75 , cacti version is 0.8.8b. @TheWitness

[TheWitness]

Okay, since you are on that release, just upgrade to 1.2.11, and from the Aggregate Screen, just convert to a normal graph and you will be just about back to where you were before.

[teesa-git]

OK , i have one more question. now i use the 1.2.10 , when i add the custom graph ,there only show the logical ports, doesn't show the physical ports.

[TheWitness]

Ask that question on the forums.
