Buildinggadgets: Lighting glitches when copying slabs as construction paste

[kfish610]

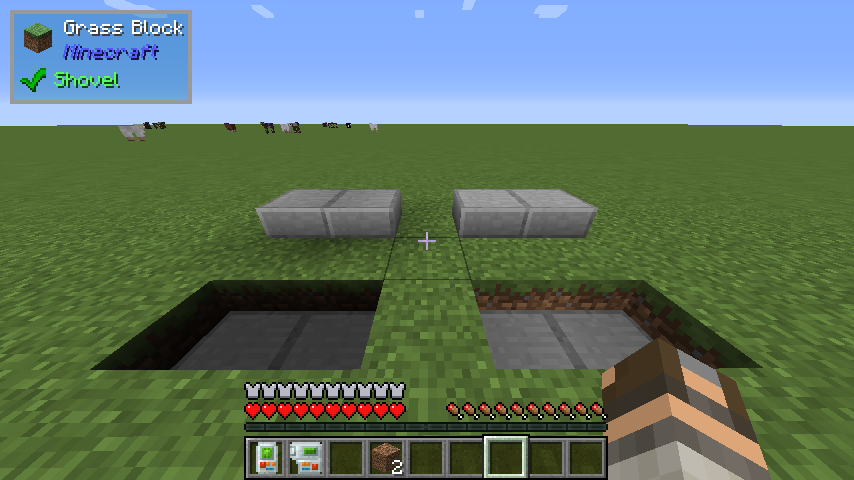

Construction paste on left, normal slabs on right.

[Direwolf20-MC]

I've tried many different ways to resolve this, and couldn't figure it out. Anyone who has any ideas is more than welcome to chime in heh :)

[MiningMark48]

I messed around with this for a bit. The closest thing I could find to making the lighting normal was making Block#getUseNeighborBrightness return true. I thought I would share to see if this would help lead you in the right direction. Images are below for reference.

Without Method (Normal)

With Method

[Phylogeny]

@MiningMark48 is correct about the root of the problem. The return value of IBlockProperties#useNeighborBrightness is ultimately determined by Block#useNeighborBrightness.
I explain more about what 'useNeighborBrightness' does here:
https://www.minecraftforum.net/forums/mapping-and-modding-java-edition/minecraft-mods/2576750-chisels-bits-flat-colored-blocks?page=28#c551
It may very well be worth adding a 'useNeighborBrightness' property to your block state, which will yield the result @MiningMark48 posted above. It's up to you, @Direwolf20-MC.

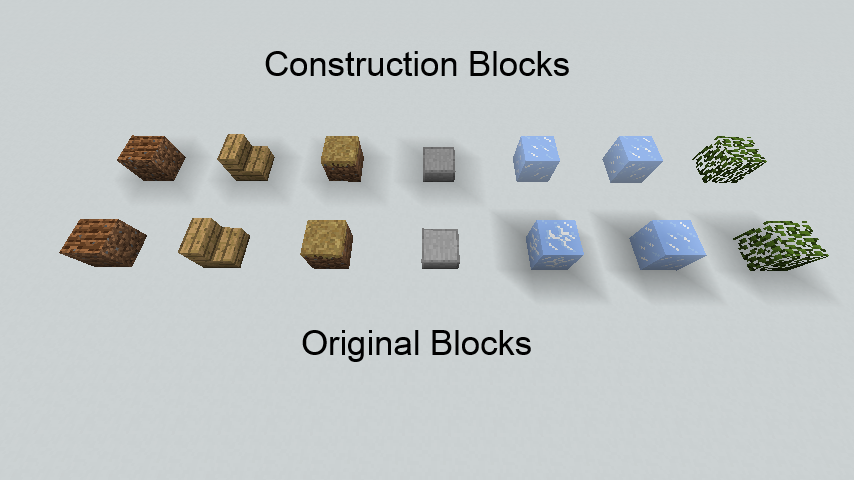

As for why that still doesn't make it look exactly the same in the case of slabs, the reason is due to the difference in ambient occlusion values. IBlockProperties#getAmbientOcclusionLightValue's return value is ultimately determined by Block#isFullCube and the block's Material#blocksMovement, where as IBlockProperties#getLightOpacity's return value is ultimately determined by Block#isOpaqueCube.

You are using the return value of IBlockProperties#getLightOpacity to approximate both light opacity and ambient occlusion (which I think is a good idea). This usually works fine, but can lead to inaccuracies in a few cases:

I'm not sure that such minor inaccuracies in so few cases warrants giving ambient occlusion its own property; the current approximation almost always results in the exactly correct value anyway.

[Direwolf20-MC]

I toyed with overwriting this, but since IBlockProperties#useNeighborBrightness doesn't have access to world/pos I can't figure out the block state i'm mimicing in this method like I do the others. It may not be fixable short of making it always true - which I'm not sure if thats a good idea either :(. It seems to be false way more often than true. Unless I can set that bool randomly in some other method, which i'm hesitant to do.

[Phylogeny]

You don't need world/pos. What you're already doing is calling Block#getLightOpacity in ConstructionBlockEntity#setDespawning to determine how set the ConstructionBlock#BRIGHT bool property, and then returning that value in ConstructionBlock#getLightOpacity (which has world/pos, but you don't use them) and ConstructionBlock#getAmbientOcclusionLightValue (which doesn't have world/pos).

All you need to do is call Block#getUseNeighborBrightness in ConstructionBlockEntity#setDespawning to determine how to set a new ConstructionBlock#NEIGHBOR_BRIGHTNESS bool property, and then return that value in ConstructionBlock#getUseNeighborBrightness.

[Direwolf20-MC]

Ohh gotcha, I hadn't considered using another blockstate. I see how you did it in your PR and that makes sense :).

[Direwolf20-MC]

Thanks @Phylogeny for the pull request, i also added the below commit, which makes them look identical now! WOOT! :)

https://github.com/Direwolf20-MC/BuildingGadgets/commit/b7a9e5a7869ec59886f5e7983998f619152ac224

[Phylogeny]

Sweet! :smiley:

[MiningMark48]

Awesome :D

[kfish610]

Yay

[MajorTuvok]

And for the rhyme,
sing and chime,
Hooray!
