Botframework-webchat: Adaptive Cards: 100% height is too tall

[fplaten]

Since bumping to Adaptive Cards 1.0.0 I had an issue with the display of PromptChoice dialogs.

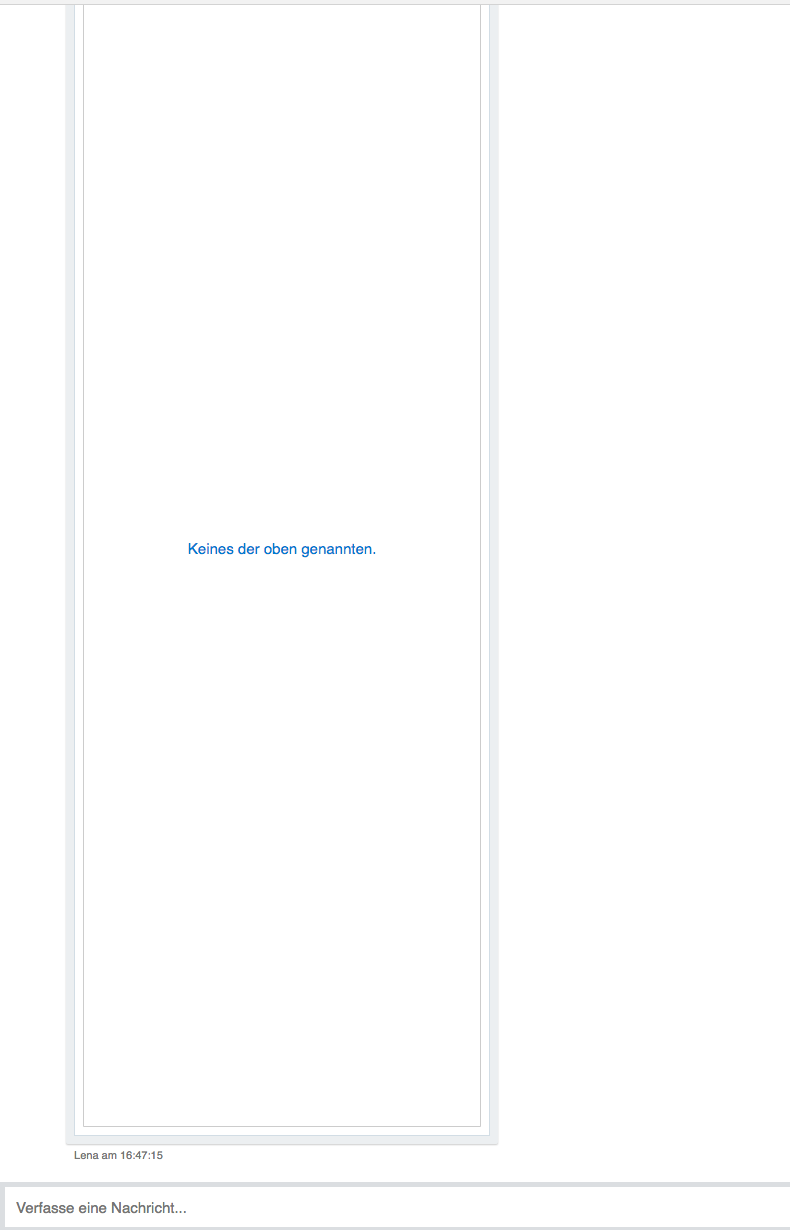

The single choice had a height of 100% (see below).

I managed to fix it by setting

.ac-pushButton {
        flex: 0 1 auto !important;
}

Just if anyone is struggling with the same problem :)

[compulim]

@fplaten can you share the Adaptive Cards code behind the scene?

[SeanVSpr]

I have encountered the same issue (inline directline Web Chat). However (for me atleast) it was a browser specific issue, when viewed in Chrome I would have this problem but it would not occur in other browsers like firefox/edge.
I also encountered this with adaptive card Images so I think there are multiple affected elements, not sure which ones though. The workaround posted by fplaten did fix the weird layout in chrome without breaking it in other browsers.

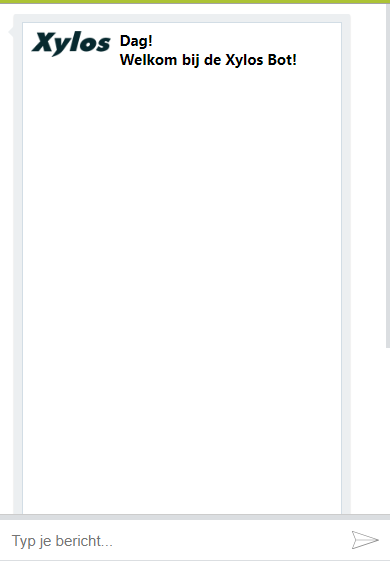

Images:

| Chrome: | Firefox |
| ------------- | ------------- |
| | |

---

Buttons:

| Chrome: | Firefox |
| ------------- | ------------- |
| | |

---

I wouldn't be surprised if there are other elements experiencing this issue. If I can trace it properly I think it's due to the css property "flex-basic: 100%" which is assigned on multiple levels in the html component itself.

[compulim]

@corinagum could you look at this and try to come up with the JSON?

It will be great if you can also try it out on older Web Chat with older Adaptive Cards, e.g. http://cdn.botframework.com/botframework-webchat/0.11.4/botchat.js is the last version we use AC 0.9.

[corinagum]

@SeanVSpr Can you share the adaptive card code you used that caused this bug? Thank you!

[SeanVSpr]

@corinagum below is the adaptive card code which I've used for the cards I posted earlier.

The one with the image:

{
    "contentType": "application/vnd.microsoft.card.adaptive",
    "content": {
        "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
        "type": "AdaptiveCard",
        "version": "1.0",
        "body": [
            {
                "type": "Container",
                "items": [
                    {
                        "type": "ColumnSet",
                        "columns": [
                            {
                                "type": "Column",
                                "width": "auto",
                                "items": [
                                    {
                                        "type": "Image",
                                        "url": {{url of the image}},
                                        "size": "medium",
                                        "height": "stretch"
                                    }
                                ]
                            },
                            {
                                "type": "Column",
                                "width": "auto",
                                "items": [
                                    {
                                        "type": "TextBlock",
                                        "text": "{{welcomeCardHello}}",
                                        "weight": "bolder",
                                        "size": "medium",
                                        "wrap": true
                                    },
                                    {
                                        "type": "TextBlock",
                                        "spacing": "none",
                                        "text": "{{welcomeCardGreetingText}}",
                                        "weight": "bolder",
                                        "size": "medium",
                                        "wrap": true
                                    }
                                ]
                            }
                        ]
                    }
                ]
            },
            {
                "type": "Container",
                "style": "emphasis",
                "items": [
                    {
                        "type": "TextBlock",
                        "text": "{{welcomeCardInfo}}",
                        "wrap": true
                    }
                ]
            },
            {
                "type": "Container",
                "items": [
                    {
                        "type": "TextBlock",
                        "text": "{{welcomeCardInfoText}}",
                        "wrap": true
                    }
                ]
            }
        ]
    }
}

The one with buttons:

{
    "contentType": "application/vnd.microsoft.card.adaptive",
    "content": {
        "$schema": "http://adaptivecards.io/schemas/adaptive-card.json",
        "type": "AdaptiveCard",
        "version": "1.0",
        "body": [
            {
                "type": "TextBlock",
                "text": "{{title}}",
                "weight": "bolder",
                "size": "large"
            },
            {
                "type": "TextBlock",
                "text": "{{shortText}}",
                "wrap": "true"
            },
            {
                "type": "TextBlock",
                "text": "Date: {{date}}",
                "separator": "true",
                "weight": "bolder"
            }
        ],
        "actions": [
            {
                "type": "Action.OpenUrl",
                "title": "{{More information}}",
                "url": "{{Url}}"
            },
            {
                "type": "Action.Submit",
                "title": "{{Subscribe}}",
                "data": "{{subscribesentence}}"
            }
        ]
    }
}

[corinagum]

@fplaten @SeanVSpr ,

Thank you for your patience as I investigated this issue. I'm sorry to say that I'm not able to repro the height 100% problem you have both registered. I'm wondering if this is a CSS problem that has to do with both of your bots using personalized appearance, rather than a problem directly related to Web Chat. It's good to see that there is a workaround, however, and I while I'm not able to repro exactly as you report, I can see that Adaptive Cards is using flex: 0 1 100% in the most recent iteration, v.1.0. It might be beneficial to report the issue over there to see if you can get an explanation on the reasoning for changing from flex: 0 1 auto. I hope this issue will benefit others with personalized CSS using WebChat.
I am closing this issue for now. Please report back if there are continued problems.

[fplaten]

Thanks for investigating, I submitted an issue to https://github.com/Microsoft/AdaptiveCards/issues/1781

[dclaux]

I am not able to repro this problem in the visualizer, which uses the same rendering logic as WebChat. It seems to me that there is either a problem with how WebChat vertically sizes cards, or maybe some conflicting styling being applied.

As a side note, an Image can't have "height": "stretch", it should be "size": "stretch"

[corinagum]

Hi everyone to those continuing to have this issue: we have found a workaround in bug #1228 that causes the buttons to render as expected!

TLDR: verify that your html page starts with <!DOCTYPE html> as opposed to <html>
