Bevy: Vertex Weirdness

Created on 26 Sep 2020 · 2Comments · Source: bevyengine/bevy

I'm generating vertices with marching cubes. I split up the terrain into size 32x32x32 chunks of voxels. I'm currently generating 4x4x4 (or 64) chunks. I'm just doing some simple sin maths to generate voxels. Adjusting the f value yields "interesting" results.

let f = 1.0/16.0;
((x as f32 * f).sin() + (y as f32 * f).sin() + (z as f32 * f).sin()) / 3.0

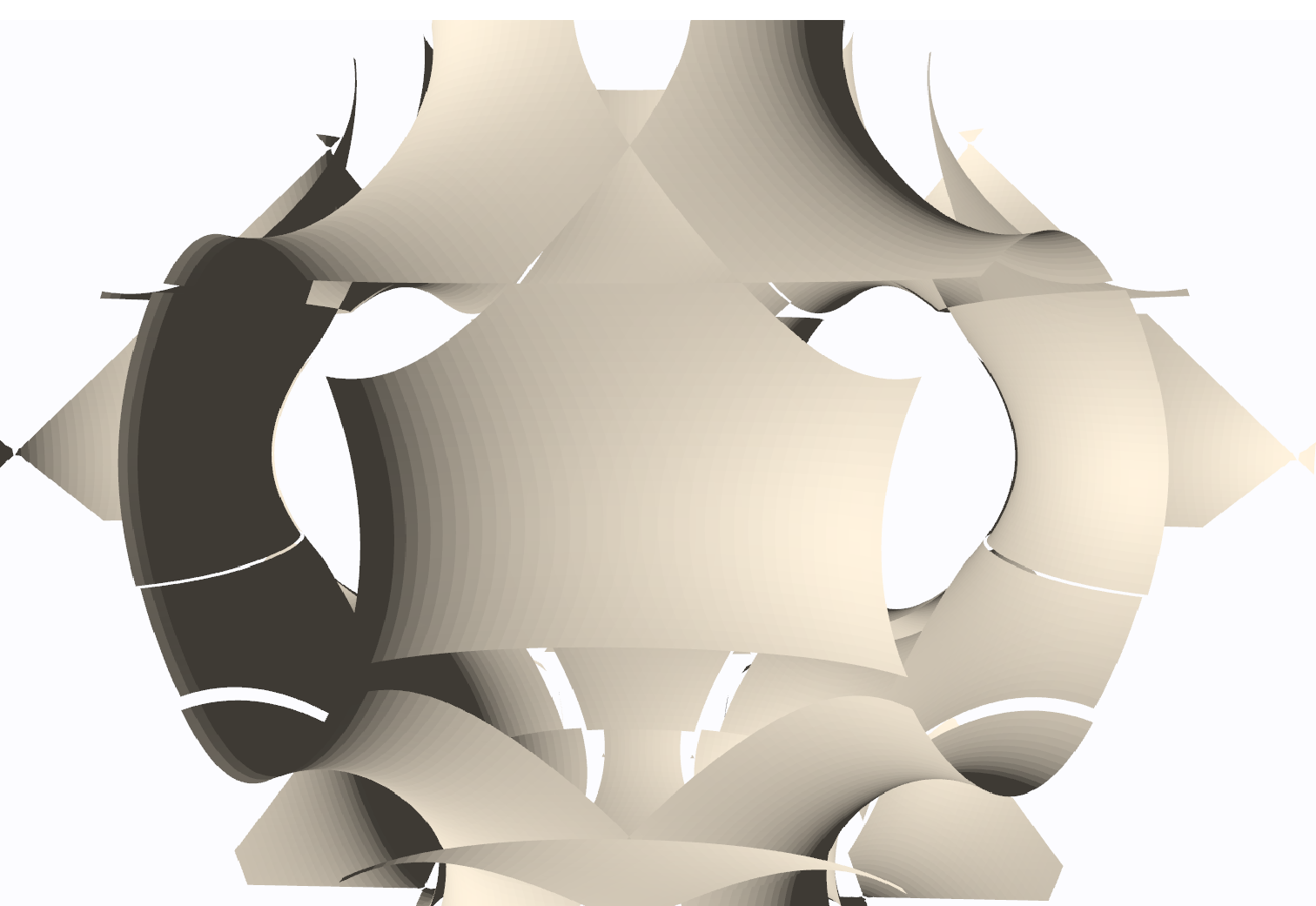

Err1

let f = 1.0/8.0;

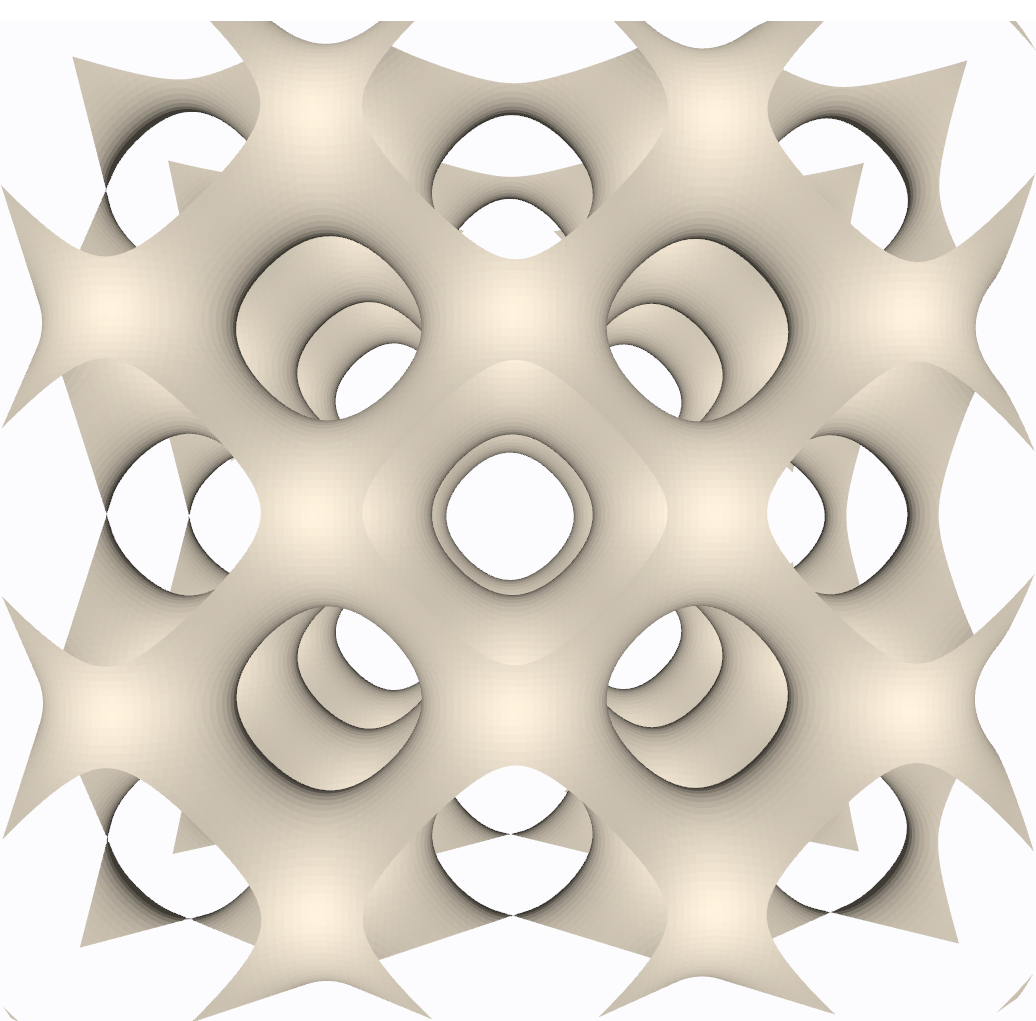

Err2

In the first image, the number of chunks with at least 1 triangle generated is 62. In the second image it's 64.

Here's a list with the number of triangles per chunk for the first image.

Here's a list with the number of triangles per chunk in the second image.

bug rendering
