Azure-sdk-for-java: [FEATURE REQ] Create specialised ImageVersion from disk snapshots.

Created on 13 Jul 2020 · 9Comments · Source: Azure/azure-sdk-for-java

Is your feature request related to a problem? Please describe.
In the Azure portal, we already have the ability to generate a specialized image version using disk snapshots but I don't see that option while trying to define a SIG Image version through the Java SDK.

Describe the solution you'd like
We should be able to create a specialized image version from disk snapshots as we are able to via the Azure portal.

Describe alternatives you've considered
There are no alternatives if we need a specialized image version. Specialized image versions are very useful if you want to avoid generalizing a VM.

Additional context

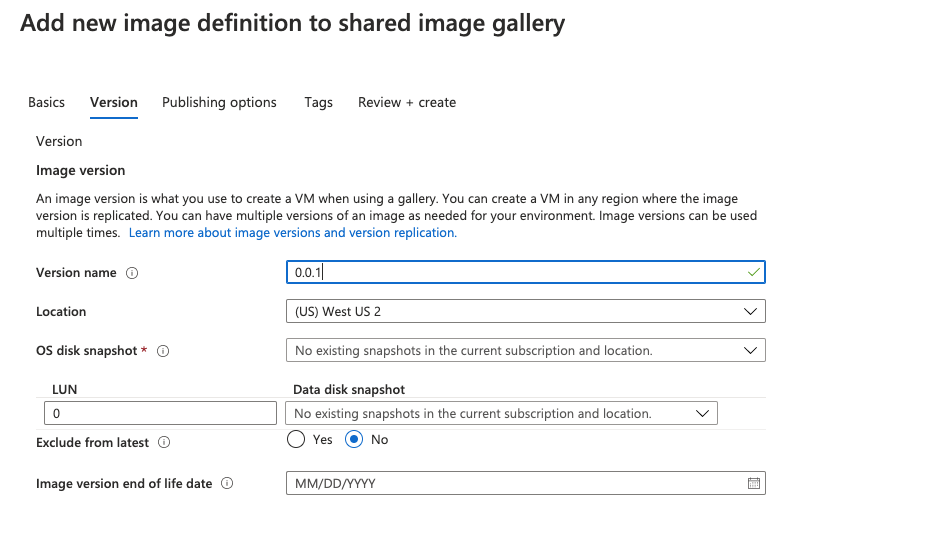

This is the page I'm referring to. We need the create from disk snapshot option in the Java SDK.
Screenshot 2020-07-13 at 12 02 40 PM

Information Checklist
Kindly make sure that you have added all the following information above and checkoff the required fields otherwise we will treat the issuer as an incomplete report

[x] Description Added
[x] Expected solution specified

Compute Compute - Images Mgmt customer-reported feature-request

Source

Shanky2304

Most helpful comment

@Shanky2304 To make it more clearly, are you looking for some interface like:

GalleryImage galleryImage = this.computeManager.galleryImages().define(galleryImageName)
                .withExistingGallery(javaGallery)
                .withLocation(REGION)
                .withIdentifier("JavaSDKTeam", "JDK", "Jdk-9")
                // get image source from existing snapshot
                .withSnapshot(snapshotId)
                .create();

xccc-msft on 15 Jul 2020

👍2

All 9 comments

let's evaluate this in Track2 scope. cc @nickzhums

yungezz on 15 Jul 2020

👍1

@Shanky2304 To make it more clearly, are you looking for some interface like:

GalleryImage galleryImage = this.computeManager.galleryImages().define(galleryImageName)
                .withExistingGallery(javaGallery)
                .withLocation(REGION)
                .withIdentifier("JavaSDKTeam", "JDK", "Jdk-9")
                // get image source from existing snapshot
                .withSnapshot(snapshotId)
                .create();

xccc-msft on 15 Jul 2020

👍2

@Shanky2304 To make it more clearly, are you looking for some interface like:

GalleryImage galleryImage = this.computeManager.galleryImages().define(galleryImageName)
                .withExistingGallery(javaGallery)
                .withLocation(REGION)
                .withIdentifier("JavaSDKTeam", "JDK", "Jdk-9")
                // get image source from existing snapshot
                .withSnapshot(snapshotId)
                .create();

Yes exactly!

Shanky2304 on 17 Jul 2020

For more clarity, this is the API that we need to leverage via the SDK.
https://docs.microsoft.com/en-us/rest/api/compute/galleryimageversions/createorupdate#create-or-update-a-simple-gallery-image-version-using-snapshots-as-a-source.

Shanky2304 on 17 Jul 2020

@Shanky2304 You can create gallery image version via snapshot by below code with existing SDK.

GalleryImageVersionInner inner = new GalleryImageVersionInner();
inner.withStorageProfile(new GalleryImageVersionStorageProfile().withOsDiskImage(new GalleryOSDiskImage()));
inner.storageProfile().osDiskImage().withSource(new GalleryArtifactVersionSource().withId("snapshot-id"));
inner.withLocation(Region.{location}.toString());
computeManager.inner().galleryImageVersions().createOrUpdate("your-resource-group", "your-gallery", "your-gallery-image", "version", inner);

We will plan to support this feature request in our next-generation SDK.

xccc-msft on 21 Jul 2020

@Shanky2304 You can create gallery image version via snapshot by below code with existing SDK.

GalleryImageVersionInner inner = new GalleryImageVersionInner();
inner.withStorageProfile(new GalleryImageVersionStorageProfile().withOsDiskImage(new GalleryOSDiskImage()));
inner.storageProfile().osDiskImage().withSource(new GalleryArtifactVersionSource().withId("snapshot-id"));
inner.withLocation(Region.{location}.toString());
computeManager.inner().galleryImageVersions().createOrUpdate("your-resource-group", "your-gallery", "your-gallery-image", "version", inner);

We will plan to support this feature request in our next-generation SDK.

@xccc-msft Thanks, let me try this out and get back. Are there any caveats of this workaround that I should be aware of?

Shanky2304 on 23 Jul 2020

@xccc-msft Hey thanks. I think the image version got created successfully. However, when I try to create a VM from this image version with the below code:

azure.virtualMachines().define("replicatedVM-sdk")
                .withRegion(region)
                .withExistingResourceGroup(rg)
                .withExistingPrimaryNetwork(network).withSubnet(subnetName)
                .withPrimaryPrivateIPAddressDynamic()
                .withoutPrimaryPublicIPAddress()
                .withWindowsGalleryImageVersion(galleryImageVersion.id())
                .withAdminUsername("azureadmin")
                .withAdminPassword("somepwd")
                .withSize(VirtualMachineSizeTypes.STANDARD_D2_V3)
                .create();

I see the below exception:

java.lang.reflect.InvocationTargetException
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke0 (Native Method)
    at jdk.internal.reflect.NativeMethodAccessorImpl.invoke (NativeMethodAccessorImpl.java:62)
    at jdk.internal.reflect.DelegatingMethodAccessorImpl.invoke (DelegatingMethodAccessorImpl.java:43)
    at java.lang.reflect.Method.invoke (Method.java:566)
    at org.codehaus.mojo.exec.ExecJavaMojo$1.run (ExecJavaMojo.java:293)
    at java.lang.Thread.run (Thread.java:834)
Caused by: com.microsoft.azure.CloudException: Parameter 'osProfile' is not allowed.
    at com.microsoft.azure.AzureClient.createExceptionFromResponse (AzureClient.java:771)
    at com.microsoft.azure.AzureClient.access$100 (AzureClient.java:33)
    at com.microsoft.azure.AzureClient$3.call (AzureClient.java:160)
    at com.microsoft.azure.AzureClient$3.call (AzureClient.java:157)
    at rx.internal.operators.OnSubscribeMap$MapSubscriber.onNext (OnSubscribeMap.java:69)
    at retrofit2.adapter.rxjava.CallArbiter.deliverResponse (CallArbiter.java:120)
    at retrofit2.adapter.rxjava.CallArbiter.emitResponse (CallArbiter.java:102)
    at retrofit2.adapter.rxjava.CallExecuteOnSubscribe.call (CallExecuteOnSubscribe.java:46)
    at retrofit2.adapter.rxjava.CallExecuteOnSubscribe.call (CallExecuteOnSubscribe.java:24)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:48)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:33)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OnSubscribeSingle.call (OnSubscribeSingle.java:81)
    at rx.internal.operators.OnSubscribeSingle.call (OnSubscribeSingle.java:27)
    at rx.internal.operators.SingleToObservable.call (SingleToObservable.java:39)
    at rx.internal.operators.SingleToObservable.call (SingleToObservable.java:27)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:48)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:33)
    at rx.internal.operators.OnSubscribeLift.call (OnSubscribeLift.java:48)
    at rx.internal.operators.OnSubscribeLift.call (OnSubscribeLift.java:30)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.DeferredScalarSubscriber.subscribeTo (DeferredScalarSubscriber.java:153)
    at rx.internal.operators.OnSubscribeTakeLastOne.call (OnSubscribeTakeLastOne.java:32)
    at rx.internal.operators.OnSubscribeTakeLastOne.call (OnSubscribeTakeLastOne.java:22)
    at rx.internal.operators.OnSubscribeLift.call (OnSubscribeLift.java:48)
    at rx.internal.operators.OnSubscribeLift.call (OnSubscribeLift.java:30)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:48)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:33)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:48)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:33)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:48)
    at rx.internal.operators.OnSubscribeMap.call (OnSubscribeMap.java:33)
    at rx.Observable.unsafeSubscribe (Observable.java:10327)
    at rx.internal.operators.OperatorSubscribeOn$SubscribeOnSubscriber.call (OperatorSubscribeOn.java:100)
    at rx.internal.schedulers.CachedThreadScheduler$EventLoopWorker$1.call (CachedThreadScheduler.java:230)
    at rx.internal.schedulers.ScheduledAction.run (ScheduledAction.java:55)
    at java.util.concurrent.Executors$RunnableAdapter.call (Executors.java:515)
    at java.util.concurrent.FutureTask.run (FutureTask.java:264)
    at java.util.concurrent.ScheduledThreadPoolExecutor$ScheduledFutureTask.run (ScheduledThreadPoolExecutor.java:304)
    at java.util.concurrent.ThreadPoolExecutor.runWorker (ThreadPoolExecutor.java:1128)
    at java.util.concurrent.ThreadPoolExecutor$Worker.run (ThreadPoolExecutor.java:628)
    at java.lang.Thread.run (Thread.java:834)
Caused by: rx.exceptions.OnErrorThrowable$OnNextValue: OnError while emitting onNext value: retrofit2.Response.class
    at rx.exceptions.OnErrorThrowable.addValueAsLastCause (OnErrorThrowable.java:118)
    at rx.internal.operators.OnSubscribeMap$MapSubscriber.onNext (OnSubscribeMap.java:73)

Any clues?

Shanky2304 on 23 Jul 2020

@Shanky2304 It looks you are creating a vm by specialized image. Can you try withSpecializedWindowsGalleryImageVersion() instead of withWindowsGalleryImageVersion()?

xccc-msft on 24 Jul 2020

@Shanky2304 It looks you are creating a vm by specialized image. Can you try withSpecializedWindowsGalleryImageVersion() instead of withWindowsGalleryImageVersion()?

Yes, it was exactly that.

Thanks again, I'll close this issue. The workaround looks good for now.

Shanky2304 on 24 Jul 2020
