Azure-pipelines-tasks: AndroidSigningV3 doesn't use latest available version of apksigner

Created on 30 Sep 2020 · 3Comments · Source: microsoft/azure-pipelines-tasks

Required Information

Entering this information will route you directly to the right team and expedite traction.

Question, Bug, or Feature?
Type: Bug

Enter Task Name: AndroidSigningV3

list here (V# not needed):
https://github.com/microsoft/azure-pipelines-tasks/tree/master/Tasks/AndroidSigningV3

Environment

Server - Azure Pipelines?
- If using TFS on-premises, provide the version:
- If using Azure Pipelines, provide the account name, team project name, build definition name/build number: Corporate account
Agent - Hosted or Private:
- If using Hosted agent, provide agent queue name: windows-latest
- If using private agent, provide the OS of the machine running the agent and the agent version:

Issue Description

AndroidSigningV3 task doesnt use latest available android build-tools.
In my case it used apksigner from 24.0.3 folder, however version 29.0.2 also available on same machine.
As a result it was not possible to use some apksigner capabilities, for example --v3-signing-enabled option, which is not supported by older versions of apksigner.

With hardcoded apksigner path
"apksignerLocation: 'C:/Program Files (x86)/Android/android-sdk/build-tools/29.0.2/apksigner.bat'",
provided to AndroidSigningV3 task, it was possible to sign apk by using same commandline.

Most probably problem is that "findAndroidTool" function in androidsigning.ts returns first found subfolder in "build-tools" folder, but should return last found.

[Include task name(s), screenshots and any other relevant details]
https://github.com/microsoft/azure-pipelines-tasks/blob/master/Tasks/AndroidSigningV3/androidsigning.ts

SignerTaskLog.txt

Task logs

[Enable debug logging and please provide the zip file containing all the logs for a speedy resolution]

Troubleshooting

Checkout how to troubleshoot failures and collect debug logs: https://docs.microsoft.com/en-us/vsts/build-release/actions/troubleshooting

Error logs

.................
2020-09-30T11:38:15.8488100Z 48628070 META-INF/proguard/androidx-annotations.pro (OK - compressed)
2020-09-30T11:38:15.8489280Z 48628294 META-INF/maven/com.google.guava/listenablefuture/pom.xml (OK - compressed)
2020-09-30T11:38:15.8490160Z 48629287 META-INF/maven/com.google.guava/listenablefuture/pom.properties (OK - compressed)
2020-09-30T11:38:15.8490530Z Verification succesful

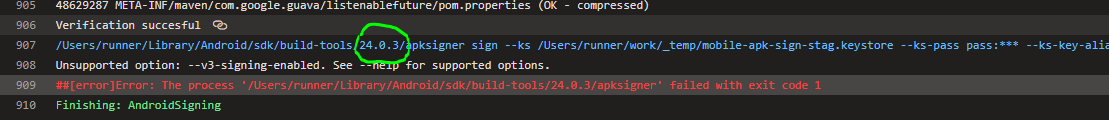

2020-09-30T11:38:16.3047420Z [command]/Users/runner/Library/Android/sdk/build-tools/24.0.3/apksigner sign --ks /Users/runner/work/_temp/mobile-apk-sign-stag.keystore --ks-pass pass:* --ks-key-alias corp dev --key-pass pass:* --verbose --v3-signing-enabled true /Users/runner/work/1/a/droid/1601465616/com.myapp.apk
2020-09-30T11:38:16.5614680Z Unsupported option: --v3-signing-enabled. See --help for supported options.
2020-09-30T11:38:16.5730720Z ##[error]Error: The process '/Users/runner/Library/Android/sdk/build-tools/24.0.3/apksigner' failed with exit code 1
2020-09-30T11:38:16.5747800Z ##[section]Finishing: AndroidSigning
