Azure-pipelines-tasks: MSBuild 16 / VS2019 not supported

[move[bot]]

@CZEMacLeod commented on May 6, 2019, 11:05 PM UTC:

The msbuildVersionOption does not have 16 available as an option.
The MSBuild and Visual Studio Build tasks have been updated already.

---

Document Details

⚠ _Do not edit this section. It is required for docs.microsoft.com ➟ GitHub issue linking._

• ID: 17217289-b764-14a7-e3d9-862d1d9cf503
• Version Independent ID: e1dd6942-3210-a148-b971-af869272c9a3
• Content: Xamarin.Android build and release task - Azure Pipelines
• Content Source: docs/pipelines/tasks/build/xamarin-android.md
• Product: devops
• Technology: devops-cicd
• GitHub Login: davidstaheli
• Microsoft Alias: dastahel

This issue was moved by davidstaheli from MicrosoftDocs/vsts-docs#4157.

[move[bot]]

@Thorocaine commented on May 22, 2019, 12:22 AM UTC:

If you set the pool name to Hosted Windows 2019 with VS2019 it will try running on VS15, not find it, and _fall back_ to 16.

[move[bot]]

@CZEMacLeod commented on May 22, 2019, 2:08 PM UTC:

Thorocaine that's fine if you are not using your own build servers which have both installed.

[move[bot]]

@davidstaheli commented on Jul 5, 2019, 4:16 PM UTC:

Thanks for reporting this. We're going to move this issue to this repo:
https://github.com/Microsoft/azure-pipelines-tasks

/move to Microsoft/azure-pipelines-tasks

[xleon]

I can´t update some libs (like Fody) at our project because of this

C:Users\VssAdministrator.nuget\packages\fody\5.1.1\build\Fody.targets(38,5): Error : Fody is only supported on MSBuild 16 and above. Current version: 15.
Process 'msbuild.exe' exited with code '1'.

[Osmosis311]

Me either (Fody). Any idea when this is going to be fixed?

[xleon]

It was not obvious but I managed to fix this. It´s not enough to set VS version in the "Visual Studio Build" step.

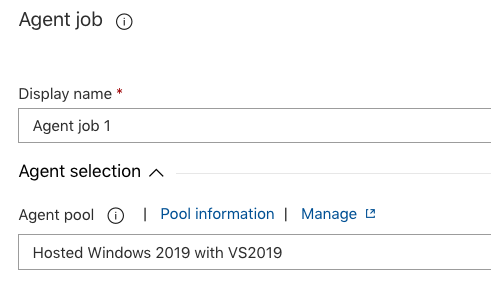

You need to select the agent job and set the version in there:

[aalmada]

I'm getting the log message:
C:\Users\VssAdministrator\.nuget\packages\fody\5.1.1\build\Fody.targets(38,5): error : Fody is only supported on MSBuild 16 and above. Current version: 15. [d:\a\1\s\NetFabric.Hyperlinq\NetFabric.Hyperlinq.csproj]

I tried changing the vmImage parameter to windows-2019 but it didn't fix the issue.

Do I need to change anything else?

[xleon]

Do I need to change anything else?

Did you also set it up in the "Visual Studio Build" step?

[aalmada]

I use DotNetCoreCLI@2 tasks to build. The link in my previous comment takes you to the YAML.

[aalmada]

I worked around the issue by using a DotNetCoreInstaller@0 task.

https://github.com/microsoft/azure-pipelines-image-generation/issues/862

[davekenn]

Image versions have cycled many times since the original report of this issue. I am assuming the correct versions were shaken out. There was confusion that the UX required job-level selection of the right agent to get that VS version, and if necessary, you can install the version required.

[Adam--]

@davekenn I think this issue still exists, the Xamarin.Android build task supports MSBuild versions of:

msbuildVersionOption: '15.0' # Optional. Options: latest, 15.0, 14.0, 12.0, 4.0

If latest is selected the build task uses 15.0. If you run this with the agent specified as "windows-2019", which has MSBuild 16.0, it will fall back to 16.0 and emit a warning:

[warning]Unable to find MSBuild version '15.0' for architecture 'x86'. Falling back to version '16.0'.

That is to say it's interpreting latest as 15.0 (we can't specify 16.0), but falling back to 16.0 because it can't find 15.0. If you run on an agent that has 15.0, but not 16.0, it'll build with 15.0, which is not desired.

To fix this issue, we should be able to specify MSBuild 16.0.

[papuashu]

As of now (July 2020) this issue (MSBuild 16 not being available in the above dropdown) is not fixed.
