Azure-functions-durable-extension: CreateHttpManagementPayload returns "0.0.0.0" instead of "localhost" when run locally

[thomas-schreiter]

Describe the bug
Kick off an orchestration and get its status query link via orchestionClient.CreateManagementPayload(instanceId).

Investigative information

• Durable Functions extension version: 1.7.0
• Function App version: 2.0
• Programming language used: C#
• Timeframe issue observed: after updating Functions to v2.0
• Function App name: N/A, running locally
• Function name(s): N/A
• Region: N/A
• Orchestration instance ID(s): N/A

To Reproduce
Steps to reproduce the behavior:

1. Locally create new Functions v2 project/solution in Visual studio.
2. Use the code below (import nuget package Microsoft.Azure.WebJobs.Extensions.DurableTask v1.7.0)

using System.Threading.Tasks;
using Microsoft.Azure.WebJobs;
using Microsoft.Azure.WebJobs.Extensions.Http;
using Microsoft.Extensions.Logging;
using System.Net.Http;
using System.Net;

namespace FunctionApp1
{
    public static class Function1
    {
        [FunctionName("HttpTrigger1")]
        public static async Task<HttpResponseMessage> HttpTrigger1(
            [HttpTrigger(AuthorizationLevel.Anonymous, "post", Route = null)] HttpRequestMessage req,
            [OrchestrationClient] DurableOrchestrationClient orchestrationClient,
            ILogger log,
            ExecutionContext context)
        {
            var instanceId = await orchestrationClient.StartNewAsync("Orchestrator1", null);
            var result = orchestrationClient.CreateHttpManagementPayload(instanceId);  // <== must return http://localhost:7071/...
            return req.CreateResponse(HttpStatusCode.OK, result);
        }

        [FunctionName("Orchestrator1")]
        public static async Task<int> Orchestrator1(
            [OrchestrationTrigger] DurableOrchestrationContext orchestrationContext,
            ILogger log,
            ExecutionContext executionContext)
        {
            return 42;
        }
    }
}

1. Start the app locally
2. Submit an http request against the HTTP trigger: [POST] http://localhost:7071/api/HttpTrigger1 to start a new orchestration.
3. Inspect the response body, which contains a field statusQueryGetUri.
4. Try to open that link.

Expected behavior
Step 5. must contain a valid url: http//localhost:7071/..., same as in the request.

Actual behavior
Step 5. returns a wrong url to https://0.0.0.0:7071/runtime/.../. Note that the ip and the protocol are wrong.

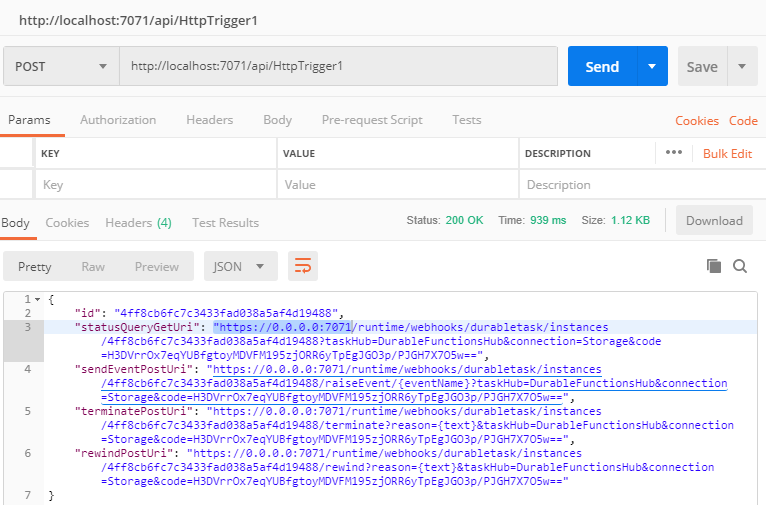

Screenshots

Known workarounds
Before opening the link in Step 6, manually substitute https://0.0.0.0 with http://localhost.

Additional context
Remote works, just locally it's broken.

• Development environment: Visual Studio 2017 latest version
• Links to source: see code above

[kashimiz]

Hi @thomas-schreiter, thank you for reporting this (and for using our new bug issue template!) This is a known issue caused by behavior in Azure Functions Core Tools. I've got a fix for this almost ready to go out.

A less cumbersome workaround is to set the WEBSITE_HOSTNAME environment variable on your machine to localhost:7071.

[cgillum]

@thomas-schreiter actually the better way to implement your HTTP function is as follows, using the CreateCheckStatusResponse API:

[FunctionName("HttpTrigger1")]
public static async Task<HttpResponseMessage> HttpTrigger1(
    [HttpTrigger(AuthorizationLevel.Anonymous, "post", Route = null)] HttpRequestMessage req,
    [OrchestrationClient] DurableOrchestrationClient orchestrationClient,
    ILogger log,
    ExecutionContext context)
{
    var instanceId = await orchestrationClient.StartNewAsync("Orchestrator1", null);
    return orchestrationClient.CreateCheckStatusResponse(req, instanceId);
}

This does not suffer from the same bug because it has the HttpRequestMessage it can use to learn the actual hostname and port number. So consider that another possible workaround.

[thomas-schreiter]

That works @cgillum, thanks. I wasn't aware that it existed. It's documented in the HTTP API URL discovery section.
