Azure-docs: How to select all the available columns in the KQL

[ToMakeSense]

The documentation I am referencing: Get started with Azure Monitor Log Analytics#filter-the-results and Get started with Azure Monitor Log Analytics#select-columns-to-display

I am query the log of api management in Azure portal, however, I found the default columns (top-level-diagnostic-logs-schema) are not that much useful.

| TenantId | SourceSystem | MG | ManagementGroupName | TimeGenerated | Computer | RawData | identity_claim_http_schemas_xmlsoap_org_ws_2005_05_identity_claims_upn_s | Category | OperationName | ResultType | CallerIPAddress | identity_claim_http_schemas_microsoft_com_identity_claims_objectidentifier_g | identity_claim_appid_g | identity_claim_xms_mirid_s | id_s | clientInfo_s | subnetId_s | requestUri_s | ResourceId |
|---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:| ---:|

What should I do to select all the available columns(could be found under the arrow to the left of each record) that are used for API Management Diagnostic Logs without typing one by one?

{
    "isRequestSuccess": "",
    "time": "",
    "operationName": "",
    "category": "",
    "durationMs": ,
    "callerIpAddress": "",
    "correlationId": "",
    "location": "",
    "httpStatusCodeCategory": "",
    "resourceId": "",
    "properties": {
        "method": "",
        "url": "",
        "clientProtocol": "",
        "responseCode": ,
        "backendMethod": "",
        "backendUrl": "",
        "backendResponseCode": ,
        "backendProtocol": "",
        "requestSize": ,
        "responseSize": ,
        "cache": "",
        "cacheTime": "",
        "backendTime": ,
        "clientTime": ,
        "apiId": "",
        "operationId": "",
        "productId": "",
        "userId": "",
        "apimSubscriptionId": "",
        "backendId": "",
        "lastError": {
            "elapsed": "",
            "source": "",
            "scope": "",
            "section": "",
            "reason": "",
            "message": ""
        }
    }
}

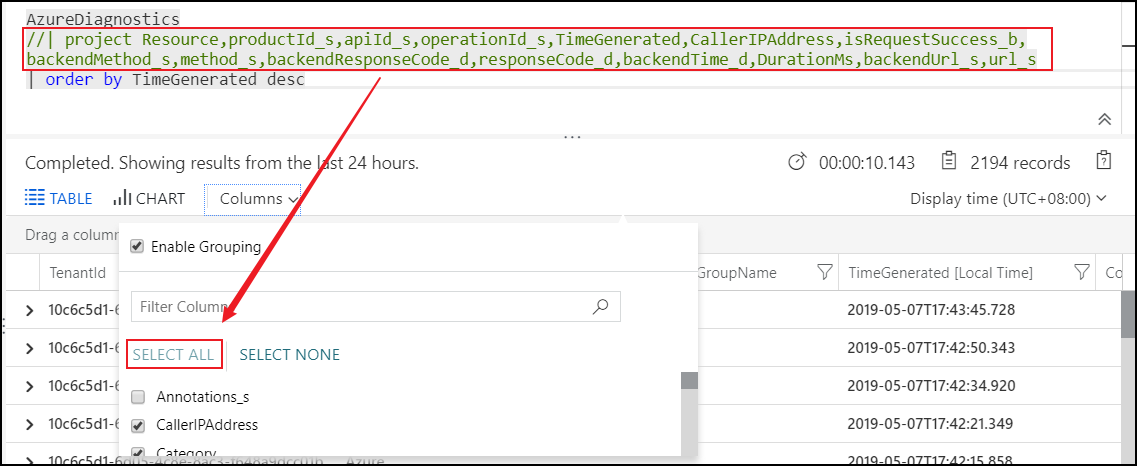

I also find SELECT ALL is disabled without project operator in the query, it's inconvenient

---

Document Details

⚠ Do not edit this section. It is required for docs.microsoft.com ➟ GitHub issue linking.

• ID: 773e07ff-6bd8-47b2-5b83-75c7246693e6
• Version Independent ID: 8723d5a6-ac93-0dba-b2b8-83905d807d67
• Content: Get started with Azure Monitor Log Analytics
• Content Source: articles/azure-monitor/log-query/get-started-portal.md
• Service: log-analytics
• GitHub Login: @bwren
• Microsoft Alias: bwren

[femsulu]

@ToMakeSense Thanks for the Comment. We are actively investigating and will get back to you soon.

[femsulu]

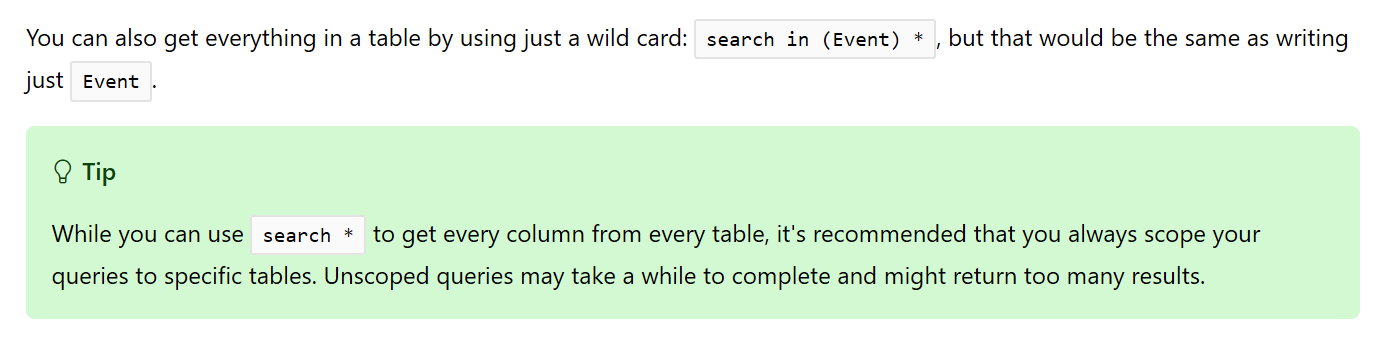

@ToMakeSense To get all available columns, you an use search * as detailed here.

Regarding the valuable feedback you shared about un-useful default columns, would be great if you can post this feedback directly in feedback.azure.com so the feature owner can review for future consideration.

[femsulu]

We will now close this issue. If there are further questions regarding this matter, please reply and we will gladly continue the discussion.

[ToMakeSense]

@femsulu let's make it clear, I just want to find a way to use the Service-specific schemas template(in the case, it's apim), not use the Top-level diagnostic logs schema. I don't want to type each column property with project operator all the time. Is it possible?
