Azure-docs: View E2E diagnostics for a given operation

[craigsmitham]

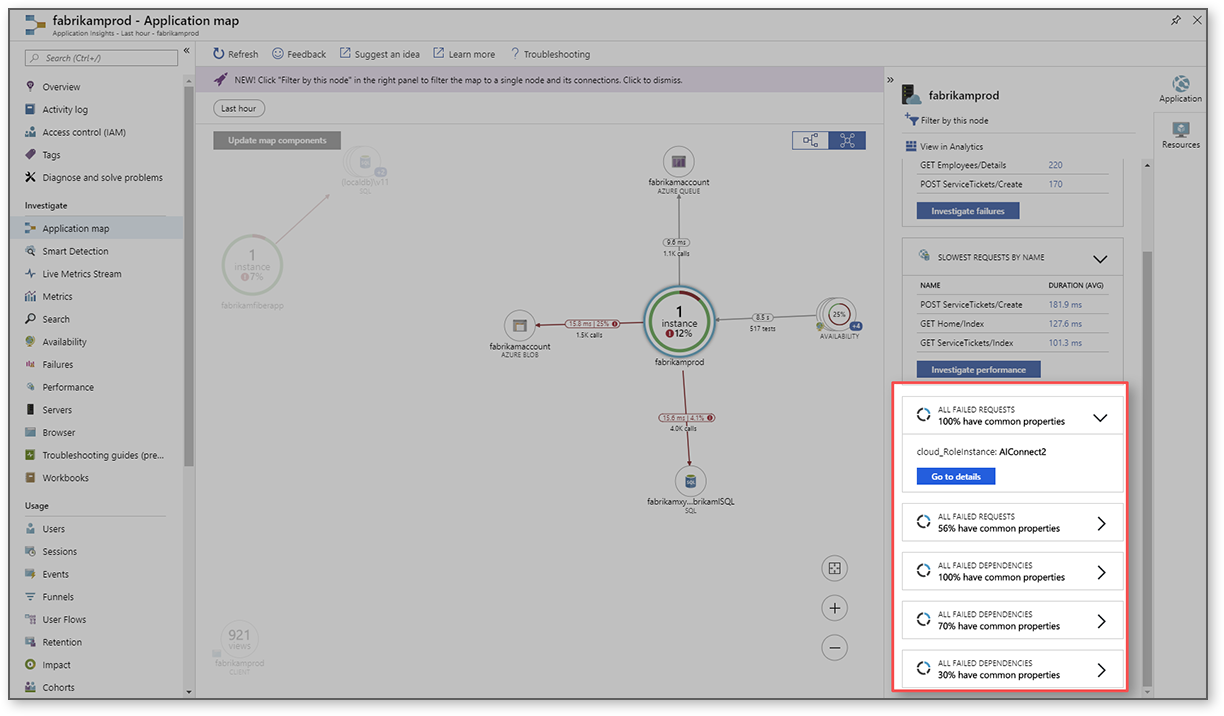

Is there a way to view the cross-component transaction chart for a given operation ID? The only way I can seem to navigate to it is via the "Failures" blade of application insights. It would be helpful to see the correlated transactions of any operation.

---

Document Details

⚠ Do not edit this section. It is required for docs.microsoft.com ➟ GitHub issue linking.

• ID: 88844d44-a476-9c82-bb1f-77fe958d5639
• Version Independent ID: 1a7e36ee-d4fa-653d-8fca-126b352a8087
• Content: Azure Application Insights Transaction Diagnostics
• Content Source: articles/azure-monitor/app/transaction-diagnostics.md
• Service: application-insights
• GitHub Login: @mrbullwinkle
• Microsoft Alias: mbullwin

[kobulloc-MSFT]

@craigsmitham Thank you for the feedback! We are investigating this and will get back to you shortly.

[kobulloc-MSFT]

@craigsmitham (Edit) It does appear that many End-to-end transaction details are generated for failures. We are looking into this.

[kobulloc-MSFT]

@craigsmitham For any Operation ID, you can view end-to-end transaction details by:

• Navigating to your Application Insights resource
• Clicking on Performance (under Investigate on the left)
• Clicking on the filter at the top
• Selecting Operation ID from the dropdown, and then entering the Operation ID
• Clicking on the Drill into link at the bottom
• Clicking on one of the operations on the right

We are going to close this thread as resolved but if there are any further questions regarding the documentation, please tag me in your reply and we will be happy to continue the conversation.

[craigsmitham]

@kobulloc-MSFT this is very helpful - thank you! It was not obvious or documented how to do this (only the failures were demonstrated in the docs). Very good to know!

[kobulloc-MSFT]

@craigsmitham Thank you! It's always nice to hear when an answer has been helpful :)
