Azure-docs: Getting 'HTTP Error 502.5 - Process Failure' running this example.

[FieldMarshallVague]

I'm getting the above error when the project is published. The status of the service says 'Your app is healthy' when I use the 'web app down' link in the diagnostics.

Running 'dotnet .keyvault.blahblah..dll' in the app service console results in this:

Unhandled Exception: Microsoft.Azure.KeyVault.Models.KeyVaultErrorException: Operation returned an invalid status code 'Forbidden'
at Microsoft.Azure.KeyVault.KeyVaultClient.<GetSecretsWithHttpMessagesAsync>d__66.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at Microsoft.Azure.KeyVault.KeyVaultClientExtensions.<GetSecretsAsync>d__50.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at Microsoft.Extensions.Configuration.AzureKeyVault.AzureKeyVaultConfigurationProvider.<LoadAsync>d__5.MoveNext()
--- End of stack trace from previous location where exception was thrown ---
at System.Runtime.ExceptionServices.ExceptionDispatchInfo.Throw()
at System.Runtime.CompilerServices.TaskAwaiter.ThrowForNonSuccess(Task task)
at System.Runtime.CompilerServices.TaskAwaiter.HandleNonSuccessAndDebuggerNotification(Task task)
at Microsoft.Extensions.Configuration.AzureKeyVault.AzureKeyVaultConfigurationProvider.Load()
at Microsoft.Extensions.Configuration.ConfigurationRoot..ctor(IList`1 providers)
at Microsoft.Extensions.Configuration.ConfigurationBuilder.Build()
at Microsoft.AspNetCore.Hosting.WebHostBuilder.BuildCommonServices(AggregateException& hostingStartupErrors)
at Microsoft.AspNetCore.Hosting.WebHostBuilder.Build()
at key_vault_dotnet_core_quickstart.Program.BuildWebHost(String[] args) in C:projectsazurekeyvaultkey-vault-dotnet-core-quickstartProgram.cs:line 24
at key_vault_dotnet_core_quickstart.Program.Main(String[] args) in C:projectsazurekeyvaultkey-vault-dotnet-core-quickstartProgram.cs:line 2

I followed the documentation exactly and everything up to this point works as expected. However, the published project gives this error every time (I have gone through the documentation twice).

The secret is obtained normally when running locally.

---

Document Details

⚠ Do not edit this section. It is required for docs.microsoft.com ➟ GitHub issue linking.

• ID: bc43d849-5b06-7185-0c9e-aaf240363aca
• Version Independent ID: 385f4dfe-326a-9e63-80ce-3c71903edf3c
• Content: Quickstart: Set and retrieve a secret from Azure Key Vault by using a node web app
• Content Source: articles/key-vault/quick-create-net.md
• Service: key-vault
• GitHub Login: @prashanthyv
• Microsoft Alias: barclayn

[prashanthyv]

Hi @FieldMarshallVague ,

Is this error when you deploy to Azure?

[FieldMarshallVague]

As above, it's when it is already published on azure. That's how I get the messages about 'your app is healthy'. I get on the first publish (i.e. the section: https://docs.microsoft.com/en-us/azure/key-vault/quick-create-net#publish-the-web-application-to-azure), but thought that this may be because I hadn't done the following section (where I authorise the app to get vault secrets). But re-reading the section, it looks like this should work anyway. Either way, I get the error.

So, I have gone through the whole document at https://docs.microsoft.com/en-us/azure/key-vault/quick-create-net. I get the error on first publish and when I reach the last part ("Now when you run the application, you should see your secret value retrieved.") I also get the error.

[FieldMarshallVague]

One thing I noticed, the .Net version on the running app (Azure) says .Net 4.7, with no option for .Net core. From similar issues on StackOverflow, this might be a version mismatch. Could this be it?

I have tried to update the .Net core package to 2.1.3, but this has no effect on the problem. It looks like the app fails when trying to retrieve the secret on startup. For some reason, the request is denied with a 403. I have manually added the access policy for this app service to the keyvault through both the CLI and the Azure portal interface. I have only added it via the 'Application' setting and assigned 'get' role as described in the docs.

[FieldMarshallVague]

OK, I've figured out the problem through trial and error. It's because the docs tell you to assign the 'get' permission, but it needs both 'get' and 'list' permissions. Where the docs say "Then, run this command by using the name of your key vault and the value of PrincipalId:", you should update it to read:

az keyvault set-policy --name '<YourKeyVaultName>' --object-id <PrincipalId> --secret-permissions get list

[prashanthyv]

Hi @FieldMarshallVague ,

Thank you. I was sure it was a permissions issue. Thank you for this note. We will update the docs

[prashanthyv]

@barclayn - Can we close this issue?

[barclayn]

please-close

[FieldMarshallVague]

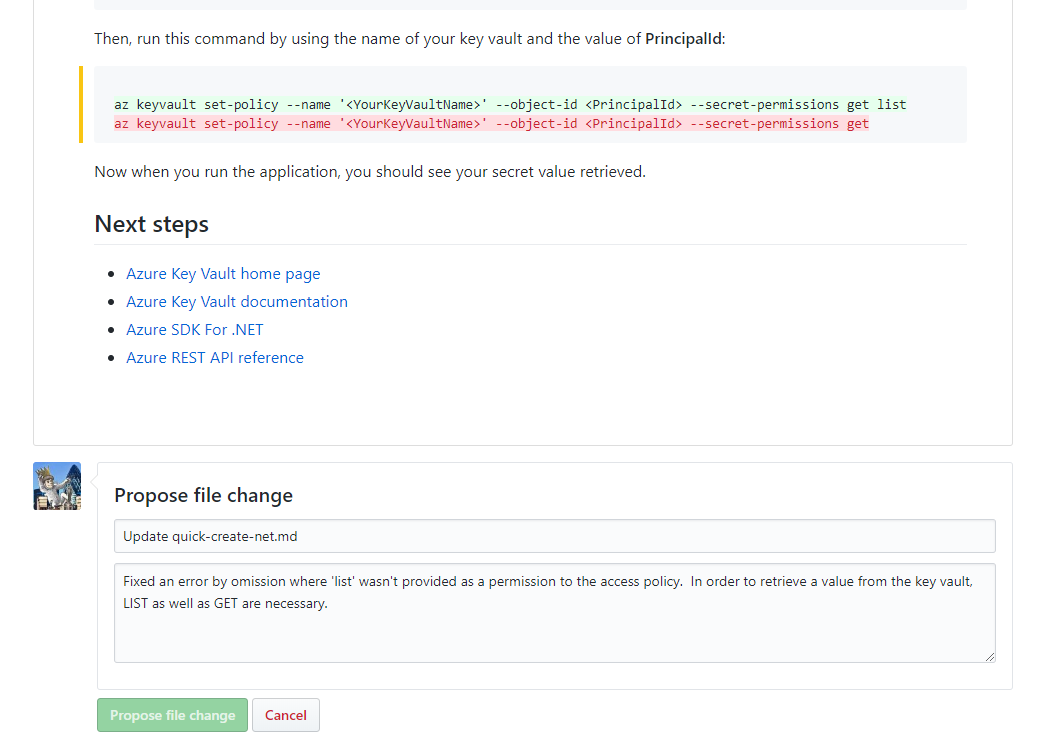

I have tried to update your docs for you, using the auto-fork and edit option here in GH. When I make the change (adding 'list' to the list of permissions) I can't click the 'propose file change' button, it's slightly greyed-out. Having wasted 4 hours on this issue (which is basically a 4-letter typo), I'm keen to see this change made.

Also, the documentation for updating another user's files is out of date and doesn't apply to what I'm seeing:

https://help.github.com/articles/editing-files-in-another-user-s-repository/

p.s. I re-opened this issue because the cause isn't actually fixed yet :)

[barclayn]

@FieldMarshallVague the change should go live within 24 hours from now.

[mike-urnun-msft]

Hey @FieldMarshallVague We will now proceed to close this thread. If there are further questions regarding this matter, please reopen it and we will gladly continue the discussion.

[FreedCapybara]

You may also want to consider updating this readme to match https://github.com/Azure-Samples/key-vault-dotnet-core-quickstart
