Awx: AWXKit export/import - job template surveys

[watsonb]

ISSUE TYPE

• Bug Report

SUMMARY

When exporting job templates from once AWX instance and importing them into another new instance, job templates lose associated surveys.

ENVIRONMENT

• AWX version: 14.0.0
• AWX install method: docker on linux
• Ansible version: 2.9.11
• Operating System: Ubuntu 18.04
• Web Browser: Chrome

The above is for the new instance. The old instance is AWX 7.0.0 with Ansible 2.8.4, all other environment items are the same for the old instance.

STEPS TO REPRODUCE

1. export job templates from existing system: awx export -k --job_templates > job_templates.json
2. import job templates to new system: awx import -k < job_templates.json

EXPECTED RESULTS

Job templates are imported with surveys

ACTUAL RESULTS

Surveys are empty.

ADDITIONAL INFORMATION

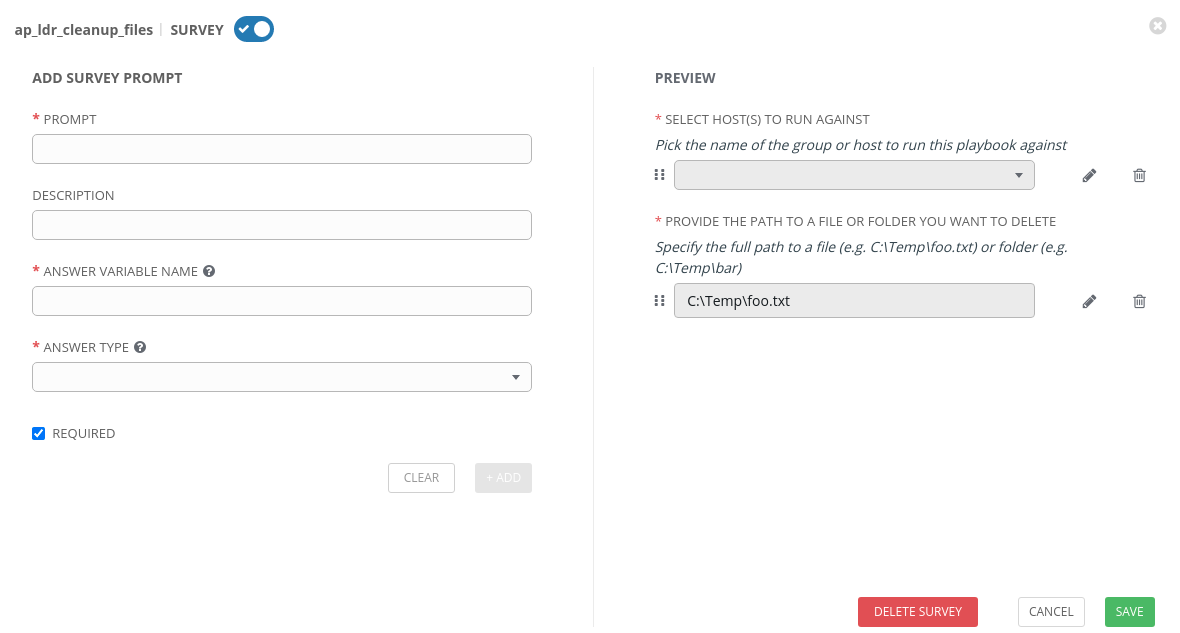

Exported job template survey:

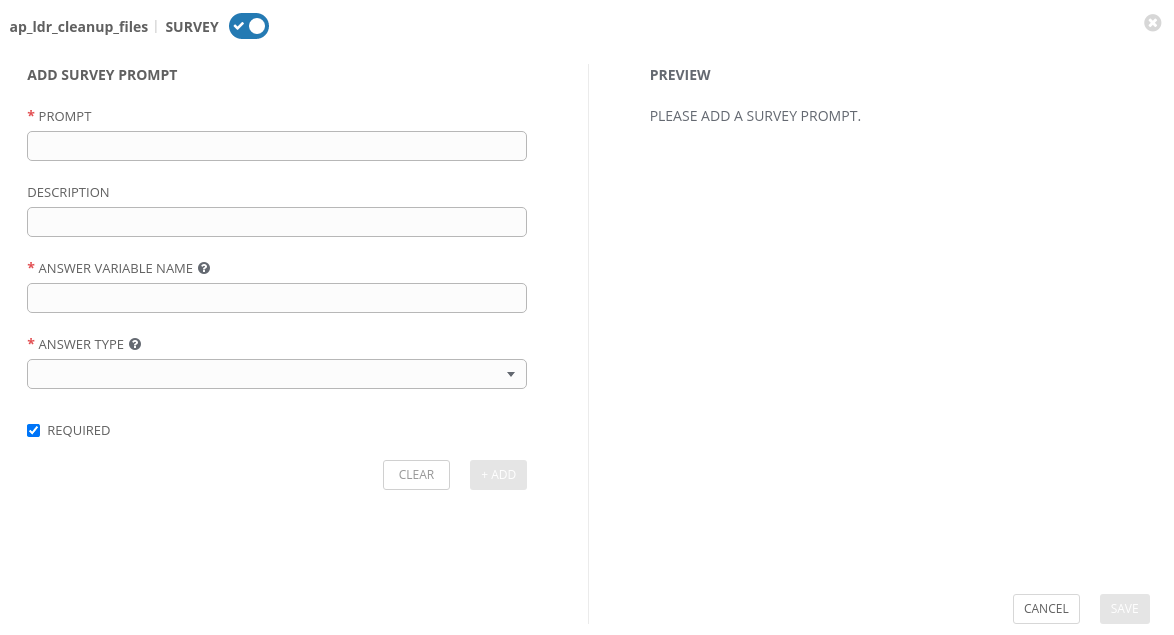

Imported job template survey:

[jbradberry]

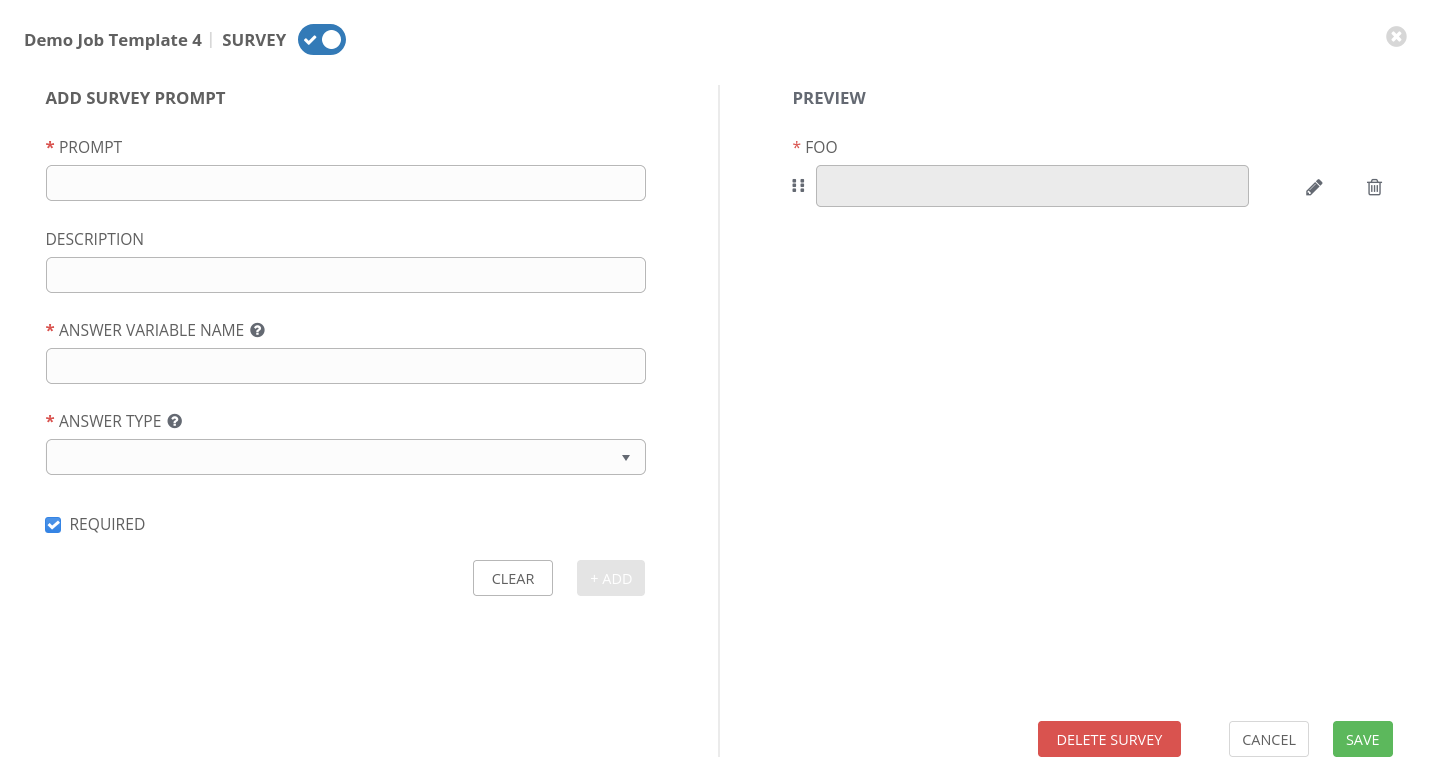

@watsonb I'm also having problems replicating this one. Here's a successful import with an absolute minimum survey question:

[jbradberry]

My example json file:

{
     "job_templates": [
          {
               "name": "Demo Job Template 4",
               "description": "",
               "job_type": "run",
               "playbook": "hello_world.yml",
               "scm_branch": "",
               "forks": 0,
               "limit": "",
               "verbosity": 0,
               "extra_vars": "",
               "job_tags": "",
               "force_handlers": false,
               "skip_tags": "",
               "start_at_task": "",
               "timeout": 0,
               "use_fact_cache": false,
               "host_config_key": "",
               "ask_scm_branch_on_launch": false,
               "ask_diff_mode_on_launch": false,
               "ask_variables_on_launch": false,
               "ask_limit_on_launch": false,
               "ask_tags_on_launch": false,
               "ask_skip_tags_on_launch": false,
               "ask_job_type_on_launch": false,
               "ask_verbosity_on_launch": false,
               "ask_inventory_on_launch": false,
               "ask_credential_on_launch": false,
               "survey_enabled": true,
               "become_enabled": false,
               "diff_mode": false,
               "allow_simultaneous": false,
               "custom_virtualenv": null,
               "job_slice_count": 1,
               "webhook_service": "",
               "webhook_credential": null,
               "inventory": {
                    "organization": {
                         "name": "Default",
                         "type": "organization"
                    },
                    "name": "Demo Inventory",
                    "type": "inventory"
               },
               "project": {
                    "organization": {
                         "name": "Default",
                         "type": "organization"
                    },
                    "name": "Demo Project",
                    "type": "project"
               },
               "related": {
                    "labels": [],
                    "credentials": [
                         {
                              "organization": null,
                              "name": "Demo Credential 2",
                              "credential_type": {
                                   "name": "Machine",
                                   "kind": "ssh",
                                   "type": "credential_type"
                              },
                              "type": "credential"
                         }
                    ],
                    "schedules": [],
                    "notification_templates_started": [],
                    "notification_templates_success": [],
                    "notification_templates_error": [],
                    "survey_spec": {
                         "name": "",
                         "description": "",
                         "spec": [
                              {
                                   "question_name": "Foo",
                                   "question_description": "",
                                   "required": true,
                                   "type": "text",
                                   "variable": "foo",
                                   "min": 0,
                                   "max": 1024,
                                   "default": "",
                                   "choices": "",
                                   "new_question": true
                              }
                         ]
                    }
               },
               "natural_key": {
                    "organization": {
                         "name": "Default",
                         "type": "organization"
                    },
                    "name": "Demo Job Template 4",
                    "type": "job_template"
               }
          }
     ]
}

[watsonb]

I'll try to run the export/import again on a fresh new instance and capture exported *.json files that are being imported for review.

[watsonb]

@jbradberry I provisioned a fresh AWX 15.0.0 installation and the export/import worked this time (using awxkit==15.0.0) with respect to this issue. I consider it closed.
