Awx: playbooks only work with IP but not with dns

[anthonydelarosa]

ISSUE TYPE

• Bug Report

COMPONENT NAME

• UI

SUMMARY

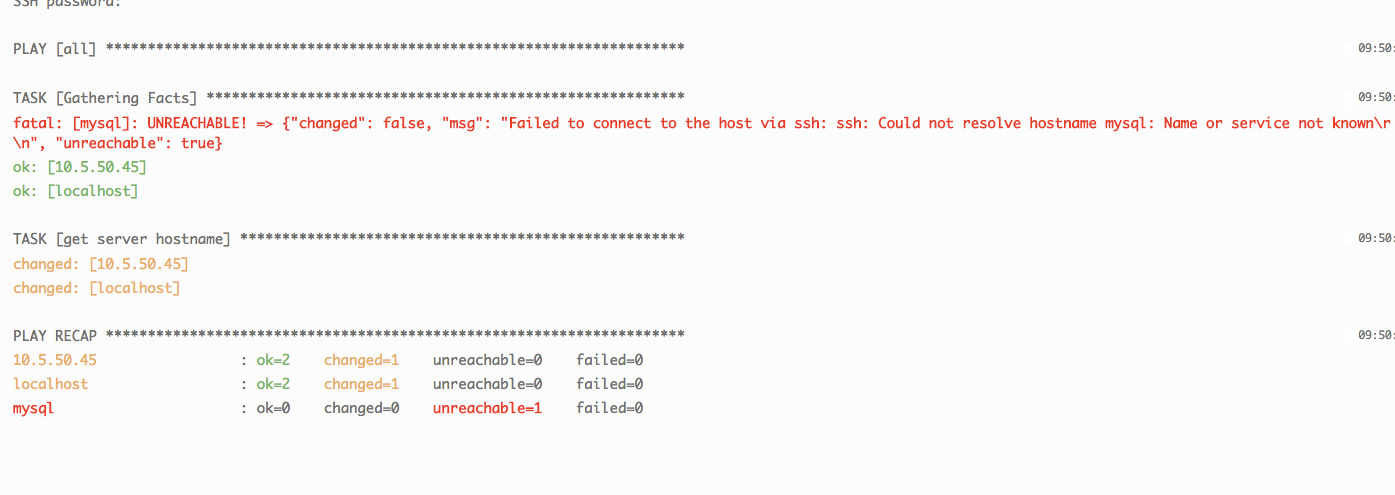

Hello, a bit new to Ansible/AWX but I managed to set it up with the documentation provided (docker-composer) and for the most part it works however playbooks only work if the host uses IP, if I use DNS record it fails. It's odd 'cause the actual server Ansible/AWX (inside Ubuntu command line) can ping those hosts just fine. This is the output I get on the playbook:

msg": "Failed to connect to the host via ssh: ssh: Could not resolve hostname mysql: Name or service not known\r\n",
"unreachable": true,
"changed": false

I should mention that the /awx/installer/inventory file has both my domain and dns servers' ips in the file. Again my Ansible/AWX server can ping via DNS, it's AWX docker container that can't ping them.

ENVIRONMENT

• AWX version: 1.0.2.84
• AWX install method: docker on linux
• Ansible version: 2.4.2.0
• Operating System: Ubuntu 16.04
• Web Browser:Chrome

STEPS TO REPRODUCE

Again, IP works fine, the docker containers can ping the hosts but with DNS records they cannot

EXPECTED RESULTS

I'd like to be able to use DNS records

ACTUAL RESULTS

For some reason I can't figure this out, is there any other file I need to make this change to?

ADDITIONAL INFORMATION

[jakemcdermott]

The installer inventory file is only for the installer to use - it is not used in any way by AWX or awx job templates. If you need to add a host by its DNS name you'll need to do so after AWX is installed via its REST API or GUI.

If you have any questions please drop us a line on the AWX mailing list or drop by our irc channel.

[anthonydelarosa]

@jakemcdermott hey thanks for getting back to me so quickly, well I tried looking for help on the mailing list but this old ticket still has no solution so not sure how those google groups are being monitored: https://groups.google.com/forum/#!searchin/awx-project/DNS%7Csort:date/awx-project/AKGt9BJY36Y/HcklrMCsAQAJ

In the API I only see an Authentication Setting but that seems to be more with the way the API will authenticate against, is that also the the "dns" configuration? Sorry just a bit confused.

[anthonydelarosa]

can someone please re-open this? the ticket was not resolved

[lintonam]

I'm also seeing this behavior. I'm not modifying the install.yml at all. Hosts are reachable via ping from the server by fqdn, however, they are not reachable from AWX, unil modifying them to be just IP addresses.

[paramunix]

The issue is due to Ansible targets not present in /etc/hosts of "awx_task" docker container. As awx is installed within the containers, it cannot see the /etc/host of the host OS.
You can install AWX again with alternate DNS server entries or do the following :-

-- Check awx containers from your base OS
docker ps

--Login to the "awx_task" container and add all your ansible targets in the /etc/host
docker exec -u 0 -it awx_task bash

you can also automate this to run after docker services start post reboot (old school)

[a0s]

I faced this problem too. I need to fetch some data from remote Consul in my local ansible script:

- hosts: local
  connection: local

What is strange, consul_kv and command: curl is not working from ansible until adding ip record in /etc/hosts on the local machine. But curl from bash is working fine. It doesn't have any sense.
Please, reopen the issue, a bug is still here.

MacOS 10.14.5, homebrewed ansible-2.8.1_1.mojave.bottle.tar.gz

UPD:
Ok, dns cache clearing helped me

dscacheutil -flushcache
sudo killall -HUP mDNSResponder

[jpurcell3]

The issue is due to Ansible targets not present in /etc/hosts of "awx_task" docker container. As awx is installed within the containers, it cannot see the /etc/host of the host OS.
You can install AWX again with alternate DNS server entries or do the following :-

-- Check awx containers from your base OS
docker ps

--Login to the "awx_task" container and add all your ansible targets in the /etc/host
docker exec -u 0 -it awx_task bash

you can also automate this to run after docker services start post reboot (old school)

Thanks for this tip. I was struggling with this for a couple of days with intermittent roles failing, etc.

[paramunix]

Other related stuff to ponder

• smart inventories
• Base OS as DNS etc.

[krisvoegele]

@jpurcell3 I'm currently experiencing this issue. I'm a bit confused regarding the answer you said helped you. Did you have to re-install awx with the proper DNS config in the install inventory? Any help would be greatly appreciated.

[jpurcell3]

Hi krisvoegele, the issue is that the Linux VM and the AWX are using different local /etc/hosts files, as paramunix described in his post. AWX is a docker container and it does not have visibility into the Linux VM /etc/hosts file, so if you don't set a valid, accessible DNS server you get the name resolution errors that you are seeing. The resolution is to use the docker commands that paramunix included in the post and update the /etc/hosts file in the docker environment. Once you update that file, you can validate connectivity with ping utility, than drop out the AWX interface and verify that your playbooks are working.

[krisvoegele]

@jpurcell3 thanks for the response! As far as I'm aware the /etc/hosts file is for hostname to IP mapping which is not practical when you have ~300 hosts. What's more is the VM's /etc/hosts file does not specify any hostname to IP mappings, however, hostname resolution works (VM checks hosts file then if there is no match, performs DNS query) . Currently, the container (awx_task) is able to ping the hosts via hostname but cannot resolve them via host . What ended up working (after ensuring proper utils were installed) was editing the /etc/resolve.conf file. It's unfortunate the docker containers do not inherit this config from the host. I'm also new to docker so it's a very real possibility I'm missing a config somewhere.

[Hemindahl]

What is the purpose of this line in the inventory file?
awx_alternate_dns_servers="10.1.1.1,10.1.1.2,10.1.1.3"
Is this not supposed to populate the /etc/resolv.conf with the nameserver values? The line:
awx_container_search_domains=example.com,example2.com,example3.com
populates into the resolv.conf file.
