Avideo: Notification not working

[akhilleusuggo]

I have reinstalled my server ( without any panel ) , since the last time you told me that something may be redirecting with .htaccess . Sadly the problem is still the same . I have followed the exact same step you showing on the video and on the wiki . I just can't find out what am missing here .

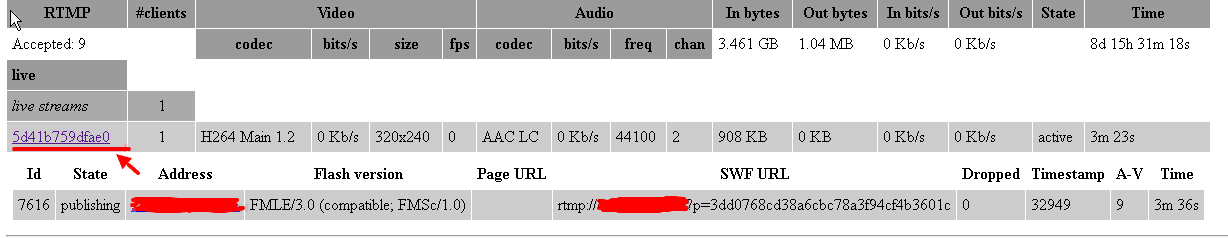

One thing for sure that is not what I see on your demo site is the rtmp stat . When typing www.domain.tld:444/stat , I can see the stats but the ID of the streamer doesn't show ( ID = Key ) . What I see is :

https://www.domain.tld/plugin/Live/on_publish.php | 1 | H264 Main 3.0 | 0 Kb/s | 818x460 | 23 | AAC LC | 0 Kb/s | 44100 | 2 | 640 KB | 0 KB | 6100 Kb/s | 0 Kb/s | active | 39s
-- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | -- | --

This time I'm sure that there's no .htaccess from any thing . Where do you think the problem is coming from ? Any suggestions ?
I have no problem to ask the nginx community about this , but i'm expecting the answer to be : This has nothing to do with nginx since it's working , go and ask the script developer .

Appreciate any help

[tiplovo]

ru---Привет!вот как у меня отображает www.домен.tld: 444 / stat
настраивал все по мануалу

[tiplovo]

Если сертификат apache будет подтвержденый, а nginx нет,то видео не будет показывать по порту 444,только по 8080

[DanielnetoDotCom]

@akhilleusuggo , sorry but I also not sure where does it come from.

I just told you where I found the issue some time ago.

but I guess you have a redirect somewhere, maybe on nginx.conf, or when you install the SSL?

[akhilleusuggo]

@tiplovo Привет , спасибо за ответ . Не понял что ты подсказал про сертификат . У меня сертификать от летс энкрить у нормально работает, Проблема это на стриме и только на стриме.
@DanielnetoDotCom Hello Daniel , I'm really lost , here I link you the configuration of my Nginx , take a look .

worker_processes  1;
    error_log  logs/error.log debug;
    events {
            worker_connections  1024;
    }
    rtmp {
            server {
                    listen 1935;
                    allow play all;
                    #creates our "live" full-resolution HLS videostream from our incoming encoder stream and tells where to put the HLS video manifest and video fragments
                    application live {
                            allow play all;
                            live on;
                            #record all;
                            #record_path /video_recordings;
                            #record_unique on;
                            hls on;
                            hls_nested on;
                            hls_path /HLS/live;
                            #hls_playlist_length 4s;
                            #hls_fragment 1s;
                            hls_fragment 10s;
                            on_publish http://domain.com/plugin/Live/on_publish.php;
                            on_play http://domain.com/plugin/Live/on_play.php;
                            on_record_done http://domain.com/plugin/Live/on_record_done.php;
                    }
            }
    }
    http {
            include       mime.types;
            default_type  application/octet-stream;
            server {
                    listen 8080;
                    listen 444 ssl;
                    server_name localhost;
                    ssl_certificate /etc/letsencrypt/live/domain.com/fullchain.pem;
                    ssl_certificate_key /etc/letsencrypt/live/domain.com/privkey.pem;
                    #creates the http-location for our full-resolution (desktop) HLS stream - "http://my-ip/live/my-stream-key/index.m3u8"
                    location /live {
                            # Disable cache
                            add_header 'Cache-Control' 'no-cache';

[DanielnetoDotCom]

I am not so good on Nginx config, but it looks different then the ones I use

for example on the line server_name localhost; where did you specify the domain?

where is your SSL configuration?

here is an example of what I use:

    worker_processes  1;
    error_log  logs/error.log debug;
    events {
            worker_connections  1024;
    }
    rtmp {
            server {
                    listen 1935;
                    allow play all;
                    application live {
                            allow play all;
                            live on;
                            #record all;
                            #record_path /video_recordings;
                            #record_unique on;
                            hls on;
                            hls_nested on;
                            hls_path /HLS/live;
                            #hls_playlist_length 4s;
                            #hls_fragment 1s;
                            hls_fragment 10s;
                            on_publish http://localhost/YouPHPTube/plugin/Live/on_publish.php;
                            on_play http://localhost/YouPHPTube/plugin/Live/on_play.php;
                            on_record_done http://localhost/YouPHPTube/plugin/Live/on_record_done.php;
                    }
            }
    }
    http {
            include       mime.types;
            default_type  application/octet-stream;
            server {
                    listen 80;
                    server_name localhost www.mydomain.com;
                    location /live {
                            # Disable cache
                            add_header 'Cache-Control' 'no-cache';

                            # CORS setup
                            add_header 'Access-Control-Allow-Origin' '*' always;
                            add_header 'Access-Control-Expose-Headers' 'Content-Length';

                            # allow CORS preflight requests
                            if ($request_method = 'OPTIONS') {
                                    add_header 'Access-Control-Allow-Origin' '*';
                                    add_header 'Access-Control-Max-Age' 1728000;
                                    add_header 'Content-Type' 'text/plain charset=UTF-8';
                                    add_header 'Content-Length' 0;
                                    return 204;
                            }
                            types {
                                    application/vnd.apple.mpegurl m3u8;
                            }
                            alias /HLS/live;
                    }
                    #allows us to see how stats on viewers on our Nginx site using a URL like: "http://my-ip/stats"
                    #location /stats {
                    #        stub_status;
                    #}
                    location /stat {
                            rtmp_stat all;
                            rtmp_stat_stylesheet stat.xsl;
                    }
                    location /stat.xsl {
                            root html;
                    }
                    location /control {
                            rtmp_control all;
                    }
                    #allows us to host some webpages which can show our videos: "http://my-ip/my-page.html"
                    location / {
                            root   html;
                            index  index.html index.htm;
                    }
                listen 444 ssl; # managed by Certbot
                ssl_certificate /etc/letsencrypt/live/xxx/fullchain.pem; # managed by Certbot
                ssl_certificate_key /etc/letsencrypt/live/xxx/privkey.pem; # managed by Certbot
                include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
                ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot
            }
    }

[akhilleusuggo]

I see a lot of differences . You're right I didn't specify the domain this time . What should go there ? localhost www.domain.com ?

I'm missing this lines :

include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot

A part of this , you just jumped right to the end after the index.html and wrote the ssl ( but that should not affect )
I'll give a try and leave a feedback

[akhilleusuggo]

Well , I don't have
include /etc/letsencrypt/options-ssl-nginx.conf; # managed by Certbot
ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem; # managed by Certbot

And never seen them . No idea where I can make them . Any suggestions ?

[tiplovo]

Ну, у меня нет
включить /etc/letsencrypt / options-ssl-nginx.conf; # управляется Certbot
ssl_dhparam/etc/letsencrypt / ssl-dhparams.PEM; # управляется Certbot

И никогда их не видел . Понятия не имею, где я могу их сделать . Есть предложения ?

You need to install a certificate for nginx separately

[akhilleusuggo]

я понял спс , поищу как это делается , я просто с Nginxом не знакомый

[DanielnetoDotCom]

I use letsencrypt for my self

[akhilleusuggo]

@DanielnetoDotCom I actually don't get it . Installing a separated certificate one for apache and one for nginx , I don't see the goal of that :(
To secure what exactly ? In anyway , I don't think that this gonna fix my problem

[DanielnetoDotCom]

BTW, for nginx the same apache certificate.

this is just a guess of what is changing your configuration.

[akhilleusuggo]

And that's exactly what I'm using :

listen 444 ssl;
                    server_name www.domain.tld;
                    ssl_certificate /etc/letsencrypt/live/domain.com/fullchain.pem;
                    ssl_certificate_key /etc/letsencrypt/live/domain.com/privkey.pem;

I'm using let's encrypt as well . But there's no

                include /etc/letsencrypt/options-ssl-nginx.conf;
                ssl_dhparam /etc/letsencrypt/ssl-dhparams.pem;

But still , the certificate and the plugin itself should not affect to find the streamer key . On the DB , I have checked it and I can see the streamer key with no problems . I know you're not expert on Nginx , but do you think that the Nginx Community can help on this case ?

[DanielnetoDotCom]

anyway, I do not think the problem is in your ssl certificate, I guess it is something when you force to redirect to https

what nginx version are you using?

FYI, for ubuntu 16 I use nginx-1.12.0
for Ubuntu 18 I use nginx-1.13.8

[akhilleusuggo]

@DanielnetoDotCom The only redirection force is on let's encrypt . When installing it , it asks if you want to redirect all the traffic to https , and i said ''Yes''
EDIT : On /etc/apache2/sites-enabled

RewriteEngine on
RewriteCond %{SERVER_NAME} =www.domain.tld
RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,NE,R=permanent]

About Nginx version:
On the /444:stat page : Generated by nginx-rtmp-module 1.1.4, nginx 1.16.0, pid 13387, built Aug 4 2019 02:27:28 gcc 7.4.0 (Ubuntu 7.4.0-1ubuntu1~18.04.1)

[DanielnetoDotCom]

On apache the redirect is OK,
But for NGINX you should not redirect it.

[akhilleusuggo]

@DanielnetoDotCom I don't even have nginx installed ...

# nginx -v

Command 'nginx' not found, but can be installed with:

apt install nginx-core
apt install nginx-extras
apt install nginx-full
apt install nginx-light

Could you tell me the location file config that you think is redirecting ? Thanks

[DanielnetoDotCom]

I am not sure if the problem is in your config or it is a redirect issue, but my configuration file is located here: /usr/local/nginx/conf/nginx.conf

[akhilleusuggo]

@DanielnetoDotCom I was hoping you link me something helpful :(
There's no redirect there / I made sure of that

[akhilleusuggo]

@DanielnetoDotCom You know Daniel , you guessed right ! It was the Apache redirect that was causing this issue . I don't get it . After removing this lines ; it's working . The question is , how then do I redirect all the visitors to https automatically ?

RewriteEngine on
RewriteCond %{SERVER_NAME} =www.domain.tld
RewriteRule ^ https://%{SERVER_NAME}%{REQUEST_URI} [END,NE,R=permanent]

[DanielnetoDotCom]

where were those rules?

O have the same rules on my virtual host configuration file, and it does not conflict with nginx.

[akhilleusuggo]

@DanielnetoDotCom on the /etc/apache2/sites-enabled
Any where to add this into the .htaccess of the site ? or maybe I have to do this from the domain provider ?

[DanielnetoDotCom]

For my self I do it on /etc/apache2/sites-enabled and I have no problem with that

[akhilleusuggo]

@DanielnetoDotCom Do you have this same line ? I have re-wrote it and failed again :( , only removing it works . I don't really understand why re-directing does make it fails

[akhilleusuggo]

@DanielnetoDotCom Ok , this is very strange . I found something more . If the page is loaded from HTTP = The site send the notification and shows the stream to be ONLINE .
HTTPS = The stream is playing but with the red color showing the stream is OFFLINE .

#

Has this something to do with the config file of the site ?

$global['webSiteRootURL'] = "http".(!empty($_SERVER['HTTPS'])?"s":"")."://".$_SERVER['SERVER_NAME'].$subDir;
}else{
    $global['webSiteRootURL'] = 'https://example.com/';

[DanielnetoDotCom]

I really not sure, but I just can tell you I have the same lines on my apache configuration but it does not affect my NGINX server.

[TrippyTubeTV]

I am having the same issue as described, however removing the redirects in the sites-enabled did not fix the issue for me. I am really at a loss here. As described above the apache redirects should not affect this anyway. I would agree something is getting redirected as in the stats page it's showing the URL as https where it's supposed to show the stream key. I just don't get where the redirect is. I should also say I was experiencing the issue with the no SSL at all so no redirects on a clean server.

Any ideas would be very appreciated.

[akhilleusuggo]

@TrippyTubeTV I have a stupid idea. Make sure that your stream is actually public. Make sure you have dragged to show to everybody ( green color )

[TrippyTubeTV]

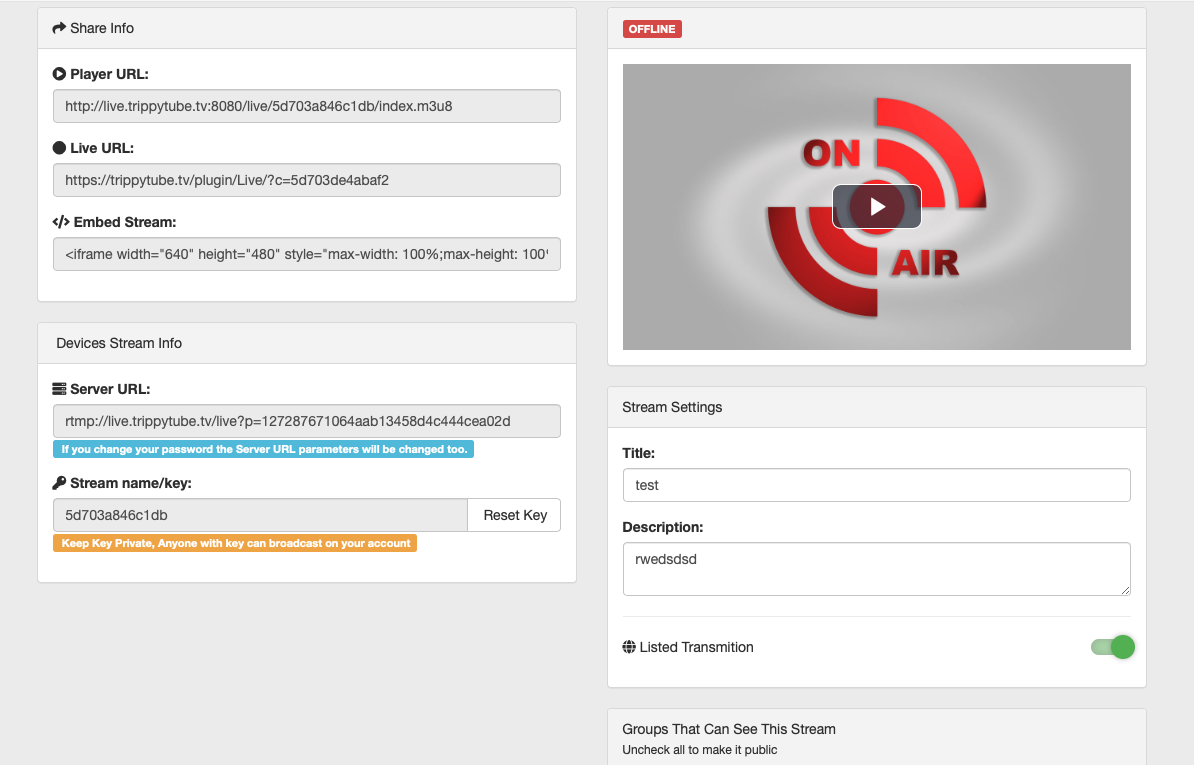

@akhilleusuggo Its a listed transmission unless I am missing something.

[TrippyTubeTV]

I am just surprised not more people are having this issue. I have done countless number of clean installs and the issue happens every time following the documentation perfectly. I have installed YouPHPTube in the past with no issues. This seems to be a new issue.

[akhilleusuggo]

@TrippyTubeTV Yes , maybe you're right . I'm also unhappy with the way I made it work , with non redirect https it's not what I want

[TrippyTubeTV]

@DanielnetoDotCom Any help would be appreciated.

[DanielnetoDotCom]

@TrippyTubeTV are you sure you checked the redirect for nginx?

make sure you do not have any redirect.

[DanielnetoDotCom]

Also it is a problem on nginx RTMP, you may find more help on https://github.com/arut/nginx-rtmp-module
