Audiokit: V5-Develop (pre-beta) swift package archive failure

[adamjsutcliffe]

I may be jumping the gun here as V5 isn't properly out, but 4.11.1 doesn't play any sound on my MidiSampler so I've updated my project to swift package pointing at https://github.com/AudioKit/AudioKit using version rule of branch v5-develop. Building to device and simulator works fine but when archiving the project a generic archive is produced along with a load of errors for unexpected characters:

error reading dependency file '/Users/adamsutcliffe/Library/Developer/Xcode/DerivedData/SpinnerTest-czsfrzkkpvctzcapjnypjtpizbck/Build/Intermediates.noindex/ArchiveIntermediates/SpinnerTest/IntermediateBuildFilesPath/AudioKit.build/Release-iphoneos/AudioKit.build/Objects-normal/arm64/AudioKit-master.d': unexpected character in prerequisites at position 6184335 (in target 'AudioKit' from project 'AudioKit')

I'm new to swift packages so not sure how to solve this issue, it seems like a colon just needs to be removed somewhere but I have no idea where!

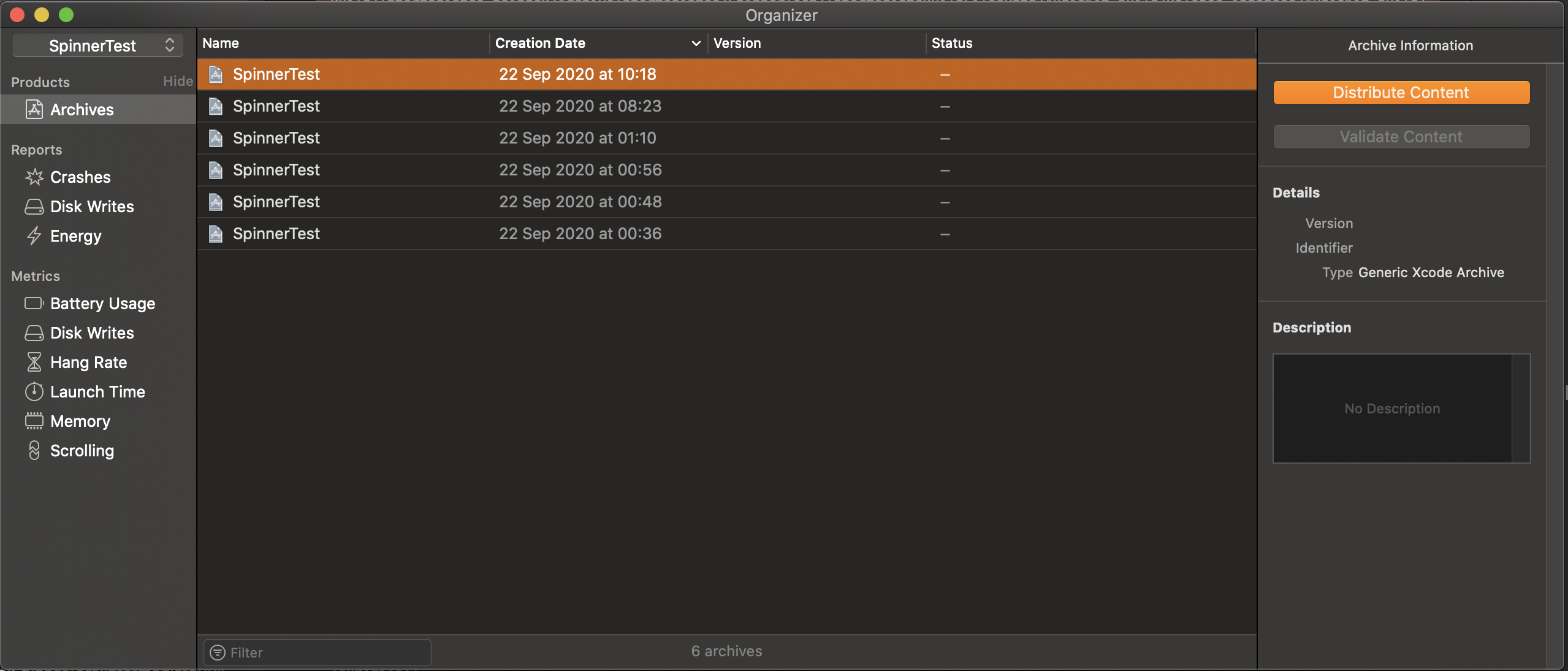

Screen shot of archive produced, no version number or ability to validate or upload to app store/test flight available

[adamjsutcliffe]

After digging a little deeper its entries like this in the dependency file that are causing the issue. AudioKit::MAINGROUP::REF_1::REF_90.bc

[aure]

FYI there's a fix in for AKMIDISampler https://github.com/AudioKit/AudioKit/pull/2281 but this looks to be important for v5 going forward.

[aure]

@adamjsutcliffe @megastep I've started a Github Project to manage requirements for AK5 release here https://github.com/AudioKit/AudioKit/projects/5.

This issue is on there.

[megastep]

I'm rather new to SPM myself too, but these are files generated by Xcode and I'd be inclined to blame it for it.

[aure]

Interestingly enough I got like 181 of those type of errors when archiving, but it still archived for me.

[Luftare]

Did it still archive it as Generic Xcode Archive? I tried all suggested approaches here without any luck: https://stackoverflow.com/a/57749091

[aure]

Actually on a second look, the archives that I thought I was creating were basically empty shell xcarchives, so this is definitely not working and has to be fixed before we can think about releasing AK5.

[gilhadas]

I'm having same issue archiving. is there any workaround ?

[aure]

I have submitted a Developer Technical Support with Apple.

[aure]

For completeness, the issues were that some file names were colliding with each other, Operations/Effects/korgLowPassFilter.swift vs. Nodes/Effects/KorgLowPassFilter.swift for example. Why Apple requires unique file names? I have no clue. Once I renamed the operations files this issue went away. what a pain it was to find this bug.
