Arduino: _yield panics adafruit gfx

[tablatronix]

Basic Infos

• [x] This issue complies with the issue POLICY doc.
• [x] I have read the documentation at readthedocs and the issue is not addressed there.
• [x] I have tested that the issue is present in current master branch (aka latest git).
• [x] I have searched the issue tracker for a similar issue.
• [x] If there is a stack dump, I have decoded it.
• [x] I have filled out all fields below.

Platform

• Hardware: NODEMCU v2
• Core Version: staging,stable,2.0.4
• Development Env: platformio
• Operating System: osx

Settings in IDE

• Module: nodemcuv2, standard build
• Flash Mode: [qio|dio|other]
• Flash Size: [4MB/1MB]
• lwip Variant: [v1.4|v2 Lower Memory|Higher Bandwidth]
• Reset Method: [ck|nodemcu]
• Flash Frequency: [40Mhz]
• CPU Frequency: [80Mhz|160MHz]
• Upload Using: [OTA|SERIAL]
• Upload Speed: [115200|other] (serial upload only)

Problem Description

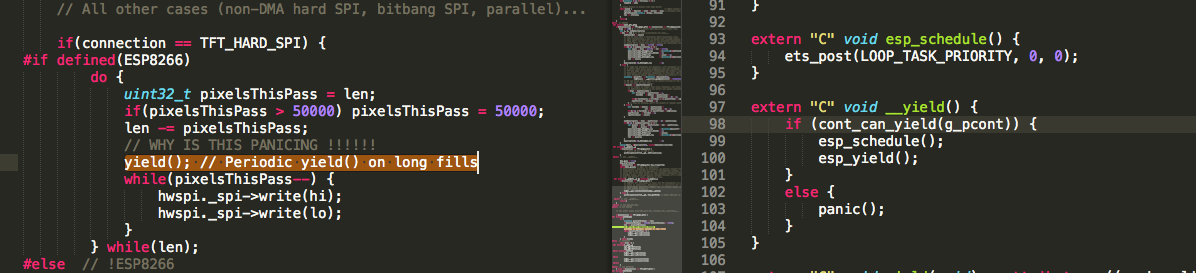

I am getting _yield panics, and cannot for the life of me figure out why

I do not have an MCVE yet, still trying to make one smaller...

Hope someone can help, not sure what this is doing

bool ICACHE_RAM_ATTR cont_can_yield(cont_t* cont) {
    return !ETS_INTR_WITHINISR() &&
           cont->pc_ret != 0 && cont->pc_yield == 0;
}

Afaik , this is not in an ISR

https://github.com/adafruit/Adafruit-GFX-Library/issues/236

[d-a-v]

@tablatronix Are you calling Adafruit_SPITFT::writeColor() from an ISR or a callback ?

[tablatronix]

Nope, afaik there is no isr or callbacks in this code at all

Exception Cause: Not found

0x40206d19: yield at ??:?
0x40208d00: Adafruit_SPITFT::writeColor(unsigned short, unsigned int) at ??:?
0x40209bcb: SPIClass::beginTransaction(SPISettings) at ??:?
0x40208e09: Adafruit_SPITFT::writeFillRectPreclipped(short, short, short, short, unsigned short) at ??:?
0x402090bd: Adafruit_SPITFT::fillRect(short, short, short, short, unsigned short) at ??:?
0x402060c5: Print::write(char const*) at ??:?
0x40209f11: Adafruit_GFX::fillScreen(unsigned short) at ??:?
0x4020326f: ShowMenu() at ??:?
0x40104ee8: ets_timer_arm_new at ??:?
0x402074bc: delay at ??:?
0x402074d2: delay at ??:?
0x40203773: setup at ??:?
0x40206cd0: loop_wrapper() at core_esp8266_main.cpp:?
0x401007d5: cont_wrapper at ??:?
0x401000c0: app_entry at ??:?
0x4010f000: ?? ??:0
0x4010f15c: ?? ??:0
0x4000044c: ?? ??:0
0x40000000: ?? ??:0
0x40000010: ?? ??:0
0x40000020: ?? ??:0
0x40000030: ?? ??:0
0x40000040: ?? ??:0

[tablatronix]

It does act strange though, as if there is, sometimes delays() do not work, and loop stops after one loop and I get hardware wdt, I am at a complete loss atm

What is ets_timer_arm_new ? I only see it in si2c.h but I am not using twi..

[d-a-v]

ets_timer_arm_new() is used by delay()

Any chance to see the code or having more details on when the gfx function is called ?

[tablatronix]

trying to make a reproducible sample

last thing is a display.println("something");
going to condense to static code and see what happens

is there a way to test ETS_INTR_WITHINISR in user code?

or what cont->pc_ret and pc_yield are ?

[d-a-v]

cont_can_yield() will tell

[devyte]

@tablatronix at least one stability issue that could be relevant has been fixed in the meantime. Is this issue still reproducible?

[tablatronix]

I can test again and close

[devyte]

ping

[tablatronix]

Will give it a spin soon

[devyte]

reping

[tablatronix]

Heh I have been trying to find the sketch I was using lol.

[devyte]

Ok, closing due to lack of feedback in several months.
