Apps-android-commons: Can't login into my Commons beta account

[Glitch101]

Summary:

From the last 24 hours, I have not been able to login to the commons app built from source using Android Studio. I cannot log in on the web either.

I read the past issues that signaled to me that this is probably a server problem. I just wanted to make sure that it's not at my end.

The app displays Login Failed. Unexpected response. on every login attempt. Even if I enter a random username and password, it does not display any username/password related error.

In every case, only Login Failed. Unexpected response. is being displayed.
Please note that non-beta account login i.e. commons production app is working fine.

System logs: Only relevant shown
2020-02-14 04:24:35.470 25241-25241/fr.free.nrw.commons.beta E/LoginActivity: java.io.IOException: Login failed. Unexpected response.
at org.wikipedia.login.LoginClient$2.onResponse(LoginClient.java:94)
at retrofit2.DefaultCallAdapterFactory$ExecutorCallbackCall$1.lambda$onResponse$0$DefaultCallAdapterFactory$ExecutorCallbackCall$1(DefaultCallAdapterFactory.java:81)
at retrofit2.-$$Lambda$DefaultCallAdapterFactory$ExecutorCallbackCall$1$3wC8FyV4pyjrzrYL5U0mlYiviZw.run(Unknown Source:6)
at android.os.Handler.handleCallback(Handler.java:873)
at android.os.Handler.dispatchMessage(Handler.java:99)
at android.os.Looper.loop(Looper.java:201)
at android.app.ActivityThread.main(ActivityThread.java:6810)
at java.lang.reflect.Method.invoke(Native Method)
at com.android.internal.os.RuntimeInit$MethodAndArgsCaller.run(RuntimeInit.java:547)
at com.android.internal.os.ZygoteInit.main(ZygoteInit.java:873)

Device and Android version:

Redmi Note 5 Pro Android Pie

Commons app version: 2.12.3-debug-master

Screen-shots:

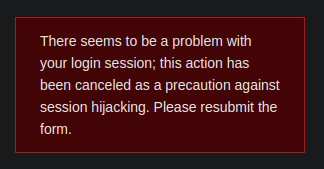

When trying to login or create a beta account on the web I get this message:

[maskaravivek]

@Glitch101 Can you enable BODY level logs in OkHttpConnectionFactory and check the response that you are receiving.

[nicolas-raoul]

I cannot log in on the web either.

That is probably the root problem. Near the login form I think you can find a way to contact an administrator to unblock you or check what is the problem.

[ashishkumar468]

I am having the same issue, can someone else verify if he is able to login (even via web app)?

[sivaraam]

As noted in a comment in my PR, this is a known issue that affects the Commons beta website.

Refer the following phabricator ticket for more information:
https://phabricator.wikimedia.org/T244951

[Glitch101]

@Glitch101 Can you enable BODY level logs in OkHttpConnectionFactory and check the response that you are receiving.

Yes, I did that and it seems it's related to cookies. I am getting an Invalid CSRF token.

{"errors":[{"code":"badtoken","text":"Invalid CSRF token.","module":"clientlogin"}]

Complete logs can be found in the file below
commons_logs.log

[Glitch101]

I am having the same issue, can someone else verify if he is able to login (even via web app)?

Hey @ashishkumar468, Did you managed to solve the issue? If yes then please share how you did it.

[Glitch101]

As noted in a comment in my PR, this is a known issue that affects the Commons beta website.

Refer the following phabricator ticket for more information:
https://phabricator.wikimedia.org/T244951

So, if I am getting this right, all I can do is wait to be able to login again in the app? Is there anything that I can do on my part to be able to login again. I need to test my fix of #3397.

[sivaraam]

So, if I am getting this right, all I can do is wait to be able to login again in the app?

Yeah. That's the case for the beta version of the app.

Is there anything that I can do on my part to be able to login again. I need to test my fix of #3397.

You can do the testing using the prod* flavours of the app. There aren't any issues with logging in to the prod servers.

[Glitch101]

@sivaraam Thanks for the tip. I will surely do that!

[TejaswiKarasani]

@sivaraam did you login to the app?

[Glitch101]

@TejaswiKarasani No luck till now. Still can't login or create a beta commons account on both the app and the website. I am completely locked out. It seems you are facing the same issue. Is that the case?

[TejaswiKarasani]

Yeah true!

[maskaravivek]

Yes, it seems the beta server is having issues. Please use the prod flavor of the app for testing.

[Glitch101]

@maskaravivek Stupid question maybe but can you tell us how can we build a production version in android studio. If I am correct, we can't build a production version(since the code isn't public) and hence can't really do any code changes. This is really confusing me. I just need to fix an issue in the source code and I can't do that on a production version.

[maskaravivek]

@Glitch101 Its okay to ask questions if something is not clear. :)

You can build the prod debuggable app. I have added the steps for building the app here:

https://github.com/commons-app/apps-android-commons/wiki/Quick-start-guide-for-Developers#building-the-source-code

Let me know if you still have any issues in building the app.

PS: In fact you can also build the prod release app using your own keys.

[sivaraam]

If I am correct, we can't build a production version(since the code isn't public) and hence can't really do any code changes.

What made you think that? :thinking:

This project is an open-source project and all code is available in this repository.

This is really confusing me. I just need to fix an issue in the source code and I can't do that on a production version.

Unless your fix is specific to the beta servers I don't see why you cannot verify any fix using the production server. In case you are confused about the terminology feel free to ask. We're here to clarify! 🙂

[Glitch101]

@Glitch101 Its okay to ask questions if something is not clear. :)

You can build the prod debuggable app. I have added the steps for building the app here:

https://github.com/commons-app/apps-android-commons/wiki/Quick-start-guide-for-Developers#building-the-source-code

Let me know if you still have any issues in building the app.

PS: In fact you can also build the prod release app using your own keys.

Just what I needed. Thanks @maskaravivek . You are awesome!

[TejaswiKarasani]

Thanks :)

On Wed, 19 Feb, 2020, 11:20 PM Aryan Tyagi, [e-mail]
wrote:

@Glitch101 https://github.com/Glitch101 Its okay to ask questions if
something is not clear. :)

You can build the prod debuggable app. I have added the steps for building
the app here:

https://github.com/commons-app/apps-android-commons/wiki/Quick-start-guide-for-Developers#building-the-source-code

Let me know if you still have any issues in building the app.

PS: In fact you can also build the prod release app using your own keys.

Just what I needed. Thanks @maskaravivek https://github.com/maskaravivek
. You are awesome!

—
You are receiving this because you were mentioned.
Reply to this email directly, view it on GitHub
https://github.com/commons-app/apps-android-commons/issues/3409?email_source=notifications&email_token=AK75QGFC65Q25EV2W6KI34LRDVWO5A5CNFSM4KU5CLE2YY3PNVWWK3TUL52HS4DFVREXG43VMVBW63LNMVXHJKTDN5WW2ZLOORPWSZGOEMIZBLY#issuecomment-588353711,
or unsubscribe
https://github.com/notifications/unsubscribe-auth/AK75QGGIYU3ONACOMRB3M23RDVWO5ANCNFSM4KU5CLEQ
.

[sivaraam]

@sivaraam did you login to the app?

As the others have mentioned, the issue still exists in the beta servers. Unfortunate indeed.

In case you're curious you can learn more about the issue and follow the progress of the resolution in the following phabricator ticket:

https://phabricator.wikimedia.org/T243123

[Glitch101]

What made you think that? thinking

I guess I was under the impression that some info might be added later to the prod version that cannot be displayed publically like some sensitive credentials, api keys etc. But, I guess I was wrong. Thanks for clarifying that:)

Unless your fix is specific to the _beta servers_ I don't see why you cannot verify any fix using the production server. In case you are confused about the terminology feel free to ask. We're here to clarify! slightly_smiling_face

Thanks @sivaraam . We appreciate that:)

[maskaravivek]

I guess I was under the impression that some info might be added later to the prod version that cannot be displayed publically like some sensitive credentials, api keys etc. But, I guess I was wrong. Thanks for clarifying that:)

Yes, the actual play store credentials are not part of the repo and only the project maintainers have access to it but as I mentioned in the wiki, you can use your own signing keys to build the release version of the app.

[Glitch101]

I guess I was under the impression that some info might be added later to the prod version that cannot be displayed publically like some sensitive credentials, api keys etc. But, I guess I was wrong. Thanks for clarifying that:)

Yes, the actual play store credentials are not part of the repo and only the project maintainers have access to it but as I mentioned in the wiki, you can use your own signing keys to build the release version of the app.

Understood. Thanks a lot.

[sivaraam]

I guess I was under the impression that some info might be added later to the prod version that cannot be displayed publically like some sensitive credentials, api keys etc. But, I guess I was wrong. Thanks for clarifying that:)

Yes, the actual play store credentials are not part of the repo and only the project maintainers have access to it but as I mentioned in the wiki, you can use your own signing keys to build the release version of the app.

I actually see some misunderstanding here. I'll just try to go into the different build variants in a little detail to see if everyone is on the right page.

There are 4 variants of the app that could be built from the combination of two build types:

• release
• debug

and two product flavours:

• prod
• beta

The four build variants:

• betaDebug: This version connects to the beta server and can be used for debugging the app during development.
• prodDebug: This version points to the production server and can also be used for debugging the app during development.
• betaRelease: This is the release version of the app which connects to the beta server. This cannot be used for debugging the app. You would have to sign this version of the app using your signing keys.
• prodRelease: This is the release version of the app which connects to the production server. This cannot be used for debugging the app. You would have to sign this version of the app using your signing keys.

To clarify, when I say debugging I don't mean it in the general sense. I actually mean the ability to use the debugger provided by Android studio.

Typically, the debug variants are sufficient to test changes you make to the app.

All this said, when I mentioned all source code is available in this repository I was trying to tell that the code required to build the prodDebug and betaDebug variants is available publicly. That would be sufficient to test your changes in the production and the beta servers.

As mentioned by @maskaravivek, the only thing which is not available publicly is the signing keys used to build the release variants of the app which are released to play store. As a contributor, you really doesn't have to worry about this as you can alternatively use different signing keys if you really want to build the release variants. I'm going to gloss over a fine point here to avoid confusion.

Hope this is helpful and I didn't confuse anyone more in the name of clarifying. 🙂 If you're confused, let me know. I'll try to clarify.

[TejaswiKarasani]

I guess I was under the impression that some info might be added later to the prod version that cannot be displayed publically like some sensitive credentials, api keys etc. But, I guess I was wrong. Thanks for clarifying that:)

Yes, the actual play store credentials are not part of the repo and only the project maintainers have access to it but as I mentioned in the wiki, you can use your own signing keys to build the release version of the app.

I actually see some misunderstanding here. I'll just try to go into the different build variants in a little detail to see if everyone is on the right page.

There are 4 variants of the app that could be built from the combination of two build types:

• release
• debug

and two product flavours:

• prod
• beta

The four build variants:

• betaDebug: This version connects to the beta server and can be used for debugging the app during development.
• prodDebug: This version points to the production server and can also be used for debugging the app during development.
• betaRelease: This is the release version of the app which connects to the beta server. This cannot be used for debugging the app. You would have to sign this version of the app using your signing keys.
• prodRelease: This is the release version of the app which connects to the production server. This cannot be used for debugging the app. You would have to sign this version of the app using your signing keys.

To clarify, when I say _debugging_ I don't mean it in the general sense. I actually mean the ability to use the debugger provided by Android studio.

_Typically_, the debug variants are sufficient to test changes you make to the app.

All this said, when I mentioned all source code is available in this repository I was trying to tell that the code required to build the prodDebug and betaDebug variants is available publicly. That would be sufficient to test your changes in the production and the beta servers.

As mentioned by @maskaravivek, the only thing which is not available publicly is the signing keys used to build the release variants of the app which are _released to play store_. As a contributor, you really doesn't have to worry about this as you can alternatively use different signing keys if you really want to build the release variants. I'm going to gloss over a fine point here to avoid confusion.

Hope this is helpful and I didn't confuse anyone more in the name of clarifying. If you're confused, let me know. I'll try to clarify.

Yup!! Thanks and reverted back to the prod debug though :)

[Glitch101]

Thanks, @sivaraam for the excellent explanation. It does clarify things.
Sharing the steps I used to switch build variants on Android Studio in case someone needs help.
Step 1: Go to Build on the toolbar.

Step 2: Click on Select Build Variant

Step 3: Select prodDebug from the list for prod flavor and build the app.

That's it. You are good to go. Run the app and you should be able to use the production servers.

[TejaswiKarasani]

Thanks, @sivaraam for the excellent explanation. It does clarify things.
Sharing the steps I used to switch build variants on Android Studio in case someone needs help.
Step 1: Go to Build on the toolbar.

Step 2: Click on Select Build Variant

Step 3: Select prodDebug from the list for prod flavor and build the app.

That's it. You are good to go. Run the app and you should be able to use the production servers.

Cool @Glitch101

[sivaraam]

Glad it was useful! 😄

You can build the prod debuggable app. I have added the steps for building the app here:

commons-app/apps-android-commons/wiki/Quick-start-guide-for-Developers#building-the-source-code

@maskaravivek On a related note, the link in the following text seems to be broken in the wiki page. Can you fix it?

You can also build and test the release variant for both beta and prod but you would need to use your own signing keys for it. Read up more about signing keys https://developer.android.com/studio/publish/app-signing.

[maskaravivek]

Thanks for the detailed explanation @sivaraam and @Glitch101. Do you mind if I copy-paste some of the content and images to our wiki?

[sivaraam]

Do you mind if I copy-paste some of the content and images to our wiki?

Not at all. Pray proceed. :slightly_smiling_face:

[Glitch101]

Do you mind if I copy-paste some of the content and images to our wiki?

Glad I could help @maskaravivek.
One more thing. If you are going to use those images in the wiki then I should tell you that the Build Variant option in Build menu can sometimes(quite often, actually) be inaccessible in Android Studio as shown in the image below:

This usually happens after I have already accessed the option from the Build menu. It could be a bug in the android studio although I am not sure about that.
This can confuse new contributors just like it did @TejaswiKarasani.
I found a better way to change the build variants without using the build dropdown menu. There is already a Build Variants option at the bottom of the left side panel of Android Studio and it always stays there. Hence a safer method.

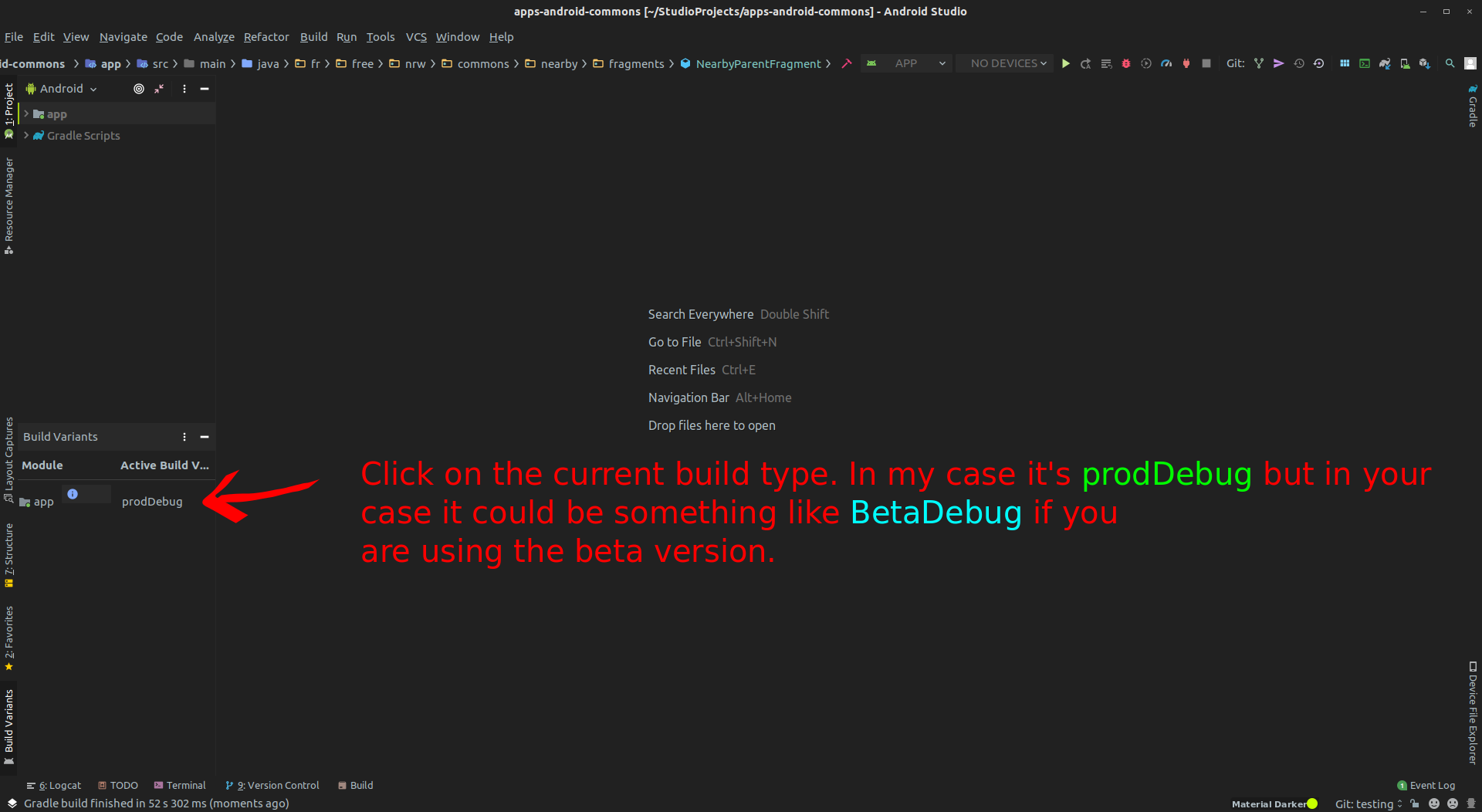

Here are the screenshots for the steps to do the same in case you decide to use them in the wiki. It could be posted along with the steps in my previous comment but that's for you to decide.

Step 1:

Step 2:

Step 3:

[sivaraam]

One more thing. If you are going to use those images in the wiki then I should tell you that the Build Variant option in Build menu can sometimes(quite often, actually) be inaccessible in Android Studio as shown in the image below:
...
This usually happens after I have already accessed the option from the Build menu. It could be a bug in the android studio although I am not sure about that.

IMO, there are better chances that the menu item is disabled for a valid reason rather than due to a bug in Android Studio. One not-so-straightforward reason could be found in the following SO answer: https://stackoverflow.com/a/49287726/5614968

Another possibility is that a build might've been in progress in which case Android Studio seems to disable menu. This one actually makes sense to me as allowing to change the build variant when a build is in progress could be confusing as it might not be obvious which variant of the app was built.

Just wanted to mention this.

[Glitch101]

IMO, there are better chances that the menu item is disabled for a valid reason rather than due to a bug in Android Studio. One not-so-straightforward reason could be found in the following SO answer: https://stackoverflow.com/a/49287726/5614968

That could be possible. Thanks, @sivaraam for the info.

Another possibility is that a build might've been in progress in which case Android Studio seems to disable menu

That did come to my mind before posting the comment but I checked it and the build variant option was still disabled when no build was in progress.

[sivaraam]

Just wanted to mention that the issue with logging into the Commons beta server has now been fixed!

[TejaswiKarasani]

Just wanted to mention that the issue with logging into the Commons beta server has now been fixed!

@sivaraam that's great!

[TejaswiKarasani]

@sivraam I couldn't able to do so :/

[sivaraam]

@TejaswiKarasani I am able to log-in to the _beta server_ using my _beta account_ via the _beta flavour of the app_. Anyways, we'll find the problem you're facing. Can you share the error message that you get when trying to log-in? A screenshot is fine too. If it says that your username and password is incorrect, it might be because you're trying to login to the beta server using the your production account. You need to create separate accounts for the beta and the production servers. You can sign up for a beta account in the following link:

https://commons.wikimedia.beta.wmflabs.org/w/index.php?title=Special:CreateAccount&returnto=Main+Page&campaign=loginCTA

If it's a different issue, we'll dig more to fix it 🙂

[TejaswiKarasani]

@sivaraam it worked, previously I was used same email to register for production and beta and now I tried registering different email. Thanks again :')

[sivaraam]

@sivaraam it worked,

Good thing it worked.

previously I was used same email to register for production and beta and now I tried registering different email.

IIUC, that shouldn't be an issue. Not sure why this was the case for you.

Thanks again :')

No problem 🙂

[sivaraam]

previously I was used same email to register for production and beta and now I tried registering different email.

IIUC, that shouldn't be an issue. Not sure why this was the case for you.

I just checked and I have the same e-mail in both the production and beta accounts. So, I presume you have faced some other issue 🙂

[TejaswiKarasani]

@sivaraam may be different usernames with same mail id?😅 Not sure if this might be the issue that we are searching for :p

[sivaraam]

Not sure if this might be the issue that we are searching for :p

Yeah, I just wanted to clarify that using the same e-mail address for the production and beta accounts shouldn't be an issue.

[maskaravivek]

Would someone like to update our documentation with details about build variants?

You can raise a PR in this repo:

https://github.com/commons-app/documentation

[Glitch101]

Would someone like to update our documentation with details about build variants?

You can raise a PR in this repo:

https://github.com/commons-app/documentation

Sure. I would be happy to do it. :smiley:

[macgills]

I would link to official docs as much as possible, they are less likely to get outdated than our docs

[maskaravivek]

Yes, I think we can also link the official docs in addition to our app specific instructions.

For a newcomer the official docs might be a bit daunting/confusing. The intent is to get any newcomer started with both beta/prod versions of the app quickly.

[Glitch101]

For a newcomer the official docs might be a bit daunting/confusing. The intent is to get any newcomer started with both beta/prod versions of the app quickly.

I agree. We can always share the official documentation link below our Wiki page of that topic. I will keep this in mind when I open a PR for this.

[sivaraam]

Yes, I think we can also link the official docs in addition to our app specific instructions.

Yeah, linking to the docs is good.

In case it wasn't noticed, I just wanted to mention that I've linked to some related official docs in my comment about the build flavors. 🙂

[sivaraam]

I believe this issue has served it's purpose now.
