Appium: error: opencv4nodejs module is required to use OpenCV features.

Created on 18 Dec 2018 · 54Comments · Source: appium/appium

The problem

I am trying to use appium image comparison and used the reference code
byte[] screenshot = Base64.encodeBase64(driver.getScreenshotAs(OutputType.BYTES));
OccurrenceMatchingResult result = driver
.findImageOccurrence(screenshot, partialImage, new OccurrenceMatchingOptions()
.withEnabledVisualization());
assertThat(result.getVisualization().length, is(greaterThan(0)));
assertNotNull(result.getRect());

I see the following error:
org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.

My project is in java and I am really not sure about performing npm i -g opencv4nodejs. Should I do npm i -g opencv4nodejs under the project root, though the project doest not have package.json

Environment

Appium version (or git revision) that exhibits the issue: 1.10
Last Appium version that did not exhibit the issue (if applicable):
Desktop OS/version used to run Appium: iOS 10.13.6
Node.js version (unless using Appium.app|exe):
Mobile platform/version under test:iOs
Real device or emulator/simulator:simulator
Appium CLI or Appium.app|exe:

Details

If necessary, describe the problem you have been experiencing in more detail.

org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.
Build info: version: '3.14.0', revision: 'aacccce0', time: '2018-08-02T20:19:58.91Z'
System info: host: 'ICF2008045', ip: 'fe80:0:0:0:46:b040:b1:8193%en0', os.name: 'Mac OS X', os.arch: 'x86_64', os.version: '10.13.6', java.version: '1.8.0_181'
Driver info: io.appium.java_client.ios.IOSDriver
Capabilities {app: /Users/sadla/Library/Develo..., autoWebview: true, automationName: XCUITest, browserName: , bundleId: com.icfi.energystarhome, databaseEnabled: false, deviceName: iPad Air 2, javascriptEnabled: true, locationContextEnabled: false, networkConnectionEnabled: false, platform: MAC, platformName: iOS, platformVersion: 11.1, takesScreenshot: true, udid: D4469918-75D5-4277-A205-808..., webStorageEnabled: false}
Session ID: 5ae7aa6a-3eb7-45a4-9458-c88296598bb7

NeedsInfo NotABug

Source

suswari

All 54 comments

Did you read the howto document from the error message above?

mykola-mokhnach on 18 Dec 2018

Yes sir, I did. I use a mac and I am unable to realize how to install opencv4nodejs. Can you please refer on the how to doc, what's exactly need to be done to install it.

suswari on 18 Dec 2018

How did you install appium?
npm i -g opencv4nodejs is one way to install it as described in the error message like Appium, npm i -g appium

KazuCocoa on 19 Dec 2018

Try to read https://docs.npmjs.com/ to know more about npm and NodeJS packaging system

mykola-mokhnach on 19 Dec 2018

@KazuCocoa, I used the command npm i -g opencv4nodejs quite many times and restarted the appium. I was getting the same error again and again. (error: opencv4nodejs module is required to use OpenCV features).
@mykola-mokhnach, Sure. Thanks

suswari on 19 Dec 2018

If you handle appium with package.json, you need to add opencv4nodejs into package.json.
(It is npm stuff)
Could you share your log when you run npm i -g opencv4nodejs? I wondered if you faced installing issue for the lib.

KazuCocoa on 19 Dec 2018

The same problem, does anyone fix it?

vkuhi on 21 Dec 2018

In general, this is npm(and PATH issue) thing in your environment.

If you manage your project with package.json, you can make sure if your managed project has opencv4nodejs as below. Then, appium installed in the project can find them.

$ npm list opencv4nodejs # no opencv4nodejs
your/project
└── (empty)
$ npm list opencv4nodejs # has opencv4nodejs
your/project
└── [email protected]

If you manage your Appium environment with -g command, below can call. Then, appium installed by -g option can find them.

$ npm list -g opencv4nodejs # no opencv4nodejs
/Users/kazuaki/.nodebrew/node/v11.4.0/lib
└── (empty)
$ npm list -g opencv4nodejs # has opencv4nodejs
/Users/kazuaki/.nodebrew/node/v10.11.0/lib
└── [email protected]

If you cannot find correct dependencies on your local, you probably make sure your node/npm environment in order node/npm can resolve their dependencies, first.

As mykola addressed in https://github.com/appium/appium/issues/11865#issuecomment-448498644 , I would recommend you to read npm documentation if you are using package.json stuff.

KazuCocoa on 21 Dec 2018

😕1 👍1

macmini550:~ vkuhi$ npm list opencv4nodejs
/Users/vkuhi
└── [email protected]

It is in the node_modules package, how can I get access to it from my java project?

vkuhi on 21 Dec 2018

If the node_modules is a global environment for npm, your node/npm command can find it by modules installed by -g option. You have installed Appium via -g option, your appium env can find it launching appium in your home directory, for example.

If your Java project manages appium by package.json, I would recommend you to read https://docs.npmjs.com/ .

KazuCocoa on 21 Dec 2018

I do not have any package.json in my Java project. How does the appium will know where this package located?

vkuhi on 21 Dec 2018

How does the appium will know where this package located?

it depends on npm/node. Appium depends on them to resolve dependencies.

KazuCocoa on 21 Dec 2018

@vkuhi Initially I ran appium desktop app. I later (after reading the suggestions from in here) realized that the appium I am running and opencv4nodejs i installed are not from the same package/node_modules. So the shutdown the appium desktop app and verfiied the version of global appium, which was 1.7.2. I upgraded it to 1.9. Now that both appium and opencv4nodejs come from same package or node_modules, starting the appium from there solved my issue.

Thanks @KazuCocoa and @mykola-mokhnach for your prompt help :-)

suswari on 21 Dec 2018

Ah... I see. Thanks.

I only explained about appium which is CLI tool. In desktop's case, that has its own package info. so, it can not find global opencv4nodejs.

I would link https://github.com/appium/appium-desktop/issues/714

KazuCocoa on 21 Dec 2018

I have same issue, node can't find opencv, working with win 10, any help will be appriciate.

Appium server:

I have already installed the opencv through npm,
When I run any driver.findByImage(“path.png”)
I get this error from appium server:

mime must be a string
[W3C] Encountered internal error running command: Error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install1 for more details on this topic.
[W3C] at initOpenCV (C:node_modulesappiumnode_modulesappium-supportlibimage-util.js:100:11)
[W3C] at Object.getImageOccurrence$ (C:node_modulesappiumnode_modulesappium-supportlibimage-util.js:420:3)
[W3C] at tryCatch (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:67:40)
[W3C] at GeneratorFunctionPrototype.invoke [as _invoke] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:315:22)
[W3C] at GeneratorFunctionPrototype.prototype.(anonymous function) [as next] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:100:21)
[W3C] at invoke (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:136:37)
[W3C] at enqueueResult (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:185:17)
[W3C] at new Promise ()
[W3C] at new F (C:node_modulesappiumnode_modulescore-jslibrarymodules$.export.js:30:36)
[W3C] at AsyncIterator.enqueue (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:184:12)
[W3C] at AsyncIterator.prototype.(anonymous function) [as next] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:100:21)
[W3C] at Object.runtime.async (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:209:12)
[W3C] at Object.getImageOccurrence (C:node_modulesappiumnode_modulesappium-supportbuildlibimage-util.js:632:30)
[W3C] at AndroidDriver.callee$0$0$ (C:node_modulesappiumnode_modulesappium-base-driverlibbasedrivercommandsimages.js:47:32)
[W3C] at tryCatch (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:67:40)
[W3C] at GeneratorFunctionPrototype.invoke [as _invoke] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:315:22)
[W3C] at GeneratorFunctionPrototype.prototype.(anonymous function) [as next] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:100:21)
[W3C] at invoke (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:136:37)
[W3C] at enqueueResult (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:185:17)
[W3C] at new Promise ()
[W3C] at new F (C:node_modulesappiumnode_modulescore-jslibrarymodules$.export.js:30:36)
[W3C] at AsyncIterator.enqueue (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:184:12)
[W3C] at AsyncIterator.prototype.(anonymous function) [as next] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:100:21)
[W3C] at Object.runtime.async (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:209:12)
[W3C] at AndroidDriver.callee$0$0 [as compareImages] (C:node_modulesappiumnode_modulesappium-base-driverbuildlibbasedrivercommandsimages.js:55:30)
[W3C] at AndroidDriver.condition$ (C:node_modulesappiumnode_modulesappium-base-driverlibbasedrivercommandsfind.js:111:26)
[W3C] at tryCatch (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:67:40)
[W3C] at GeneratorFunctionPrototype.invoke [as _invoke] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:315:22)
[W3C] at GeneratorFunctionPrototype.prototype.(anonymous function) [as next] (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:100:21)
[W3C] at GeneratorFunctionPrototype.invoke (C:node_modulesappiumnode_modulesbabel-runtimeregeneratorruntime.js:136:37)

I am mantion that I already use install opencv in various ways:
npm install --save opencv4nodejs
npm i -g opencv4nodejs

And also tried mannually, the appium doctor keep saying:
WARN AppiumDoctor :heavy_multiplication_x: opencv4nodejs cannot be found

But I got indication that the opencv is installed success when install from npm,
maybe Windows 10 path is wrong ? I add mannually all the pathes that I could,
I don’t know what else to do in order that the npm/Windows recognize the opencv and activate him.

eyalpartner on 28 Feb 2019

What result can you get with npm list -g opencv4nodejs?
Did you use appium CLI (not from appium-desktop), right? (because of https://github.com/appium/appium-desktop/issues/714 )

KazuCocoa on 1 Mar 2019

What result can you get with npm list -g opencv4nodejs?
Did you use appium CLI (not from appium-desktop), right? (because of appium/appium-desktop#714 )

That's the output:
C:UsersOSN20933AppDataRoamingnpm
`-- [email protected]

I am using appium server from java code, I am not using appium gui client desktop.

eyalpartner on 3 Mar 2019

thanks.
It appreciates if you could try https://github.com/appium/appium-support/pull/105

KazuCocoa on 3 Mar 2019

thanks.
It appreciates if you could try appium/appium-support#105

I enter there, But honestly I have no idea what to do according that post,
Can you direct me please ?
Thanks

eyalpartner on 3 Mar 2019

One is building Appium code. Another is waiting for the PR's release in beta

building Appium from code

Build Appium from code => https://appiumpro.com/editions/47
below commands:
``$ git clone [email protected]:appium/appium-support.git $ cd appium-support $ git checkout isaac-opencv $ npm install # copyappium-support/build/intoappium/node_modules/appium-support/build# move toappium`
# node . # then appium launches
````

Or just wait for the PR will release.
Then, you can install it as a beta like:

$ npm uninstall -g appium
$ npm install -g appium@beta

KazuCocoa on 3 Mar 2019

One is building Appium code. Another is waiting for the PR's release in beta

building Appium from code

Build Appium from code => https://appiumpro.com/editions/47

below commands:
$ git clone [email protected]:appium/appium-support.git $ cd appium-support $ git checkout isaac-opencv $ npm install # copy `appium-support/build/` into `appium/node_modules/appium-support/build` # move to `appium` # node . # then appium launches

Or just wait for the PR will release.
Then, you can install it as a beta like:
$ npm uninstall -g appium
$ npm install -g appium@beta

didn't help,
I have removed npm and node.js and appium from my pc,
Trying to install all from the begining, hope it may help....

eyalpartner on 3 Mar 2019

Nothing help so far....
I tried averything

eyalpartner on 3 Mar 2019

Update:
After remove node.js and npm and appium from pc, install all from the begining, it solve the error

eyalpartner on 3 Mar 2019

thanks. I guess node dependencies affected that...

KazuCocoa on 4 Mar 2019

I have install opencv4nodejs by npm install -g opencv4nodejs.
Run appium-doctor --ios, return opencv4nodejs is installed at: /usr/local/lib. Installed version is: 5.1.0
Start appium desktop and run the test, still return below error message:
An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.

How should I install the opencv4nodejs and anything need to be configured?

13817458995 on 17 Jul 2019

I could not find the solution for desktop https://github.com/appium/appium-desktop/issues/714

You can run appium CLI separately and connect to it from the desktop app via the custom server tab in the inspector.

KazuCocoa on 17 Jul 2019

I could not find the solution for desktop appium/appium-desktop#714

You can run appium CLI separately and connect to it from the desktop app via the custom server tab in the inspector.

How to run appium CLI separately and how to connect to desktop? Could you provide more details?

13817458995 on 17 Jul 2019

Launch Appium => http://appium.io/docs/en/about-appium/getting-started/#installing-appium
Connect to the server from custom server tab in https://github.com/appium/appium-desktop#the-new-session-window (You can open the window from the menu bar -> _Appium_ -> _New Session Window..._)

KazuCocoa on 17 Jul 2019

Launch Appium => http://appium.io/docs/en/about-appium/getting-started/#installing-appium
Connect to the server from custom server tab in https://github.com/appium/appium-desktop#the-new-session-window (You can open the window from the menu bar -> _Appium_ -> _New Session Window..._)

Do you mean to install appium by npm install -g appium?

13817458995 on 17 Jul 2019

yes

KazuCocoa on 17 Jul 2019

Thanks, it is sovled. but here click the image in the wrong place, below is the setting, could you please help to check what's wrong with the setting?
((HasSettings) driver.getAppiumDriver()).setSetting(Setting.IMAGE_MATCH_THRESHOLD, 0.2);
((HasSettings) driver.getAppiumDriver()).setSetting(Setting.IMAGE_ELEMENT_TAP_STRATEGY, "w3cActions");
((HasSettings) driver.getAppiumDriver()).setSetting(Setting.FIX_IMAGE_FIND_SCREENSHOT_DIMENSIONS, false);
((HasSettings) driver.getAppiumDriver()).setSetting(Setting.FIX_IMAGE_TEMPLATE_SIZE, true);
((HasSettings) driver.getAppiumDriver()).setSetting(Setting.CHECK_IMAGE_ELEMENT_STALENESS, false);
((HasSettings) driver.getAppiumDriver()).setSetting(Setting.UPDATE_IMAGE_ELEMENT_POSITION, true);

13817458995 on 18 Jul 2019

You can debug with https://github.com/appium/appium/blob/master/docs/en/advanced-concepts/image-elements.md#debug
You should tweak settings checking the selected place.
https://discuss.appium.io also help any questions.

KazuCocoa on 18 Jul 2019

Had the same problem.
running npm install -g appium after successful install opencv4nodejs solved it.

thanks!

nrlaiman on 9 Aug 2019

npm list -g opencv4nodejs

Hi @KazuCocoa ,

I have sucessfully installed opencv4nodejs and i can able to get the

$ npm list opencv4nodejs
/Users/XXXXXXXX
└── [email protected]

$ npm list -g opencv4nodejs
/usr/local/lib
└── [email protected]

but getting issue in appium 1.9.0 on identifying the image locators as
"org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic."

kindly plz help us
Thanx in advance

adityabhargav on 8 May 2020

Did you try out newer Appium versions?
I forgot which versions, but we added some improvements to import dependencies.

KazuCocoa on 8 May 2020

Did you try out newer Appium versions?
I forgot which versions, but we added some improvements to import dependencies.

yes @KazuCocoa
I've used versions as mentioned below...

Appium server version:- 1.9.0 (from CLI)
Appium Java Client:- 7.2
opencv4nodejs :- 5.5.0

adityabhargav on 9 May 2020

1.17.0 is the latest one. Could you try out with it again?

KazuCocoa on 9 May 2020

.Sure @KazuCocoa will try it and share the result ....

but as mentioned in bitbar's blog (https://bitbar.com/blog/how-to-use-appium-image-locator-for-finding-elements-and-image-recognition/)- "The Appium 1.9.0 release has brought us a new image locator strategy especially for image recognition, -image. Today’s we’ll look at how this new approach works."

But you have mentioned 1.17.0 version... just small doubt

adityabhargav on 9 May 2020

Hi @KazuCocoa
Tried with 1.17.0 ., but getting the issue as
"org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic."

adityabhargav on 9 May 2020

hm, thanks.
Btw, did you use Appium CLI? Then, Appium resolves the dependency as https://github.com/appium/appium-support/blob/392bcc5b99a5d31ce84b3992790059e45f65599f/lib/node.js#L38-L64
I thought you was able to get the dependency as require('opencv4nodejs') or require('/global/path/to/opencv4nodejs')

Appium Desktop has an issue to resolve the dependency.
https://github.com/appium/appium-desktop/issues/714

KazuCocoa on 9 May 2020

hm, thanks.
Btw, did you use Appium CLI? Then, Appium resolves the dependency as https://github.com/appium/appium-support/blob/392bcc5b99a5d31ce84b3992790059e45f65599f/lib/node.js#L38-L64
I thought you was able to get the dependency as require('opencv4nodejs') or require('/global/path/to/opencv4nodejs')

Appium Desktop has an issue to resolve the dependency.
appium/appium-desktop#714

Hi @KazuCocoa,

tried with CLI version of appium (1.17.1) and

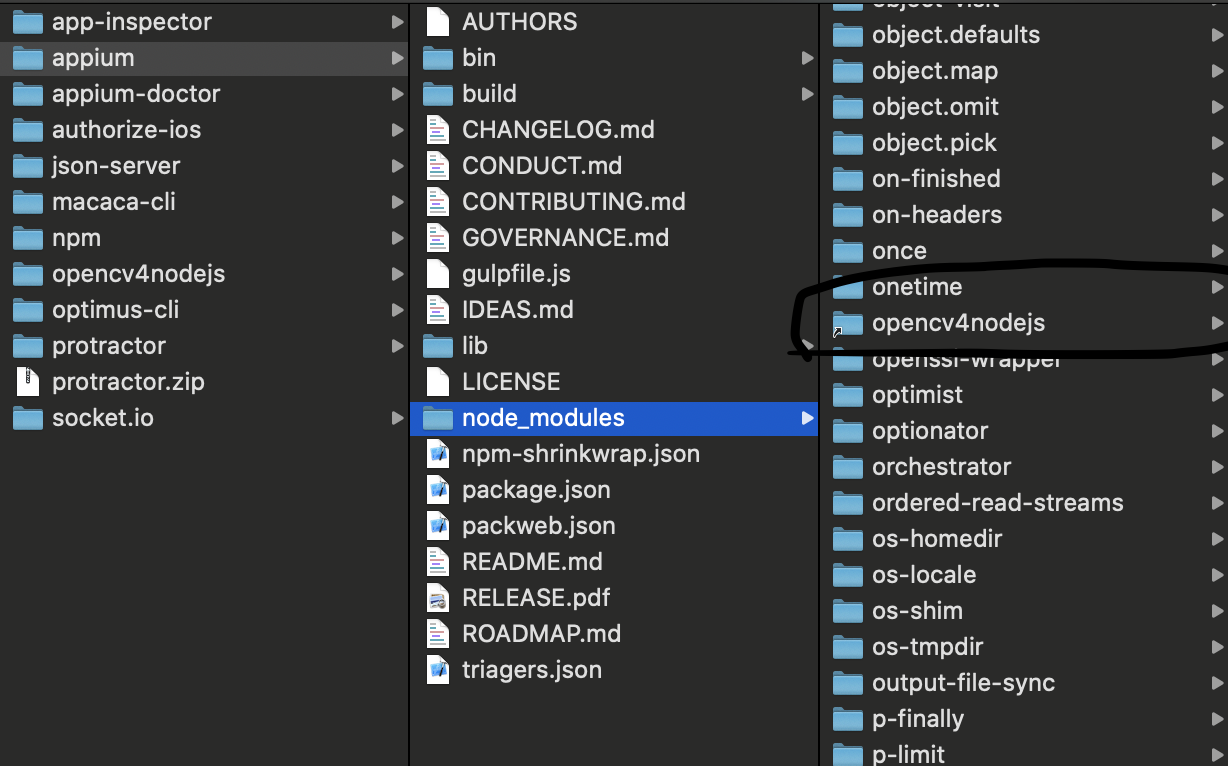

I'm able to view opencv4nodejs in my node modules

Also tried by linking the opencv4nodejs with appium nodemodules

but got same issue..

note:- Small Doubt, In which version image recognition by locator is introduced ... iis it by 1.7.0 or 1.9.0 ?

adityabhargav on 9 May 2020

Originally 1.9.0 https://github.com/appium/appium/blob/master/CHANGELOG.md#changes-in-version-190-from-181

Could you share the full log with debug log?
If error message in https://github.com/appium/appium-support/blob/392bcc5b99a5d31ce84b3992790059e45f65599f/lib/node.js#L38-L64 were there, maybe your node dependencies from appium has an issue..

KazuCocoa on 10 May 2020

Hi @KazuCocoa
Kindly go thorough the log below ,
---------------------------------------- Appium debug Log --------------------------------------

[HTTP] {"desiredCapabilities":{"app":"/Users/xxxxx.xxxxxx/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"XXXXXXXXX","appPackage":"","platformVersion":"8.1.0","platformName":"Android","udid":"FA6AX030000","deviceName":"pixel"},"capabilities":{"firstMatch":[{"appium:app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/XXXXX","appium:appActivity":"","appium:appPackage":"","appium:deviceName":"pixel","platformName":"android","appium:platformVersion":"8.1.0","appium:udid":"FA6AX030000"}]}}
[debug] [MJSONWP] Calling AppiumDriver.createSession() with args: [{"app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"","appPackage":"","platformVersion":"8.1.0","platformName":"Android","udid":"FA6AX030000","deviceName":"pixel"},null,{"firstMatch":[{"appium:app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appium:appActivity":"","appium:appPackage":"","appium:deviceName":"pixel","platformName":"android","appium:platformVersion":"8.1.0","appium:udid":"FA6AX030000"}]}]
[debug] [BaseDriver] Event 'newSessionRequested' logged at 1589097849872 (13:34:09 GMT+0530 (India Standard Time))
[Appium] Consider setting 'automationName' capability to 'UiAutomator2' on Android >= 6, since UIAutomator framework is not maintained anymore by the OS vendor.
[Appium] Creating new AndroidDriver (v3.7.0) session
[Appium] Capabilities:
[Appium] platformName: android
[Appium] app: /Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/
[Appium] appActivity: XXXXXXXXXXX
[Appium] appPackage: XXXXXXXXXXX
[Appium] deviceName: pixel
[Appium] platformVersion: 8.1.0
[Appium] udid: FA6AX030000
[debug] [BaseDriver] W3C capabilities {"alwaysMatch":{"platformNa... and MJSONWP desired capabilities {"app":"/Users/XXXXXXX... were provided
[debug] [BaseDriver] Creating session with W3C capabilities: {"alwaysMatch":{"platformNa...
[BaseDriver] Session created with session id: 778df378-ebae-4091-840c-600fde833fc1
[AndroidDriver] Java version is: 1.8.0_181
[ADB] Checking whether adb is present
[ADB] Found 6 'build-tools' folders under '/Users/XXXXXXXXXX/Library/Android/sdk' (newest first):
[ADB] /Users/XXXXXXXXX/Library/Android/sdk/build-tools/29.0.2
[ADB] /Users/XXXXXXXXX/Library/Android/sdk/build-tools/29.0.1
[ADB] /Users/XXXXXXX/Library/Android/sdk/build-tools/28.0.3
[ADB] /Users/XXXXXXXXX/Library/Android/sdk/build-tools/27.0.3
[ADB] /Users/XXXXXXXX/Library/Android/sdk/build-tools/26.0.1
[ADB] /Users/XXXXXXXXXX/Library/Android/sdk/build-tools/23.0.2
[ADB] Using adb from /Users/XXXXXXXXXX/Library/Android/sdk/platform-tools/adb
[AndroidDriver] Retrieving device list
[debug] [ADB] Trying to find a connected android device
[debug] [ADB] Getting connected devices...
[debug] [ADB] 1 device(s) connected
[AndroidDriver] Using device: FA6AX030000
[debug] [ADB] Setting device id to FA6AX030000
[debug] [ADB] Running '/Users/XXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell getprop ro.build.version.sdk'
[debug] [ADB] Current device property 'ro.build.version.sdk': 27
[debug] [ADB] Device API level: 27
[AndroidDriver] Consider setting 'automationName' capability to 'uiautomator2' on Android >= 6, since UIAutomator framework is not maintained anymore by the OS vendor.
[BaseDriver] Using local app '/Users/XXXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/'
[debug] [AndroidDriver] Checking whether app is actually present
[AndroidDriver] Starting Android session
[debug] [ADB] Running '/Users/XXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 wait-for-device'
[debug] [ADB] Running '/Users/XXXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell echo ping'
[debug] [AndroidDriver] Pushing settings apk to device...
[debug] [ADB] Getting install status for io.appium.settings
[debug] [ADB] Running '/Users/XXXXXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell pm list packages io.appium.settings'
[debug] [ADB] App is installed
[debug] [ADB] Getting package info for 'io.appium.settings'
[debug] [ADB] Running '/Users/XXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell dumpsys package io.appium.settings'
[ADB] Checking whether aapt is present
[ADB] Using aapt from /Users/XXXXXXXXXXX/Library/Android/sdk/build-tools/29.0.2/aapt
[debug] [ADB] The installed 'io.appium.settings' package does not require upgrade (26 > 5)
[debug] [ADB] Running '/Users/XXXXXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell ps'
[debug] [AndroidDriver] io.appium.settings is already running. There is no need to reset its permissions.
[debug] [ADB] Device API level: 27
[debug] [ADB] Running '/Users/XXXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell appops set io.appium.settings android:mock_location allow'
[AndroidDriver] setDeviceLanguageCountry requires language or country.
[AndroidDriver] Got language: 'null' and country: 'null'
[debug] [Logcat] Starting logcat capture
[debug] [AndroidDriver] Pushing unlock helper app to device...
[debug] [ADB] Getting install status for io.appium.unlock
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell pm list packages io.appium.unlock'
[debug] [ADB] App is installed
[debug] [ADB] Getting package info for 'io.appium.unlock'
[debug] [ADB] Running '/Users/XXXXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell dumpsys package io.appium.unlock'
[debug] [ADB] The installed 'io.appium.unlock' package does not require upgrade ('2.0.0' >= '2.0.0')
[ADB] Getting device platform version
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell getprop ro.build.version.release'
[debug] [ADB] Current device property 'ro.build.version.release': 8.1.0
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell wm size'
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell getprop ro.product.model'
[debug] [ADB] Current device property 'ro.product.model': Pixel
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell getprop ro.product.manufacturer'
[debug] [ADB] Current device property 'ro.product.manufacturer': Google
[debug] [ADB] Getting install status for
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell pm list packages '
[debug] [ADB] App is installed
[debug] [ADB] Getting install status for
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell pm list packages '
[debug] [ADB] App is installed
[debug] [ADB] Getting package info for ''
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell dumpsys package '
[debug] [ADB] The installed '' package does not require upgrade ('2020.4.0' >= '2020.4.0')
[AndroidDriver] Performing fast reset on ''
[debug] [ADB] Getting install status for
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell pm list packages '
[debug] [ADB] App is installed
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell am force-stop '
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell pm clear '
[debug] [AndroidDriver] Performed fast reset on the installed '' application (stop and clear)
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell rm -rf /data/local/tmp/strings.json'
[debug] [AndroidDriver] Extracting strings from apk
[debug] [AndroidDriver] /Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/
[debug] [AndroidDriver] null
[debug] [AndroidDriver] /var/folders/rx/9vwknwqs38z60nljn49b972n3n7gk_/T/
[debug] [ADB] Extracting strings for language: default
[ADB] Successfully extracted 113 strings from '/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/' resources for '(default)' configuration
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 push /var/folders/rx/9vwknwqs38z60nljn49b972n3n7gk_/T//strings.json /data/local/tmp'
[debug] [AndroidBootstrap] Watching for bootstrap disconnect
[debug] [ADB] Forwarding system: 4724 to device: 4724
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 forward tcp:4724 tcp:4724'
[debug] [UiAutomator] Starting UiAutomator
[debug] [UiAutomator] Moving to state 'starting'
[debug] [UiAutomator] Parsing uiautomator jar
[debug] [UiAutomator] Found jar name: 'AppiumBootstrap.jar'
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 push /usr/local/lib/node_modules/appium/node_modules/appium-android-bootstrap/bootstrap/bin/AppiumBootstrap.jar /data/local/tmp/'
[debug] [ADB] Attempting to kill all uiautomator processes
[debug] [ADB] Getting all processes with uiautomator
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell ps'
[ADB] No uiautomator process found to kill, continuing...
[debug] [UiAutomator] Starting UIAutomator
[debug] [ADB] Creating ADB subprocess with args: ["-P",5037,"-s","FA6AX030000","shell","uiautomator","runtest","AppiumBootstrap.jar","-c","io.appium.android.bootstrap.Bootstrap","-e","pkg","","-e","disableAndroidWatchers",false,"-e","acceptSslCerts",false]
[debug] [UiAutomator] Moving to state 'online'
[debug] [AndroidBootstrap] [BOOTSTRAP LOG] [debug] Registered crash watchers.
[AndroidBootstrap] Android bootstrap socket is now connected
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell dumpsys window'
[debug] [AndroidBootstrap] [BOOTSTRAP LOG] [debug] Client connected
[AndroidDriver] Screen already unlocked, doing nothing
[debug] [ADB] Device API level: 27
[debug] [ADB] Running '/Users/XXXXXXXXX/Library/Android/sdk/platform-tools/adb -P 5037 -s FA6AX030000 shell am start -W -n / -S -a android.intent.action.MAIN -c android.intent.category.LAUNCHER -f 0x10200000'
[Appium] New AndroidDriver session created successfully, session 778df378-ebae-4091-840c-600fde833fc1 added to master session list
[debug] [BaseDriver] Event 'newSessionStarted' logged at 1589097872232 (13:34:32 GMT+0530 (India Standard Time))
[debug] [W3C] Responding to client with driver.createSession() result: {"capabilities":{"platform":"LINUX","webStorageEnabled":false,"takesScreenshot":true,"javascriptEnabled":true,"databaseEnabled":false,"networkConnectionEnabled":true,"locationContextEnabled":false,"warnings":{},"desired":{"platformName":"android","app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"","appPackage":"","deviceName":"pixel","platformVersion":"8.1.0","udid":"FA6AX030000"},"platformName":"android","app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"","appPackage":"","deviceName":"FA6AX030000","platformVersion":"8.1.0","udid":"FA6AX030000","deviceUDID":"FA6AX030000","deviceScreenSize":"1080x1920","deviceModel":"Pixel","deviceManufacturer":"Google"}}
[HTTP] <-- POST /wd/hub/session 200 22367 ms - 963
[HTTP]
[HTTP] --> GET /wd/hub/session/778df378-ebae-4091-840c-600fde833fc1
[HTTP] {}
[debug] [W3C] Calling AppiumDriver.getSession() with args: ["778df378-ebae-4091-840c-600fde833fc1"]
[debug] [W3C] Responding to client with driver.getSession() result: {"platform":"LINUX","webStorageEnabled":false,"takesScreenshot":true,"javascriptEnabled":true,"databaseEnabled":false,"networkConnectionEnabled":true,"locationContextEnabled":false,"warnings":{},"desired":{"platformName":"android","app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"","appPackage":"","deviceName":"pixel","platformVersion":"8.1.0","udid":"FA6AX030000"},"platformName":"android","app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"","appPackage":"","deviceName":"FA6AX030000","platformVersion":"8.1.0","udid":"FA6AX030000","deviceUDID":"FA6AX030000","deviceScreenSize":"1080x1920","deviceModel":"Pixel","deviceManufacturer":"Google"}
[HTTP] <-- GET /wd/hub/session/778df378-ebae-4091-840c-600fde833fc1 200 10 ms - 895
[HTTP]
[HTTP] --> GET /wd/hub/session/778df378-ebae-4091-840c-600fde833fc1
[HTTP] {}
[debug] [W3C] Calling AppiumDriver.getSession() with args: ["778df378-ebae-4091-840c-600fde833fc1"]
[debug] [W3C] Responding to client with driver.getSession() result: {"platform":"LINUX","webStorageEnabled":false,"takesScreenshot":true,"javascriptEnabled":true,"databaseEnabled":false,"networkConnectionEnabled":true,"locationContextEnabled":false,"warnings":{},"desired":{"platformName":"android","app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"","appPackage":"","deviceName":"pixel","platformVersion":"8.1.0","udid":"FA6AX030000"},"platformName":"android","app":"/Users/XXXXXXXXX/Desktop/AppiumImgRec/src/main/resources/app/","appActivity":"XXXXXX","appPackage":"","deviceName":"FA6AX030000","platformVersion":"8.1.0","udid":"FA6AX030000","deviceUDID":"FA6AX030000","deviceScreenSize":"1080x1920","deviceModel":"Pixel","deviceManufacturer":"Google"}
[HTTP] <-- GET /wd/hub/session/778df378-ebae-4091-840c-600fde833fc1 200 2 ms - 895
[HTTP]
[HTTP] --> POST /wd/hub/session/778df378-ebae-4091-840c-600fde833fc1/element
[HTTP] {"using":"-image","value":"iVBORw0KGgoAAAANSUhEUgAAAkAAAABOCAYAAADID6lvAAAMXWlDQ1BJQ0MgUHJvZmlsZQAASImVVwdYU8kWnltSIbQAAlJCb6JIDSAlhBapUgVRCUkgoYSYEFTs6KKCaxdRsKGrIoquBZC1InYXxd4XRFSUddEVGypvQgK6+sr3zvfNzJ8zZ/5TMnPvHQA027gSSQ6qBUCuOF8aGxrIGJ+cwiA9BjjQA7qwN+TyZBJWTEwEgDI4/lPe3gSIYrzmpOD6cf6/ig5fIOMBgKRCnM6X8XIhPgEAXsSTSPMBIAZBveXUfIkCCyHWlcIAIZ6pwJlKvFyB05V424BNfCwb4gYAyOpcrjQTAI1mqGcU8DIhj8ZjiJ3FfJEYAE1diP14Qi4f4niIR+Tm5inwXIjtoL0E4p0QM9O/4cz8B3/6ED+XmzmElXkNCDlIJJPkcKf/n6X535KbIx/0YQObulAaFqvIH9bwdnZeuAKrQ9wtTo+KVtQa4vcivrLuAKBUoTwsQWmPGvNkbFg/oA+xM58bFA6xMcQh4pyoCJU+PUMUwoEY7hZ0miifE69au0ggC45TcVZK82KjB3GGlM1Sra3lSgf8Kuyb5dkJLBX/baGAM8j/plAYnwQxFQCMWiBKjIJYA2JdWXZcuNIGsygUsqMGbaTyWEX8VhAzBeLQQCU/lpohDYlV2UtyZYP5YsVCESdKhcvzhfFhyvpgu3jcgfgNIK4TiFkJgzwC2fiIwVz4gqBgZe5Yi0CcoMoXeyjJD4xVre2R5MSo7HGyICdUobeA2EhWEKdai4/Jh5tTyY9HSPJj4pVx4mlZ3LExynjwAhAB2CAIMIActnSQB7KAqKW7vhv+Us6EAC6QgkwgAE4qzeCKpIEZMezjQCH4EyIBkA2tCxyYFYACqP88pFX2TiBjYLZgYEU2eAJxLggHOfC3fGCVeMhbIngMNaIfvPNgrDmwKeZ+1LGgJkKlk
[debug] [W3C] Calling AppiumDriver.findElement() with args: ["-image","iVBORw0KGgoAAAANSUhEUgAAAkAAAABOCAYAAADID6lvAAAMXWlDQ1BJQ0MgUHJvZmlsZQAASImVVwdYU8kWnltSIbQAAlJCb6JIDSAlhBapUgVRCUkgoYSYEFTs6KKCaxdRsKGrIoquBZC1InYXxd4XRFSUddEVGypvQgK6+sr3zvfNzJ8zZ/5TMnPvHQA027gSSQ6qBUCuOF8aGxrIGJ+cwiA9BjjQA7qwN+TyZBJWTEwEgDI4/lPe3gSIYrzmpOD6cf6/ig5fIOMBgKRCnM6X8XIhPgEAXsSTSPMBIAZBveXUfIkCCyHWlcIAIZ6pwJlKvFyB05V424BNfCwb4gYAyOpcrjQTAI1mqGcU8DIhj8ZjiJ3FfJEYAE1diP14Qi4f4niIR+Tm5inwXIjtoL0E4p0QM9O/4cz8B3/6ED+XmzmElXkNCDlIJJPkcKf/n6X535KbIx/0YQObulAaFqvIH9bwdnZeuAKrQ9wtTo+KVtQa4vcivrLuAKBUoTwsQWmPGvNkbFg/oA+xM58bFA6xMcQh4pyoCJU+PUMUwoEY7hZ0miifE69au0ggC45TcVZK82KjB3GGlM1Sra3lSgf8Kuyb5dkJLBX/baGAM8j/plAYnwQxFQCMWiBKjIJYA2JdWXZcuNIGsygUsqMGbaTyWEX8VhAzBeLQQCU/lpohDYlV2UtyZYP5YsVCESdKhcvzhfFhyvpgu3jcgfgNIK4TiFkJgzwC2fiIwVz4gqBgZe5Yi0CcoMoXeyjJD4xVre2R5MSo7HGyICdUobeA2EhWEKdai4/Jh5tTyY9HSPJj4pVx4mlZ3LExynjwAhAB2CAIMIActnSQB7KAqKW7vhv+Us6EAC6QgkwgAE4qzeCKpIEZMezjQCH4EyIBkA2tCxyYFYACqP88pFX2TiBjYLZgYEU2eAJxLggHOfC3fGCVeMhbIngMNaIfvPNgrDmwKeZ+1LGgJkKlkQ/yMjQHLYnBxCBiGDGEaI8b4X64Dx4B+wDYXH...
[BaseDriver] Finding image element with match threshold 0.4
[debug] [AndroidBootstrap] Sending command to android: {"cmd":"action","action":"getDeviceSize","params":{}}
[debug] [AndroidBootstrap] [BOOTSTRAP LOG] [debug] Got data from client: {"cmd":"action","action":"getDeviceSize","params":{}}
[debug] [AndroidBootstrap] [BOOTSTRAP LOG] [debug] Got command of type ACTION
[debug] [AndroidBootstrap] [BOOTSTRAP LOG] [debug] Got command action: getDeviceSize
[debug] [AndroidBootstrap] Received command result from bootstrap
[debug] [BaseDriver] Waiting up to 0 ms for condition
[debug] [ADB] Device API level: 27
[debug] [AndroidBootstrap] [BOOTSTRAP LOG] [debug] Returning result: {"status":0,"value":{"height":1794,"width":1080}}
[BaseDriver] Verifying screenshot size and aspect ratio
[BaseDriver] When trying to find an element, determined that the screen aspect ratio and screenshot aspect ratio are different. Screen is 1080x1794 whereas screenshot is 1080x1920.
[BaseDriver] Resizing screenshot to 1155.8528428093646x1920 to match screen aspect ratio so that image element coordinates have a greater chance of being correct.
[BaseDriver] Scaling screenshot from 1155.8528428093646x1920 to match screen at 1080x1794
[W3C] Encountered internal error running command: Error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.
[W3C] at initOpenCV (/usr/local/lib/node_modules/appium/node_modules/appium-support/lib/image-util.js:100:11)
[W3C] at Object.getImageOccurrence$ (/usr/local/lib/node_modules/appium/node_modules/appium-support/lib/image-util.js:420:3)
[W3C] at tryCatch (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:67:40)
[W3C] at GeneratorFunctionPrototype.invoke [as _invoke] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:315:22)
[W3C] at GeneratorFunctionPrototype.prototype.(anonymous function) [as next] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:100:21)
[W3C] at invoke (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:136:37)
[W3C] at enqueueResult (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:185:17)
[W3C] at new Promise ()
[W3C] at new F (/usr/local/lib/node_modules/appium/node_modules/core-js/library/modules/$.export.js:30:36)
[W3C] at AsyncIterator.enqueue (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:184:12)
[W3C] at AsyncIterator.prototype.(anonymous function) [as next] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:100:21)
[W3C] at Object.runtime.async (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:209:12)
[W3C] at Object.getImageOccurrence (/usr/local/lib/node_modules/appium/node_modules/appium-support/build/lib/image-util.js:632:30)
[W3C] at AndroidDriver.callee$0$0$ (/usr/local/lib/node_modules/appium/node_modules/appium-base-driver/lib/basedriver/commands/images.js:47:32)
[W3C] at tryCatch (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:67:40)
[W3C] at GeneratorFunctionPrototype.invoke [as _invoke] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:315:22)
[W3C] at GeneratorFunctionPrototype.prototype.(anonymous function) [as next] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:100:21)
[W3C] at invoke (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:136:37)
[W3C] at enqueueResult (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:185:17)
[W3C] at new Promise ()
[W3C] at new F (/usr/local/lib/node_modules/appium/node_modules/core-js/library/modules/$.export.js:30:36)
[W3C] at AsyncIterator.enqueue (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:184:12)
[W3C] at AsyncIterator.prototype.(anonymous function) [as next] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:100:21)
[W3C] at Object.runtime.async (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:209:12)
[W3C] at AndroidDriver.callee$0$0 [as compareImages] (/usr/local/lib/node_modules/appium/node_modules/appium-base-driver/build/lib/basedriver/commands/images.js:55:30)
[W3C] at AndroidDriver.condition$ (/usr/local/lib/node_modules/appium/node_modules/appium-base-driver/lib/basedriver/commands/find.js:111:26)
[W3C] at tryCatch (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:67:40)
[W3C] at GeneratorFunctionPrototype.invoke [as _invoke] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:315:22)
[W3C] at GeneratorFunctionPrototype.prototype.(anonymous function) [as next] (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:100:21)
[W3C] at GeneratorFunctionPrototype.invoke (/usr/local/lib/node_modules/appium/node_modules/babel-runtime/regenerator/runtime.js:136:37)
[W3C] at process._tickCallback (internal/process/next_tick.js:68:7)
[HTTP] <-- POST /wd/hub/session/778df378-ebae-4091-840c-600fde833fc1/element 500 2320 ms - 1519
[HTTP]

Screenshot 2020-05-10 at 1 53 03 PM

In the above screenshot, In appium node modules, I've linked with the opencv4nodejs module as procedure... Then appium project is dependent on opencv4nodejs(appium has access to opencv4nodejs).

adityabhargav on 10 May 2020

In the above screenshot, In appium node modules, I've linked with the opencv4nodejs module as procedure... Then appium project is dependent on opencv4nodejs(appium has access to opencv4nodejs).

It is expected as npm general behaviour. npm tries to resolve the dependency by the local dependencies. So, you probably can resolve -g opencv4nodejs issue with Appium which is installed by -g option (and run the appium on no package.json place)

KazuCocoa on 10 May 2020

Hi @KazuCocoa ,

I have removed OpenCV,appium node modules and started with re-downloading the opencv4nodejs(from npm install -g opencv4node) and appium(v1.17.1) CLI globally.,

but again getting the issue as given below

Appium Logs:-

[debug] [Support] Initializing opencv
[debug] [Support] Loading local package 'opencv4nodejs'
[debug] [Support] Failed to load local package 'opencv4nodejs': dlopen(/usr/local/lib/node_modules/opencv4nodejs/build/Release/opencv4nodejs.node, 1): Library not loaded: /usr/local/opt/openssl/lib/libssl.1.0.0.dylib
[debug] [Support] Referenced from: /usr/local/opt/ffmpeg/lib/libavformat.58.dylib
[debug] [Support] Reason: image not found
[debug] [Support] Failed to load global package 'opencv4nodejs': The "path" argument must be of type string. Received type undefined
[debug] [Support] Linking package 'opencv4nodejs'
[debug] [Support] Retrying load of linked package 'opencv4nodejs'
[Support] Unable to load package 'opencv4nodejs': dlopen(/usr/local/lib/node_modules/opencv4nodejs/build/Release/opencv4nodejs.node, 1): Library not loaded: /usr/local/opt/openssl/lib/libssl.1.0.0.dylib
[Support] Referenced from: /usr/local/opt/ffmpeg/lib/libavformat.58.dylib
[Support] Reason: image not found
[Support] Unable to load 'opencv4nodejs': Unable to load package 'opencv4nodejs': dlopen(/usr/local/lib/node_modules/opencv4nodejs/build/Release/opencv4nodejs.node, 1): Library not loaded: /usr/local/opt/openssl/lib/libssl.1.0.0.dylib
[Support] Referenced from: /usr/local/opt/ffmpeg/lib/libavformat.58.dylib
[Support] Reason: image not found
[debug] [W3C (02d838a1)] Encountered internal error running command: Error: 'opencv4nodejs' module is required to use OpenCV features. Please install it first ('npm i -g opencv4nodejs') and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.
[debug] [W3C (02d838a1)] at initOpenCV (/usr/local/lib/node_modules/appium/node_modules/appium-support/lib/image-util.js:109:11)
[HTTP] <-- POST /wd/hub/session/02d838a1-d44b-4af2-8714-c1b46c1f4635/element 500 1663 ms - 961

issue in Java-Client:-

Exception in thread "main" org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: 'opencv4nodejs' module is required to use OpenCV features. Please install it first ('npm i -g opencv4nodejs') and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.

adityabhargav on 11 May 2020

Could you fix your installation issue? Your nodecv4nodejs module was not able to resolve libraries.

[debug] [Support] Loading local package 'opencv4nodejs'
[debug] [Support] Failed to load local package 'opencv4nodejs': dlopen(/usr/local/lib/node_modules/opencv4nodejs/build/Release/opencv4nodejs.node, 1): Library not loaded: /usr/local/opt/openssl/lib/libssl.1.0.0.dylib
[debug] [Support] Referenced from: /usr/local/opt/ffmpeg/lib/libavformat.58.dylib
[debug] [Support] Reason: image not found

KazuCocoa on 11 May 2020

@KazuCocoa ,
By appium-doctor,
found out that issue regarding the FFMPEG as given below,

{ Error: Command 'ffmpeg -version' exited with code null
at ChildProcess.proc.on.code (/usr/local/lib/node_modules/appium-doctor/node_modules/teen_process/lib/exec.js:113:19)
at ChildProcess.emit (events.js:198:13)
at maybeClose (internal/child_process.js:982:16)
at Process.ChildProcess._handle.onexit (internal/child_process.js:259:5)
stdout: '',
stderr:
'dyld: Library not loaded: /usr/local/opt/tesseract/lib/libtesseract.4.dylibn Referenced from: /usr/local/bin/ffmpegn Reason: image not foundn',
code: null }

is FFMPEG is required by OpenCV4nodejs?

do we need tessract lib. ? (Becoz i've removed it for issue in opencv4nodejs installation)

adityabhargav on 11 May 2020

Simply they required libtesseract.4.dylib

KazuCocoa on 11 May 2020

Hi @KazuCocoa

The issue got resolved and working fine, able to click on element by the image...

The issue seems to be with
1.FFMPEG
2.TESSERACT
3.OpenSSL
not installed before or not updated properly

after reinstalling got solved the issue

Thanx a lot for helping me... and sparing ur valuable time...

adityabhargav on 11 May 2020

@adityabhargav Can you please share your steps/commands in re-installing those 3 mentioned issues ?

By the way, my appium-doctor logs are below:
appium-doctor
Error: Package exports for '/Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/appium-doctor/node_modules/uuid' do not define a valid '.' target
at resolveExportsTarget (internal/modules/cjs/loader.js:545:13)
at applyExports (internal/modules/cjs/loader.js:459:14)
at resolveExports (internal/modules/cjs/loader.js:508:12)
at Function.Module._findPath (internal/modules/cjs/loader.js:577:20)
at Function.Module._resolveFilename (internal/modules/cjs/loader.js:879:27)
at Function.Module._load (internal/modules/cjs/loader.js:785:27)
at Module.require (internal/modules/cjs/loader.js:956:19)
at require (internal/modules/cjs/helpers.js:74:18)
at Object. (/Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/appium-doctor/node_modules/appium-support/lib/util.js:15:1)
at Module._compile (internal/modules/cjs/loader.js:1063:30)
at Object.Module._extensions..js (internal/modules/cjs/loader.js:1103:10)
at Module.load (internal/modules/cjs/loader.js:914:32)
at Function.Module._load (internal/modules/cjs/loader.js:822:14)
at Module.require (internal/modules/cjs/loader.js:956:19)
at require (internal/modules/cjs/helpers.js:74:18)
at Object. (/Users/sumanthvakacharla/.virtualenvs/VirtualEnv/lib/node_modules/appium-doctor/node_modules/appium-support/lib/fs.js:12:1)
(virtualEnv) svakacharla-mac:automation sumanthvakacharla$

Other info:
(virtualEnv) svakacharla-mac:automation sumanthvakacharla$ npm list -g opencv4nodejs
/Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib
└── [email protected]

@KazuCocoa
APPIUM LOGS:
BaseDriver] Verifying screenshot size and aspect ratio
[BaseDriver] Screenshot aspect ratio '0.5625' (1242x2208) matched screen aspect ratio '0.5625' (414x736)
[BaseDriver] Scaling screenshot from 1242x2208 to match screen at 414x736
[debug] [Support] Initializing opencv
[debug] [Support] Loading local package 'opencv4nodejs'
[debug] [Support] Failed to load local package 'opencv4nodejs': Cannot find module '/Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/opencv4nodejs/build/Release/opencv4nodejs'
[debug] [Support] Require stack:
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/opencv4nodejs/lib/cv.js
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/opencv4nodejs/lib/opencv4nodejs.js
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/appium/node_modules/appium-support/build/lib/node.js
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/appium/node_modules/appium-support/build/lib/image-util.js
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/appium/node_modules/appium-support/build/index.js
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/TvirtualEnv/lib/node_modules/appium/build/lib/logsink.js
[debug] [Support] - /Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/appium/build/lib/main.js
[debug] [Support] Loading global package '/Users/sumanthvakacharla/.virtualenvs/virtualEnv/lib/node_modules/opencv4nodejs'
[debug] [Support] Failed to load global package 'opencv4nodejs': Cannot find module '/Users/sumanthvakacharla/.virtualenvs/TvirtualEnv/lib/node_modules/opencv4nodejs/build/Release/opencv4nodejs'

sumanthvakacharla on 24 Jun 2020

Hi @sumanthvakacharla ,

above mentioned are node libs., and need to install w.r.t to the node_modules folder where opencv4nodejs is placed...

1.FFMPEG -- npm i ffmpeg
2.TESSERACT -- npm i tesseract
3.OpenSSL -- npm i openssl

adityabhargav on 28 Jun 2020

[debug] [35m[Support][39m Failed to load global package 'opencv4nodejs': The "path" argument must be of type string. Received undefined
[debug] [35m[Support][39m Linking package 'opencv4nodejs'
[debug] [35m[Support][39m Retrying load of linked package 'opencv4nodejs'
[35m[Support][39m Unable to load package 'opencv4nodejs': The specified module could not be found.

Still facing the issue on windows 10.
npm list -g --depth=0
+-- [email protected]
+-- [email protected]
+-- [email protected]

Any solution for this??

sajithgr on 4 Aug 2020

Update:
After remove node.js and npm and appium from pc, install all from the begining, it solve the error

Please explai in details how you solved this. Please?

sajithgr on 5 Aug 2020

The problem

I am trying to use appium image comparison and used the reference code
byte[] screenshot = Base64.encodeBase64(driver.getScreenshotAs(OutputType.BYTES));
OccurrenceMatchingResult result = driver
.findImageOccurrence(screenshot, partialImage, new OccurrenceMatchingOptions()
.withEnabledVisualization());
assertThat(result.getVisualization().length, is(greaterThan(0)));
assertNotNull(result.getRect());

I see the following error:
org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.

My project is in java and I am really not sure about performing npm i -g opencv4nodejs. Should I do npm i -g opencv4nodejs under the project root, though the project doest not have package.json

Environment

Appium version (or git revision) that exhibits the issue: 1.10

Last Appium version that did not exhibit the issue (if applicable):

Desktop OS/version used to run Appium: iOS 10.13.6

Node.js version (unless using Appium.app|exe):

Mobile platform/version under test:iOs

Real device or emulator/simulator:simulator

Appium CLI or Appium.app|exe:

Details

If necessary, describe the problem you have been experiencing in more detail.

org.openqa.selenium.WebDriverException: An unknown server-side error occurred while processing the command. Original error: opencv4nodejs module is required to use OpenCV features. Please install it first (npm i -g opencv4nodejs) and restart Appium. Read https://github.com/justadudewhohacks/opencv4nodejs#how-to-install for more details on this topic.
Build info: version: '3.14.0', revision: 'aacccce0', time: '2018-08-02T20:19:58.91Z'
System info: host: 'ICF2008045', ip: 'fe80:0:0:0:46:b040:b1:8193%en0', os.name: 'Mac OS X', os.arch: 'x86_64', os.version: '10.13.6', java.version: '1.8.0_181'
Driver info: io.appium.java_client.ios.IOSDriver
Capabilities {app: /Users/sadla/Library/Develo..., autoWebview: true, automationName: XCUITest, browserName: , bundleId: com.icfi.energystarhome, databaseEnabled: false, deviceName: iPad Air 2, javascriptEnabled: true, locationContextEnabled: false, networkConnectionEnabled: false, platform: MAC, platformName: iOS, platformVersion: 11.1, takesScreenshot: true, udid: D4469918-75D5-4277-A205-808..., webStorageEnabled: false}
Session ID: 5ae7aa6a-3eb7-45a4-9458-c88296598bb7
