Amplify-cli: How to debug amplify function using visual studio code during invocation?

[divyagowda]

* Which Category is your question related to? *
Amplify Function
* What AWS Services are you utilizing? *
Lambda, Api Gateway and dynamodb
* Provide additional details e.g. code snippets *
I am new amplify cli and I created a simple api path using amplify api category. The api setup created the function and dynamodb table in turn using the options I gave. I want to know is there a way I can debug the lambda function written locally through visual studio code? I am having tough time understanding the error it gives on cloud watch after I push the resources to cloud using amplify cli. Please suggest.

[kaustavghosh06]

@divyagowda You could maybe use the amplify function invoke <resoource-name> functionality?

[kstro21]

This is what works for me

lanch.json

{
 "version": "0.2.0",
  "configurations": [
    {
      "type": "node",
      "request": "launch",
      "name": "Launch my Lambda",
      "program": "${env:APPDATA}/npm/node_modules/@aws-amplify/cli/bin/amplify",
      "args": [
        "function",
        "invoke",
       // replace this with the name of your function
       // the folder in amplify/backend/function/
        "myamplifyfunction"
      ],
      "console": "integratedTerminal"
    }
  ]
}

Set a breakpoint, press F5, answer the questions in the _terminal_ and start debugging.

Notice: I'm in Windows with amplify installed globally using `npm install -g @aws-amplify/cli

[Nbazes]

@kstro21 tried your suggestion with no luck. The function runs but the breakpoint will not hit.

[kstro21]

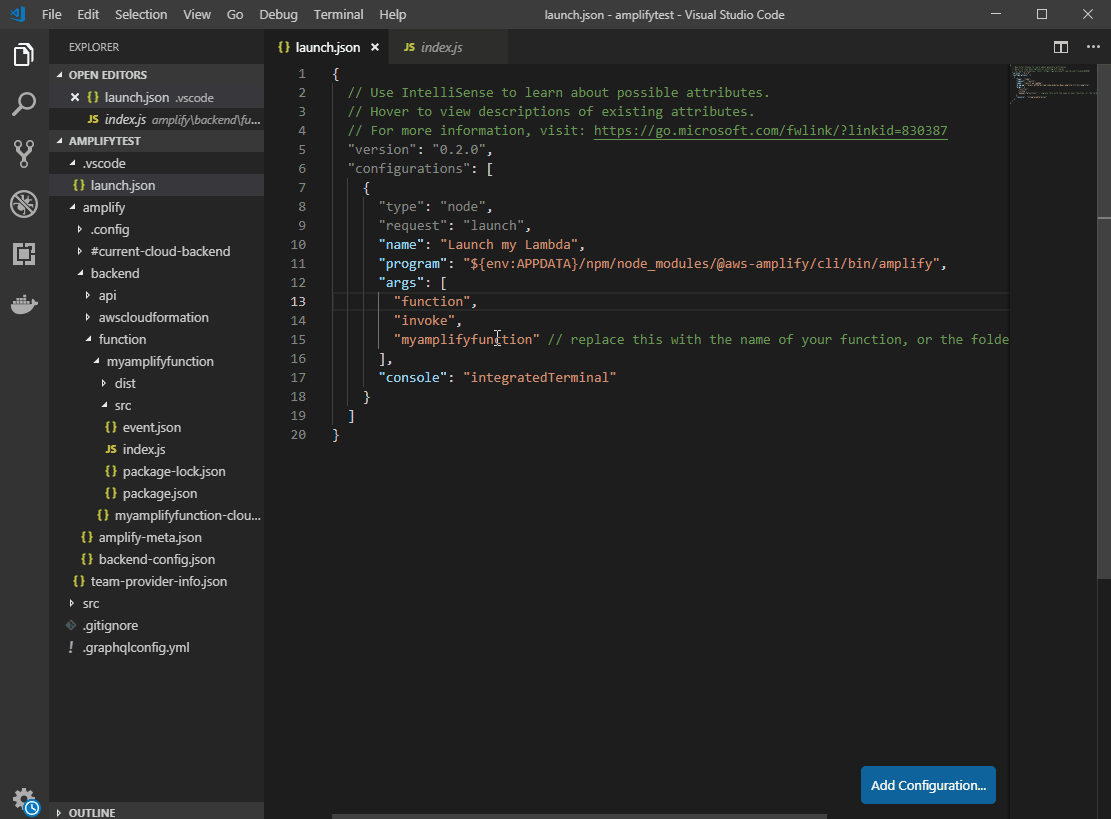

@Nbazes take a look at the gif, hope it helps.

[divyagowda]

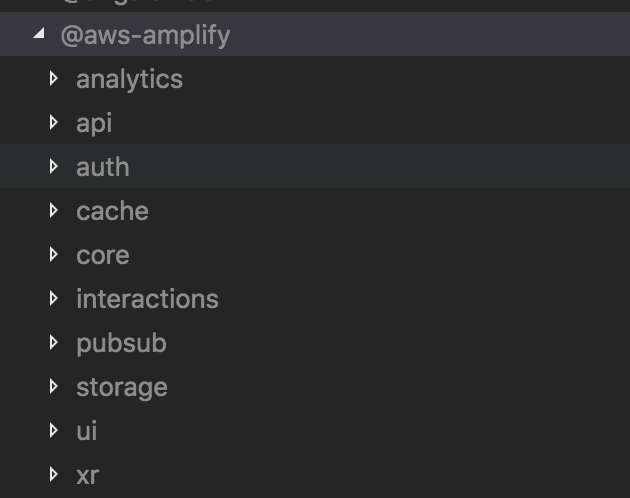

@kstro21 I have installed aws-amplify module locally and not globally. When I look through the node_modules aws-amplify package I don't see the file structure the way yo have.
There is no cli folder within @aws-amplify folder.

[kstro21]

@divyagowda aws-amplify is one package https://www.npmjs.com/package/aws-amplify the one you use as a dependency for your frontend and mobile applications, and @aws-amplify/cli is another https://www.npmjs.com/package/@aws-amplify/cli the one you use to generate the APIs, auth, GraphQL, Lambdas, etc.

The structure in the gif I posted is from one project generated using @aws-amplify/cli just to show how to debug a function generated using amplify function add.

You will need to install @aws-amplify/cli either locally or globally and in your launch.json set the value of "program" to the amplify script.

Globally in Windows, I don't know how it would be in Linux.

"program": "${env:APPDATA}/npm/node_modules/@aws-amplify/cli/bin/amplify",

Locally, I haven't tested.

"program": "${workspaceFolder}/node_modules/@aws-amplify/cli/bin/amplify",

Hope it helps

[ryanjones]

On a mac I ran which amplify in console and updated the program path to it and it works for me. IE:

{
  "version": "0.2.0",
   "configurations": [
     {
       "type": "node",
       "request": "launch",
       "name": "Launch my Lambda",
       "program": "/usr/local/bin/amplify",
       "args": [
         "function",
         "invoke",
        // replace this with the name of your function
        // the folder in amplify/backend/function/
         "LambdaNameHere"
       ],
       "console": "integratedTerminal"
     }
   ]
 }

Thx @kstro21

[divyagowda]

On a mac I ran which amplify in console and updated the program path to it and it works for me. IE:

{
  "version": "0.2.0",
   "configurations": [
     {
       "type": "node",
       "request": "launch",
       "name": "Launch my Lambda",
       "program": "/usr/local/bin/amplify",
       "args": [
         "function",
         "invoke",
        // replace this with the name of your function
        // the folder in amplify/backend/function/
         "LambdaNameHere"
       ],
       "console": "integratedTerminal"
     }
   ]
 }

Thx @kstro21

Thank you so much @ryanjones. I am able to debug now. I am on mac had trouble getting the path of the amplify executable.

[dtelaroli]

For me it works, but the breakpoint is ignored.

[emrahsaglik]

For me it works, but the breakpoint is ignored.

Same as me. It runs but doesn't hit breakpoints. Any suggestions?

[emrahsaglik]

I found a temporary solution.
The main reason behind this issue when the amplify forks a child process it runs the lambda but it doesn't carry the debug parameters into that forked process.

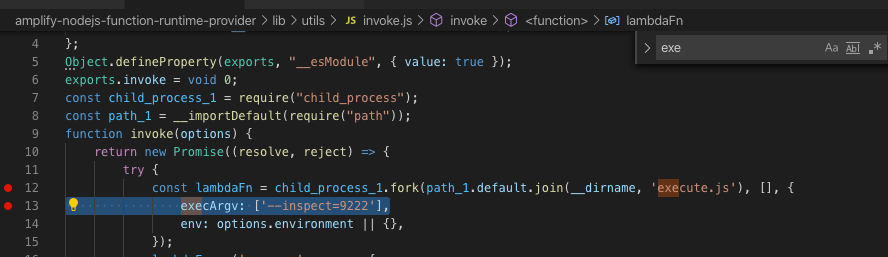

Under
/Users/username/.nvm/versions/node/v11.9.0/lib/node_modules/@aws-amplify/cli/node_modules/amplify-nodejs-function-runtime-provider

folder there is invoke.js which runs the Lambda Function. I added these update for running with debug parameters.

Then I listened that port under Google Chrome Node Debug. It worked. I can able to debug under Google Chrome

[dtelaroli]

I think we need open an issue or reopen this one.

[ninuxio]

hi guys for me (on a mac) amplify mock don't warn me if i have a missing requirement like aws-sdk for example :) try to add it
cd amplify/backend/function/YOUR_FUNCTION_NAME/src && npm i aws-sdk
