Altair: ENH: add a dark theme

[jakevdp]

740 added theme support along with a few basic themes (default, none, opaque)

It would be useful to add a dark theme: i.e. one with white axes and labels, that would play well with black backgrounds.

[kanitw]

These themes seem useful (esp. if someone makes a dark theme) -- so I wonder if it's worth putting these in Vega instead so all users of the Vega ecosystem can benefit from these options.

cc: @jheer @arvind @domoritz

[domoritz]

I like the idea of having a few predefined themes in Vega embed that people could choose from.

[afonit]

@jakevdp
Note - this looks ugly - I know that, just playing with colors and identifying parts of the chart.

I have been trying to put this through its paces to see if I can reach all the attributes.
When I do a faceted chart I can't seem to reach the:

• titles of the facets
• the right most grid line in the facets.

I looked through the vega-lite documentation and I have not yet come across an attribute to address it. I thought I would most likely find it here https://vega.github.io/vega-lite/docs/facet.html, I am also looking through the other pages for color attributes.

I also can't seem to reach the title's color, I tried putting it both at the top level config, then tried to do it following the hierarchy noted here: https://vega.github.io/vega-lite/docs/title.html#config

Finally, there is some crazy aliasing going on with the grids. I had noticed this before, but it really stands out on a dark theme. You can see it in the red vertical grid lines.

See here where I have highlighted some of these:

import altair as alt
import pandas as pd
alt.theme.register('dark_enhanced',
                   {'config':
                    {'title': {'color': 'orange'}, #NOT WORKING
                    'axis': {'titleColor': 'orange', #axis titles
                             'domainColor': 'green', #domain color colors the bar on axis labels
                             'gridColor': 'red', #grid color is most of the grid except the right hand side
                             'labelColor': 'orange', #text labels of the axes
                             'tickColor': 'yellow'} #tick marks
                   }}
                  )
alt.theme.enable('dark_enhanced')

from vega_datasets import data

source = data.movies.url

chart = alt.Chart(source).mark_point().encode(
    x='Worldwide_Gross:Q',
    y='US_DVD_Sales:Q',
    column='MPAA_Rating:N'
)
chart

[jakevdp]

Thanks for looking into this... Maybe one of the Vega-Lite folks can weigh-in.

[jakevdp]

Note that alt.theme has been renamed to alt.themes.

[domoritz]

We have created a vega-themes repo with some themes for Vega and Vega-Lite and I think it would be nice to use the same themes in Altair. We can extend the themes offered in vega-themes. Check it out at https://github.com/vega/vega-themes.

I just sent a PR with some updates and a dark theme: https://github.com/vega/vega-themes/pull/2.

[domoritz]

Here is a start of a dark theme: https://github.com/vega/vega-themes/pull/2#issuecomment-381329700. If someone could improve the default data colors, that would be awesome. Feel free to send a PR for my branch.

[domoritz]

Vega Themes now includes a dark theme. I think it would be best to support all themes from Vega Themes. Ideally, Altair would only set the theme on the embed config and Vega-Embed takes care of applying the right theme (https://github.com/vega/vega-embed/issues/69).

[jakevdp]

I think in Altair we can support two kinds of themes: named themes that match those in Vega Themes, or custom themes defined within Python.

[jakevdp]

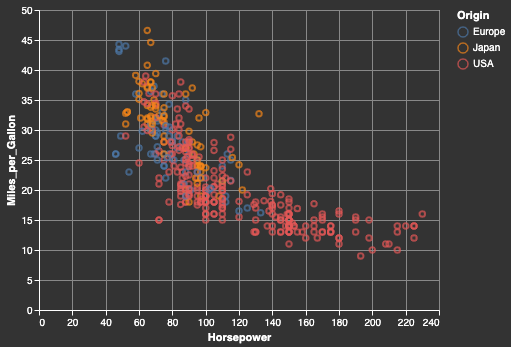

We can now use the dark theme from vega-themes:

import altair as alt
from vega_datasets import data
cars = data.cars()

alt.renderers.set_embed_options(theme='dark')

alt.Chart(cars).mark_point().encode(
  x='Horsepower',
  y='Miles_per_Gallon',
  color='Origin'
).interactive()
