Al: Can't visualize an image in control addin

[DavideVD]

I have some issues about images in control addins. I tried many combinations but the system always draws an empty image or the alternative message.
Al Code

controladdin TestAddIn
{   Scripts = 'jquery-1.8.2.min.js', 'Core.js';
    StartupScript = 'Ready_Load.js'; //questo script è obbligatorio
    Images = 'Images/test.jpg';

    HorizontalStretch =true;
    RequestedWidth = 1280;
    RequestedHeight = 1700;
    event ControlReady();
    event ControlEvent(ReturnedData: JsonObject);
}

page 50103 IST_Image
{   CaptionML =ENU= 'Test';
    layout
    {
        area(Content)
        {
            group( test)
            {
              usercontrol(ControlName; TestAddIn)
            {
                ApplicationArea = All;
                trigger ControlReady()
                var

                begin
                    Message('NAV Addin Loaded');

              }
            }
          }
    }

}

About the scripts:
Ready_Load.js

var page;
var navControlContainer;
$(document).ready(function () {

      document.oncontextmenu = function () { // Use document as opposed to window for IE8 compatibility
          return false;
      };

        navControlContainer = $("#controlAddIn");


       page = $('<img id="mypic" src="Images/test.jpg" height="500" width="750" >'+
               ' <button type="button">Click Me!</button> '


    );
      navControlContainer.append(page);

    Microsoft.Dynamics.NAV.InvokeExtensibilityMethod('ControlReady', []);

 });

Core.js is empty (just for testing purpose) and query-1.8.2.min.js is a standard library

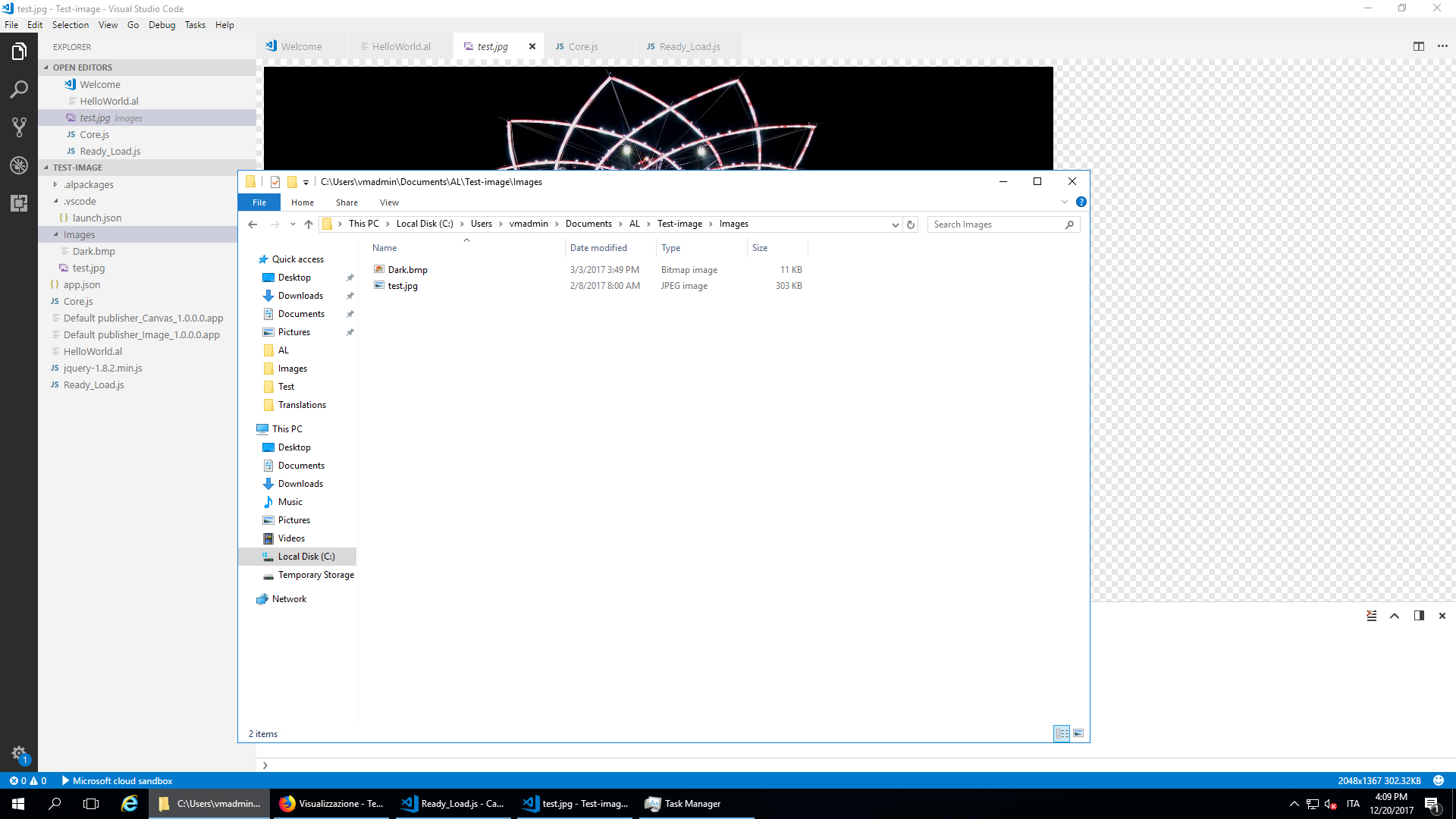

About folders, this is a pic of the project and its folders

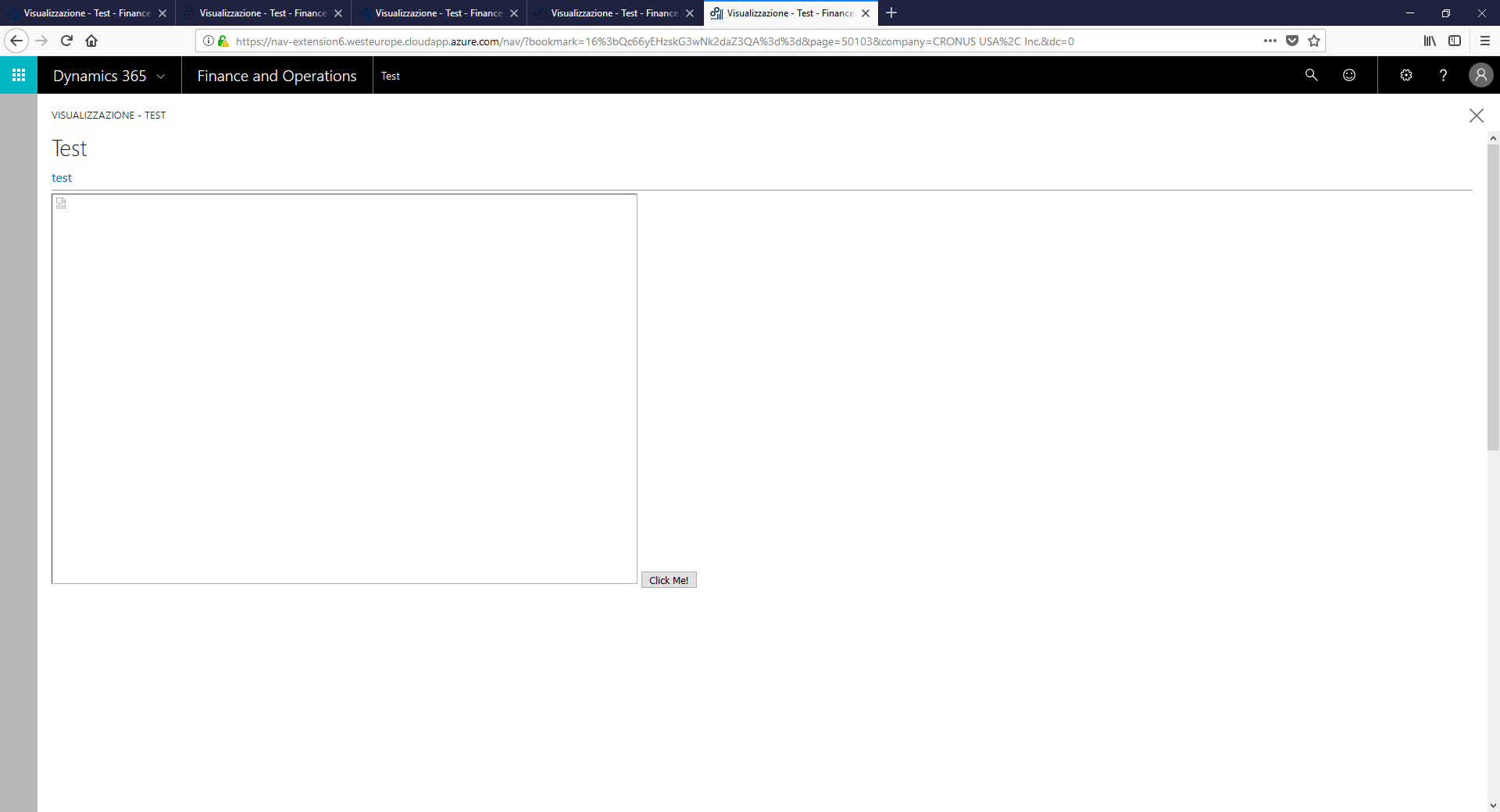

As you can see the "test" image is in the Images subfolder. I tried to move it in the main folders, change / and \ but with no effects. This is the result:

Any hint is appreciated. Thanks

[johndcollins]

If you inspect the element in the browser (F10) what does the link look like?

[DavideVD]

thanks John. I tried, but the browser said me "can't find the image"

[Gallimathias]

The problem is the event

document. ready is fired after all HTML documents are loaded.
window. onload is fired after loading the complete content (e. g. pictures, css ....).

Your code will be executed after the html document has been loaded, but not all images will be loaded.

change your script to:

JS window.onload(function () {

[thpeder]

In order to get the url of the image you need to use the following function in your javascript:
Microsoft.Dynamics.NAV.GetImageResource('Images/test.jpg');

[DavideVD]

thanks thpeder. It was the problem...and the solution.

Just for global knowledge: the initial code in the startup script works (also the event document.ready, code block #2) if I change src='test.jpg' with

src='+Microsoft.Dynamics.NAV.GetImageResource('Images/test.jpg')+

[Kungitoo]

This issue seems to be resolved so I will close it
